Test frequency

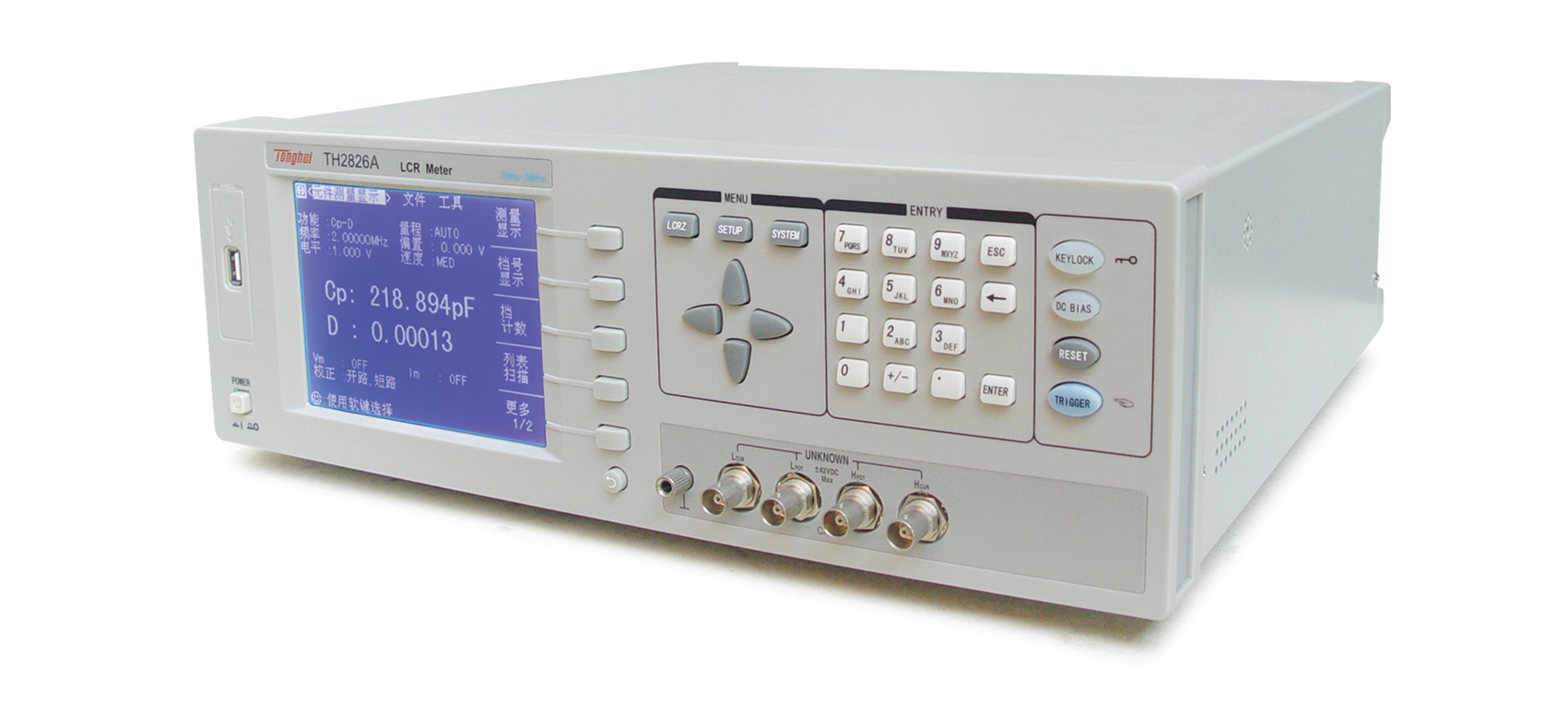

TH2826A

20 Hz ~ 2MHz,10mHz step

Test signal level

f ≤1MHz

10mV ～5V,±（10%+10mV）

f>1MHz

10mV ～1V,±（20%+10mV)

Output impedance

10 Ω, 30Ω, 50Ω, 100Ω

Basic accuracy

0.1%

Disy range

L

0.0001 uH ～ 9.9999kH

C

0.0001 pF ～ 9.9999F

R,X,Z,DCR

0.0001 Ω～ 99.999 MΩ

Y, B, G

0.0001 nS ～ 99.999 S

D

0.0001 ～ 9.9999

Q

0.0001 ～ 99999

θ

-179.99 °～ 179.99°

Measure the speed of

Fast: 200 times /s (f>30kHz),100 times /s (f>1kHz) Medium speed: 25 times /s, slow speed: 5 times /s

Calibration function

Open/short circuit point frequency, sweep frequency clearing, load calibration

Equivalent mode

Series mode, parallel mode

Range mode

Automatic, keep

Disy mode

Direct reading, Δ, Δpercent

Trigger mode

Internal, manual, external, Bus

Internal DC bias

Voltage mode

-5V ~ 5V, ±(10percent 10mV), 1mV step

Source

Current mode (internal resistance: 50Ω)

-100mA ~ 100mA, ±(10percent 0.2mA),20uA step

Comparator function

10 File sorting and counting function

The monitor

320 ×240 lattice graphic LCD disy

Memory

Can save 20 sets of instrument values

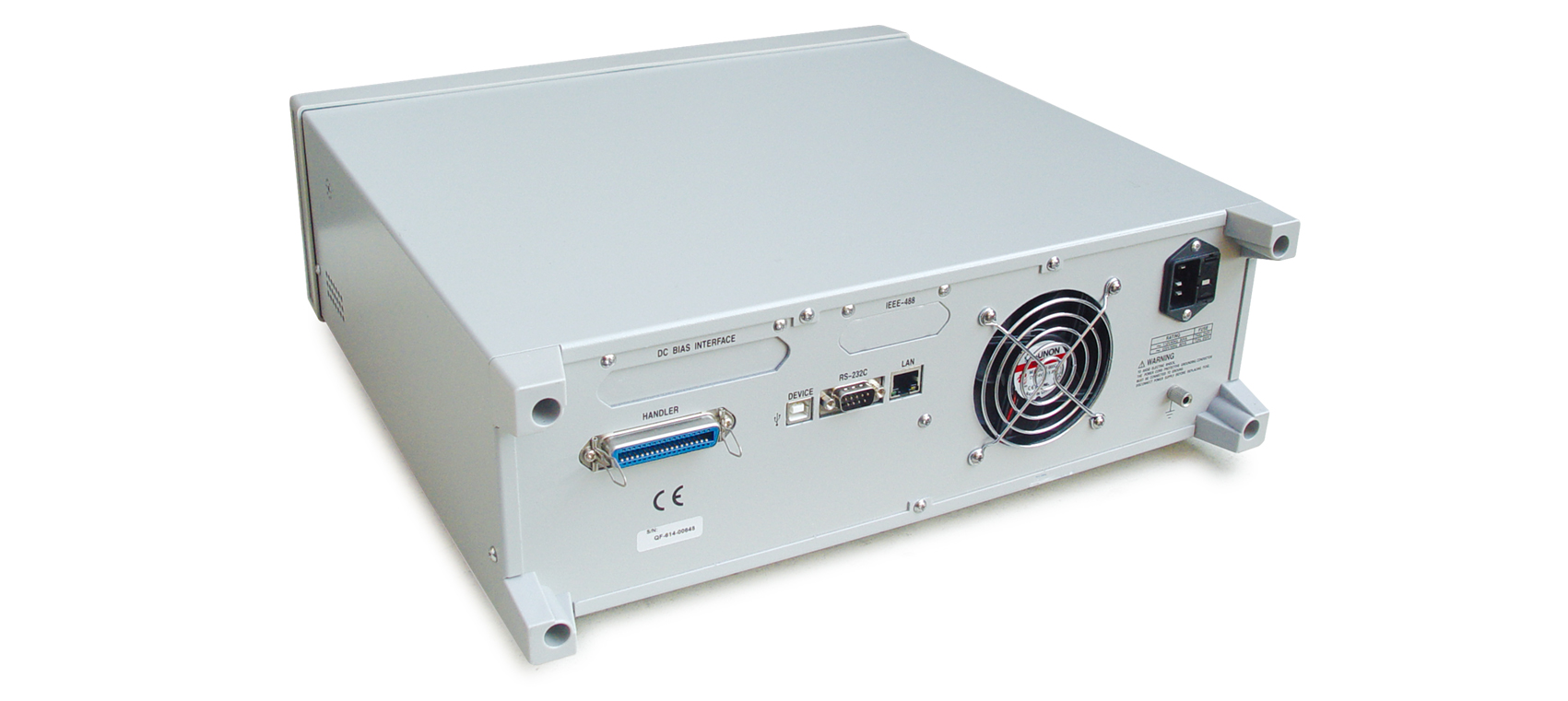

Interface

USB DEVICE( USBTMC and USBCDC support)

USB HOST(FAT16 and FAT32 support)

LAN(LXI class C support)

RS232C

HANDLER

GPIB (Optional)
