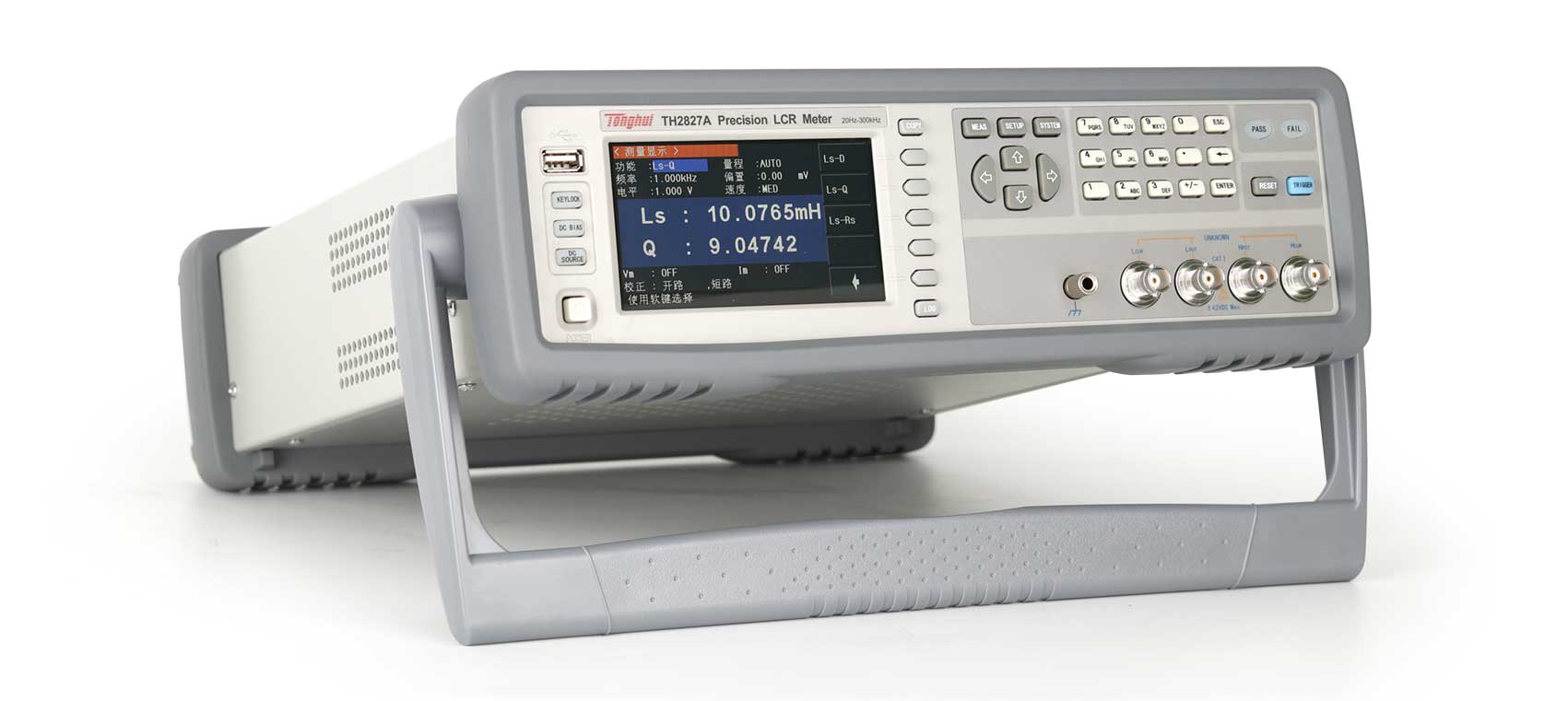

The monitor

4.3 TFT LCD The monitor 480 × 272

Test signal

Frequency

20Hz - 300kHz 20Hz - 1MHz

Minimum resolution

10mHz , 4 位Frequency输入

Accuracy

0.01%

AC Level

Test signalVoltage范围

5mV - 2Vrms

VoltageMinimum resolution

100μV , 3 Bit input

AccuracyTest signal

ALC ON

10% x Set voltage + 2mV

ALC OFF

6% x Set voltage + 2mV

Current range

100μA - 20mA

电流Minimum resolution

1μA , 3 Bit input

Accuracy

ALC ON

10% x Set the current + 20μA

ALC OFF

6% x Set voltage + 20μA

DC Bias voltage source

Voltage / Current range

0V - ± 5V / 0mA - ± 50mA

Resolution

0.5mV / 5μA

VoltageAccuracy

1% x Set voltage + 5mV

ISO ON

Used for inductance, transformer plus bias test

AC Internal resistance of source

ISO ON

100Ω

ISO OFF

30Ω 、 50Ω 、 100Ω Optional

DCR Internal resistance of source

30Ω 、 50Ω 、 100Ω Optional

LCR Test parameters

|Z| 、 |Y| 、 C 、 L 、 X 、 B 、 R 、 G 、 D 、 Q 、 θ 、 DCR 、 V DC 、 I DC

Test page parameter disy

A set of primary and secondary parameters; 10 Dot list scan

变压器Test parameters

L1 Primary inductor, L2 Secondary inductance, DCR1( Primary, 2 End ), DCR2 (Secondary, 2 End）, M (mutual feeling), N , 1/N

基本测量Accuracy

LCR Test parameters

0.05%

Calibration condition

Preheating time: ≥30 Minutes; Ambient temperature: 23 ± 5 ° C ; 信号Voltage： 0.3Vrms - 1Vrms ; Clear " 0 ” ：

OPEN 、 SHORT After; Test cable length: 0 m

Measure the time (≥10 kHz)

Fast : 9 ms Medium speed : 67 ms Slow speed : 187 ms , plus disy character refresh time

LCR Parameter disy range

| Z | , R , X, DCR

0.00001Ω - 99.9999MΩ

|Y|, G, B

0.00001μs - 99.9999s

C

0.00001pF - 9.99999F

L

0.00001μH - 99.9999kH

D

0.00001 - 9.99999

Q

0.00001 - 99999.9

θ (DEG)

-179.999 o - 179.999 o

θ (RAD)

-3.14159 - 3.14159

Δ%

-999.999% - 999.999%

Equivalent circuit

Tandem , Parallel

Range mode

Automatic , Keep

Trigger mode

Inside , Manual , External , Bus

The average number of times

1 - 256

Calibration function

Open the road , Short-circuit full frequency, point frequency calibration, load calibration

Mathematical operation

Direct reading , Δ ABS, Δ %

Delay time setting

0 - 999, Minimum resolution 100us

Comparator function

10 File sorting, BIN1 - BIN9 、 NG 、 AUX

File counting function

PASS 、 FAIL The front panel LED Show

List scan

·201 Dot list scan

· 可单独对Frequency、 AC Voltage / Current, Inside / Outside DC 偏置Voltage / 电流进行List scan测试

· Before 10 A scanning point can be separately sorted

Inside非易失性Memory

40 Group LCRZ Instrument setup file memory

External USB Memory

GIF Image, CSV Data file, LCRZ Instrument setup file, memory test data USB 、Memory直接存储

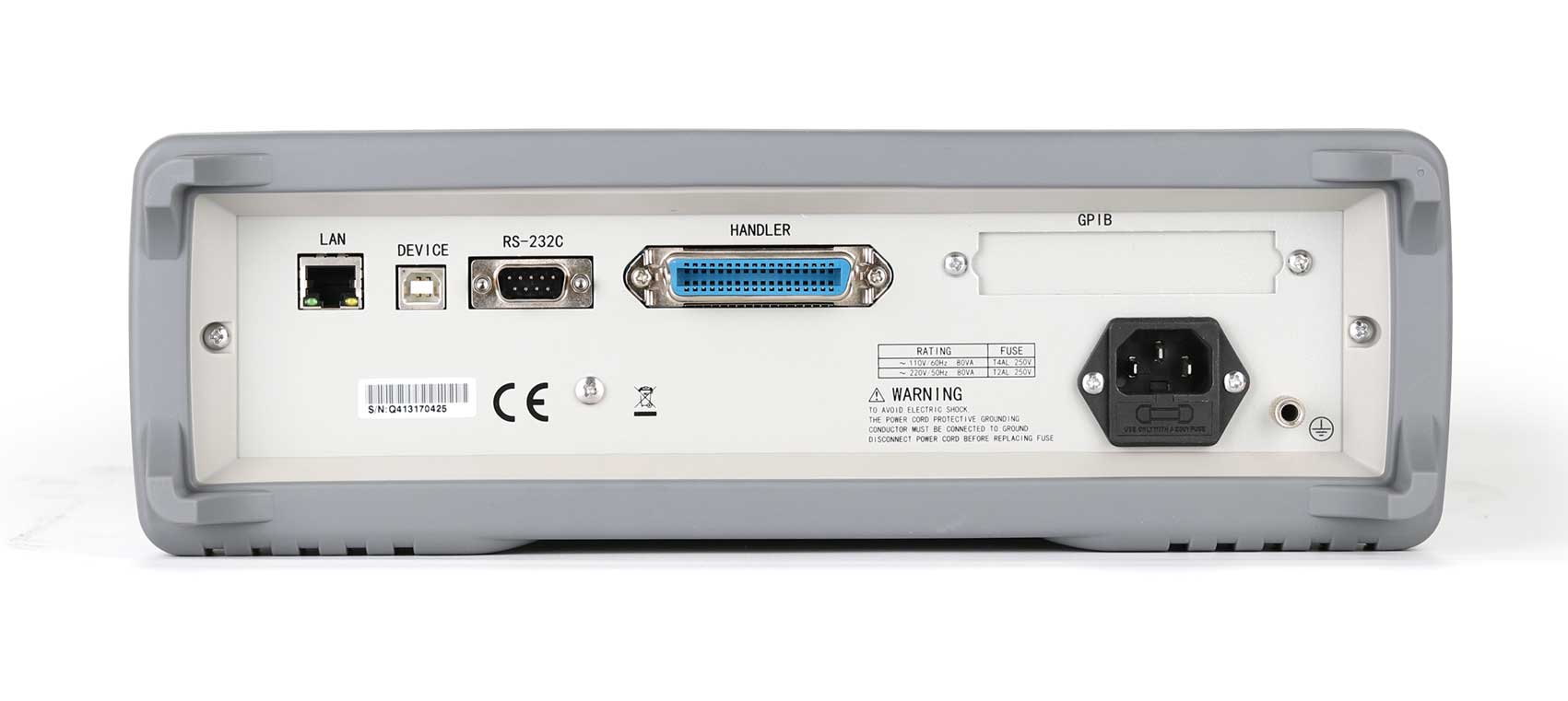

Interface

I/O Interface

HANDLER From the instrument rear panel output

串行通讯Interface

USB 、 RS232C

并行通讯Interface

GPIB Interface（选件）

网络Interface

LAN

MemoryInterface

USB HOST （The front panel）
