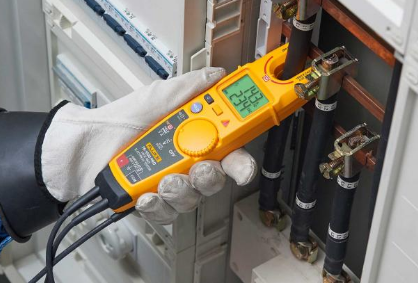

Product specifications: Fluke T6-1000 PRO non-contact current and voltage tester
| Function | ||
| FieldSense AC voltage | Wires need to be tested | No |
| The range of | 1000 V | |
| Resolution | 1 V | |
| Precision | ±（3 % + 3 个计数）45 Hz - 66 Hz[1] [2] | |
| FieldSense AC current | Wires need to be tested | No |
| The range of | 200.0 A | |
| Resolution | 0.1 A | |
| Precision | ±(3%)45赫兹- 66赫兹—— | |
| FieldSense frequency (Hz) | Wires need to be tested | No |
| The range of | 45 Hz – 66 Hz | |
| Resolution | 1 Hz | |
| Precision | ± (1 percent 2 words) | |
| Ac voltage | Wires need to be tested | It is |
| The range of | 1000 V | |
| Resolution | 1 V | |
| Precision | ±(1.5% 2个百分点)45赫兹- 66赫兹—— | |
| Dc voltage | Wires need to be tested | It is |
| The range of | 1000 V | |
| Resolution | 1 V | |
| Precision | ±(1% 2兆)—— | |
| Resistance | Wires need to be tested（有The range of） | It is |
| The range of | 2000 Ω | |
| Resolution | 1 Ω | |
| The range of | 20.00 kΩ | |
| Resolution | 0.01 kΩ | |
| The range of | 100.0 kΩ | |
| Resolution | 0.1 kΩ | |
| Precision（有The range of） | ± (1 percent 2 counts) | |
Precision[1] ：±([读数的 %] + [小有效位数字值]).Precision在Calibrate后一年内适用,工作Temperature为 18 °C 至 28 °C（64 °F 至 82 °F）,Relative humidity至 90 %.AC 转换：交流耦合,RMS 响应.
Precision[2] : FieldSense specifies 16V to 1000V.
| General technical index | |
| Calibrate | 1 年Calibrate周期 |
| Size | 61 mm x 259 mm x 43 mm |
| The weight of | 0.35 kg (0.78 lb) |
| Jaw opening | 17.8 mm (0.7") |
| Temperature
Work: When stored: |
-10°c - 50°c(14°f - 122°f -30°c - 60°c(-22°f - 140°f) |
| Altitude
Work: When stored: |
2,000 meters (6,562 feet) 10,000 meters (32,808 feet) |
| Relative humidity | 0% - 90%，5°C - 30°C(41°F - 86°F)
0% - 75%，30°C - 40°C(86°F - 104°F) 0°C - 45°C - 40°C - 50°C(104°F - 122°F |
| Battery
Type: Working hours: |
2x AA (IEC LR6) 连续运行 360 小时,使用 FieldSense Function通常可运行 200 小时 |
| Temperature系数 | 0.1 x（Precision）/°C,在 <18 °C 或 >28 °C (<64.4 °F 或 >82.4 °F) 的情况下 |
| Security
In general: Measure T6-1000 PRO： |
IEC 61010-1: Pollution Level 2 IEC 61010-2-032：CAT IV 600 V / CAT III 1000 V |
| Electromagnetic compatibility | IEC/EN 61326-1: Easy to Carry |
