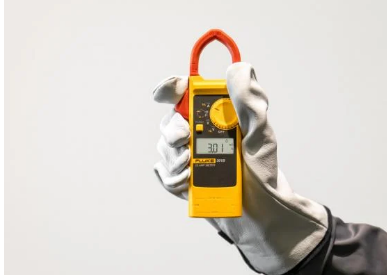

Product overview: Fluke 301B Blade series pliers table
Pack light and accumulate wealth

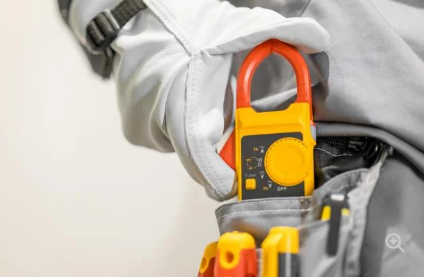

When you go to the scene, no longer carry heavy tools, put the pliers watch in your pocket like a mobile phone. Test at any time, work more efficient and easy
Dense jaws handle well
When the dense row of lines cannot be stuck, avoid dangerous operation of the cable by hand, the test is more convenient and safe
Master all eight kinds of martial arts
A variety of basic test functions, and add capacitance, diode, current frequency, voltage frequency test tools, auxiliary judgment more professional
Fluke 301 Blade Series Quick comparison
| Parameter | 301A | 301A+ | 301B | 301C | 301D |
| Ac current | 40.00A
400.0A |
40.00A
400.0A |
60.00A
600.0A |
60.00A
600.0A 1000A |
60.00A
600.0A |
| Direct current | - | - | - | - | 60.00A
600.0A |
| True effective value | - | - | - | √ | - |
| Ac voltage | 600.0V | ||||
| Dc voltage | 600.0V | ||||
| Resistance | 60.00kΩ | ||||
| Capacitance | 999.9µF | ||||
| Voltage frequency | 99.99kHz | ||||
| Current frequency | 45.0-400.0 Hz |
|
|||
| On and off | √ | √ | √ | √ | √ |
| Diode | √ | √ | √ | √ | √ |
| Data retention | √ | √ | √ | √ | √ |
| Backlight | - | - | √ | √ | √ |
| The stylus of | - | √ | √ | √ | √ |
| The CAT level | CAT III 300V | ||||
| The weight of | 132g | 154g | |||
| Size | 190 mm x 52 mm x 16 mm | ||||
| Battery | Section 2 AAA | ||||
| Quality assurance | 1 year | ||||
| 注：F301A+Model number为F301A加TL75The stylus of | |||||
Product specifications: Fluke 301B Blade series pliers table
Product specifications
Accuracy is applicable for one year after calibration, operating temperature is 18 °C to 28 °C, relative humidity is 0 percent to 75 percent. The precision specification shall be in the following form:
±([percent of reading] [least significant digit value]).
| Model number | 301A/A+ | 301B | 301C | 301D | ||||||
| Ac current(45 至 400 Hz) | The range of | 40.00A | 400.0A | 60.00A | 600.0A | 60.00A | 600.0A | 1000A | 60.00A | 600.0A |
| Resolution | 0.01A | 0.1A | 0.01A | 0.1A | 0.01A | 0.1A | 1A | 0.01A | 0.1A | |
| Precision | 2%+10 | 2%+5 | 2%+10 | 2%+5 | 2%+10 | 2%+5 | 2%+5 | 2%+10 | 2%+5 | |
| Direct current | The range of | - | - | - | 60.00A | 600.0A | ||||
| Resolution | 0.01A | 0.1A | ||||||||
| Precision | 2%+10 | 2%+5 | ||||||||
| Ac voltage(45 至 400 Hz) | The range of | 600.0V | 600.0V | 600.0V | 600.0V | |||||
| Resolution | 0.1V | 0.1V | 0.1V | 0.1V | ||||||
| Precision | 1.5%+5 | 1.5%+5 | 1.5%+5 | 1.5%+5 | ||||||
| Dc voltage | The range of | 600.0V | 600.0V | 600.0V | 600.0V | |||||
| Resolution | 0.1V | 0.1V | 0.1V | 0.1V | ||||||
| Precision | 1%+5 | 1%+5 | 1%+5 | 1%+5 | ||||||
| Resistance | The range of | 600.0Ω
6.000kΩ 60.00kΩ |
600.0Ω
6.000kΩ 60.00kΩ |
600.0Ω
6.000kΩ 60.00kΩ |
600.0Ω
6.000kΩ 60.00kΩ |
|||||
| Precision | 1%+5 | 1%+5 | 1%+5 | 1%+5 | ||||||
| Voltage frequency | The range of | 9.999Hz
99.99Hz 999.9Hz 9.999kHz 99.99kHz |
9.999Hz
99.99Hz 999.9Hz 9.999kHz 99.99kHz |
9.999Hz
99.99Hz 999.9Hz 9.999kHz 99.99kHz |
9.999Hz
99.99Hz 999.9Hz 9.999kHz 99.99kHz |
|||||
| Precision | 0.1%+3 | 0.1%+3 | 0.1%+3 | 0.1%+3 | ||||||
| Current frequency | The range of | 45.0-400.0 Hz | 45.0-400.0 Hz | 45.0-400.0 Hz | 45.0-400.0 Hz | |||||
| Precision | 0.1%+3 | 0.1%+3 | 0.1%+3 | 0.1%+3 | ||||||
| Capacitance | The range of | 9.999uF | 99.99uF 999.9uF | 9.999uF | 99.99uF 999.9uF | 9.999uF | 99.99uF
999.9uF |
9.999uF | 99.99uF 999.9uF | |
| Precision | 2%+5 | 5%+5 | 2%+5 | 5%+5 | 2%+5 | 5%+5 | 2%+5 | 5%+5 | ||
| Diode | 3.000V | 3.000V | 3.000V | 3.000V | ||||||
| 10% | 10% | 10% | 10% | |||||||
| True effective value | - | - | - | |||||||
| On and off | ||||||||||
| Data retention | ||||||||||
| Backlight | - | |||||||||
| The CAT level | CAT III 300V | CAT III 300V | CAT III 300V | CAT III 300V | ||||||
| 机身The weight of | 132g | 132g | 132g | 154g | ||||||
| 机身Size | 190 mm x 52 mm x 16 mm | 190 mm x 52 mm x 16 mm | 190 mm x 52 mm x 16 mm | 190 mm x 52 mm x 16 mm | ||||||
| Jaw opening | 34mm | 34mm | 34mm | 34mm | ||||||
| 钳臂Size | 10mmX10mm | 10mmX10mm | 10mmX10mm | 10mmX10mm | ||||||
| Battery | Section 2 AAA | Section 2 AAA | Section 2 AAA | Section 2 AAA | ||||||
| Quality assurance | 1 year | 1 year | 1 year | 1 year | ||||||
General technical index
| The highest voltage between any terminal and ground | 300 V |
| V/Ω 端子和 COM 端子间的差分电压 | 600 V |
| Disy screen (LCD) | 6000 counts, updated 3 times per second |
| Battery类型 | 2 AAA, IEC LR03 |
| Battery寿命 | Minimum 500 hours |
| Automatic shutdown time | Twenty minutes |
| Temperature | 工作Temperature：-10 °C 至 50 °C; |
| 存放Temperature： -30 °C 至 60 °C | |
| Relative humidity | 工作湿度：非冷凝 (低于 10 °C 时); 10 °C 至 30 °C 时,Relative humidity ≤ 90 %;30 °C 至 40 °C 时,Relative humidity ≤ 75 %;40 °C 至 50 °C 时,Relative humidity ≤ 45 %; |
| Altitude | 工作Altitude： 2000 m;存放： 12000 m |
| Temperature系数 | 0.1 X (Precision)/°C (<18°C或>28 °C) |
| Volume (height x width x length) | 190 mm x 52 mm x 16 mm |
| The weight of | 132 g (301D 154g) |
| Jaw opening | 34 mm |
| IP level | IP30 |
| Security | IEC 61010-1,IEC61010-2-032 CAT III 300 V, pollution level 2 |
| Electromagnetic environment | IEC 61326-1: Portable |
