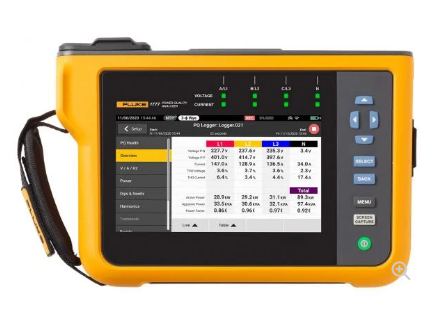

Product specifications: Fluke 1770 series three-phase power quality analyzer
The main feature of
| Voltage输入 | |
|---|---|
| Input quantity | 4-way input, relative to PE three-phase and neutral wire (5 connectors) |
| Category of measurement | 1000 V CAT III/600 V CAT IV |
| Maximum input voltage | 1000 V rms/1000 V dc (1700 Vpk) |
| Rated voltage range | Star and single phase: Variable (50 V -- 1000 V)
Triangle: Variable (100 V -- 1000 V) 标称VoltageConform to IEC 61000-4-30 A 类标准 (Vdin ) 100 V – 690 V |
| Input impedance | 10 MΩ (between P-P and P-N),5 MΩ (between P-PE and N-PE) |
| Bandwidth | Direct current, up to 30 kHz, is used for power quality measurements, excluding transients |
| Resolution | 24-bit synchronous sampling |
| Sampling frequency | In 50/60 Hz, it is 80 kS/s |
| Scale | 1:1, variable, for voltage transformer |
| Voltage瞬变 | |
|---|---|
| Measure范围 | ±8 kV |
| Sampling rate | 1775：1 MS/s
1777：1 MS/s、20 MS/s |
| Bandwidth | Direct current1 MHz—— |
| Trigger | 可调触发电平.高频分量上的Trigger > 1.5 kHz |
| Resolution | 14 bit synchronous sampling |
| Current输入 | ||
|---|---|---|
| Input quantity | 4-way input (three-phase and neutral line), automatically select the range -- for the connected sensor | |
| The range of | Communication | 1 A to 1500 A, using i17XX-FLEX1500 12
1 A to 1500 A, using i17XX-FLEX1500 24 3 A to 3000 A, using i17XX-FLEX3000 24 6 A to 6000 A, using i17XX-FLEX6000 36 At 40 mA to 40 A, clamp i40s-EL-- was used 4 A to 400 A, using clamp i400s-EL |
| Direct current | 20 A to 2000 A, using the clamp 80i-2010-EL | |
| Bandwidth | 直流30khz—— | |
| Resolution | 24-bit synchronous sampling | |
| Sampling frequency | In 50/60 Hz, it is 80 kS/s | |
| Scale | 1:1, variable | |
| Input voltage | 钳:50 mV / 500 mV均方根;CF 2.8—
Rogowski coil: 15 mV/150 mV rms @ 50 Hz,18 mV/180 mV rms @ 60 Hz; CF 4 全部为标称探头The range of |
|
| Input impedance | 11 kΩ | |
| AUX input | |
|---|---|
| 有线连接,使用 17XX-AUX 适配器 | |
| Input quantity | 2 |
| Input range | Direct current：0 V dc 至 ±10 V dc
0v ~ 1000v dc—— |
| Input impedance | Direct current：2.92 MΩ |
| The scaling factor | Format: mx b (Gain and offset) User configurable |
| Disy unit | User configurable (up to 8 characters, such as °C,psi, or m/s) |
| Voltage和Current数据采集 | |
|---|---|
| 输入Power supplyFrequency | Direct current,50/60 Hz 15 %（42.5 Hz … 57.5 Hz、51 Hz … 69 Hz） |
| Topology | 1 - phi, 1 - phi IT, split phase, 3 - phi triangle, 3 - phi star IT, 3 - phi Aron/Blondel (binary triangle), 3 - phi triangle open branch, 3 - phi - high branch of the triangle |
| Data storage | Fluke 1773/1775：8 GB 内存（可使用 microSD 卡扩大内存）
Fluke 1777:32 GB microSD card (installed) |
| Memory capacity | Typical value: 10 recording sessions of 1 minute and 100 events over 8 weeks.
The number of recording sessions and recording cycles available depends on the user's requirements |
| Real-time accuracy | Internal: 3 ppm (0.26s per day, 8 s per month)
NTP (Internet Time) : In terms of Internet latency, usually < 0.1s, relative to Coordinated Universal Time (UTC) GPS: < 1 ms, as opposed to Coordinated Universal Time (UTC) |
| Trend interval | |
|---|---|
| Measure的参数 | Please refer to the operation manual |
| Trend interval | 1秒，3秒，5秒，10秒，30秒，1分钟，5分钟，10分钟，15分钟，30分钟—— |
| Average interval, minimum/maximum | Voltage, current: ½ cycle RMS (20 ms @ 50 Hz,16.7 ms @ 60 Hz)
Aux, power: 200 ms |
| Total harmonic distortion | 基于 50 Harmonics计算Voltage和Current的Total harmonic distortion (THD) |
| Power qualityMeasure值 | ||
|---|---|---|
| Measure的参数 | Please refer to the operation manual | |
| Harmonics | h0 … h50
The fundamental wave and RMS-- percent of voltage, current and power Voltage and current phase Angle, up to h11 |
|
| 间Harmonics | ih0… ih50
The percent fundamental wave and RMS of voltage and current |
|
| Harmonics | 2 -- 9 kHz,200 Hz frequency point
9 -- 30 khz,2 kHz frequency points Voltage and current RMS |
|
| HarmonicsMeasure方法 | 根据 IEC 61000-4-7,分组Harmonics、子组Harmonics和单次Harmonics bin.
Method automatically selected according to configured power quality criteria or user configurable. |
|
| Total harmonic distortion | 根据多达 50 次Harmonics进行计算（取决于选定的Power quality标准） | |
| Power signal | 2 frequencies, ranging from 110 Hz to 3000 Hz | |
| Event | Voltage | 骤降、骤升、瞬断、快速Voltage变化、Power signal、波形偏差、瞬变 |
| Current | 浪涌Current | |
| Trigger record | Voltage和Current的半周期 RMS 持续 10 s
10/12 周期的Voltage和Current波形 Power signal：Power signalVoltage的 200 ms RMS,长 120 s 瞬变：Voltage波形 (福禄克1777:1毫秒/秒或20毫秒/秒，50万分;福禄克1775:1毫秒/秒，25000分 |
|
| Conform to标准 | |
|---|---|
| Power supply | IEEE 1459 |
| Harmonics | IEC 61000-4-7: Class 1
IEEE 519（短时和短时Harmonics） |
| Flicker | Iec 61000-4-15 |
| Power quality | IEC 61000-4-30类,IEC 62586 PQI-A-PI— |
| Power quality合规性 | EN 50160 + GOST + NEQUAL + NETCODE + FOL |
| 接口 | |
|---|---|
| 以太网 | 1 Gbit/s 1000BASE-T |
| Usb a; | USB 2.0 高速 U 盘,用于传输Measure数据、固件更新和许可证安装.供电Current：500 mA |
| USB-C | USB 2.0 高速,用于将数据下载至 PC 和校准（需要 Usb a;转 USB-C 或 USB-C 转 USB-C 线缆）
Analyzer auxiliary power supply (requires USB C power adapter, supports PD 2.0 or later protocol, supports 9 V 1.8A) USB 3.0 高速,用于 USB-C 闪存盘,用于传输Measure数据、固件更新和许可证安装.供电Current：900 mA |
| WiFi/BLE 模块1 | 802.11ac 2.4GHz / 5GHz, supports concurrent access point and client mode
Bluetooth 5.0/BLE 天线：内置和外置2 |
| LTE/4G 模块3 | LTE-A Cat 12
Global LTE-A and UMTS/HSPA coverage 天线：外置2 |
| GPS | MCX 连接器,用于连接 GPS/GLONASS2 The GNSS antenna |
| 1
177X/BASIC models are not available
2 Need 5m extension cable,Fluke part number: 5263915 3 Availability and support providers vary by country/region. Please consult your local Fluke representative. |
|
Accuracy of electrical measurement
| 参数 | The range of | Resolution | 参考条件下的固有精度
读数的 % + 满The range of的 % | |
|---|---|---|---|---|
| Voltage | 1000 V | 0.1 V | 标称Voltage的 0.1 %
Conform to IEC 61000-4-30 A 类标准1 ,2 ±(0.04 % + 0.004 %)3 |
|
| Voltage骤降和骤升 | - | 0.1 V | 标称Voltage的 0.2 %1,2 | |
| Voltage瞬变 | ±8 kVpk | - | ±5 % +0.25 %) | |
| VoltageHarmonics/间Harmonics | 100 % | 0.1 %/0.1 mV | ≥1 % 标称Voltage1
: ±2.5 percent of the reading
<1 % 标称Voltage 1： ±0.025 标称Voltage |
|
| Voltage的Total harmonic distortion | 100 % | 0.1 %/0.1 V | ±(2.5 % + 0.5 %) | |
| Voltage失真 2-9 kHz | Max. 100 V | 0.1 mV | ±(2.5 % + 0.1 V) | |
| Voltage失真 9-30 kHz | Max. 100 V | 0.1 mV | ±(2.5 % + 0.1 V) | |
| Current
(Rogowski clamp mode) |
Use iFlex 1500 A,
i17XX-FLEX1500 24 |
150 A
1500 A |
0.01 %
0.1 A |
±(1 % + 0.02 %) |
| Use iFlex 3000 A,
i17XX-FLEX3000 24 |
300 A
3000 A |
0.01 A
0.1 A |
±(1 % + 0.03 %) | |
| Use iFlex 6000 A,
i17XX-FLEX6000 36 |
600 A
6000 A |
0.1 A
1 A |
±(1.5 % + 0.03 %) | |
| 使用Communication夹钳 40 A,
i40s-EL |
4 A
40 A |
0.001 A
0.01 A |
±(0.7 % + 0.02 %) | |
| 使用Communication夹钳 400 A,
i400s-EL |
40 A
400 A |
0.01 A
0.1 A |
±(2 % + 0.2 %)
±(0.7 % + 0.1 %) |
|
| 使用Communication/Direct current夹钳
2000 A、80i-2010s-EL |
200 A
2000 A |
0.01 A
0.1 A |
±(0.8 % + 0.2 %) | |
| Current小值/值 | 100 % | Defined by the annex | Inherent accuracy x2 | |
| CurrentHarmonics/间Harmonics | 100 % | 0.1 %/0.01 A | ≥3 % 标称Current: ±2.5 percent of the reading 4
<3 % 标称Current： 标称Current ±0.15 % |
|
| Current的Total harmonic distortion | 100 % | 0.1 % | ±(2.5 % + 0.5 %) | |
| Frequency | 42.5 Hz … 69 Hz | 0.001 Hz | ±0.01 Hz | |
| Voltage失衡 | 100 % | 0.1 % | ±0.15 % | |
| Current失衡 | 100 % | 0.1 % | ±0.15 % | |
| Flicker Pinst、Pst、Plt | 0 to 20 | 0.01 | 5 % | |
| Power signalVoltage | Up to 3 kHz
标称Voltage的 0-15 % |
0.1 V/0.1 % | 1-3 % 标称Voltage：标称Voltage的 ±0.15 %
3-15 % 标称Voltage：读数的 ±5 % |
|
| AUX input | ±10 V | 0.1 mV | ±(0.2 % + 0.05 %) | |
| 1
标称Voltage在 100 V 至 690 V 范围内;也称为 Udin.
2 0 °C 至 45 °C：Inherent accuracy x2.0 °C 至 45 °C 以外：固有精度 x3 3 Applicable to calibration laboratory only 4 Use iFlex 1500A,I17XX-FLEX1500 24 |
||||
Power/electricity
| 参数 | Direct current输入1 | 夹钳 i40S-EL |
|---|---|---|
| 功率范围 W、VA、var | Clamp: 50 mV/500 mV
Rogowski: 15 mV/150 mV |
4 A/40 A |
| Clamp: 50 W/500 W
Rogowski: 15 W/150 W |
4k W/40 kW | |
| Resolution W、VA、var | 0.1 W | 1 W/10 W |
| 相位（Voltage到Current）1 | ±0.2° | ±1° |
| 参数 | iFlex 1500A,I17XX-FLEX1500 24 | iFlex 3000A,I17XX-FLEX3000 | iFlex 6000A,I17XX-FLEX6000 |
|---|---|---|---|
| 功率范围 W、VA、var | 150 A/1500 A | 300 A/3000 A | 600 A/6000 A |
| 150 kW/1.5 MW | 300 kW/3 MW | 600 kW/6 MW | |
| Resolution W、VA、var | 0.1 kW/1kW | 1 kW/10 kW | 1 kW/10k W |
| 参数 | I17XX-FLEX1500 24 | I17XX-FLEX3000 | I17XX-FLEX6000 | |
|---|---|---|---|---|
| 有功功率 P | PF ≥ 0.99 | 150 A/1500 A | 300 A/3000 A | 600/6000A |
| 1.2 % + 0.005 % | 1.2 % + 0.0075 % | 1.7 % + 0.0075 % | ||
| 有功电能 Ea | 0.1 ≤ PF <0.99 | (1.2+√(1-PF2 )/(2 PF)) % + 0.005 % | (1.2+√(1-PF2 )/(2 PF)) % + 0.0075 % | (1.7+√(1-PF2 )/(2 PF)) % + 0.0075 % |
| Apparent power S
视在能量 Eap |
0 ≤ PF ≤ 1 | 1.2 % + 0.005 % | 1.2 % + 0.0075 % | 1.7 % + 0.0075 % |
| Reactive power Q
无功电能 Er |
0 ≤ PF ≤ 1 | 测得的视在Power/electricity的 2.5% | ||
| Additional uncertainty
（功率高The range of的 %） |
VP-N > 250 V | 0.02 % | 0.02 % | 0.02 % |
| 相位（Voltage到Current） | - | 0.28° | 0.28° | 0.28° |
1 标称Voltage在 100 V 至 690 V 范围内;也称为 Udin. Reference conditionEnvironment: 23 °C ±5 °C, instrument operating for at least 30 minutes, no external electrical/magnetic field, relative humidity less than 65 percent Input conditions: Cos Φ/PF=1, sine signal f=50/60 Hz, power supply 120 V/230 V ±10 percent Current和功率技术指标：Input voltage >100V 输入Current > Current范围的 10 % 一次侧导体位于Current钳或罗哥夫斯基线圈的中心位置 温度系数：高于 28° C 或低于 18° C, 0.1x is added per degree Celsius to the specified precision |
||||
General technical index
| The main feature of | |
|---|---|
| 保修期 | 分析仪：Two years（不含电池）
附件：1 年（含电池） |
| Calibration period | Two years |
| Dimensions (length x width x height) | 28.0 cm x 19.0 cm x 6.2 cm (11.0 in x 7.5 in x 2.4 in) |
| The weight of | 2.1 kg (4.6 lb) |
| Anti-theft protection | Slot for Kensington burglar lock |
| 环境参数 | |
|---|---|
| 工作温度范围 | -10° C 至 50° C |
| Storage temperature range | -20° C 至 60° C |
| Operating humidity | IEC 60721-3-3: 3K5 (Revised Edition) :
-10° C 至 30° C: ≤95 percent, no condensation or ice 35° C：70 % 40° C：55 % 50° C：35 % |
| IP level | IEC 60529：IP50 |
| Vibration | IEC 60721-3-3 / 3M2 |
| Power supply | |
|---|---|
| Voltage范围 | 100 V – 600 V -15 %/+10 % (85 V … 660 V) |
| Power consumption | Max. 40 VA |
| Power supplyFrequency | 50/60 Hz (42.5 Hz … 69 Hz) |
| Uninterruptible power supply | Lithium ion battery BP1770, with a wider temperature range, customer receable
Battery run time: 1.5 hours |
| 安全性 | |
|---|---|
| 一般信息 | IEC 61010-1: Pollution Level 2 |
| Power supply | 过Voltage CAT IV 600 V
配有Power supply适配器 MA-C8：过Voltage CAT II 300 V |
| Measure | IEC 61010-2-030：CAT IV 600 V、CAT III 1000 V |
| Elevation from 2000 m to 4000 m | Derate to:
Power supply：CAT IV 300 V Comes with MA-C8 adapter: CAT II 150 V Measure：CAT IV 300 V、CAT III 600 V、CAT II 1000 V |
