Fluke 1732 and 1734 hand-held three-phase power meter
Which three phase recorder is right for you?
| 三相Power计 | 电能质量记录仪 | |||
|---|---|---|---|---|
| 功能 | 1732 手持式三相Power计 | 1734 手持式三相Power计 | 1736 电能质量记录仪 | 1738 电能质量记录仪 |
| 负载研究 | • | • | • | • |
| Energy consumption assessment | • | • | • | • |
| Neutral line current measurement (four current channels) |
|
|
• | • |
| Harmonic measurement |
|
|
• | • |
| Capture voltage event |
|
|
• | • |
| Advanced Analysis:
Waveform and surge event capture PQ Health Status (EN51060) |
|
|
Upgrade package * | • |
| IEEE519 total harmonic distortion measurement |
|
|
Optional | Optional |
| Fully integrate Fluke Connect® for recording | Upgrade package * | • | Upgrade package * | • |
| WiFi | Optional | • | • | • |
| Wi-Fi/Bluetooth | Optional | • | Optional | • |
| Magnetic probe kit | Optional | • | Optional | • |
| Magnetic hook | Optional | • | Optional | • |
| Connected via a WiFi wireless router | A free software license is required for product registration | A free software license is required for product registration | ||
* Upgrade Pack can be used to upgrade existing 1732 handheld three-phase power meters with the same features as the 1734 Handheld three-phase power meter, and can also be used to upgrade existing 1736 power quality recorders with the same features as the 1738 Advanced Power Quality Recorder. Please note that the 1732 and 1734 hand-held three-phase power meters cannot be upgraded to feature the 1736 and 1738 power quality recorders
For more information about upgrade packages, please consult your distributor.

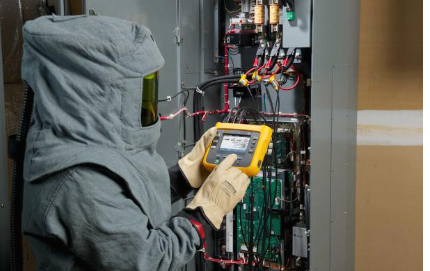

Fluke 1732 and 1734 hand-held three-phase power meters introduce a new simple way to help users find the source of wasted energy consumption. Find out where energy is being consumed in the facility (all locations including the entry lines and various circuits) and when it is being consumed. Remotely accessing data and sharing it with your team through the Fluke Connect® application allows you to maintain a safer working distance and make important decisions in real time, reducing the need to use protective gear and field inspections

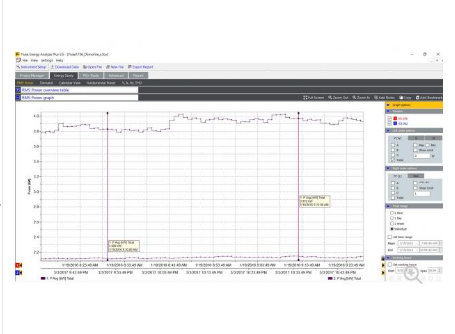

Analyzing energy usage in your equipment helps you identify savings opportunities and provides you with data to act on. New energy analysis packages allow you to compare multiple data points over time to get a comprehensive picture of energy usage, which is the first step in reducing energy costs
Product specifications: Fluke 1732 and 1734 hand-held three-phase power meter
| Technical index | |||||
| Precision | |||||
| Parameter | The range of | Resolution | 参考条件下的内在准确度（读数百分比 + The range of百分比） | ||
| Voltage | 1000 V | 0.1 V | ±(0.2% + 0.01%) | ||
| Current: Direct input | i17xx-flex 1500 12" | 150 A | 0.1 A | ±(1% + 0.02%) | |
| 1500 A | 1 A | ±(1% + 0.02%) | |||
| i17xx-flex 3000 24" | 300 A | 1 A | ±(1% + 0.03%) | ||
| 3000 A | 10 A | ±(1% + 0.03%) | |||
| i17xx-flex 6000 36" | 600 A | 1 A | ±(1.5% + 0.03%) | ||
| 6000 A | 10 A | ±(1.5% + 0.03%) | |||
| i40s-EL current pliers | 4 A | 1 mA | ±(0.7% + 0.02%) | ||
| 40 A | 10 mA | ±(0.7% + 0.02%) | |||
| Frequency | 42.5 Hz--- 69 Hz | 0.01 Hz | ±(0.1%) | ||
| Auxiliary input | ±10 V DC | 0.1 mV | ±(0.2% + 0.02%) | ||
| Voltage小值/值 | 1000 V | 0.1 V | ±(1% + 0.1%) | ||
| Minimum current/maximum current | Defined by the annex | Defined by the annex | ±(5% + 0.2%) | ||
| Voltage THD | 1000% | 0.1% | ±0.5 | ||
| The current THD | 1000% | 0.1% | ±0.5 | ||
|
|
|
|
|
|
|
| 固有不确定性 ±（读数百分比 + The range of百分比）¹ | |||||
| Parameter | The amount of influence | iFlex1500-12 | iFlex3000-24 | iFlex6000-36 | i40S-EL |
| 150 A / 1500 A | 300 A / 3000 A | 600 A / 6000 A | 4 A / 40 A | ||
| Active power P | PF ≥ 0.99 | 1.2% + 0.005% | 1.2% + 0.0075% | 1.7% + 0.0075% | 1.2% + 0.005% |
| 有功能量 Ea | PF ≥ 0.99 | 1.2% + 0.005% | 1.2% + 0.0075% | 1.7% + 0.0075% | 1.2% + 0.005% |
| Apparent power S | 0 ≤ PF ≤ 1 | 1.2% + 0.005% | 1.2% + 0.0075% | 1.7% + 0.0075% | 1.2% + 0.005% |
| 视在能量 Eap | 0 ≤ PF ≤ 1 | 1.2% + 0.005% | 1.2% + 0.0075% | 1.7% + 0.0075% | 1.2% + 0.005% |
| Reactive power Q | 0 ≤ PF ≤ 1 | The measured apparent power is 2.5percent | |||
| 无功能量 Er | 0 ≤ PF ≤ 1 | The measured apparent power is 2.5percent | |||
| Power factor PF | - | ±0.025 | |||
| Discement power factor | - | ±0.025 | |||
| DPF/cosϕ | - | ±0.025 | |||
| The range of的额外不确定度¹ | VP-N >250 V | 0.015% | 0.0225% | 0.0225% | 0.015% |
| ¹ The range of = 1000 V x 电流范围
参考条件：
|
|||||
| 电气Technical index | |
| Power supply | |
| VoltageThe range of | Use a safe input plug to supply power from 100 V to 500 V-- through the measuring circuit |
| 使用标准Power supply线时为 100 V 至 240 V (IEC 60320 C7) | |
| Power consumption | Max. 50 VA (Max. 15 VA when using IEC 60320 input) |
| Energy efficiency | ≥ 68.2%（符合Energy efficiency规范） |
| Maximum no-load loss | < 0.3W (only when using IEC 60320 input) |
| 主Power supplyFrequency | 50/60 Hz ± 15% |
| Battery | 锂离子Battery 3.7 V, 9.25 Wh（客户可进行更换） |
| Battery供电的运行时间 | 4 hours in standard operating mode and up to 5.5 hours in power saving mode |
| Charge time | < 6 hours |
| Data acquisition | |
| Resolution | 16 bit synchronous sampling |
| 取样Frequency | 50/60 Hz 时为 10.24 kHz,与Power supplyFrequency同步 |
| 输入信号Frequency | 50/60 Hz(42.5 - 69 Hz |
| Connection mode Type | 1-φ,1-φ IT, phase separation,3-φ delta,3-φ wye,3-φ wye IT,3-φ wye balance,3-φ Aron/Blondel (two table method),3-φ open-foot delta, current (load analysis) only |
| Data storage | Internal flash memory (user cannot rece) |
| Memory capacity | Typical value: 10 recording sessions of 1 minute and 500 events over 8 weeks |
| The number of possible recording sessions and recording periods depends on the user's needs | |
| Basic interval | |
| 测量的Parameter | Voltage、电流、Aux、Frequency、THD V、THD A、Power、Power因数、基波Power、DPF、电能量 |
| Mean interval | 1 second,5 seconds,10 seconds,30 seconds,1 minute,5 minutes,10 minutes,15 minutes,30 minutes |
| Average time minimum/Maximum | Voltage、电流：每半周更新一次的全循环 RMS 辅助Power：200ms |
| Demand interval (energy meter mode) | |
| 测量的Parameter | Electrical energy (Wh,varh,VAh),PF, maximum demand, electrical energy cost |
| Interval | 5 minutes,10 minutes,15 minutes,20 minutes,30 minutes, off |
| Meet the standard | |
| Power | IEEE 1459 |
| Communication interface | |
| USB-A | File transfer through the USB disk, firmware update
Maximum current: 120 mA |
| WiFi | File transfer and remote control via a direct connection or WiFi network |
| 蓝牙 | Read the auxiliary measurement data from the Fluke Connect® 3000 series module (upgrade option 1734 or 1732 required) |
| USB-mini | Download the data to PC |
| Voltage输入 | |
| Input channel | Four (three phase and zero line) |
| 输入Voltage | 1000 Vrms、CF 1.7 |
| Input impedance | 10 MΩ |
| Bandwidth (-3 dB) | 42.5 Hz - 3.5 kHz |
| Scale | 1:1, variable |
| Voltage安全等级 | 1000 V CAT III/600 V CAT IV |
| Current input | |
| Input channel | 3, automatically select the mode -- for connected sensors |
| 输入Voltage | Current clamp input: 500 mVrms/50 mVrms; Crest coefficient 2.8 |
| Rogowski coil input | 50 Hz 时为 150 mVrms/15 mVrms,60 Hz 时为 180 mVrms/18 mVrms;波峰系数 4;全部位于探头额定The range of内 |
| The range of | Use the fine flexible current probe i17XX-flex1500 12 for 1 A to 150 A/10 A to 1500 A |
| Use the fine flexible current probe i17XX-flex3000 24 for 3 A to 300 A/30 A to 3000 A | |
| Use the fine flexible current probe i17XX-flex6000 36 for 6 A to 600 A/60 A to 6000 A | |
| 40 mA to 4 A/0.4 A to 40 A (40 A current pliers i40s-EL) | |
| Bandwidth (-3 dB) | 42.5 Hz - 3.5 kHz |
| Scale | 1:1, variable |
| Auxiliary input | |
| Input channel | ="2" |
| 输入The range of | 0 to ± 10 V DC,1 reading/second |
| Ratio coefficient (applicable since 2014) | Format: mx b (Gain and offset) User configurable |
| Unit disy (applicable from 2014) | User configurable (7 characters, such as °C,psi, or m/s) |
| Wireless connection | |
| Input channel | ="2" |
| Supported modules | Fluke Connect® 3000 Series |
| Collection | 1 reading/second |
| Environmental indicators | |
| Operating temperature | -10°c - 50°c(14°f - 122°f |
| Storage temperature | -20 °C 至 +60 °C (-4 °F 至 140 °F),包括Battery：-20 °C 至 +50 °C (-4 °F 至 122 °F) |
| Operating humidity | Maximum relative humidity from 10 °C to 30 °C (50 °F to 86 °F) is 95percent |
| Maximum relative humidity of 30 °C to 40 °C (86 °F to 104 °F) 75percent | |
| Maximum relative humidity of 40 °C to 50 °C (104 °F to 122 °F) 45percent | |
| Working altitude | 2000 m (drops to 1000 V CAT II/600 V CAT III/300 V CAT IV at up to 4000 m) |
| Storage altitude | 12,000m |
| The shell | IP50 (conforming to EN60529) |
| Vibration test | MIL-T-28800E, Type 3, Class III, Type B |
| Security | IEC 61010-1 |
| IEC Power supply输入：过Voltage类别 II,污染等级 2 | |
| Voltage端：过Voltage类别 IV,污染等级 2 | |
| IEC 61010-2-031：CAT IV 600 V / CAT III 1000 V | |
| Electromagnetic compatibility | EN 61326-1: CISPR 11:第1组，A类 |
| Korea (KCC) : Category A Equipment (Industrial Broadcasting and communications equipment) | |
| USA (FCC) : 47 CFR 15 Part B. This product is deemed to be duty-free equipment in accordance with Clause 15.103 | |
| Temperature coefficient | 0.1 x Precision指标/°C |
| 通用Technical index | |
| Color LCD disy | 4.3-inch Active Matrix TFT, 480 pixels x 272 pixels, resistive touch screen |
| Warranty period | 仪器和Power supply：两年（不包括Battery） |
| Annex: One year | |
| Calibration cycle: two years | |
| Size | 19.8 x 16.7 x 5.5厘米(7.8 x 6.6 x 2.2英寸) |
| Power supply：13.0 x 13.0 x 4.5 cm (5.1 x 5.1 x 1.8 in) | |
| 仪器连接Power supply时：19.8 x 16.7 x 9 cm (7.8 x 6.6 x 3.5 in) | |
| The weight of | Instrument: 1.1 kg (2.5 lb) |
| Power supply：400 g (0.9 lb) | |
| Tamper-proof protection | Burglar-proof lock slot |
| i17xx-flex 1500 12 柔性电流探头Technical index | |
| 测量The range of | 1 to 150 A AC / 10 to 1500 A AC |
| Nondestructive current | 100 kA (50/60 Hz) |
| Inherent error *-- under reference conditions | ±0.7percent of the reading |
| 173x + iFlex Precision | ±（读数的 1% + The range of的 0.02%） |
| 出Operating temperature范围的Temperature coefficient | The reading is 0.05percent/°C, and the reading is 0.09percent/°F |
| 工作Voltage | 1000 V CAT III, 600 V CAT IV |
| Probe cable length | 305 mm (12 in) |
| Probe cable diameter | 7.5 mm (0.3 in) |
| Minimum bending radius | 38 mm (1.5 in) |
| Output cable length | 2 m (6.6 ft) |
| The weight of | 115 g |
| Probe cable material | TPR |
| Connector material | POM + ABS/PC |
| Output cable | TPR/PVC |
| Operating temperature | Conductor temperature in test environment is -20 °C to 70 °C (-4 °F to 158 °F), not exceeding 80 °C (176 °F) |
| Temperature in non-working state | -40°c - 80°c(-40°f - 176°f |
| Relative humidity in working condition | 15percent to 85percent no condensation |
| IP level | IEC 60529:IP50 |
| Warranty period | 1 year |
* 参考条件：
|
|
