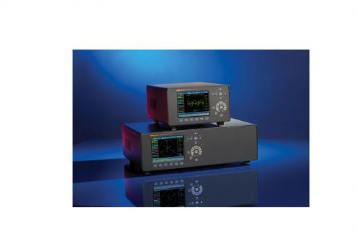

Product specifications: Fluke NORMA 4000 high precision power analyzer
| General technical specification | ||
| Phase number | 1 to 3 | |
| The weight of | 5公斤(11磅)—— | |
| Size | 150 x 237 x 315 mm | |
| 5.9 x 9.3 x 12.4 in | ||
| Built-in printer | None | |
| The disy screen | Color,5.7 in / 144 mm - 320 x 240 pixels | |
| User optional backlit lighting and contrast | ||
| Bandwidth | Dc Max 3 MHz or DC Max 10 MHz, depending on the input module | |
| Basic accuracy | 0.2percent,0.1percent, or 0.03percent, depending on the input module | |
| Sample rate | 0.33 MHz or 1 MHz, depending on the input module | |
| Voltage input range | 0.3 v - 1000v | |
| Current input range (direct input, no shunt used) | 0.03 mA or 20 A, depending on the input module | |
| Configure storage | 4 MB | |
| Set memory | 0.5 MB | |
| The fast Fourier transform | Up to 40 harmonics | |
| RS-232/USB interface | Standard lens | |
| PI1 processing interface (8 analog/pulse inputs and 4 mode outputs) | Optional | |
| IEEE 488.2/GPIB通通(1mbit /s以太网/ 10mbit /s或100mbit /s)—— | Optional | |
| Fluke NormaView PC software (for data download, analysis and report writing) | Standard lens | |
| Basic function | ||
| The fast Fourier transform | Harmonics are calculated and graphically identified. A maximum of 3 harmonic frequencies can be disyed simultaneously | |
| Measured values: U,I and P.-- per phase | ||
| Order: 1 to 40 harmonics, maximum half sampling frequency | ||
| Digital oscilloscope (DSO) | Disy up to 3 measurements simultaneously (sampling values). Quick view waveform and distortion. | |
| Integrating function (energy) | Disy up to 6 configurable numeric values simultaneously. Start/stop conditions and positive/negative options. | |
| Vector disy | Can disy up to 6 vector HO1 signal. It is convenient to test the correct connection of the instrument and quickly check the phase Angle of each signal | |
| Recorder | Disys the average value in a certain period of time for trend analysis. | |
| RAM data storage | Store sample values and averages; Start/stop condition setting. | |
| Approximately 4MB can be used to store measurements | ||
| Configuration | Set the analyzer to measure and disy data in the desired format. | |
| Environmental conditions | ||
| Operating temperature range | 5°c - 35°c(41°f - 95°f | |
| Storage temperature range | -20°c - 50°c(-4°f - 122°f | |
| Shell material | Fluke Norma power analyzer is compact in construction and uses a solid metal case to meet stringent EMC requirements | |
| Climate grade | KYG DIN 40040,85% 相对湿度,None凝结. | |
| Power supply | 85 V AC to 264 V AC,50 Hz to 60 Hz, 100 to 260 V DC, about 40 VA European plug with switch. Current terminals of the same type are available. | |
| Measurement input | Safety jack,4 mm, 2 for each input. External diverter is connected through BNC socket. | |
| Operation | Film key with cursor, function key and command function. | |
| Connect | The rear panel of the three-phase analyzer | |
| The measured value | ||
|
|
None缝计算每路输入的平均值.在三相系统中,还可计算三相的功率和平均电压和电流.在同步模式下,还计算基波 H01 的这些值.
|
|
| Frequency and synchronization | ||
| The range of | 直流和 0.2 Hz 至Sample rate | |
| Accuracy | ±0.01 % The measured value（读数） | |
|
|
|
|
| Configuration存储 | ||
|
|
可将多达 15 组用户Configuration保存到性存储器,并随后调用.未保存的修改在关闭仪器后将被丢失. | |
| Interface | ||
|
|
RS232 Interface,可升级固件以及与 PC 交换数据.可通过一个外部转换器Connect一台打印机. | |
| Optional item | IEEE 488.2/1 MBps | |
| 以太网/ 10mbit /s或100mbit /s—— | ||
| Standards and safety | ||
| Electrical safety | En 61010-1/第2版:1000v cat ii (600v cat iii)—— | |
| Pollution level 2, safety level I | ||
| The transformer is EN 61558 | ||
| Annex is EN 61010-2-031/032 | ||
| Maximum input | The voltage input measurement range is 1000 Veff,2 kVpeak | |
| The measured range of current input is 10 Aeff,20 Apeak | ||
| Test voltage | Net input | Case (protective conductor) : 1.5KV AC |
| 电网Connect | Measurement input：5.4 kV AC | |
| Measurement input | Case: 3.3kV AC | |
| Measurement input | Input: 5.4 kV | |
| Electromagnetic sensitivity | Radiation standard | Iec 61326-1, en 50081-1, en 55011 b |
| Immunity | IEC 61326-1 / Appendix A (for Industry),EN 50082-1 | |
Power supply相位
Fluke Norma 4000 功率分析仪多可配备三个Power supply相位.用户可以选择更适合其应用的Power supply相位.
每个模块化插入式Power supply相位包括电压和电流测量通道.每个测量通道适用于每个基本单元,但每个单元只能使用一种通道.检查标准Configuration.
Power supply相位概述
| Power supply相位通道 | ||
| PP42 | Accuracy | 0.2% (0.1% rd + 0.1% rg) |
| 电流The range of | 20 A | |
| Sample rate | 341 kHz | |
| Bandwidth | 3 MHz | |
| PP50 | Accuracy | 0.1% (0.05% rd + 0.05% rg) |
| 电流The range of | 10 A | |
| Sample rate | 1 MHz | |
| Bandwidth | 10 MHz | |
| PP54 | Accuracy | 0.1% (0.05% rd + 0.05% rg) |
| 电流The range of | 10 A | |
| Sample rate | 341 kHz | |
| Bandwidth | 3 MHz | |
| PP64 | Accuracy | 0.03% (0.02% rg + 0.01% rg) |
| 电流The range of | 10 A | |
| Sample rate | 341 kHz | |
| Bandwidth | 3 MHz | |
Diverter
| 平面Diverter | |
| Continuous load (Imin)
The range of (Imax) |
0.3 A |
| 32 A | |
| Rated current (calibration point) | 32 A |
| 校准点的Basic accuracy [%] | ± 0.03 |
| 额定电流的Basic accuracy [%] | ± 0.03 |
| Rated voltage drop [V] | 320 mV |
| Nominal resistance [Ohm] | 10 mΩ |
| 短时The range of
(5s load interval 15s) |
100A/ 1s-5s |
| Overload Wmax | - |
| Bandwidth | DC - 1 MHz |
| Frequency range | - |
| Angle accuracy [°/kHz] | ± 0.1 |
| Frequency effect [percent/kHz] | - |
| Load impact [percent/A2] | - |
| Temperature coefficient [ppm/K] | ≤10 |
| The weight of (kg / lbs) | 0.62 /1.36 |
