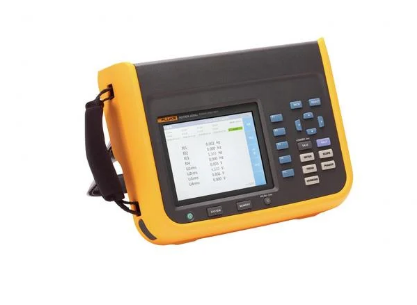

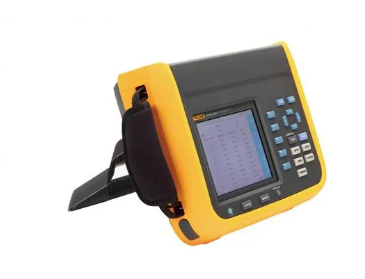

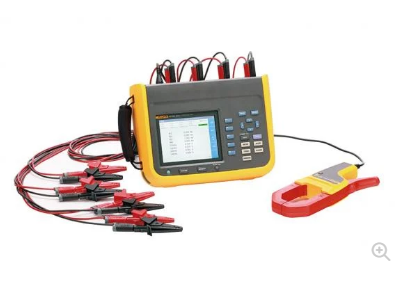

Product specifications: Fluke Norma 6000 series power analyzer
General technical index
| Model number | |
| NORMA 6003 | 3 Voltage module 3 Current module |
| NORMA 6003+ | 3 Voltage module 3 Current module + 转速和扭矩模块 |
| NORMA 6004 | 4 Voltage module 4 Current module |
| NORMA 6004+ | 4 Voltage module 4 Current module + 转速和扭矩模块 |
| Sample rate | 200ksps |
| Size (H*W* L) | 298mm x 215mm x 96mm |
| The disy screen | 5.7 . TFT液晶显示器，640x480—— |
| Battery | BP 291, 10.8V/5000mAh, 54Wh IEC 62133, UN38.3
Working hours: 6 hours |
| Electrical safety | IEC 61010-1: Pollution Level 2
IEC 61010 -2-032: CAT IV 600V, CAT III 1000V |
| Electromagnetic compatibility (EMC) | IEC 61326-1: Industrial Environment
IEC 61326-2 -2 |
| PC software | Fluke Power Analyzer Software |
| Storage capacity | 32GB |
| Measurement parameters | Voltage current effective value, DC component, AC component, rectification mean value, peak value, peak value, crest factor, waveform coefficient, fundamental component, fundamental content, harmonic distortion, harmonic content, harmonic factor Active power, reactive power, apparent power, power factor, power factor, power factor, phase shift, efficiency, impedance, electric energy, electric quantity, frequency, motor speed, torque, mechanical power, mechanical energy, Function, summation function, etc |
Electrical technical specifications
| Voltage | |
| The range of | 10V,100V,1000V |
| Crest factor | CF=2 |
| Overload capability | 10percent overload |
| Bandwidth | 500kHz |
| Common-mode rejection ratio | 120 dB |
| Precision | 0.1percent (optimal) |
| Current | |
| Built-in shunt measurement | |
| The range of | 0.1A,1A,10A |
| Crest factor | CF=2 |
| Overload capability | 10percent overload |
| BNC | |
| The range of | 0.1V,1V,10V |
| Crest factor | CF=2 |
| Overload capability | 10percent overload |
| Precision | 0.1percent (optimal) |
| Mechanical measurement channel (speed and torque) | |
| Voltage通道The range of | ±10V |
| Voltage通道数 | 2 |
| Voltage通道The range of | 0.1% The range of+ 0.1% 读数 |
| Pulse channel number | 3 |
| Pulse high level threshold | 2V (typical value) |
| Pulse low level threshold | 0.8V (typical value) |
| Maximum pulse frequency | 100kHz |
| Frequency | |
| FrequencyPrecision | 0.05% The range of + 0.05% 读数 |
| Harmonics | 100 times (50Hz/60Hz) |
