Product Overview

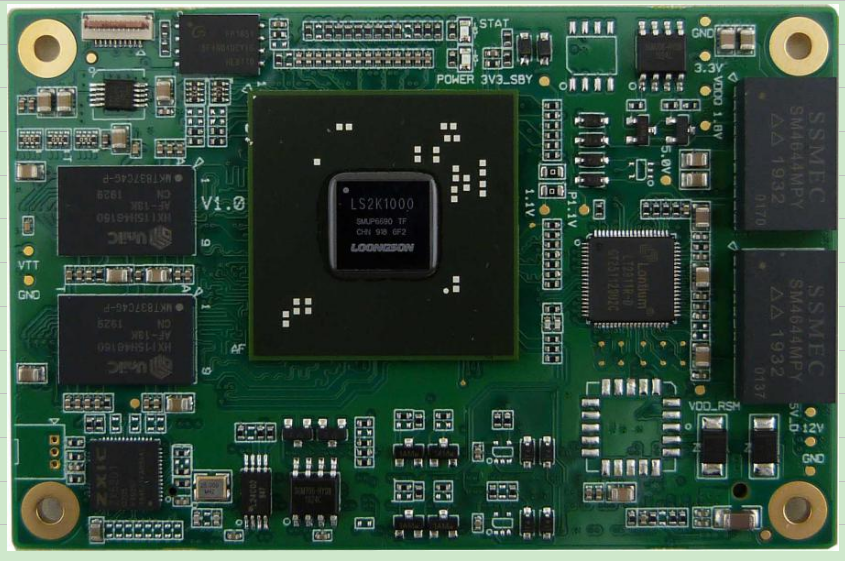

This Module is a SOC single-chip solution based on the Loongson 2K1000 processor, referring to the PICMG COM Express specification and the COM Express Type10 pin definition, the size is Mini Module(84mm x55mm), and the standard on-board DDR3 2GB memory, the maximum support 4GB, the module adopts domestic components, the connector adopts domestic NGT or COM-E connector of AVIC Optoelectronics 158 factory, the board spacing is 5mm

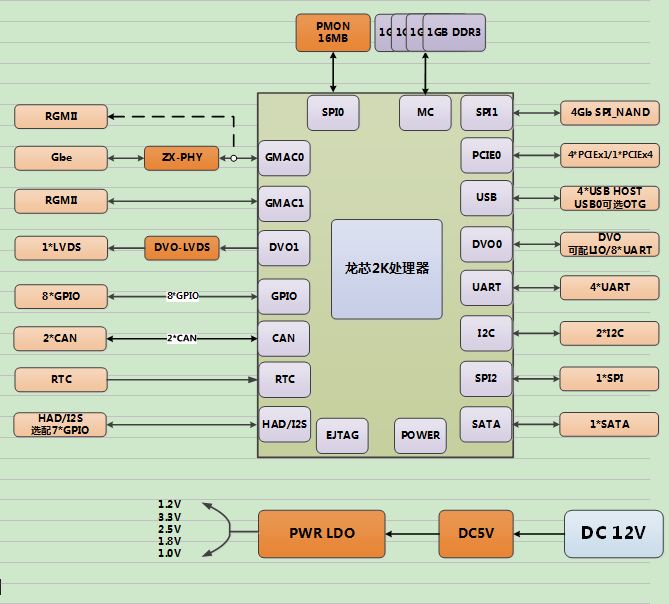

The module supports 4 PCI Express x 1 channel,1 SATA port,2 CAN ports,4 serial ports,4 USB 2.0 ports,1 HDA,1 Gigabit network port and 1 GMAC (optional 2 GMAC). The disy part supports 1 DVO (can be configured to support LIO or 8 serial ports),1 24-bit LVDS signal, and the overall power consumption of the module is less than 10W
This product adopts full table attached design, with stable, safe, reliable, practical and other characteristics, can be widely used in national defense, government, scientific research, medical, numerical control, communication, transportation and other fields

Product Features
ØCOM-Express Mini module, size 84*55mm;
Ø Localization: Support localization of components;
Ø Processor: Loongson 2K1000 dual-core processor, main frequency 800MHz-1GHz;
Ø Memory: on-board 2GB DDR3 industrial-grade domestic memory particles, optional 4GB;
Ø Disy: 1 DVO interface, can be configured as LIO or 8 serial ports; 1 24bit LVDS interface;
Ø Network: on-board 1 Gigabit network interface,1 GMAC; Two GMACs are available.
ØPCI-E interface: 4 PCI-E x1 interface, optionally 1 PCI-E x4 interface;
ØSATA interface: 1 SATA interface, support SATA 1.5Gbps and SATAIi 3Gbps transmission;
USB interface: 4 USB interfaces, compatible with USB1.1 and USB2.0 specifications;
Audio: 1 HAD/I2S interface, optionally configured as 7 GPIO;
Ø1 channel SPI,2 channels I2C;
Ø Support RTC function;
Ø4 GPI interfaces,4 GPO interfaces;
Ø12V voltage input.

产品规格表

处理器/芯片组	CPU	Loongson2K1000
	Audit number	2 nuclei
	Main frequency	标配Main frequency1GHz（2K1000-i 普通工业级处理器） 可选工业级2K1000-I,Main frequency800MHz
Memory	Type	Onboard DDR3
	Capacity	Standard 2GB, optional 4GB
Store	FLASH	板载SPI NOR FLASH,Capacity16MB
	FLASH	板载SPI NAND FLASH,Capacity512MB
Expansion interface	USB	Four USB 2.0Host,USB0 The OTG function is optional
	PCIE	The default configuration is four PCI-E x1, and one PCI-E x4-- -- is optional
	GMAC	1 Gigabit network interface,1 GMAC; Two GMACs -- are optional
	Serial port	4路TTLSerial port
	DVO	1 way DVO,DVO0 leads out; Support baseboard expansion to achieve DVI/HDMI/VGA/EDP and so on 可配置为LIO或者8路Serial port
	LVDS	1 24-bit single-channel LVDS port
	I2C	2 channels I2C
	SPI	1 Route SPI
	CAN	2 way CAN
	Audio	Supports the HAD/I2S audio port, optionally configured as a seven-channel GPIO
	GPIO	8 GPIO(compatible with PWM)
	SATA	One SATA2.0 port
Power supply	Type	AT mode: The default standard DC 12V input (optional 5V power supply) ATX mode: DC 5V SBY
Physical parameters	Size (W×D)	84mm x 55mm (module)
