Product Overview
This Module is a SOC single-chip solution based on Loongson 2K2000 processor. It is a Mini Module(84mm x55mm) with reference to PICMG COM Express specification and COM Express Type10 pin pin definition. Module onboard 2K2000 processor, dual-core maximum frequency 1.5GHz (based on the final release of the original factory), board attached 16GB EMMC,DDR4 2GB/4GB memory particles, the module adopts domestic components,COME connector standard with domestic NGT, board spacing is 5mm

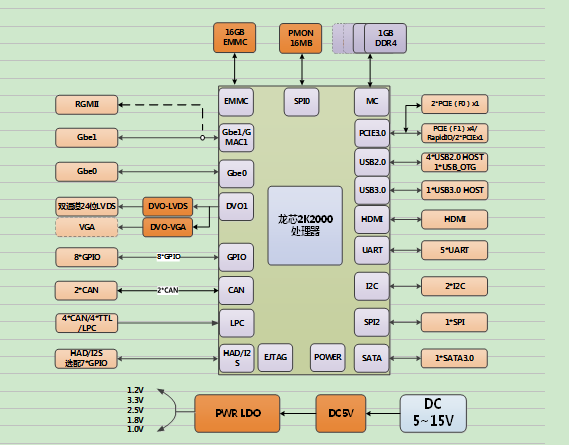

The module supports two Gigabit network ports (GB1 can choose one RGMII), one PCI-E3.0x4 (optionally support RapidIO or split into two PCI-Ex1) and two PCI-E3.0x1. 1 SATA3.0,6 CAN2.0 (of which 4 CAN CAN choose 4 TTL serial ports or LPC),5 TTL serial ports,1 USB3.0,4 USB2.0 ports,1 USB2.0 OTG,1 HDA,1 SPI; The disy part supports one HDMI2.0 channel, one dual-channel 24-bit LVDS signal (optional single-channel LVDS VGA), and the module power consumption is expected to be 6 to 10W.
This product adopts full table attached design, with stable, safe, reliable, practical and other characteristics, can be widely used in national defense, government, scientific research, medical, numerical control, communication, transportation and other fields

1.2 Product Features

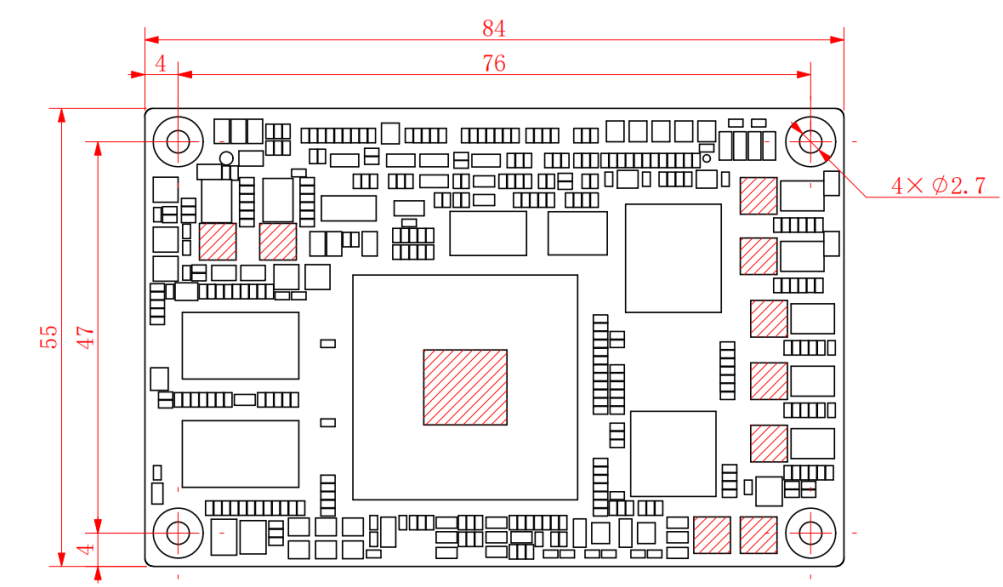

COM-Express Mini module, size 84*55mm;
 Processor: Loongson 2K2000 dual-core processor,LA364 core, the main frequency is expected to be 1.5GHz;
 Memory: on-board 2GB DDR4, optional 4GB, industrial grade domestic memory particles;
 Disy: 1 HDMI port,1 dual-channel 24-bit LVDS (optional single-channel LVDS VGA);
 Network: two Gigabit network ports on board, one RGMII is optional for network port Gb1.
PCI-E interface: 1-channel PCI-E3.0x4 (optional RapidIO x4 or split into 2-channel PCI-Ex1) and 2-channel PCI-E3.0x1;
SATA port: one SATA3.0 port, supporting 6Gbps transmission.
USB port: one USB3.0, four USB2.0 ports, one USB2.0 OTG;
 Audio: one HAD/I2S port, optionally configured as seven GPIO.
1 channel SPI,2 channel I2C;
 six CAN2.0 channels are standard, two CAN2.0 channels and four TTL serial ports or one LPC are optional.
 Supports external RTC.
4 GPI ports,4 GPO ports;
DC 5 to 15V wide voltage input, supports AT or ATX power-on.

Localization: Support localization of components.

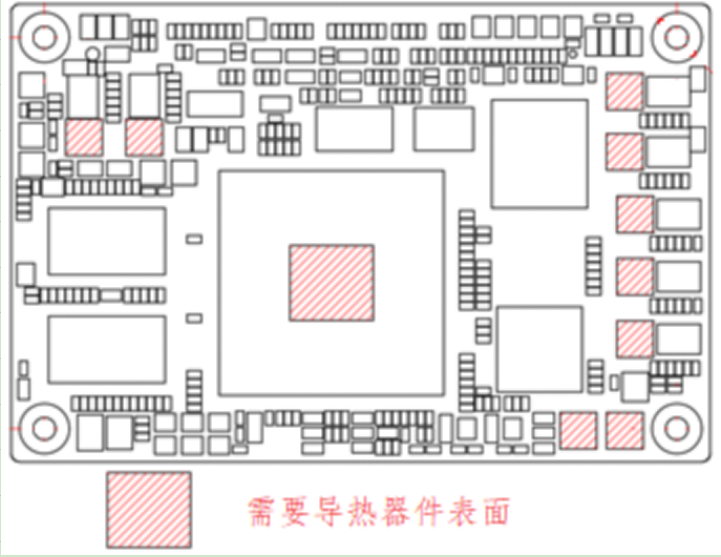

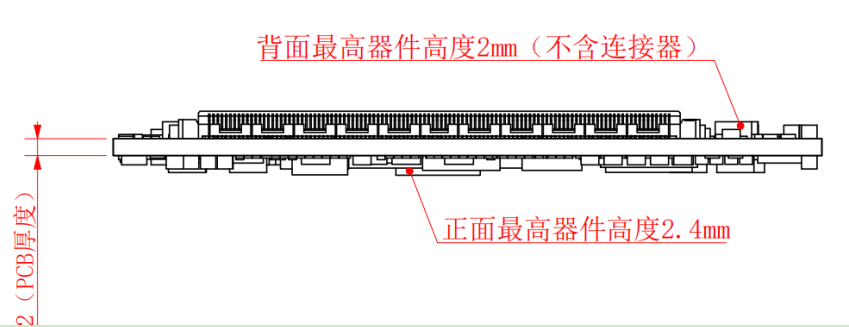

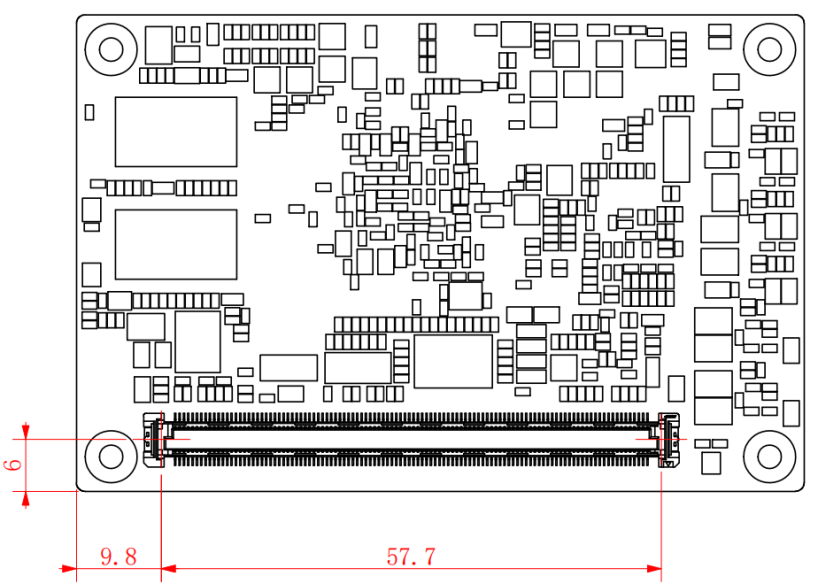

Specification information

Table 1 Product technical specifications

IO multiplexing Function Description

Table 2IO Multiplexing description
