Rui Xin Micro RK3568 domestic module
模Block选用瑞芯微RK3568高性能低Power consumptionProcessor.RK3568定位中高端通用型SoC,采用22nm制程工艺,集成4核ARMA55Processor和高性能Mali G522EE图形Processor,Support4K 60fps H.265/H.264/VP9视频解码,1080P 60fps H.265/H.264视频编码,主频2.0GHz.本COM-E模BlockStandard with板载DDR4 4GBMemory,板载64GB EMMC（可扩展128GB）.Show输出接口Support1路单通道LVDS,可选MIPI或者EDP,1路HDMI2.0接口Support4KShow;Show输入Support1路MIPI CSI Interface,Support摄像头.
The module has rich IO interfaces: By default, it supports two adaptive Gigabit network ports. One Gigabit network port can be an RGMII port, one audio port, one SPI port, one I2C port, two USB3.0 HOST ports (one OTG for HOST0 and one SATA3.0 for HOST1), and two USB2.0 ports HOST,2 CAN2.0 channels,1 PCI-E2.1 channels,2 PCI-E3.0 channels (optional 1 PCI-E3.0x2), integrated standard audio input and output signals,4 TTL serial ports,12 GPIO channels,2 PWM channels
Module support linux system, support for Galaxy Kirin, Yihui and other domestic operating systems, using the standard COM-E mini size 84mm x55mm, power consumption of 2W ~ 6W
The module has the features of low power consumption, small size and wide temperature working environment. Products can be used in the embedded industry market such as vehicle gateway, industrial control panel, industrial inspection, vehicle central control disy
Product Features
Ø Processor: RK3568 quad-core processor, integrated high-performance Mali G522EEGPU, the highest frequency 2.0GHz;
Ø Memory: on-board 4GB DDR4 industrial-grade domestic memory particles;
Ø Storage: onboard 64GBEMMC, maximum support 128GB. Reserved 64MB NOR FLASH;
Ø Disy: 1 LVDS interface (optional MIPI or EDP),1 HDMI interface supports 4K disy;
Ø Network: 2 adaptive gigabit network ports, of which 1 RGMII interface is optional;
ØPCI-E: 1 PCI-E2.1x1 interface,2 PCI-E3.0 interface;
ØSATA: 2 SATA3.0 interfaces (USB3.0 HOST1 multiplexed SATA1,PCIE2.1 multiplexed SATA2);
ØUSB: 2 USB3.0 hosts (1 of which can be USB2.0 OTG),2 USB2.0 hosts;
ØAUDIO：标准MIC输入、Headphone-out以及SPK音频接口;
Ø Support 2 CAN2.0 channels; 1 channel SPI; 1 route I2C; 12 GPIO;
Ø4.5V ~ 20V wide voltage input;
Ø Support special industrial grade -45℃~85℃ working temperature;
Ø Standard MINICOM-E 84*55mm size;
Ø Components 100percent domestic brand.
Product specifications
表1Product specifications表
Project |
Description |
|
Processor |
CPU |
瑞芯微RK3568四核Processor,主频2.0GHz,集成 Mali G52 2EE图形Processor,Support4K解码和1080P编码 |
Memory |
Type |
On-board DDR4, standard with 4GB |
Store |
FLASH |
Onboard SPI NOR FLASH, capacity 64MB |
EMMC |
On-board industrial EMMC64GB, maximum support 128GB |
|
COM-E Interface |
USB |
1 Route USB3.0 HOST (Optional SATA3.0) 2 USB2.0 HOST One USB2.0 OTG(USB3.0 HOST optional) |
SATA |
Two SATA3.0 ports (USB3.0 HOST uses SATA1, and PCIE2.1 uses SATA2) |
|
PCIE |
The default configuration is two PCI-E 3.0x1. One PCI-E3.0x2-- is optional One PCI-E2.1x1, optional SATA3.0 |
|
Network |
Two Gigabit network ports (YT8511); One option is RGMII (3.3V) |
|
Serial port |
4路TTLSerial port |
|
Show |
Default 1 single-channel LVDS, optional single-channel MIPI, maximum support 1920*1080 resolution, or optional EDP output (2560x1600); 1路HDMIShow接口,Support4KShow(4096*2304); |
|
I2C |
1 route I2C |
|
SPI |
1 way SPI (Optional 1 way CAN2.0) |
|
CAN |
2 CAN2.0 channels, a maximum of 3 CAN2.0 channels, supporting the CAN 2.0B protocol |
|
Audio |
标准MIC输入、Headphone-out以及SPK音频接口 The SPK interface supports a single channel of 1.3W |
|
GPIO |
12路GPIO,可选GPI或者GPO |
|
Dedicated interface |
MIPI Input interface |
Supports 1 MIPI CSI; Board to Board Connector TXGA FBB04004 F Series |
Debugging port |
调试Serial port,单片机Serial port,CPU_ejtag |
|
Power supply |
Type |
Standard DC5V/ 12V input, support DC 4.5~20V wide voltage input |
Power-on Mode |
Support call self-start AT mode; Optional button trigger Power on ATX mode |
|
Standby mode |
Support |
|
Power consumption |
2W~6W（空闲模式2W,Memory满压力测试6W以内） |
|
Physical parameters |
Size (W×D) |
84mm x 55mm (MINI COM-E module) |
Environmental adaptability |
Commercial grade |
Operating temperature: 0℃ ~ 50℃,5 ~ 95percent RH, non-condensing |
Store温度：-20℃～70℃,5～95% RH,不凝结 |
||
Wide temperature level |
Operating temperature: -20℃ ~ 60℃,5 ~ 95percent RH, non-condensing |
|
Store温度：-40℃～70℃,5～95% RH,不凝结 |
||
Industrial grade |
Operating temperature: -40℃ ~ 70℃,5 ~ 95percent RH, non-condensing |
|
Store温度：-55℃～85℃,5～95% RH,不凝结 |
||
特殊Industrial grade |
Operating temperature: -43℃ ~ 85℃,5 ~ 95percent RH, non-condensing |
|
Store温度：-55℃～85℃,5～95% RH,不凝结 |
||
IO multiplexing Function Description
IO Multiplexing Description
Serial number |
Module default function |
Function reuse 1 |
Function reuse 2 |
Description |
1. |
GBE0 |
—— |
—— |
|
2. |
2*PCIE3.0 |
—— |
—— |
|
3. |
CAN0 |
I2C1 |
—— |
Kernel adjustment |
4. |
CAN2 |
I2C4 |
—— |
|
5. |
SD |
UART6 |
—— |
Kernel adjustment |
6. |
USB2.0_2/3 |
—— |
—— |
|
7. |
UART3/4/7/8 |
—— |
—— |
|
8. |
GBE1 |
GMAC1 |
UART1/9 |
Kernel,BOM adjustment |
9. |
I2C3 |
—— |
—— |
|
10. |
USB3.0_HOST0 |
USB2.0_OTG |
—— |
The default value before uboot is OTG and after uboot is HOST |
11. |
USB3.0_HOST1 |
SATA3.0_1 |
—— |
Kernel adjustment |
12. |
1*PCIE2.0 |
SATA3.0_2 |
—— |
Kernel adjustment |
13. |
LVDS |
Single channel MIPI |
EDP |
Kernel,BOM adjustment |
14. |
SPI3 |
CAN1 |
UART9 |
Kernel adjustment |
15. |
HDMI1.4/2.0 |
—— |
—— |
|
16. |
12*GPIO |
—— |
—— |
|
Product function framework

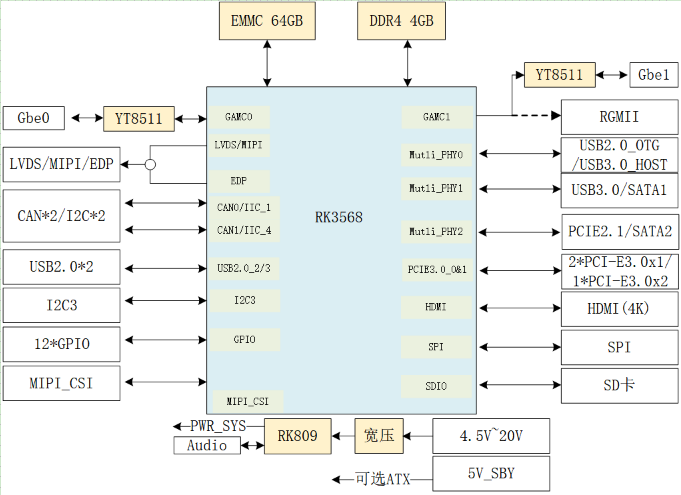

RK3568 module function block diagram
Appearance view

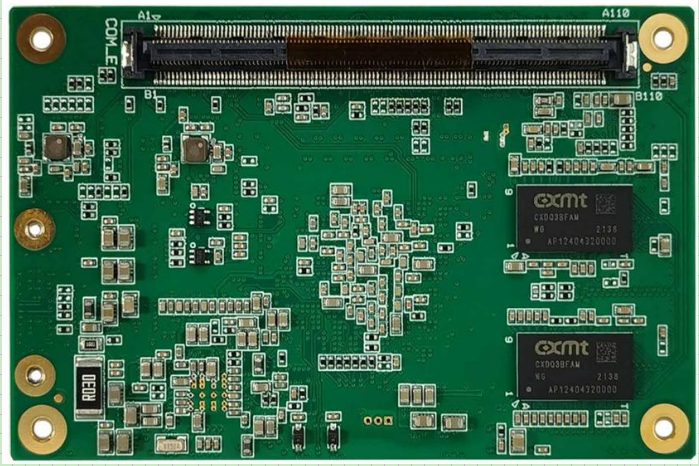

Module front view
Module back view

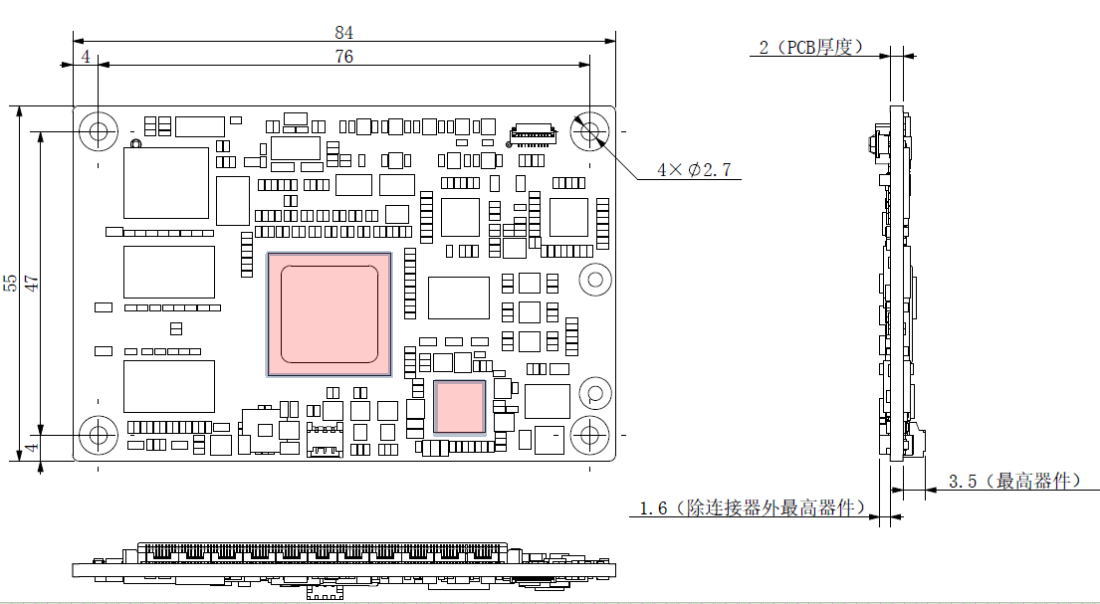

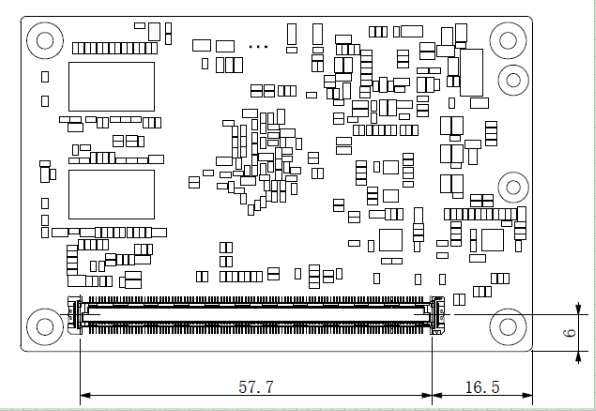

Structure size
Pin definition
COM-E module Definition
表3COM-E module Definition
SMRC 3568 A PIN Definition |
||
PIN |
ROW A |
ROW B |
1 |
GND (FIXED) |
GND (FIXED) |
2 |
GBE0_MDI3- |
GBE0_LED_ACT# |
3 |
GBE0_MDI3+ |
GBE1_MDI0+/GMAC1_TXD0/UART9_TX |
4 |
GBE0_LINK100# |
GBE1_MDI0-/GMAC1_RXD0 |
5 |
GBE0_LINK1000# |
GBE1_MDI1+/GMAC1_TXD1/UART9_RX |
6 |
GBE0_MDI2- |
GBE1_MDI1-/GMAC1_RXD1 |
7 |
GBE0_MDI2+ |
GBE1_MDI2+/GMAC1_TXD2/UART1_TX |
8 |
GBE0_LINK# |
GBE1_MDI2-/GMAC1_RXD2 |
9 |
GBE0_MDI1- |
GBE1_MDI3+/GMAC1_TXD3/UART1_RX |
10 |
GBE0_MDI1+ |
GBE1_MDI3-/GMAC1_RXD3 |
11 |
GND (FIXED) |
GND (FIXED) |
12 |
GBE0_MDI0- |
PWRBTN# |
13 |
GBE0_MDI0+ |
I2C3_SCL |
14 |
MIC1_INP |
I2C3_SDA |
15 |
MB_PWREN |
MIC1_INN |
16 |
USB3_OTG0_SSTXP/SATA0_TXP |
USB3_HOST1_SSTXP/SATA1_TXP |
17 |
USB3_OTG0_SSTXN/SATA0_TXN |
USB3_HOST1_SSTXN/SATA1_TXN |
18 |
DEBUG_RXD |
SPKN_OUT |
19 |
USB3_OTG0_SSRXP/SATA0_RXP |
USB3_HOST1_SSRXP/SATA1_RXP |
20 |
USB3_OTG0_SSRXN/SATA0_RXN |
USB3_HOST1_SSRXN/SATA1_RXN |
21 |
GND (FIXED) |
GND (FIXED) |
22 |
CAN0_TX/I2C1_SCL |
USB_OTG_PWREN |
23 |
CAN0_RX/I2C1_SDA |
USB_HOST_PWREN |
24 |
DEBUG_TXD |
EXT_EN |
25 |
CAN2_TX/I2C4_SCL |
I2S1 SDI0(disabled) |
26 |
CAN2_RX/I2C4_SDA |
I2S1_SDI1 |
27 |
GBE1_LED_ACT# |
SPKP_OUT |
28 |
SATA2_ACT_LED |
I2S1 MCLK (disabled) |
29 |
SDMMC0_D0/UART6_TX |
I2S1 SCLK TX (disabled) |
30 |
SDMMC0_D1/UART6_RX |
I2S1 LRCK TX (Disabled) |
31 |
GND (FIXED) |
GND (FIXED) |
32 |
GBE1_LINK100# |
PWM7_IR/GPIO0_C6_d |
33 |
GBE1_LINK1000# |
I2C4_SCL/GPIO4_B3_d |
34 |
SDMMC0_D2 |
I2C4_SDA/GPIO4_B2_d |
35 |
SDMMC0_D3 |
GMAC1_TXCLK |
36 |
GMAC1_RXCTL |
I2S1 SDO0(Disabled) |
37 |
GMAC1_TXCTL |
GMAC1_RXCLK |
38 |
GMAC1_INT |
GMAC1_RSTn |
39 |
SDMMC0_CMD |
GMAC1_MDC |
40 |
SDMMC0_CLK |
GMAC1_MDIO |
41 |
GND (FIXED) |
GND (FIXED) |
42 |
GBE1_LINK# |
LCD_EN |
43 |
VCC3V3_SD |
LCD_RST |
44 |
SDMMC0_DET |
VCC_RTC |
45 |
USB2_HOST2_DM |
USB2_HOST3_DM |
46 |
USB2_HOST2_DP |
USB2_HOST3_DP |
47 |
UART3_TX |
HPL_OUT |
48 |
UART3_RX |
HP_SNS |
49 |
UART4_TX |
SYS_RESET# |
50 |
UART4_RX |
HPR_OUT |
51 |
GND (FIXED) |
GND (FIXED) |
52 |
USB3_OTG0_ID |
USB3_HOST1_DP |
53 |
USB3_OTG0_VBUSDET |
USB3_HOST1_DM |
54 |
GPI0/GPIO3_A2_d |
GPO1/GPIO3_B5_d |
55 |
USB3_OTG0_DP |
PCIE30_REFCLKP_IN |
56 |
USB3_OTG0_DM |
PCIE30_REFCLKN_IN |
57 |
GND (FIXED) |
GPO2/GPIO3_C2_d |
58 |
UART8_TX |
UART7_TX |
59 |
UART8_RX |
UART7_RX |
60 |
GND (FIXED) |
GND (FIXED) |
61 |
PCIE30_TX1P |
PCIE30_RX1P |
62 |
PCIE30_TX1N |
PCIE30_RX1N |
63 |
GPI1/GPIO3_A3_d |
GPO3/GPIO3_C3_d |
64 |
PCIE30_TX0P |
PCIE30_RX0P |
65 |
PCIE30_TX0N |
PCIE30_RX0N |
66 |
GND (FIXED) |
PCIE30x2_WAKEn |
67 |
GPI2/GPIO3_A4_d |
PCIE30x1_WAKEn |
68 |
PCIE20_TXP/SATA2_TXP |
PCIE20_RXP/SATA2_RXP |
69 |
PCIE20_TXN/SATA2_TXN |
PCIE20_RXN/SATA2_RXN |
70 |
GND (FIXED) |
GND (FIXED) |
71 |
EDP_TX2+/LVDS_A0+/MIPI_DSI_TX0_D0P |
HDMITX_SCL |
72 |
EDP_TX2-/LVDS_A0-/MIPI_DSI_TX0_D0N |
HDMITX_SDA |
73 |
EDP_TX1+/LVDS_A1+/MIPI_DSI_TX0_D1P |
HDMI_TXD2P |
74 |
EDP_TX1-/LVDS_A1-/MIPI_DSI_TX0_D1N |
HDMI_TXD2N |
75 |
EDP_TX0+/LVDS_A2+/MIPI_DSI_TX0_D2P |
HDMI_TXD1P |
76 |
EDP_TX0-/LVDS_A2-/MIPI_DSI_TX0_D2N |
HDMI_TXD1N |
77 |
LVDS/EDP/MIPI_TX0_PWREN |
HDMI_TXD0P |
78 |
LVDS_A3+/MIPI_DSI_TX0_D3P |
HDMI_TXD0N |
79 |
LVDS_A3-/MIPI_DSI_TX0_D3N |
LVDS_BL_PWREN |
80 |
GND (FIXED) |
GND (FIXED) |
81 |
EDP_TX3+/LVDS_A_CK+/MIPI_DSI_TX0_CLKP |
HDMI_TX_CLKP |
82 |
EDP_TX3-/LVDS_A_CK-/MIPI_DSI_TX0_CLKN |
HDMI_TX_CLKN |
83 |
EDP_AUX+/ LVDS_I2C_CK |
LCD0_BL_PWM1 |
84 |
EDP_AUX-/ LVDS_I2C_DAT |
VCC_5V_SBY |
85 |
GPI3/GPIO3_A5_d |
VCC_5V_SBY |
86 |
HDMITX_CEC |
VCC_5V_SBY |
87 |
EDP_HPD |
VCC_5V_SBY |
88 |
PCIE20_REFCLKP |
Recovery |
89 |
PCIE20_REFCLKN |
HDMI_TX_HPD |
90 |
GND (FIXED) |
GND (FIXED) |
91 |
SPI3_CS0/SATA0_ACT_LED/UART9_RX |
MIPI_DSI_TX1_D0P |
92 |
SPI3_MISO/SATA1_ACT_LED/UART9_TX |
MIPI_DSI_TX1_D0N |
93 |
GPO0/GPIO3_A6_d |
MIPI_DSI_TX1_D1P |
94 |
SPI3_CLK/CAN1_RX |
MIPI_DSI_TX1_D1N |
95 |
SPI3_MOSI/CAN1_TX |
MIPI_DSI_TX1_D2P |
96 |
PCIE20_WAKEn |
MIPI_DSI_TX1_D2N |
97 |
PCIE20_PERSTn |
MIPI_DSI_TX1_D3P |
98 |
PCIE30x2_PERSTn |
MIPI_DSI_TX1_D3N |
99 |
PCIE30x1_PERSTn |
LCD1_BL_PWM5 |
100 |
GND (FIXED) |
GND (FIXED) |
101 |
PCIE20_PRSNT |
MIPI_DSI_TX1_CLKP |
102 |
PCIE30x2_PRSNT |
MIPI_DSI_TX1_CLKN |
103 |
PCIE30x1_PRSNT |
MIPI_TX1_PWREN |
104 |
VCC_12V（4.5~20V） |
VCC_12V（4.5~20V） |
105 |
VCC_12V（4.5~20V） |
VCC_12V（4.5~20V） |
106 |
VCC_12V（4.5~20V） |
VCC_12V（4.5~20V） |
107 |
VCC_12V（4.5~20V） |
VCC_12V（4.5~20V） |
108 |
VCC_12V（4.5~20V） |
VCC_12V（4.5~20V） |
109 |
VCC_12V（4.5~20V） |
VCC_12V（4.5~20V） |
110 |
GND (FIXED) |
GND (FIXED) |
Note: B25,B28,B29,B30,B36 are occupied by the on-board audio interface by default. If they are used for other interfaces, the kernel needs to be adjusted
MIPI CSI Interface
The signal is defined as follows: (Connector type: TXGA FBB04004-F40S1003K6M)
表4MIPI CSI Interface定义
PIN脚 |
Signal definition |
PIN脚 |
Signal definition |
1 |
GND |
2 |
GND |
3 |
MIPI_CSI_RX_D0P |
4 |
MIPI_CSI_RX_D2P |
5 |
MIPI_CSI_RX_D0N |
6 |
MIPI_CSI_RX_D2N |
7 |
GND |
8 |
GND |
9 |
MIPI_CSI_RX_D1P |
10 |
MIPI_CSI_RX_D3P |
11 |
MIPI_CSI_RX_D1N |
12 |
MIPI_CSI_RX_D3N |
13 |
GND |
14 |
GND |
15 |
MIPI_CSI_RX_CLK0P |
16 |
MIPI_CSI_RX_CLK1P |
17 |
MIPI_CSI_RX_CLK0N |
18 |
MIPI_CSI_RX_CLK1N |
19 |
VDD_1V2_DVP |
20 |
VDD_1V2_DVP |
21 |
MIPI_CAM0_RST |
22 |
MIPI_CAM1_RST |
23 |
VCC_1V8_DVP |
24 |
VCC_1V8_DVP |
25 |
MIPI_CAM0_PDN |
26 |
MIPI_CAM1_PDN |
27 |
VCC2V8_AVDD_DVP |
28 |
VCC2V8_AVDD_DVP |
29 |
CIF_CLKOUT |
30 |
REFCLK_OUT |
31 |
GND |
32 |
GND |
33 |
NC |
34 |
NC |
35 |
NC |
36 |
NC |
37 |
GND |
38 |
GND |
39 |
GND |
40 |
GND |
Order information
Serial number |
Order type |
规格Description |
Note |
1 |
SMRC_3568_ASH |
Commercial grade：4GBMemory,64GB EMMC,工作温度：0°C~+50°C |
|
2 |
SMRC_3568_ASHW |
Wide temperature level：4GBMemory,64GB EMMC,工作温度：-20°C~+60°C |
|
3 |
SMRC_3568_ASHI |
普通Industrial grade：4GBMemory,64GB EMMC,工作温度：-40°C~+70°C |
|
4 |
SMRC_3568_ASHS |
特殊Industrial grade：4GBMemory,64GB EMMC,工作温度：-43°C~+85°C |
|
1 |
SMRC_3568_AS2H |
Commercial grade：4GBMemory,128GB EMMC,工作温度：0°C~+50°C |
|
2 |
SMRC_3568_AS2HW |
Wide temperature level：4GBMemory,128GB EMMC,工作温度：-20°C~+60°C |
|
3 |
SMRC_3568_AS2HI |
普通Industrial grade：4GBMemory,128GB EMMC,工作温度：-40°C~+70°C |
|
4 |
SMRC_3568_AS2HS |
特殊Industrial grade：4GBMemory,128GB EMMC,工作温度：-43°C~+85°C |
|
Shipping list
订购SMRC_3568_A系列模Block,出货配套清单如下表,清单外物料需要单独订购Description,直接联系众达科技相关业务人员.
Serial number |
Name of the product |
The quantity |
Unit |
Note |
1 |
SMRC 3568 A* Module |
1 |
Block |
Standard with |
2 |
The radiator |
1 |
A |
Optional, including thermal pad |
3 |
Triple set screws, metric 2.5x12mm |
4 |
A |
Optional |
4 |
CBCE TYPE10 H Basete |
1 |
Block |
Optional |
5 |
Accompanying CD (user manual, software development, backboard design aid) |
1 |
Zhang |
首次订购Standard with |
6 |
Packing list |
1 |
Zhang |
Standard with |
