The module is based on the high-performance 8-core processor RK3588M (car scale). RK3588M is the highest performance general-purpose SoC of RK3588M, which adopts 8nm process technology and integrates 4 Cortex-A76 and 4 Cortex-A55 processors, with the highest main frequency ≥2.0GHz. Internal support for independent NEON coprocessor; The CPU is built with a variety of powerful embedded hardware engines, supporting the 8K@60fps H.265 and VP9 decoder,8k@30fps H.264 decoder and 4K@60fps AV1 decoder; It also supports 8K@30fps H.264/H.265 encoders, high quality JPEG encoders/decoders, specialized image preprocessors and post-processors. Integrated high-performance Mali-G610 MC4 GPU, fully compatible with OpenGL ES 1.1/2.0/3.2,OpenCL 2.2 and Vulkan1.2; The embedded NPU supports INT4/INT8/INT16/FP16 hybrid operations, with computing power up to 6TOPS.
The module comes standard with on-board LPDDR4 8GB memory particles, with a maximum support of 16GB, and on-board 64GB EMMC can choose 128GB and 256GB. The disy output interface supports 1 dual-channel LVDS,2 HDMI2.0,1 DP interface, and 1 MIPI DPHY interface, which can support 4 channels of disy at the same time. Disy input ports Support two 4-channel MIPI CSI ports, two 4-channel MIPI DCPHY ports, eight cameras, and one HDMI input port.
The module has abundant IO ports, including two Gigabit network ports, one SATA3.0, one miniPCIE (optional mSATA), four USB2.0 hosts, one Type-C port, and two USB3.0 ports HOST interface,2 CAN2.0,1 I2S audio interface,1 SPI interface,6 I2C interfaces,1 PCI-E2.0x1,1 PCI-E3.0x4, 2 x2 or 4 x1,4 UART interfaces,4 default GPIO (other signals can be configured as GPIO),6 ADC interfaces .
Module support linux system, support for Galaxy Kirin, Yihui and other domestic operating systems, using the standard COM-E miniaturized size 95mm x95mm, typical power consumption of 8W
The module adopts full surface paste, domestic design, has the characteristics of high performance, low power consumption, small size, etc., to meet the wide temperature working environment. Products can be used in intelligent cabin, smart large screen, virtual/augmented reality, edge computing,IPC,NVR, high-end industrial control tablet and other industry markets
Product Features
² Processor: RK3588M8 core processor, maximum frequency ≥2.0GHz, high-performance Mali-G610 MC4 GPU, built-in NPU, support independent NEON coprocessor;
² Memory: standard onboard 8GB LPDDR4 domestic memory particles, maximum support 16GB;
² Storage: on-board 64GB EMMC, maximum support 256GB;
² Disy output: 1 dual-channel LVDS interface,2 HDMI2.0,1 MIPI,1 DP interface, supporting 4 disy interfaces at the same time;
² Video capture: Support 2 4-channel MIPI CSI interface,2 4-channel MIPI DCPHY interface, can support 8 cameras,1 HDMI input interface;
² Network: 2 gigabit network ports, on-board PHY YT8531 (multiplexed 2 optical ports);
²PCI-E: Standard 1 PCI-E2.0x1 interface (can reuse mSATA),1 PCI-E3.0x4(optional 2 x2 or 4 x1 mode);
²SATA: Standard with 1 SATA3.0 interface (reusable PCI-E2.0x1);
²USB: two USB3.0 hosts, one Type-C port, and four USB2.0 hosts;
²AUDIO: 1 I2S signal;
² Supports 2 CAN2.0 channels; 1 channel SPI,4 channel TTL,6 channel I2C; 4-way GPIO;
²4.5V ~ 18V wide voltage input;
² Support special industrial grade -43℃~80℃ working temperature;
² Standard compact COM-E 95*95mm size;
² Components 100percent Domestic brand.
Specification information
Table 2 1 Product technical specifications
Project |
Description |
|
Processor |
CPU |
4 x Cortex-A76（max freq≥2.0GHz）+ 4 x Cortex-A55（max freq≥1.7GHz） |
GPU |
4 x Mali-G610 MC4（max freq 1GHz）
|
|
NPU |
6TOPS(INT8)、Support INT4/INT8/INT16/FP16 |
|
Video codec |
Decode |
8K@30fps H.264
|
Code |
8K@30fps H.265/H.264 |
|
Memory |
Type |
Onboard LPDDR4, standard 8GB, maximum optional 16GB |
Store |
EMMC |
On-board industrial EMMC64GB, optional 128GB,256GB |
COM-E Interface |
USB |
2路USB3.0 HOST、1路Type-CInterface 4 USB2.0 HOST |
SATA |
标配1路SATA3.0Interface(可复用为PCI-E2.0x1) |
|
PCIE |
One PCI-E 3.0x4 is standard, two PCI-E3.0x2 or four PCIE3.0x1-- is optional 1 PCI-E2.0x1(can be reused as SATA) |
|
Network |
Two Gigabit network ports (default electrical port, optical port optional) |
|
Serial port |
4路UARTSerial port,其中1路为调试Serial port |
|
Disy output |
The defaultSupport同时4路Disy output,Support8K显示 1 Dual-channel LVDS 1、4通道MIPI DPHY—— 2路HDMI 2.0Interface 1路2laneDP |
|
Disy input |
Can support 8 cameras input at the same time 4MIPI DCPHY 4MIPI CSI, supports 8 channel 4lane cameras 1 HDMI input,HDMI 1.4b/2.0, support RGB/YUV444/YUV422/YUV420 format,up to 4K@60fps |
|
I2C |
6 Route I2C |
|
SPI |
1 Route SPI |
|
CAN |
2 way CAN2.0 |
|
Audio |
1 way standard I2S |
|
GPIO |
Four default GPIOs and other signals can be configured as GPIO |
|
ADC |
6 ADC signals, of which 2 are brush keys (no other functions) |
|
Power supply |
Type |
Support DC 4.5~18V wide voltage input |
Power-on Mode |
Support call self-start AT mode Optional button trigger Power on ATX mode |
|
Standby mode |
Support |
|
Power consumption |
空闲模式2.5W,Memory满压力测试10W Sleep 0.25W, shutdown 0.03W |
|
Physical parameters |
Size (W×D) |
95mm x 95mm (Compact COM-E module) |
Environmental adaptability |
Commercial grade |
Operating temperature: 0℃ ~ 60℃, 5 ~ 95percent RH, non-condensing |
Store温度：-20℃～70℃, 5～95% RH,不凝结 |
||
Wide temperature level |
Operating temperature: -20℃ ~ 70℃, 5 ~ 95percent RH, non-condensing |
|
Store温度：-40℃～80℃, 5～95% RH,不凝结 |
||
Industrial grade |
Operating temperature: -40℃ ~ 80℃, 5 ~ 95percent RH, non-condensing |
|
Store温度：-50℃～85℃, 5～95% RH,不凝结 |
||
特殊Industrial grade |
Operating temperature: -43℃ ~ 85℃, 5 ~ 95percent RH, non-condensing |
|
Store温度：-50℃～85℃, 5～95% RH,不凝结 |
||

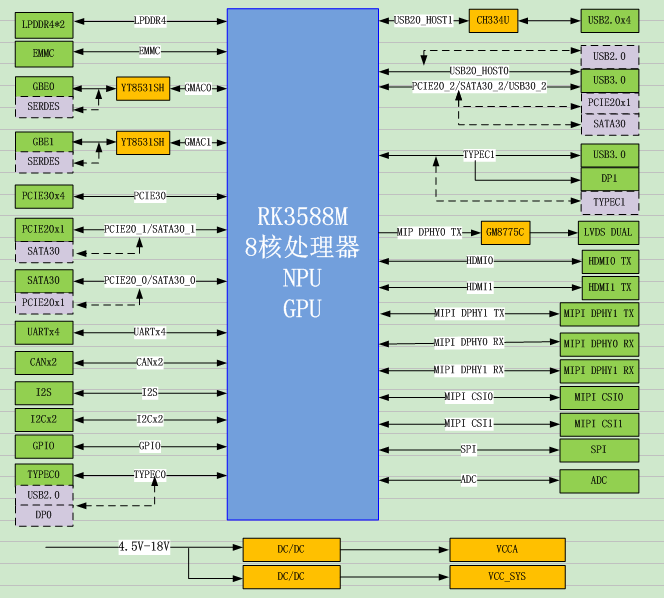

Product frame diagram
Note: The dotted line is for the reuse function
Product frame diagram
IO multiplexing Function Description
IO Multiplexing Description
Serial number |
Module default function |
Function reuse 1 |
Function reuse 2 |
Description |
1. |
GBE*2 |
SERDES |
—— |
Hardware adjustment |
2. |
PCIE20_1 |
SATA30_1 |
—— |
Kernel adjustment |
3. |
SATA30_0 |
PCIE20_0 |
—— |
Kernel adjustment |
4. |
USB30_2 |
PCIE20_2 |
SATA30_2 |
Kernel adjustment |
5. |
USB3.0、DP1 |
TYPEC1 |
—— |
Kernel adjustment |
6. |
TYPEC0 |
USB2.0+DP0 |
—— |
Kernel adjustment |
7. |
PCEI30x1 |
4*PCIE30x1 |
2*PCIE30x2 |
Kernel adjustment |
8. |
SPI |
GPIO*5 |
—— |
Kernel adjustment |
9. |
CAN*2 |
GPIO*4 |
—— |
Kernel adjustment |
10. |
MIPI DPHY0 RX |
GPIO*4 |
—— |
Kernel adjustment |
11. |
MIPI DPHY1 RX |
GPIO*4 |
—— |
Kernel adjustment |
12. |
2 MIPI 4lane |
GPIO*12 |
2 MIPI 2lane 2 MIPI 2lane |
Kernel adjustment |
13. |
HDMI TX0 |
EPD0 |
—— |
Kernel adjustment |
14. |
HDMI TX1 |
EPD1 |
—— |
Kernel adjustment |
15. |
I2S0 |
GPIO*7 |
—— |
Kernel adjustment |
I2CInterface分配Description
I2CInterface分配列表
Serial number |
Signal name |
Allocation function |
Up/down |
Level |
Note |
1. |
I2C1 |
Unallocated |
Pull up |
1.8V |
|
2. |
I2C2 |
Unallocated |
Pull up |
3.3V |
|
3. |
I2C3 |
MIPI CSI0 |
Pull up |
1.8V |
|
4. |
I2C4 |
MIPI CSI1 |
Pull up |
3.3V |
|
5. |
I2C5 |
Does not lead to |
—— |
—— |
|
6. |
I2C6 |
MIPI DPHY0/1 RX |
Pull up |
3.3V |
|
7. |
I2C7 |
Sound card |
Pull up |
1.8V |
|
ADC信号Description
ADCInterface列表
Serial number |
Signal name |
Pin number |
功能Description |
Note |
1. |
MENU_KEY_1V8 |
B47 |
Reserved ADC key input |
ADC1 |
2. |
ESC_KEY_1V8 |
B48 |
Reserved ADC key input |
|
3. |
V-_KEY_1V8 |
A86 |
Reserved ADC key input |
|
4. |
V+/RECOVERY_KEY_1V8 |
A87 |
Reserved ADC key input,复用烧录LOADER模式,上电时同时按下按键,进入loader模式 |
|
5. |
SARADC_VIN3_1V8 |
A50 |
Reserved ADC key input |
ADC3 |
6. |
BOOT_SARADC_IN0_KEY_1V8 |
A99 |
Burn mode switch button, can not do other use |
ADC0 |
GPIO扩展
The module has 4 ordinary GPIOs by default, and other signals can be extended to GPIOs. For details, see the following table
List of GPIO extensions
Serial number |
Signal name |
Pin number |
GPIO号 |
Pull up/Pull down/Level |
Note |
1. |
LCD_BKLT_EN_3V3 |
B79 |
GPIO1_A1 |
Pull down |
|
2. |
SPI0_CS1_M1_1V8 |
B93 |
GPIO4_B1 |
Pull up/1.8V |
|
3. |
SPI0_MISO_M1_1V8 |
B94 |
GPIO4_A0 |
None |
|
4. |
SPI0_MOSI_M1_1V8 |
B96 |
GPIO4_A1 |
None |
|
5. |
SPI0_CLK_M1_1V8 |
B101 |
GPIO4_A2 |
None |
|
6. |
SPI0_CS0_M1_1V8 |
B97 |
GPIO4_B2 |
Pull up/1.8V |
|
7. |
CAN2_TX_M1_3V3 |
A32 |
GPIO0_D5 |
Pull up/3.3V |
|
8. |
CAN2_RX_M1_3V3 |
A33 |
GPIO0_D4 |
Pull up/3.3V |
|
9. |
CAN0_TX_M1_3V3 |
A34 |
GPIO4_D4 |
Pull up/3.3V |
|
10. |
CAN0_RX_M1_3V3 |
A35 |
GPIO4_D5 |
Pull up/3.3V |
|
11. |
MIPI_TE1_1V8/GPIO3_A6 |
A85 |
GPIO3_A6 |
Pull up/1.8V |
|
12. |
MIPI_CAM1_CLKOUT_3V3 |
C19 |
GPIO1_B6 |
None |
|
13. |
MIPI_DCPHY0_RX_PDN_H_1V8 |
D24 |
GPIO4_A7 |
Pull down |
|
14. |
MIPI_DCPHY0_RX_PWREN_H_1V8 |
C24 |
GPIO4_A5 |
Pull down |
|
15. |
MIPI_DCPHY0_RX_RST_L_1V8 |
C20 |
GPIO4_A6 |
Pull up/1.8V |
|
16. |
MIPI_CAM2_CLKOUT_3V3 |
D29 |
GPIO1_B7 |
None |
|
17. |
MIPI_DCPHY1_RX_PDN_H_1V8 |
C37 |
GPIO3_C5 |
Pull down |
|
18. |
MIPI_DCPHY1_RX_PWREN_H_1V8 |
C34 |
GPIO3_B6 |
Pull down |
|
19. |
MIPI_DCPHY1_RX_RST_L_1V8 |
D37 |
GPIO3_C4 |
Pull up/1.8V |
|
20. |
I2C6_SCL_M0_MIPI_3V3 |
D17 |
GPIO0_D0 |
Pull up/3.3V |
|
21. |
I2C6_SDA_M0_MIPI_3V3 |
D16 |
GPIO0_C7 |
Pull up/3.3V |
|
22. |
MIPI_CAM3_CLKOUT_3V3 |
C39 |
GPIO1_D6 |
None |
|
23. |
MIPI_CSI0_PWREN_H_1V8 |
D42 |
GPIO3_C6 |
Pull down |
|
24. |
MIPI_CSI0_RST_L_1V8 |
C45 |
GPIO3_C7 |
Pull up/1.8V |
|
25. |
MIPI_CSI0_PDN_H_1V8 |
D45 |
GPIO3_D0 |
Pull down |
|
26. |
I2C3_SCL_M0_MIPI_1V8 |
C59 |
GPIO1_C1 |
Pull up/1.8V |
|
27. |
I2C3_SDA_M0_MIPI_1V8 |
C58 |
GPIO1_C0 |
Pull up/1.8V |
|
28. |
MIPI_CAM4_CLKOUT_3V3 |
D58 |
GPIO1_D7 |
None |
|
29. |
MIPI_CSI1_PWREN_H_1V8 |
C66 |
GPIO3_D1 |
Pull down |
|
30. |
MIPI_CSI1_RST_L_1V8 |
C67 |
GPIO3_D2 |
Pull up/1.8V |
|
31. |
MIPI_CSI1_PDN_H_1V8 |
D59 |
GPIO3_D3 |
Pull down |
|
32. |
I2C4_SCL_M2_MIPI_3V3 |
D56 |
GPIO0_C5 |
Pull up/3.3V |
|
33. |
I2C4_SDA_M2_MIPI_3V3 |
D55 |
GPIO0_C4 |
Pull up/3.3V |
|
34. |
I2S0_MCLK_1V8 |
C53 |
GPIO1_C2 |
None |
|
35. |
I2S0_LRCK_1V8 |
C55 |
GPIO1_C5 |
None |
|
36. |
I2S0_SCLK_1V8 |
C56 |
GPIO1_C3 |
None |
|
37. |
I2S0_SDI0_1V8 |
D49 |
GPIO1_D4 |
None |
|
38. |
I2S0_SDO0_1V8 |
D50 |
GPIO1_C7 |
None |
|
39. |
I2C7_SCL_M0_CODEC_1V8 |
D52 |
GPIO1_D0 |
Pull up/1.8V |
|
40. |
I2C7_SDA_M0_CODEC_1V8 |
D53 |
GPIO1_D1 |
Pull up/1.8V |
|
41. |
UART6_TX_M1_3V3 |
A98 |
GPIO1_A1 |
Pull up/3.3V |
|
42. |
UART6_RX_M1_3V3 |
A97 |
GPIO1_A0 |
Pull up/3.3V |
|
43. |
UART7_TX_M2_3V3 |
C17 |
GPIO1_B5 |
Pull up/3.3V |
|
44. |
UART7_RX_M2_3V3 |
C16 |
GPIO1_B4 |
Pull up/3.3V |
|
45. |
GPIO3_B2_1V8 |
A54 |
GPIO3_B2 |
Pull down |
The default |
46. |
GPIO1_B0_3V3 |
A18 |
GPIO1_B0 |
Pull up/3.3V |
The default |
47. |
GPIO3_C0_1V8 |
A63 |
GPIO3_C0 |
Pull down |
The default |
48. |
TP_INT_L/GPIO1_C4_1V8 |
B63 |
GPIO1_C4 |
Pull up/1.8V |
The default |
49. |
LCD_RESET_L_1V8/GPIO2_B4 |
A67 |
GPIO2_B4 |
Pull up/1.8V |
|
50. |
SPK_CTL_H/GPIO4_B0_1V8 |
B32 |
GPIO4_B1 |
Pull down |
|
51. |
GPIO3_B7_1V8 |
B57 |
GPIO3_B7 |
Pull down |
|
52. |
HP_DET_L/GPIO1_D5_1V8 |
A93 |
GPIO1_D5 |
Pull up/1.8V |
|
53. |
PWM15/GPIO1_C6_1V8 |
B54 |
GPIO1_C6 |
Pull down |
|
54. |
DP/EDP_HPD_1V8 |
D71 |
GPIO3_D5 |
Pull down |
|
Product appearance
Front view of module
Module back picture
Structure size

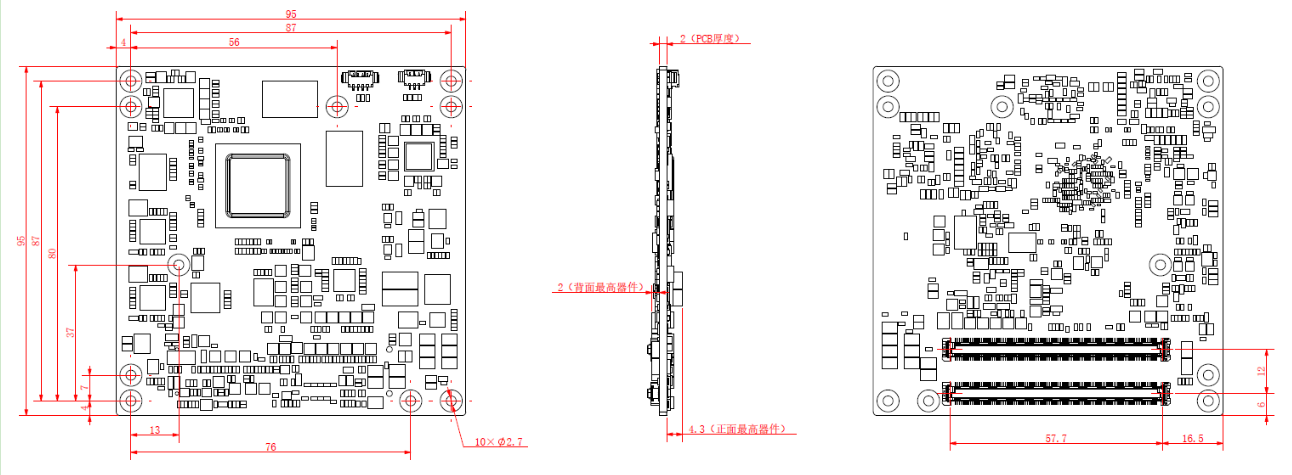

Product dimensions drawing
Heat dissipation design

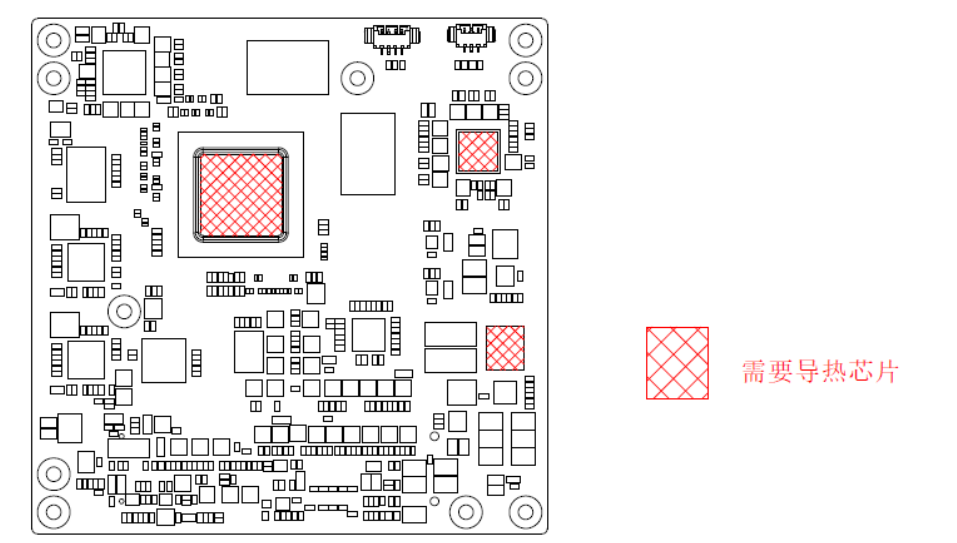

As shown in the following figure, the marked area is the chip that needs heat dissipation. The thickness of the heat dissipation pad is recommended to be 1mm
Figure 3 4 Position diagram of the heat dissipation device
产品电气Interface
Interface列表
表4 1电气Interface列表
Serial number |
Bit number |
Interface功能Type |
Interface连接器厂商型号 |
Note |
1 |
CN2 |
DEBUG |
Changjiang Connector A1251WR-S-4P |
|
2 |
MD1 |
COM-E signal |
Nigat A21-1220-0601-01C |
|
Interface布
Interface布图
Interface定义
DEBUGInterface定义
连接器型号：A1251WR-S-4P
Peer connector: A1251H-4P
表4 2DEBUGInterface定义
Pin number |
Signal definition |
Note |
1 |
VCC_3V3 |
|
2 |
UART2_RX |
|
3 |
UART2_TX |
|
4 |
GND |
|
COM-EInterface定义
连接器型号：A21-1220-0601-01C
Peer connector: A21-2220-0601-01C
Table 4 3ROWA
TYPE6 A |
SMRK_3588_A Row A |
SMRK_3588_A Row B |
TYPE6 B |
A1 |
GND |
GND |
B1 |
A2 |
GBE0_P3_N/HSIN_A_C |
GBE0_LED_ACT#_3V3 |
B2 |
A3 |
GBE0_P3_P/HSIP_A_C |
GBE1_P3_P/HSIP_B_C |
B3 |
A4 |
GBE1_LED_LINK#_3V3 |
GBE1_P3_N/HSIN_B_C |
B4 |
A5 |
GBE1_LED_ACT#_3V3 |
GBE1_P2_P/HSOP_B_C |
B5 |
A6 |
GBE0_P2_N/HSON_A_C |
GBE1_P2_N/HSON_B_C |
B6 |
A7 |
GBE0_P2_P/HSOP_A_C |
GBE1_P1_P |
B7 |
A8 |
GBE0_LED_LINK#_3V3 |
GBE1_P1_N |
B8 |
A9 |
GBE0_P1_N |
GBE1_P0_P |
B9 |
A10 |
GBE0_P1_P |
GBE1_P0_N |
B10 |
A11 |
GND |
GND |
B11 |
A12 |
GBE0_P0_N |
PWRON_L_KEY_4V0 |
B12 |
A13 |
GBE0_P0_P |
PCIE20_0_REFCLKP |
B13 |
A14 |
NC |
PCIE20_0_REFCLKN |
B14 |
A15 |
MB_PWREN_H_3V3 |
NC |
B15 |
A16 |
SATA30_0_TXP |
USB30_2_SSTXP |
B16 |
A17 |
SATA30_0_TXN |
USB30_2_SSTXN |
B17 |
A18 |
GPIO1_B0_3V3 |
NC |
B18 |
A19 |
SATA30_0_RXP |
USB30_2_SSRXP |
B19 |
A20 |
SATA30_0_RXN |
USB30_2_SSRXN |
B20 |
A21 |
GND |
GND |
B21 |
A22 |
PCIE20_1_TXP/SATA30_1_TXP |
PCIE20_2_REFCLKP |
B22 |
A23 |
PCIE20_1_TXN/SATA30_1_TXN |
PCIE20_2_REFCLKN |
B23 |
A24 |
NC |
MB_PGOOD_1V8 |
B24 |
A25 |
PCIE20_1_RXP/SATA30_1_RXP |
TYPEC0_SSTX1P |
B25 |
A26 |
PCIE20_1_RXN/SATA30_1_RXN |
TYPEC0_SSTX1N |
B26 |
A27 |
NC |
I2C2_SDA_M0_3V3 |
B27 |
A28 |
SATA0_ACT_LED_M1_3V3 |
I2C2_SCL_M0_3V3 |
B28 |
A29 |
PCIE20_1_REFCLKP |
TYPEC0_SSRX1P |
B29 |
A30 |
PCIE20_1_REFCLKN |
TYPEC0_SSRX1N |
B30 |
A31 |
GND |
GND |
B31 |
A32 |
CAN2_TX_M1_3V3 |
SPK_CTL_H/GPIO4_B0_1V8 |
B32 |
A33 |
CAN2_RX_M1_3V3 |
TYPEC0_SSTX2P |
B33 |
A34 |
CAN0_TX_M1_3V3 |
TYPEC0_SSTX2N |
B34 |
A35 |
CAN0_RX_M1_3V3 |
TYPEC5V_PWREN_3V3 |
B35 |
A36 |
USB20_HUB_DM4 |
TYPEC0_SSRX2P |
B36 |
A37 |
USB20_HUB_DP4 |
TYPEC0_SSRX2N |
B37 |
A38 |
NC |
CC_INT_L/GPIO2_C3_1V8 |
B38 |
A39 |
USB20_HUB_DM3 |
TYPEC0_AUXP |
B39 |
A40 |
USB20_HUB_DP3 |
TYPEC0_AUXM |
B40 |
A41 |
GND |
GND |
B41 |
A42 |
USB20_HUB_DM2 |
TYPEC0_OTG_DM |
B42 |
A43 |
USB20_HUB_DP2 |
TYPEC0_OTG_DP |
B43 |
A44 |
NC |
NC |
B44 |
A45 |
USB20_HUB_DM1 |
USB20_HOST0_DM |
B45 |
A46 |
USB20_HUB_DP1 |
USB20_HOST0_DP |
B46 |
A47 |
VCC_RTC |
MENU_KEY_1V8 |
B47 |
A48 |
EXCD0_PERST#_1V8 |
ESC_KEY_1V8 |
B48 |
A49 |
PCIE30X4_PRSTN_3V3 |
RESET_L_KEY_1V8 |
B49 |
A50 |
SARADC_VIN3_1V8 |
CB_RESET#_1V8 |
B50 |
A51 |
GND |
GND |
B51 |
A52 |
PCIE30_REFCLK1_P |
PCIE30_REFCLK2_P |
B52 |
A53 |
PCIE30_REFCLK1_N |
PCIE30_REFCLK2_N |
B53 |
A54 |
GPIO3_B2_1V8 |
PWM15/GPIO1_C6_1V8 |
B54 |
A55 |
PCIE30_REFCLK3_P |
PCIE30_REFCLK4_P |
B55 |
A56 |
PCIE30_REFCLK3_N |
PCIE30_REFCLK4_N |
B56 |
A57 |
GND |
GPIO3_B7_1V8 |
B57 |
A58 |
PCIE30_PORT1_TX1P |
PCIE30_PORT1_RX1P |
B58 |
A59 |
PCIE30_PORT1_TX1N |
PCIE30_PORT1_RX1N |
B59 |
A60 |
GND |
GND |
B60 |
A61 |
PCIE30_PORT1_TX0P |
PCIE30_PORT1_RX0P |
B61 |
A62 |
PCIE30_PORT1_TX0N |
PCIE30_PORT1_RX0N |
B62 |
A63 |
GPIO3_C0_1V8 |
TP_INT_L/GPIO1_C4_1V8 |
B63 |
A64 |
PCIE30_PORT0_TX1P |
PCIE30_PORT0_RX1P |
B64 |
A65 |
PCIE30_PORT0_TX1N |
PCIE30_PORT0_RX1N |
B65 |
A66 |
GND |
WAKE0#_3V3 |
B66 |
A67 |
LCD_RESET_L_1V8/GPIO2_B4 |
NC |
B67 |
A68 |
PCIE30_PORT0_TX0P |
PCIE30_PORT0_RX0P |
B68 |
A69 |
PCIE30_PORT0_TX0N |
PCIE30_PORT0_RX0N |
B69 |
A70 |
GND |
GND |
B70 |
A71 |
LVDS_A0P |
LVDS_B0P |
B71 |
A72 |
LVDS_A0N |
LVDS_B0N |
B72 |
A73 |
LVDS_A1P |
LVDS_B1P |
B73 |
A74 |
LVDS_A1N |
LVDS_B1N |
B74 |
A75 |
LVDS_A2P |
LVDS_B2P |
B75 |
A76 |
LVDS_A2N |
LVDS_B2N |
B76 |
A77 |
LVDS_VDD_EN_3V3 |
LVDS_B3P |
B77 |
A78 |
LVDS_A3P |
LVDS_B3N |
B78 |
A79 |
LVDS_A3N |
LCD_BKLT_EN_3V3 |
B79 |
A80 |
GND |
GND |
B80 |
A81 |
LVDS_A_CLKP |
LVDS_B_CLKP |
B81 |
A82 |
LVDS_A_CLKN |
LVDS_B_CLKN |
B82 |
A83 |
I2C1_SCL_M4_1V8 |
LCD_BKLT_CTRL_3V3 |
B83 |
A84 |
I2C1_SDA_M4_1V8 |
VCC_5V_SBY |
B84 |
A85 |
MIPI_TE1_1V8/GPIO3_A6 |
VCC_5V_SBY |
B85 |
A86 |
V-_KEY_1V8 |
VCC_5V_SBY |
B86 |
A87 |
V+/RECOVERY_KEY_1V8 |
VCC_5V_SBY |
B87 |
A88 |
DP1_AUXP |
TYPEC1_SSRX1P |
B88 |
A89 |
DP1_AUXN |
TYPEC1_SSRX1N |
B89 |
A90 |
GND |
GND |
B90 |
A91 |
TYPEC1_SSTX1P |
DP1_TX3P |
B91 |
A92 |
TYPEC1_SSTX1N |
DP1_TX3N |
B92 |
A93 |
HP_DET_L/GPIO1_D5_1V8 |
SPI0_CS1_M1_1V8 |
B93 |
A94 |
DP1_TX2P |
SPI0_MISO_M1_1V8 |
B94 |
A95 |
DP1_TX2N |
NC |
B95 |
A96 |
GND |
SPI0_MOSI_M1_1V8 |
B96 |
A97 |
UART6_RX_M1_3V3 |
SPI0_CS0_M1_1V8 |
B97 |
A98 |
UART6_TX_M1_3V3 |
TYPEC1_OTG_DM |
B98 |
A99 |
BOOT_SARADC_IN0_KEY_1V8 |
TYPEC1_OTG_DP |
B99 |
A100 |
GND |
GND |
B100 |
A101 |
NC |
SPI0_CLK_M1_1V8 |
B101 |
A102 |
NC |
NC |
B102 |
A103 |
NC |
NC |
B103 |
A104 |
VCC_4.5V-18V |
VCC_4.5V-18V |
B104 |
A105 |
VCC_4.5V-18V |
VCC_4.5V-18V |
B105 |
A106 |
VCC_4.5V-18V |
VCC_4.5V-18V |
B106 |
A107 |
VCC_4.5V-18V |
VCC_4.5V-18V |
B107 |
A108 |
VCC_4.5V-18V |
VCC_4.5V-18V |
B108 |
A109 |
VCC_4.5V-18V |
VCC_4.5V-18V |
B109 |
A110 |
GND |
GND |
B110 |
行C
TYPE6 C |
SMRK_3588_A Row C |
SMRK_3588_A Row D |
TYPE6 D |
C1 |
GND |
GND |
D1 |
C2 |
NC |
UART0_RX_M2_3V3 |
D2 |
C3 |
NC |
UART0_TX_M2_3V3 |
D3 |
C4 |
NC |
NC |
D4 |
C5 |
NC |
NC |
D5 |
C6 |
NC |
MIPI_DPHY1_TX_CLKP |
D6 |
C7 |
NC |
MIPI_DPHY1_TX_CLKN |
D7 |
C8 |
NC |
NC |
D8 |
C9 |
MIPI_DPHY1_TX_D1P |
MIPI_DPHY1_TX_D2P |
D9 |
C10 |
MIPI_DPHY1_TX_D1N |
MIPI_DPHY1_TX_D2N |
D10 |
C11 |
GND |
GND |
D11 |
C12 |
MIPI_DPHY1_TX_D3P |
MIPI_DPHY1_TX_D0P |
D12 |
C13 |
MIPI_DPHY1_TX_D3N |
MIPI_DPHY1_TX_D0N |
D13 |
C14 |
NC |
NC |
D14 |
C15 |
NC |
NC |
D15 |
C16 |
UART7_RX_M2_3V3 |
I2C6_SDA_M0_MIPI_3V3 |
D16 |
C17 |
UART7_TX_M2_3V3 |
I2C6_SCL_M0_MIPI_3V3 |
D17 |
C18 |
NC |
NC |
D18 |
C19 |
MIPI_CAM1_CLKOUT_3V3 |
MIPI_DPHY0_RX_D0P |
D19 |
C20 |
MIPI_DCPHY0_RX_RST_L_1V8 |
MIPI_DPHY0_RX_D0N |
D20 |
C21 |
GND |
GND |
D21 |
C22 |
MIPI_DPHY0_RX_CLKP |
MIPI_DPHY0_RX_D1P |
D22 |
C23 |
MIPI_DPHY0_RX_CLKN |
MIPI_DPHY0_RX_D1N |
D23 |
C24 |
MIPI_DCPHY0_RX_PWREN_H_1V8 |
MIPI_DCPHY0_RX_PDN_H_1V8 |
D24 |
C25 |
MIPI_DPHY0_RX_D3P |
MIPI_DPHY0_RX_D2P |
D25 |
C26 |
MIPI_DPHY0_RX_D3N |
MIPI_DPHY0_RX_D2N |
D26 |
C27 |
NC |
NC |
D27 |
C28 |
NC |
NC |
D28 |
C29 |
MIPI_DPHY1_RX_CLKP |
MIPI_CAM2_CLKOUT_3V3 |
D29 |
C30 |
MIPI_DPHY1_RX_CLKN |
NC |
D30 |
C31 |
GND |
GND |
D31 |
C32 |
MIPI_DPHY1_RX_D1P |
MIPI_DPHY1_RX_D0P |
D32 |
C33 |
MIPI_DPHY1_RX_D1N |
MIPI_DPHY1_RX_D0N |
D33 |
C34 |
MIPI_DCPHY1_RX_PWREN_H_1V8 |
NC |
D34 |
C35 |
MIPI_DPHY1_RX_D3P |
MIPI_DPHY1_RX_D2P |
D35 |
C36 |
MIPI_DPHY1_RX_D3N |
MIPI_DPHY1_RX_D2N |
D36 |
C37 |
MIPI_DCPHY1_RX_PDN_H_1V8 |
MIPI_DCPHY1_RX_RST_L_1V8 |
D37 |
C38 |
NC |
NC |
D38 |
C39 |
MIPI_CAM3_CLKOUT_3V3 |
MIPI_CSI0_RX_CLK1P |
D39 |
C40 |
NC |
MIPI_CSI0_RX_CLK1N |
D40 |
C41 |
GND |
GND |
D41 |
C42 |
MIPI_CSI0_RX_CLK0P |
MIPI_CSI0_PWREN_H_1V8 |
D42 |
C43 |
MIPI_CSI0_RX_CLK0N |
MIPI_CSI0_RX_D2P |
D43 |
C44 |
NC |
MIPI_CSI0_RX_D2N |
D44 |
C45 |
MIPI_CSI0_RST_L_1V8 |
MIPI_CSI0_PDN_H_1V8 |
D45 |
C46 |
MIPI_CSI0_RX_D1P |
MIPI_CSI0_RX_D3P |
D46 |
C47 |
MIPI_CSI0_RX_D1N |
MIPI_CSI0_RX_D3N |
D47 |
C48 |
NC |
NC |
D48 |
C49 |
MIPI_CSI0_RX_D0P |
I2S0_SDI0_1V8 |
D49 |
C50 |
MIPI_CSI0_RX_D0N |
I2S0_SDO0_1V8 |
D50 |
C51 |
GND |
GND |
D51 |
C52 |
NC |
I2C7_SCL_M0_CODEC_1V8 |
D52 |
C53 |
I2S0_MCLK_1V8 |
I2C7_SDA_M0_CODEC_1V8 |
D53 |
C54 |
NC |
NC |
D54 |
C55 |
I2S0_LRCK_1V8 |
I2C4_SDA_M2_MIPI_3V3 |
D55 |
C56 |
I2S0_SCLK_1V8 |
I2C4_SCL_M2_MIPI_3V3 |
D56 |
C57 |
NC |
NC |
D57 |
C58 |
I2C3_SDA_M0_MIPI_1V8 |
MIPI_CAM4_CLKOUT_3V3 |
D58 |
C59 |
I2C3_SCL_M0_MIPI_1V8 |
MIPI_CSI1_PDN_H_1V8 |
D59 |
C60 |
GND |
GND |
D60 |
C61 |
MIPI_CSI1_RX_D3P |
MIPI_CSI1_RX_CLK1P |
D61 |
C62 |
MIPI_CSI1_RX_D3N |
MIPI_CSI1_RX_CLK1N |
D62 |
C63 |
NC |
NC |
D63 |
C64 |
MIPI_CSI1_RX_D1P |
NC |
D64 |
C65 |
MIPI_CSI1_RX_D1N |
MIPI_CSI1_RX_D2P |
D65 |
C66 |
MIPI_CSI1_PWREN_H_1V8 |
MIPI_CSI1_RX_D2N |
D66 |
C67 |
MIPI_CSI1_RST_L_1V8 |
GND |
D67 |
C68 |
MIPI_CSI1_RX_D0P |
MIPI_CSI1_RX_CLK0P |
D68 |
C69 |
MIPI_CSI1_RX_D0N |
MIPI_CSI1_RX_CLK0N |
D69 |
C70 |
GND |
GND |
D70 |
C71 |
HDMI1_TX0P_PORT |
DP/EDP_HPD_1V8 |
D71 |
C72 |
HDMI1_TX0N_PORT |
HDMI1_TX_CEC_3V3 |
D72 |
C73 |
NC |
NC |
D73 |
C74 |
HDMI1_TX2P_PORT |
HDMI1_eARC+ |
D74 |
C75 |
HDMI1_TX2N_PORT |
HDMI1_eARC-/HPD |
D75 |
C76 |
GND |
GND |
D76 |
C77 |
HDMI1_TX3P_PORT |
NC |
D77 |
C78 |
HDMI1_TX3N_PORT |
HDMI1_TX1P_PORT |
D78 |
C79 |
HDMI_TX1_SDA_M2_5V0 |
HDMI1_TX1N_PORT |
D79 |
C80 |
GND |
GND |
D80 |
C81 |
HDMI_TX1_SCL_M2_5V0 |
UART2_TX_M0_3V3 |
D81 |
C82 |
HDMI_RX_HPD |
UART2_RX_M0_3V3 |
D82 |
C83 |
VCC5V_HDMIRX_PORT |
HDMI_RX_CEC_M0_3V3 |
D83 |
C84 |
GND |
GND |
D84 |
C85 |
HDMI_RXDDC_SCL_5V0 |
HDMI_RX_D0P |
D85 |
C86 |
HDMI_RXDDC_SDA_5V0 |
HDMI_RX_D0N |
D86 |
C87 |
GND |
GND |
D87 |
C88 |
HDMI_RX_D2P |
HDMI_RX_CLKP |
D88 |
C89 |
HDMI_RX_D2N |
HDMI_RX_CLKN |
D89 |
C90 |
GND |
GND |
D90 |
C91 |
HDMI_RX_D1P |
HDMI0_TX0N_PORT |
D91 |
C92 |
HDMI_RX_D1N |
HDMI0_TX0P_PORT |
D92 |
C93 |
GND |
GND |
D93 |
C94 |
HDMI0_TX3N_PORT |
HDMI0_TX2N_PORT |
D94 |
C95 |
HDMI0_TX3P_PORT |
HDMI0_TX2P_PORT |
D95 |
C96 |
GND |
GND |
D96 |
C97 |
NC |
HDMI0_TX_CEC_3V3 |
D97 |
C98 |
HDMI0_eARC-/HPD |
HDMI0_TX1N_PORT |
D98 |
C99 |
HDMI0_eARC+ |
HDMI0_TX1P_PORT |
D99 |
C100 |
GND |
GND |
D100 |
C101 |
NC |
HDMI_TX0_SCL_M0_5V0 |
D101 |
C102 |
NC |
HDMI_TX0_SDA_M0_5V0 |
D102 |
C103 |
GND |
GND |
D103 |
C104 |
VCC_4.5V-18V |
VCC_4.5V-18V |
D104 |
C105 |
VCC_4.5V-18V |
VCC_4.5V-18V |
D105 |
C106 |
VCC_4.5V-18V |
VCC_4.5V-18V |
D106 |
C107 |
VCC_4.5V-18V |
VCC_4.5V-18V |
D107 |
C108 |
VCC_4.5V-18V |
VCC_4.5V-18V |
D108 |
C109 |
VCC_4.5V-18V |
VCC_4.5V-18V |
D109 |
C110 |
GND |
GND |
D110 |
