Product Overview
The module is based on the RK3588M high-performance 8-core processor, which is the highest performance general purpose SoC of RK3588M, integrating 4 Cortex-A76 and 4 Cortex-A55 processors, and the main frequency is ≥2.0GHz. Internal support for independent NEON coprocessor; The CPU is built with a variety of powerful embedded hardware engines, supporting the 8K@60fps H.265 and VP9 decoder,8k@30fps H.264 decoder and 4K@60fps AV1 decoder; Also supports 8K@30fps H.264/H.265 encoders, high quality JPEG encoders/decoders, specialized image preprocessors and post-processors
Integrated high-performance Mali-G610 GPU, fully compatible with OpenGL ES 1.1/2.0/3.2,OpenCL 2.2 and Vulkan1.2; The embedded NPU supports INT4/INT8/INT16/FP16 hybrid operations, with computing power up to 6TOPS.
The module is the standard mini COMe size 84mm*55mm, the standard on-board LPDDR4 8GB, the maximum support is 16GB, the on-board 64GB EMMC, optional 128GB and 256GB. Disy output interface supports 2 4-channel MIPI interface,1 standard HDMI interface; The disy input interface supports two 4-channel MIPI CSI interfaces (can support two cameras); Supports two Gigabit network ports, one SATA3.0, one PCIE3.0x4 (two X2 or four x1 modes are optional), one USB3.0 HOST, one Type-C port, and two USB2.0 ports HOST,2 CAN2.0 channels,1 I2S audio port,1 independent I2C port,4 TTL serial ports,10 GPIO.
Module support Linux system, support for domestic operating systems such as Galaxy Kirin V10, typical power consumption of 8W; The module adopts full surface paste, domestic design, has the characteristics of high performance, low power consumption, small size, etc., to meet the wide temperature working environment. Products can be used in intelligent cabin, smart large screen, virtual/augmented reality, edge computing,IPC,NVR, high-end industrial control tablet and other industry markets
Product Features
² Processor: RK3588M 8-core processor, main frequency ≥2.0GHz, high-performance Mali-G610 GPU, built-in NPU, support independent NEON coprocessor;
² Memory: standard onboard 8GB LPDDR4 domestic memory particles, maximum support 16GB;
² Storage: on-board 64GB EMMC, maximum support 256GB;
² Disy: 2 channels 4 MIPI output,1 channel HDMI, support 4K@60Hz;
² Network: Support 2 gigabit network ports;
²PCI-E: 1-channel PCI-E3.0x4(optional 2-channel x2 or 4-channel x1 mode);
²SATA: 1 SATA3.0 interface;
²USB: 1 USB3.0 HOST,1 Type-C,2 USB2.0;
²AUDIO: 1 I2S signal;
² Supports 2 CAN2.0 channels; 4 channels TTL (1 channel is debugging serial port),1 channel SPI,1 channel independent I2C; 10 GPIO;
²4.5V ~ 16V wide voltage input;
² Support special industrial grade -43℃~85℃ working temperature;
² Standard Mini COM-E size 84*55mm;
² Components 100percent Domestic brand.
产品规格
规格信息
Table 1 Product technical specifications
Project |
Description |
|
Processor |
CPU |
4 x Cortex-A76（≥2.0GHz）+ 4 x Cortex-A55（≥1.7GHz） |
GPU |
4 x Mali-G610（max freq 1GHz）
|
|
NPU |
6TOPS(INT8)、Support INT4/INT8/INT16/FP16 |
|
Video codec |
Decode |
8K@30fps H.264
|
Code |
8K@30fps H.265/H.264 |
|
Memory |
Type |
Onboard LPDDR4, standard 8GB, maximum optional 16GB |
Store |
EMMC |
On-board industrial EMMC 64GB, optional 128GB,256GB |
SATA |
One SATA3.0 port is standard |
|
COM-E Interface |
USB |
One USB3.0 HOST and one Type-C. 2 USB2.0 HOST |
PCIE |
Standard one PCI-E 3.0x4 Two PCI-E3.0x2 or four PCIE3.0x1-- are optional |
|
Network |
Two Gigabit network ports |
|
Serial port |
4路TTLSerial port,其中1路为TTL调试Serial port |
|
Disy output |
By default, two different channels or simultaneous disy -- are supported 2-channel 4-channel MIPI with the maximum resolution of 4K@60Hz One HDMI port, the maximum support is 4K@60Hz 1路TYPEC转DP接口 |
|
MIPI_CSI |
1、4车道MIPI CSI—— |
|
I2C |
1 Independent road I2C |
|
SPI |
1 Route SPI |
|
CAN |
2 way CAN2.0 |
|
Audio |
1 way standard I2S |
|
GPIO |
10 GPIO |
|
The camera |
MIPI_CSI |
1路4laneThe camera接口（独立连接器） |
扩展Store |
TF |
1 TF card interface (independent connector) |
Power supply |
Type |
Standard DC5V/ 12V input, support DC 4.5~16V wide voltage input |
Power-on Mode |
Support call self-start AT mode Optional button trigger Power on ATX mode |
|
Standby wake mode |
Support |
|
Power consumption |
空闲模式4W,Memory满压力测试10W |
|
Physical parameters |
Size (W×D) |
84mm x 55mm (MINI COM-E module) |
Environmental adaptability |
Commercial grade |
Operating temperature: 0℃ ~ 60℃,5 ~ 95percent RH, non-condensing |
Store温度：-20℃～70℃,5～95% RH,不凝结 |
||
Wide temperature level |
Operating temperature: -20℃ ~ 70℃,5 ~ 95percent RH, non-condensing |
|
Store温度：-40℃～80℃,5～95% RH,不凝结 |
||
Industrial grade |
Operating temperature: -40℃ ~ 80℃,5 ~ 95percent RH, non-condensing |
|
Store温度：-50℃～85℃,5～95% RH,不凝结 |
||
特殊Industrial grade |
Operating temperature: -43℃ ~ 85℃,5 ~ 95percent RH, non-condensing |
|
Store温度：-50℃～85℃,5～95% RH,不凝结 |
||

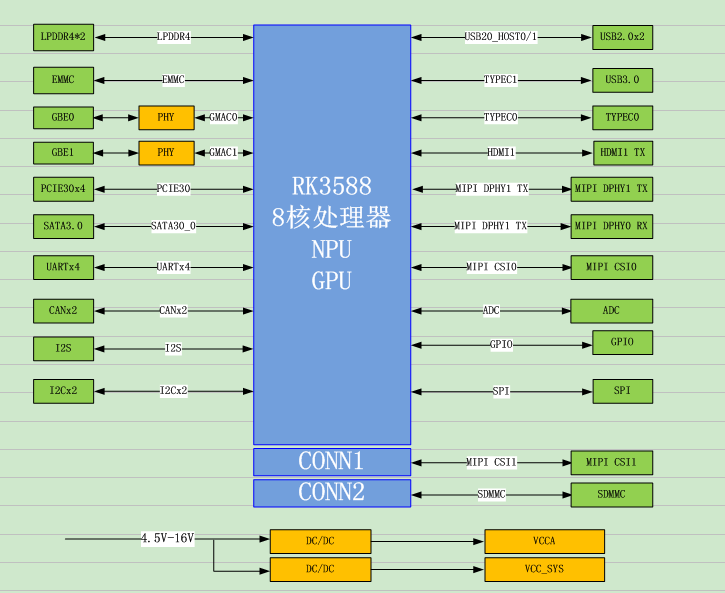

Product frame diagram
IO multiplexing Function Description
Table 2IO Multiplexing description
Serial number |
Module default function |
Function reuse 1 |
Function reuse 2 |
Description |
1. |
GBE0/1 |
—— |
—— |
|
2. |
SATA3.0 |
—— |
—— |
|
3. |
MIPI_CSI0 1*4lane |
GPIO*8 |
1*2Lane |
Kernel adjustment |
4. |
TYPEC0 |
DP |
—— |
Kernel adjustment |
5. |
USB2.0_0/1 |
—— |
—— |
|
6. |
USB3.0 |
—— |
—— |
|
7. |
PCIE3.0 x4 |
4*PCIE3.0 x1 |
2*PCIE3.0 x2 |
|
8. |
MIPI 2 channels 4 channels |
—— |
Can be reused as a single channel output |
|
9. |
SPI |
GPIO*4 |
—— |
|
10. |
CAN_0/1 |
GPIO*4 |
—— |
|
11. |
HDMI |
EDP |
—— |
Kernel adjustment |
12. |
I2S |
GPIO*7 |
—— |
Kernel adjustment |
13. |
UART_0/6/7 |
GPIO*6 |
—— |
Kernel adjustment |
14. |
GPIO(DP/EDP_HPD_1V8) |
EDP_HPD |
—— |
|
产品结构
产品外观

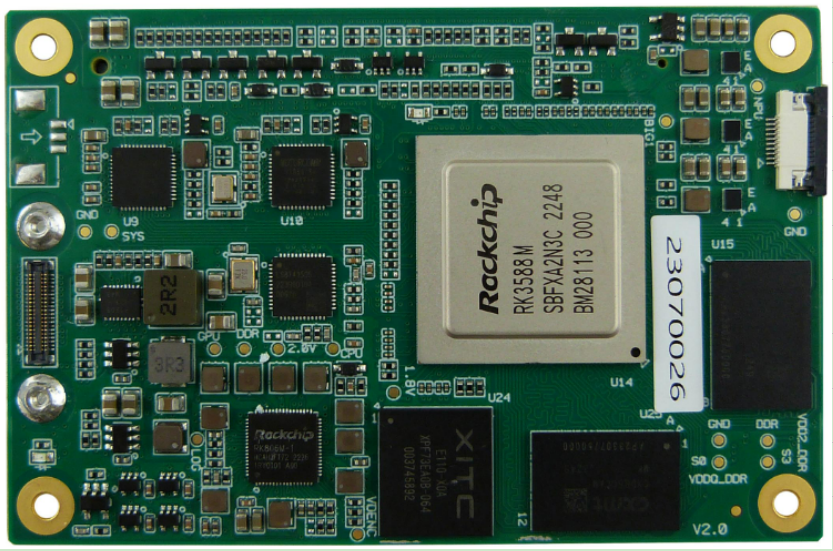

Front view of module
Module back picture

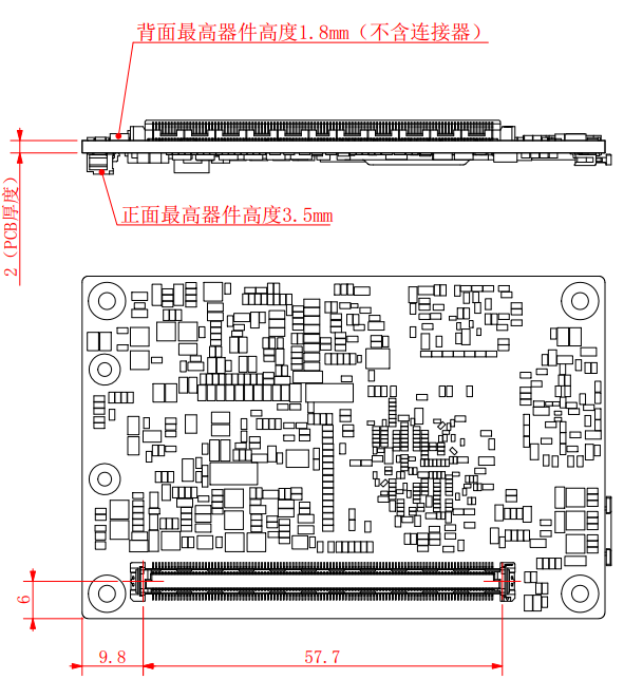

Structure size
Product dimensions drawing

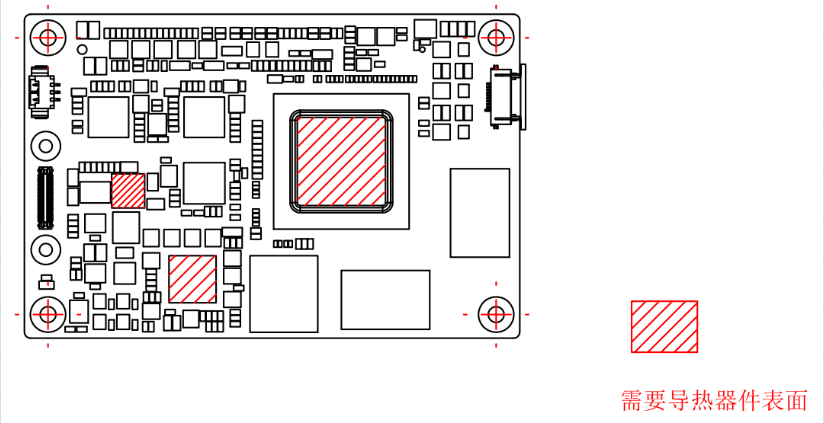

Heat dissipation design
As shown in the following figure, the marked area is the chip that needs heat dissipation. The thickness of the heat dissipation pad is recommended to be 1mm
Cooling device location diagram
产品电气接口
接口列表
Table 3 Electrical interface list
Serial number |
Bit number |
接口功能Type |
Interface connector Manufacturer Model |
Note |
1 |
CN1 |
SDMMC |
Tess FFC05008-10SBB124W5M |
|
2 |
CN2 |
MIPI_CSI1 |
TessFBB04004-F40S1003K6M |
|
3 |
MD1 |
COM-E signal |
Nigat A21-1220-0601-01C |
|

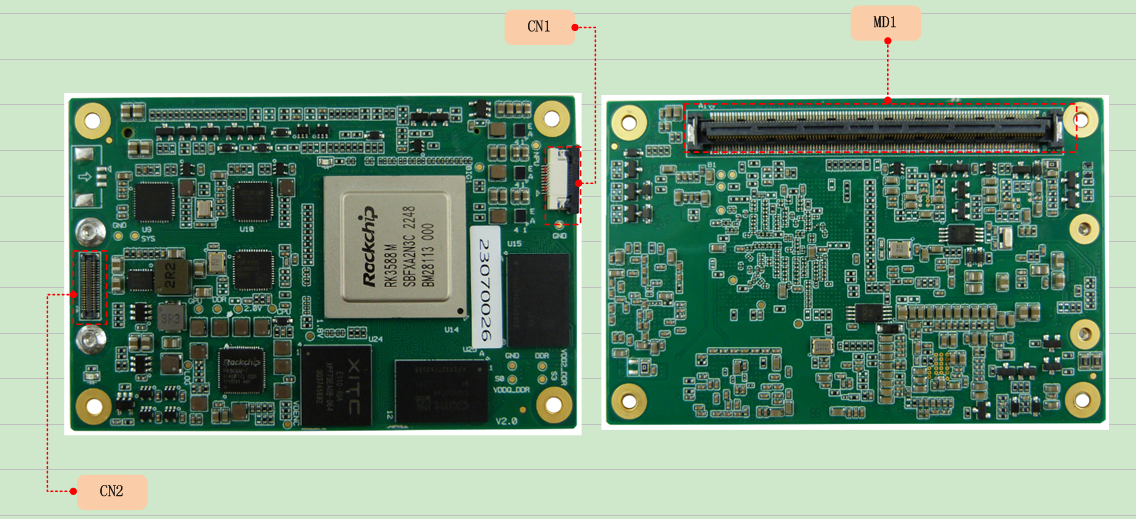

Interface Layout
Interface Layout图
MIPI CSI1 Interface Definition
Connector model: FBB04004-F40S1003K6M
Peer connector: FBB04004-M40S1003K6M
表4MIPI CSI1 Interface Definition
Pin number |
Signal definition |
Pin number |
Signal definition |
1 |
GND |
2 |
GND |
3 |
GND |
4 |
NC |
5 |
MIPI_CSI1_PWREN_H_1V8 |
6 |
MIPI_CSI1_PWREN_H_1V8_RSVD |
7 |
MIPI_CSI1_RST_L_1V8 |
8 |
MIPI_CSI1_RST_L_1V8_RSVD |
9 |
MIPI_CSI1_PDN_H_1V8 |
10 |
MIPI_CSI1_PDN_H_1V8_RSVD |
11 |
GND |
12 |
GND |
13 |
MIPI_CAM3_CLKOUT_3V3 |
14 |
MIPI_CAM4_CLKOUT_3V3 |
15 |
GND |
16 |
GND |
17 |
I2C4_SDA_M2_3V3 |
18 |
GPIO1_C4_1V8 |
19 |
I2C4_SCL_M2_3V3 |
20 |
GPIO1_D5_1V8 |
21 |
GND |
22 |
GND |
23 |
MIPI_CSI1_RX_D2P |
24 |
MIPI_CSI1_RX_D0P |
25 |
MIPI_CSI1_RX_D2N |
26 |
MIPI_CSI1_RX_D0N |
27 |
GND |
28 |
GND |
29 |
MIPI_CSI1_RX_D3P |
30 |
MIPI_CSI1_RX_D1P |
31 |
MIPI_CSI1_RX_D3N |
32 |
MIPI_CSI1_RX_D1N |
33 |
GND |
34 |
GND |
35 |
MIPI_CSI1_RX_CLK1P |
36 |
MIPI_CSI1_RX_CLK0P |
37 |
MIPI_CSI1_RX_CLK1N |
38 |
MIPI_CSI1_RX_CLK0N |
39 |
GND |
40 |
GND |
SDMMC Interface Definition
Connector model: FFC05008-10SBB124W5M (0.5mm spacing, lower contact)
表5SDMMC Interface Definition
Pin number |
Signal definition |
Note |
1 |
SDMMC_D0 |
|
2 |
SDMMC_D1 |
|
3 |
SDMMC_D2 |
|
4 |
SDMMC_D3 |
|
5 |
SDMMC_CMD |
|
6 |
GND |
|
7 |
SDMMC_CLK |
|
8 |
GND |
|
9 |
SD_DET# |
|
10 |
SDMMC_PWREN_3V3 |
|
COM-E Interface定义
Connector model: A21-1220-0601-01C
Peer connector: A21-2220-0601-01C
表6COM-E Interface定义
TYPE10 A |
SMRC_3588_B Row A |
SMRC_3588_B Row B |
TYPE10 B |
A1 |
GND |
GND |
B1 |
A2 |
GBE0_P3_N |
GBE0_LED_ACT#_3V3 |
B2 |
A3 |
GBE0_P3_P |
GBE1_P3_P |
B3 |
A4 |
GBE1_LED_LINK#_3V3 |
GBE1_P3_N |
B4 |
A5 |
GBE1_LED_ACT#_3V3 |
GBE1_P2_P |
B5 |
A6 |
GBE0_P2_N |
GBE1_P2_N |
B6 |
A7 |
GBE0_P2_P |
GBE1_P1_P |
B7 |
A8 |
GBE0_LED_LINK#_3V3 |
GBE1_P1_N |
B8 |
A9 |
GBE0_P1_N |
GBE1_P0_P |
B9 |
A10 |
GBE0_P1_P |
GBE1_P0_N |
B10 |
A11 |
GND |
GND |
B11 |
A12 |
GBE0_P0_N |
PWRON_L_KEY_4V0 |
B12 |
A13 |
GBE0_P0_P |
MIPI_CSI0_RX_CLK0P |
B13 |
A14 |
MIPI_CAM2_CLKOUT_3V3 |
MIPI_CSI0_RX_CLK0N |
B14 |
A15 |
MB_PWREN_H_3V3 |
MIPI_CSI0_PWREN_H_1V8 |
B15 |
A16 |
SATA30_0_TXP |
MIPI_CSI0_RX_D0P |
B16 |
A17 |
SATA30_0_TXN |
MIPI_CSI0_RX_D0N |
B17 |
A18 |
MIPI_TE0_1V8/GPIO3_B2 |
MIPI_CSI0_RST_L_1V8 |
B18 |
A19 |
SATA30_0_RXP |
MIPI_CSI0_RX_D1P |
B19 |
A20 |
SATA30_0_RXN |
MIPI_CSI0_RX_D1N |
B20 |
A21 |
GND |
GND |
B21 |
A22 |
POWER_OFF# |
MIPI_CSI0_PDN_H_1V8 |
B22 |
A23 |
VDC_INPUT |
MIPI_CAM1_CLKOUT_3V3 |
B23 |
A24 |
MIPI_CSI0_PWREN_H_1V8_RSVD |
MB_PGOOD_1V8 |
B24 |
A25 |
MIPI_CSI0_RX_D2P |
TYPEC0_SSTX1P |
B25 |
A26 |
MIPI_CSI0_RX_D2N |
TYPEC0_SSTX1N |
B26 |
A27 |
MIPI_CSI0_RST_L_1V8_RSVD |
I2C2_SDA_M0_3V3 |
B27 |
A28 |
SATA0_ACT_LED_M1_3V3 |
I2C2_SCL_M0_3V3 |
B28 |
A29 |
MIPI_CSI0_RX_D3P |
TYPEC0_SSRX1P |
B29 |
A30 |
MIPI_CSI0_RX_D3N |
TYPEC0_SSRX1N |
B30 |
A31 |
GND |
GND |
B31 |
A32 |
CAN2_TX_M1_3V3 |
SPK_CTL_H/GPIO4_B0_3V3 |
B32 |
A33 |
CAN2_RX_M1_3V3 |
TYPEC0_SSTX2P |
B33 |
A34 |
CAN1_TX_M1_3V3 |
TYPEC0_SSTX2N |
B34 |
A35 |
CAN1_RX_M1_3V3 |
TYPEC5V_PWREN_3V3 |
B35 |
A36 |
TYPEC1_SSRX1N |
TYPEC0_SSRX2P |
B36 |
A37 |
TYPEC1_SSRX1P |
TYPEC0_SSRX2N |
B37 |
A38 |
MIPI_CSI0_PDN_H_1V8_RSVD |
CC_INT_L/GPIO0_D3_3V3 |
B38 |
A39 |
TYPEC1_SSTX1N |
TYPEC0_AUXP |
B39 |
A40 |
TYPEC1_SSTX1P |
TYPEC0_AUXM |
B40 |
A41 |
GND |
GND |
B41 |
A42 |
TYPEC1_OTG_DM |
TYPEC0_OTG_DM |
B42 |
A43 |
TYPEC1_OTG_DP |
TYPEC0_OTG_DP |
B43 |
A44 |
I2C3_SCL_M0_1V8 |
I2C3_SDA_M0_1V8 |
B44 |
A45 |
USB20_HOST1_DM |
USB20_HOST0_DM |
B45 |
A46 |
USB20_HOST1_DP |
USB20_HOST0_DP |
B46 |
A47 |
VCC_RTC |
V+/RECOVERY_KEY_1V8 |
B47 |
A48 |
EXCD0_PERST#_1V8 |
V-_KEY_1V8 |
B48 |
A49 |
PCIE30X4_PRSTN_3V3 |
RESET_L_KEY_1V8 |
B49 |
A50 |
I2S0_MCLK_1V8 |
CB_RESET#_1V8 |
B50 |
A51 |
GND |
GND |
B51 |
A52 |
I2S0_SCLK_1V8 |
I2S0_SDO0_1V8 |
B52 |
A53 |
I2S0_LRCK_1V8 |
I2S0_SDI0_1V8 |
B53 |
A54 |
GPIO4_A5_3V3 |
PWM15/GPIO1_C6_1V8 |
B54 |
A55 |
PCIE30_REFCLK1_P |
I2C7_SCL_M0_CODEC_1V8 |
B55 |
A56 |
PCIE30_REFCLK1_N |
I2C7_SDA_M0_CODEC_1V8 |
B56 |
A57 |
GND |
GPIO4_C0_3V3 |
B57 |
A58 |
PCIE30_PORT1_TX1P |
PCIE30_PORT1_RX1P |
B58 |
A59 |
PCIE30_PORT1_TX1N |
PCIE30_PORT1_RX1N |
B59 |
A60 |
GND |
GND |
B60 |
A61 |
PCIE30_PORT1_TX0P |
PCIE30_PORT1_RX0P |
B61 |
A62 |
PCIE30_PORT1_TX0N |
PCIE30_PORT1_RX0N |
B62 |
A63 |
GPIO4_A6_3V3 |
GPIO4_C1_3V3 |
B63 |
A64 |
PCIE30_PORT0_TX1P |
PCIE30_PORT0_RX1P |
B64 |
A65 |
PCIE30_PORT0_TX1N |
PCIE30_PORT0_RX1N |
B65 |
A66 |
GND |
WAKE0#_3V3 |
B66 |
A67 |
GPIO4_A7_3V3 |
SARADC_VIN3_KEY |
B67 |
A68 |
PCIE30_PORT0_TX0P |
PCIE30_PORT0_RX0P |
B68 |
A69 |
PCIE30_PORT0_TX0N |
PCIE30_PORT0_RX0N |
B69 |
A70 |
GND |
GND |
B70 |
A71 |
MIPI_DPHY1_TX_D0P |
MIPI_DPHY0_TX_D0P |
B71 |
A72 |
MIPI_DPHY1_TX_D0N |
MIPI_DPHY0_TX_D0N |
B72 |
A73 |
MIPI_DPHY1_TX_D1P |
MIPI_DPHY0_TX_D1P |
B73 |
A74 |
MIPI_DPHY1_TX_D1N |
MIPI_DPHY0_TX_D1N |
B74 |
A75 |
MIPI_DPHY1_TX_D2P |
MIPI_DPHY0_TX_D2P |
B75 |
A76 |
MIPI_DPHY1_TX_D2N |
MIPI_DPHY0_TX_D2N |
B76 |
A77 |
LVDS_VDD_EN_3V3 |
MIPI_DPHY0_TX_D3P |
B77 |
A78 |
MIPI_DPHY1_TX_D3P |
MIPI_DPHY0_TX_D3N |
B78 |
A79 |
MIPI_DPHY1_TX_D3N |
LCD_BKLT_EN_3V3 |
B79 |
A80 |
GND |
GND |
B80 |
A81 |
MIPI_DPHY1_TX_CLKP |
MIPI_DPHY0_TX_CLKP |
B81 |
A82 |
MIPI_DPHY1_TX_CLKN |
MIPI_DPHY0_TX_CLKN |
B82 |
A83 |
I2C1_SCL_M4_1V8 |
LCD_BKLT_CTRL_3V3 |
B83 |
A84 |
I2C1_SDA_M4_1V8 |
VCC_5V_SBY |
B84 |
A85 |
GPIO4_B5_3V3 |
VCC_5V_SBY |
B85 |
A86 |
HDMI1_eARC+ |
VCC_5V_SBY |
B86 |
A87 |
HDMI1_eARC-/HPD |
VCC_5V_SBY |
B87 |
A88 |
HDMI1_TX0P_PORT |
HDMI1_TX3P_PORT |
B88 |
A89 |
HDMI1_TX0N_PORT |
HDMI1_TX3N_PORT |
B89 |
A90 |
GND |
GND |
B90 |
A91 |
HDMI1_TX1P_PORT |
HDMI_TX1_SCL_M2_3V3 |
B91 |
A92 |
HDMI1_TX1N_PORT |
HDMI_TX1_SDA_M2_3V3 |
B92 |
A93 |
GPIO4_B7_3V3 |
SPI0_MISO_M1_3V3 |
B93 |
A94 |
HDMI1_TX2P_PORT |
HDMI1_TX_CEC_3V3 |
B94 |
A95 |
HDMI1_TX2N_PORT |
SPI0_MOSI_M1_3V3 |
B95 |
A96 |
GND |
SPI0_CS1_M1_3V3 |
B96 |
A97 |
UART6_TX_M1_3V3 |
SPI0_CLK_M1_3V3 |
B97 |
A98 |
UART6_RX_M1_3V3 |
UART2_TX_M0_3V3 |
B98 |
A99 |
DP/EDP_HPD_1V8 |
UART2_RX_M0_3V3 |
B99 |
A100 |
GND |
GND |
B100 |
A101 |
UART0_TX_M2_3V3 |
UART7_TX_M2_3V3 |
B101 |
A102 |
UART0_RX_M2_3V3 |
UART7_RX_M2_3V3 |
B102 |
A103 |
I2C0_SCL_M2_3V3 |
I2C0_SDA_M2_3V3 |
B103 |
A104 |
VCC_4.5V-16V |
VCC_4.5V-16V |
B104 |
A105 |
VCC_4.5V-16V |
VCC_4.5V-16V |
B105 |
A106 |
VCC_4.5V-16V |
VCC_4.5V-16V |
B106 |
A107 |
VCC_4.5V-16V |
VCC_4.5V-16V |
B107 |
A108 |
VCC_4.5V-16V |
VCC_4.5V-16V |
B108 |
A109 |
VCC_4.5V-16V |
VCC_4.5V-16V |
B109 |
A110 |
GND |
GND |
B110 |
