Product Overview
This product is a small size of domestic SMARC2.1 module, compact size 82mm*50mm, based on the flagship RK3588 high-performance 8-core processor, up to 2.2GHz, integrated 4 Cortex-A76 and 4 Cortex-A55 processors,1 MPli-G610 MC4 GPU,1 NPU processing unit, with H.264/H.265 codec,6TOPS AI computing power; Module with high performance configuration, on-board LPDDR48GB memory, maximum support 16GB, on-board 64GBEMMC, optional 128GB and 256GB
The module supports 314 pin gold finger, fits standard MXM3 connector, and has a rich and general IO interface. Disy output supports 1 4-channel MIPI interface,2 standard HDMI (optional EDP) interface; Disy input supports 2 MIPI CSI interfaces (1 channel 4lane,1 channel 2lane, can support 2 cameras); Supports two Gigabit network ports, one SATA3.0, one PCIE3.0x4 (two x2 or four x1 modes are optional), one USB3.0 HOST, one Type-C port (optional DP), and two USB2.0 HOST,2 CAN2.0,1 I2S audio port,1 independent I2C port,4 TTL serial ports,5 GPIO ports (other ports can be reused).
All module components are selected from domestic manufacturers, and the operating system supports the domestic desktop system Galaxy Kirin V10 and the domestic real-time system Yihui information SylixOS, which meets the application needs of software and hardware 100percent localization, and can be applied to intelligent cockpit, smart large screen, virtual/augmented reality, edge computing,IPC,NVR, high-end industrial control tablet and other industries The market
Product Features
² Processor: RK3588 8-core processor, up to 2.2GHz, high-performance MPli-G610GPU, built-in NPU, support independent NEON coprocessor;
² Memory: standard onboard 8GBLPDDR4 domestic memory particles, maximum support 16GB;
² Storage: onboard 64GBEMMC, maximum support 256GB;
² Disy: output part,1 channel 4 MIPI output,2 HDMI (optional EDP), support 4K@60Hz,1 DP interface (with TYPE-C multiplexing); Input: 1 channel 4lane MIPI CSI,1 channel 2lane MIPI CSI,1 channel HDMI IN;
² Network: Support 2 gigabit network ports, support optical/electrical combo;
²PCI-E: 1-channel PCI-E3.0x4(optional 2-channel x2 or 4-channel x1 mode);
²SATA: 1 SATA3.0 interface (multiplexed PCIE2.0);
²USB: 1 USB3.0 HOST,1 Type-C0,2 USB2.0;
²AUDIO: 1 I2S signal;
² Supports 2 CAN2.0 channels; 4 channels TTL (1 channel is debugging serial port),1 channel SPI,1 channel independent I2C; 5-way GPIO;
² Standard DC5V power supply, voltage input range 4.5~15V, with strong power supply adaptability;
² Standard SMARC module compact size 82mm×50mm;
² Components 100percent domestic brands;
² Localization of operating system, support domestic desktop system or domestic real-time system.
产品规格
规格信息
Product specification sheet
Project |
Specification description |
|
Processor |
CPU |
4 x Cortex-A76（max freq 2.2GHz）+4 x Cortex-A55（max freq 1.8GHz） |
GPU |
4 x Mali-G610（max freq 1GHz） Compatible with OpenGL ES 1.1/2.0/3.2,OpenCL 2.2 and Vulkan1.2OpenCL 3.0,OpenGL ES 1.1/2.0/3.2, Vulkan 1.1 |
|
NPU |
6TOPS(INT8)、Support INT4/INT8/INT16/FP16 |
|
Video codec |
Decode |
8K@30fps H.264 8K@60fps VP9、H.265、MVC、AVS2 4K@60fps AV1 1080p@60fps MPEG-2、MPEG-1、VC-1、VP8 |
Code |
8K@30fps H.265/H.264 |
|
Memory |
Type |
Onboard LPDDR4, standard 8GB, maximum optional 16GB |
Store |
EMMC |
On-board industrial EMMC 64GB, optional 128GB,256GB |
SATA |
One SATA3.0 port is standard |
|
IO interface (314P Gold finger) |
USB |
One USB3.0 HOST and one Type-C. 2 USB2.0 HOST |
PCIE |
Standard one PCI-E 3.0x4 Two PCI-E3.0x2 or four PCIE3.0x1-- are optional |
|
Network |
Two Gigabit network ports, supporting optical and electrical configuration. The default configuration is electrical |
|
Serial port |
4路TTLSerial port（其中2路Support4线,1路为TTL调试Serial port） |
|
Disy output |
Supports four different disys at the same time One channel 4laneMIPI with the maximum resolution of 4K@60Hz Two HDMI (optional EDP) ports, maximum support 4K@60Hz 1 DP interface (multiplexed with TYPE-C) |
|
Disy input |
1、4车道MIPI CSI 1 1 channel HDMI IN; |
|
I2C |
1 Independent road I2C |
|
SPI |
1 Route SPI |
|
CAN |
2 way CAN2.0 |
|
Audio |
1 way standard I2S |
|
GPIO |
5路GPIO |
|
Power supply |
Type |
Standard DC5V input, compatible with DC12V input, support DC 4.5~15V wide voltage adaptive input |
Power-on Mode |
Supports the AT mode for self-start of incoming calls and the ATX mode for key trigger power-on |
|
Standby wake mode |
Support |
|
Power consumption |
空闲模式6W,满载Power consumption10W |
|
Physical parameters |
Size (W×D) |
82mm x 50mm (SMARC module) |
Environmental adaptability |
Commercial grade |
Operating temperature: 0℃ ~ 60℃,5 ~ 95percent RH, non-condensing |
Store温度：-20℃～70℃,5～95% RH,不凝结 |
||
Wide temperature level |
Operating temperature: -20℃ ~ 70℃,5 ~ 95percent RH, non-condensing |
|
Store温度：-40℃～75℃,5～95% RH,不凝结 |
||
Industrial grade |
Operating temperature: -40℃ ~ 80℃,5 ~ 95percent RH, non-condensing |
|
Store温度：-55℃～85℃,5～95% RH,不凝结 |
||

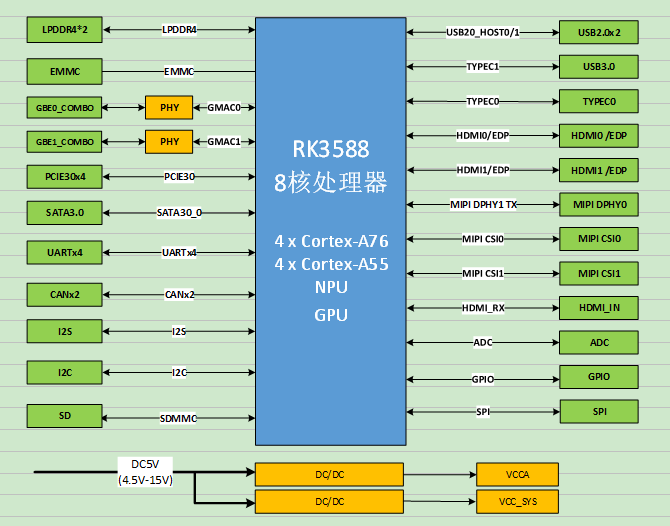

Product frame diagram
Product frame diagram
IO multiplexing Function Description
IO Multiplexing Description
Serial number |
Module default function |
Function reuse 1 |
Function reuse 2 |
Description |
1. |
GBE0/1 |
—— |
—— |
|
2. |
SATA3.0 |
PCIE2.0 |
—— |
Kernel adjustment |
3. |
MIPI_CSI02lane |
GPIO*6 |
GPIO*4+UART3 |
Kernel adjustment |
4. |
MIPI_CSI14lane |
GPIO*4 |
—— |
Kernel adjustment |
5. |
TYPEC0 |
USB 3.0 HOST |
DP 4lane |
Kernel adjustment |
6. |
USB3.0HOST |
—— |
—— |
|
7. |
USB2.0 HOST |
|
|
|
8. |
PCIE3.0 x4 |
4*PCIE3.0 x1 |
2*PCIE3.0 x2+serdes*2 |
Kernel adjustment |
9. |
MIPI4lane |
GPIO*3 |
Can be reused as a single channel output |
Kernel adjustment |
10. |
HDMI0 |
DP0 |
—— |
|
11. |
DP1 |
HDMI0 |
—— |
|
12. |
SP1*1 |
GPIO*4 |
—— |
Kernel adjustment |
13. |
CAN*2 |
GPIO*4 |
—— |
Kernel adjustment |
14. |
I2S*1 |
GPIO*7 |
—— |
Kernel adjustment |
15. |
HDMI_RX |
GPIO*4 |
—— |
Kernel adjustment |
16. |
UART*4 |
UART*1+10GPIO |
UART*1+8GPIO+2CAN |
UART2 cannot be reused |
产品结构
产品外观
Front view of module
Module back picture

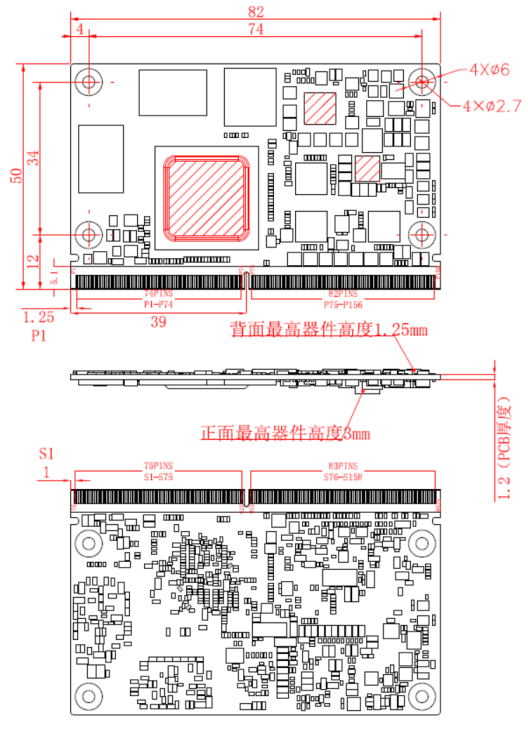

Structure size
Product dimensions drawing

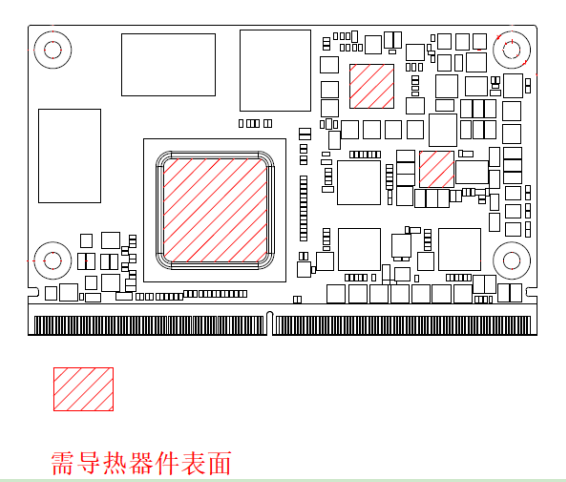

Heat dissipation design
As shown in the following figure, the shadow marked area is the chip that needs heat dissipation, and the thickness of the heat dissipation pad is recommended to be 1mm
Cooling device location diagram
产品电气接口
SMARC接口定义如下表;
SMARC Interface definition table

PIN |
Signal |
PIN |
Signal |
P1 |
SMB_ALERT_1V8# |
S1 |
I2C5_SCL_M0_1V8 |
P2 |
GND |
S2 |
I2C5_SDA_M0_1V38 |
P3 |
MIPI_CSI1_RX_CLK0P |
S3 |
GND |
P4 |
MIPI_CSI1_RX_CLK0N |
S4 |
MIPI_CAM1_CLKOUT_1V8 |
P5 |
NC |
S5 |
I2C3_SCL_M0_1V8 |
P6 |
NC |
S6 |
MIPI_CAM2_CLKOUT_1V8 |
P7 |
MIPI_CSI1_RX_D0P |
S7 |
I2C3_SDA_M0_1V8 |
P8 |
MIPI_CSI1_RX_D0N |
S8 |
MIPI_CSI0_RX_CLK0P |
P9 |
GND |
S9 |
MIPI_CSI0_RX_CLK0N |
P10 |
MIPI_CSI1_RX_D1P |
S10 |
GND |
P11 |
MIPI_CSI1_RX_D1N |
S11 |
MIPI_CSI0_RX_D0P |
P12 |
GND |
S12 |
MIPI_CSI0_RX_D0N |
P13 |
MIPI_CSI1_RX_D2P |
S13 |
GND |
P14 |
MIPI_CSI1_RX_D2N |
S14 |
MIPI_CSI0_RX_D1P |
P15 |
GND |
S15 |
MIPI_CSI0_RX_D1N |
P16 |
MIPI_CSI1_RX_D3P |
S16 |
GND |
P17 |
MIPI_CSI1_RX_D3N |
S17 |
GBE1_P0_P |
P18 |
GND |
S18 |
GBE1_P0_N |
P19 |
GBE0_P3_N |
S19 |
GBE1_LED_LINK100#_3V3 |
P20 |
GBE0_P3_P |
S20 |
GBE1_P1_P |
P21 |
GBE0_LINK100#_3V3 |
S21 |
GBE1_P1_N |
P22 |
GBE0_LINK1000#_3V3 |
S22 |
GBE1_LED_LINK1000#_3V3 |
P23 |
GBE0_P2_N |
S23 |
GBE1_P2_P |
P24 |
GBE0_P2_P |
S24 |
GBE1_P2_N |
P25 |
GBE0_LED_ACT#_3V3 |
S25 |
GND |
P26 |
GBE0_P1_N |
S26 |
GBE1_P3_P |
P27 |
GBE0_P1_P |
S27 |
GBE1_P3_N |
P28 |
NC |
S28 |
GND |
P29 |
GBE0_P0_N |
S29 |
PCIE30_PORTD_TX1P/SERDES_0_TX+ |
P30 |
GBE0_P0_P |
S30 |
PCIE30_PORTD_TX1N/SERDES_0_TX- |
P31 |
NC |
S31 |
GBE1_LED_ACT#_3V3 |
P32 |
GND |
S32 |
PCIE30_PORTD_RX1P/SERDES_0_RX+ |
P33 |
SDMMC0_WP_3V3 |
S33 |
PCIE30_PORTD_RX1N/SERDES_0_RX- |
P34 |
SDMMC0_CMD |
S34 |
GND |
P35 |
SD_DET#_1V8 |
S35 |
PCIE30_REFCLKD_P |
P36 |
SDMMC0_CLK |
S36 |
PCIE30_REFCLKD_N |
P37 |
SDMMC0_PWREN_3V3 |
S37 |
NC |
P38 |
GND |
S38 |
I2S0_MCLK_1V8 |
P39 |
SDMMC0_D0 |
S39 |
I2S0_LRCK_1V8 |
P40 |
SDMMC0_D1 |
S40 |
I2S0_SDO0_1V8 |
P41 |
SDMMC0_D2 |
S41 |
I2S0_SDI0_1V8 |
P42 |
SDMMC0_D3 |
S42 |
I2S0_SCLK_1V8 |
P43 |
SPI2_CS0_M1_1V8 |
S43 |
NC |
P44 |
SPI2_CLK_M1_1V8 |
S44 |
NC |
P45 |
SPI2_MOSI_M1_1V8 |
S45 |
NC |
P46 |
SPI2_MOSI_M1_1V8 |
S46 |
NC |
P47 |
GND |
S47 |
GND |
P48 |
SATA30_0_TXP |
S48 |
I2C7_SCL_M0_1V8 |
P49 |
SATA30_0_TXN |
S49 |
I2C7_SDA_M0_1V8 |
P50 |
GND |
S50 |
HDMI_RX_SCL_M1_1V8 |
P51 |
SATA30_0_RXP |
S51 |
HDMI_RX_SDA_M1_1V8 |
P52 |
SATA30_0_RXN |
S52 |
HDMI_RX_CLKP |
P53 |
GND |
S53 |
HDMI_RX__CLKN |
P54 |
NC |
S54 |
SATA0_ACT_LED_M1_3V3 |
P55 |
NC |
S55 |
HDMI_RX_D0P |
P56 |
VCC5V_HDMIRX_PORT |
S56 |
HDMI_RX_D0N |
P57 |
HDMI_RX_HPDOUT_M1_1V8 |
S57 |
HDMI_RX_D1P |
P58 |
HDMI_RX_CEC_M1_1V8 |
S58 |
HDMI_RX_D1N |
P59 |
GND |
S59 |
HDMI_RX_D2P |
P60 |
USB20_HOST0_DP |
S60 |
HDMI_RX_D2N |
P61 |
USB20_HOST0_DM |
S61 |
GND |
P62 |
NC |
S62 |
TYPEC0_SSTX1P |
P63 |
NC |
S63 |
TYPEC0_SSTX1N |
P64 |
NC |
S64 |
GND |
P65 |
USB20_HOST1_DP |
S65 |
TYPEC0_SSRX1P |
P66 |
USB20_HOST1_DP |
S66 |
TYPEC0_SSRX1N |
P67 |
NC |
S67 |
GND |
P68 |
GND |
S68 |
TYPEC0_OTG_DP |
P69 |
TYPEC1_OTG_DP |
S69 |
TYPEC0_OTG_DM |
P70 |
TYPEC1_OTG_DM |
S70 |
GND |
P71 |
USB2_EN_3V3 |
S71 |
TYPEC1_SSTX1P |
P72 |
VCC_5V_SBY |
S72 |
TYPEC1_SSTX1N |
P73 |
VDC_INPUT |
S73 |
GND |
P74 |
USB3_EN_3V3 |
S74 |
TYPEC1_SSRX1P |
S75 |
TYPEC1_SSRX1N |
||
P75 |
EXCD0_PERST#_1V8 |
||
P76 |
NC |
S76 |
NC |
P77 |
NC |
S77 |
NC |
P78 |
NC |
S78 |
PCIE30_PORTC_RX0P/SERDES_1_RX+ |
P79 |
GND |
S79 |
PCIE30_PORTC_RX0N/SERDES_1_RX- |
P80 |
PCIE30_REFCLKC_P |
S80 |
GND |
P81 |
PCIE30_REFCLKC_N |
S81 |
PCIE30_PORTC_TX0P/SERDES_1_TX+ |
P82 |
GND |
S82 |
PCIE30_PORTC_TX0N/SERDES_1_TX- |
P83 |
PCIE30_REFCLKA_P |
S83 |
GND |
P84 |
PCIE30_REFCLKA_N |
S84 |
PCIE30_REFCLKB_P |
P85 |
GND |
S85 |
PCEI30_REFCLKB_N |
P86 |
PCIE30_PORTA_RX0P |
S86 |
GND |
P87 |
PCIE30_PORTA_RX0N |
S87 |
PCIE30_PORTB_RX1P |
P88 |
GND |
S88 |
PCIE30_PORTB_RX1N |
P89 |
PCIE30_PORTA_TX0P |
S89 |
GND |
P90 |
PCIE30_PORTA_TX0N |
S90 |
PCIE30_PORTB_TX1P |
P91 |
GND |
S91 |
PCIE30_PORTB_TX1N |
P92 |
HDMI0_TX2P_PORT/EDP_TX0_D2P |
S92 |
GND |
P93 |
HDMI0_TX2N_PORT/ EDP_TX0_D2N |
S93 |
NC |
P94 |
GND |
S94 |
NC |
P95 |
HDMI0_TX1P_PORT/ EDP_TX0_D1P |
S95 |
HDMITX1_CEC_M0_1V8 |
P96 |
HDMI0_TX1N_PORT/ EDP_TX0_D1N |
S96 |
NC |
P97 |
GND |
S97 |
NC |
P98 |
HDMI0_TX0P_PORT/EDP_TX0_D0P |
S98 |
HDMITX0_CEC_M0_1V8 |
P99 |
HDMI0_TX0N_PORT/EDP_TX0_D0N |
S99 |
TYPEC0_SSRX2P |
P100 |
GND |
S100 |
TYPEC0_SSRX2N |
P101 |
HDMI0_TX3P_PORT/ EDP_TX0_D3P |
S101 |
GND |
P102 |
HDMI0_TX3N_PORT/ EDP_TX0_D3N |
S102 |
TYPEC0_SSTX2P |
P103 |
GND |
S103 |
TYPEC0_SSTX2N |
P104 |
HDMI0_TX_SBDN/EDP_TX0_AUXN/HPD |
S104 |
NC |
P105 |
HDM0_TX_SBDP/EDP_TX0_AUXP |
S105 |
DP0_AUXP/TYPEC0_AUXP |
P106 |
HDMI_TX0_SDA_M0_1V8 |
S106 |
DP0_AUXM/TYPEC0_AUXN |
P107 |
HDMI_TX0_SCL_M0_1V8 |
S107 |
GPIO4_A3/LCD1_BKLT_EN_1V8 |
P108 |
MIPI_CSI0_PWREN_H_1V8 |
S108 |
HDMI1_TX_SBDP/EDP_TX1_AUXP |
P109 |
MIPI_CSI1_PWREN_H_1V8 |
S109 |
HDMI1_TX_SBDN/EDP_TX1_AUXN/HPD |
P110 |
MIPI_CSI0_RST_L_1V8 |
S110 |
GND |
P111 |
MIPI_CSI1_RST_L_1V8 |
S111 |
HDMI1_TX0P_PORT/EDP_TX1_D0P |
P112 |
MIPI_CSI1_PDN_H_1V8 |
S112 |
HDMI1_TX0N_PORT/EDP_TX1_D0N |
P113 |
MIPI_CSI0_PDN_H_1V8 |
S113 |
EDP_HPD_1V8 |
P114 |
GPIO2_B4_1V8 |
S114 |
HDMI1_TX1P_PORT/EDP_TX1_D1P |
P115 |
GPIO2_B5_1V8 |
S115 |
DHMI1_TX1N_PORT/EDP_TX1_D1N |
P116 |
GPIO2_C3_1V8 |
S116 |
GPIO3_A6/LCD1_VDD_EN_1V8 |
P117 |
GPIO2_C5_1V8 |
S117 |
HDMI1_TX2P_PORT/DEP_TX1_D2P |
P118 |
GPIO3_B7_1V8 |
S118 |
HDMI1_TX2N_PORT/DEP_TX1_D2N |
P119 |
GPIO0_D3/CC_INT#1V8 |
S119 |
GND |
P120 |
GND |
S120 |
HDMI1_TX3P_PORT/DEP_TX1_D3P |
P121 |
I2C6_SCL_M0_1V8 |
S121 |
HDMI1_TX3N_PORT/DEP_TX1_D3N |
P122 |
I2C6_SDA_M0_1V8 |
S122 |
GPIO3_B6/LCD1_BKLT_PWM_1V8 |
P123 |
HDMI_TX1_SCL_M1_1V8 |
S123 |
SARADC_VIN3_KEY |
P124 |
HDMI_TX1_SDA_M1_1V8 |
S124 |
GND |
P125 |
NC |
S125 |
MIPI_DPHY0_TX_D0P |
P126 |
CB_RESET#_1V8 |
S126 |
MIPI_DPHY0_TX_D0N |
P127 |
RESET_L_KEY_1V8 |
S127 |
GPIO1_D5/LCD0_BKLT_EN_1V8 |
P128 |
PWRON_L_KEY_4V0 |
S128 |
MIPI_DPHY0_TX_D1P |
P129 |
UART8_TX_M0_1V8 |
S129 |
MIPI_DPHY0_TX_D1N |
P130 |
UART8_RX_M0_1V8 |
S130 |
GND |
P131 |
UART8_RTS#_M0_1V8 |
S131 |
MIPI_DPHY0_TX_D2P |
P132 |
UART8_CTS#_M0_1V8 |
S132 |
MIPI_DPHY0_TX_D2N |
P133 |
GND |
S133 |
GPIO1_C4/LCD0_VDD_EN_1V8 |
P134 |
UART2_TX_M0_1V8 |
S134 |
MIPI_DPHY0_TX_CLKP |
P135 |
UART2_RX_M0_1V8 |
S135 |
MIPI_DPHY0_TX_CLKN |
P136 |
UART9_TX_M1_1V8 |
S136 |
GND |
P137 |
UART9_RX_M1_1V8 |
S137 |
MIPI_DPHY0_TX_D3P |
P138 |
UART9_RTS#_M1_1V8 |
S138 |
MIPI_DPHY0_TX_D3N |
P139 |
UART0_CTS#_M1_1V8 |
S139 |
I2C1_SCL_M4_1V8 |
P140 |
UART0_TX_M0_1V8 |
S140 |
I2C1_SDA_M4_1V8 |
P141 |
UART0_RX_M0_1V8 |
S141 |
GPIO1_C6/LCD0_BKLT_PWM_1V8 |
P142 |
GND |
S142 |
V-_KEY_1V8 |
P143 |
CAN0_TX_M0_1V8 |
S143 |
GND |
P144 |
CAN0_RX_M0_1V8 |
S144 |
NC |
P145 |
CAN2_TX_M1_1V8 |
S145 |
NC |
P146 |
CAN2_RX_M1_1V8 |
S146 |
WAKE0#_3V3 |
P147 |
VDD_IN |
S147 |
VCC_RTC |
P148 |
VDD_IN |
S148 |
NC |
P149 |
VDD_IN |
S149 |
NC |
P150 |
VDD_IN |
S150 |
NC |
P151 |
VDD_IN |
S151 |
NC |
P152 |
VDD_IN |
S152 |
NC |
P153 |
VDD_IN |
S153 |
MB_PWREN_H_3V3 |
P154 |
VDD_IN |
S154 |
NC |
P155 |
VDD_IN |
S155 |
V+/RECOVERY_KEY_1V8 |
P156 |
VDD_IN |
S156 |
NC |
- |
- |
S157 |
POWER_OFF# |
- |
- |
S158 |
GND |
