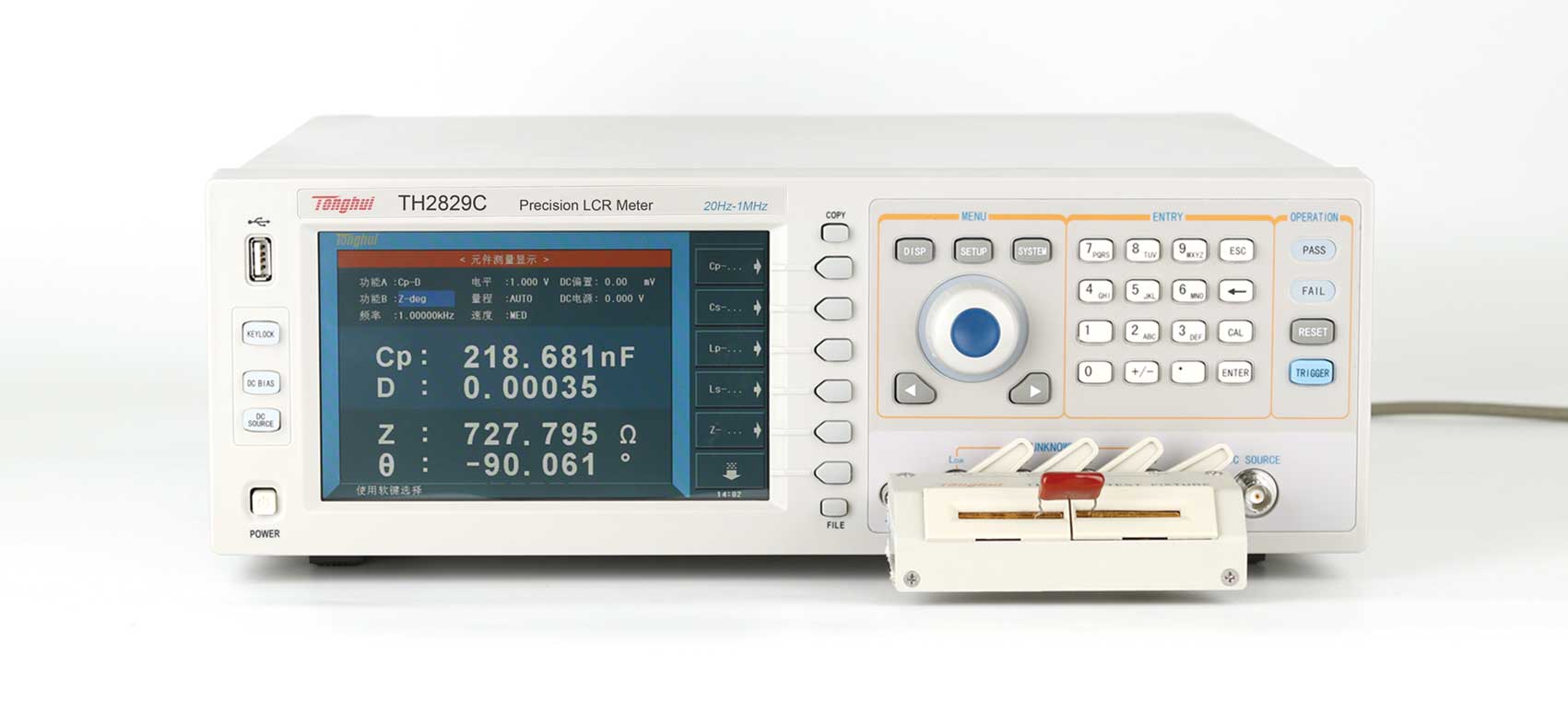

The monitor

800 × RGB × 480 7 Inch TFT LCD The monitor

Test signal

Frequency

20Hz — 300kHz

20Hz — 1MHz

Minimum resolution

1mHz , 5 位Frequency输入

Accuracy

0.01%

AC Level

Test signalVoltage范围

5mV — 10Vrms

VoltageMinimum resolution

100 μ V , 3 Bit input

Accuracy

ALC ON

10% x Set voltage + 2mV

ALC OFF

6% x Set voltage + 2mV

Test signalCurrent range

50 μ A — 100mA

电流Minimum resolution

1 μ A , 3 Bit input

Accuracy

ALC ON

10% x Set the current + 20 μ A

ALC OFF

6% x Set voltage + 20 μ A

DC Bias voltage source

Voltage / Current range

0V — ± 10V / 0mA —± 100mA

Resolution

0.5mV / 5 μ A

VoltageAccuracy

1% x Set voltage + 5mV

ISO ON

Used for inductance, transformer plus bias test

AC Internal resistance of source

ISO ON

100 Ω

ISO OFF

30 Ω、 50 Ω、 100 Ω Optional

DCR Internal resistance of source

30 Ω、 50 Ω、 100 Ω Optional

DC VoltageSource

Voltage / Current range

0V — ± 10V / 0mA —± 50mA

Resolution

1mV

VoltageAccuracy

1% x Set voltage + 5mV

Output resistance

100 Ω

LCR Test parameters

|Z|, |Y|, C, L, X, B, R, G, D, Q, θ , DCR, Vdc-Idc

Test page parameter disy

Two sets of primary and secondary parameters, the second set of parameters can be ON/OFF ; Multi-parameter continuous scan graph analysis

基本测量Accuracy

LCR Test parameters

0.05%

Calibration condition

Preheating time: ≥ 30 Minutes; Ambient temperature: 23 ± 5oC ; 信号Voltage： 0.3Vrms-1Vrms ; Clear " 0 ”： OPEN 、 SHORT After; Test cable length: 0 m

Measure the time ( ≥ 10 kHz)

Fast : 9 ms / Times Medium speed : 67 ms/ Times慢速 : 187 ms/ Times另加Show字符刷新时间

LCR Parameter disy range

| Z | , R , X, DCR

0.00001 Ω — 99.9999M Ω

|Y|, G, B

0.00001 μ s — 99.9999s

C

0.00001pF — 9.99999F

L

0.00001 μ H — 99.9999kH

D

0.00001 — 9.99999

Q

0.00001 — 99999.9

θ (DEG)

-179.999o — 179.999o

θ (RAD)

-3.14159 — 3.14159

Δ %

-999.999% — 999.999%

Equivalent circuit

Tandem , Parallel

Range mode

Automatic , Keep

Trigger mode

Inside , Manual , External , Bus

平均Times数

1 － 256

Calibration function

Open the road , Short-circuit full frequency, point frequency calibration, load calibration

Mathematical operation

Direct reading , Δ ABS, Δ %

Delay time setting

0 -- 999, Minimum resolution 100us

Comparator function

10 File sorting, BIN1 ～ BIN9 、 NG 、 AUX

File counting function

PASS 、 FAIL The front panel LED Show

List scan

· At most 201 点List scan,可单独对Frequency、 AC Voltage / Current, Inside / Outside DC 偏置Voltage / Current,独立 DC Source Voltage进行List scan测试.每扫描点可 Separate sorting

Graphic analysis

·可对Frequency、 AC Level、 DC Bias, etc Graphic scanning analysis.

·设定扫描起始点、终止点,每Times扫描点数.

·ShowMaximum值、小值,读取选择的 Any scan point value.

·可选择将扫描图形存贮于仪器Inside 或External USB Memory.

Inside非易失性Memory

100 Group LCRZ Instrument setup file memory

External USB Memory

GIF Image, CSV Data file LCRZ Instrument setup file memory测试数据 USB Memory直接存储

Interface

1A 偏流Source

可Inside安装 1A 直流偏置电流Source（选件）

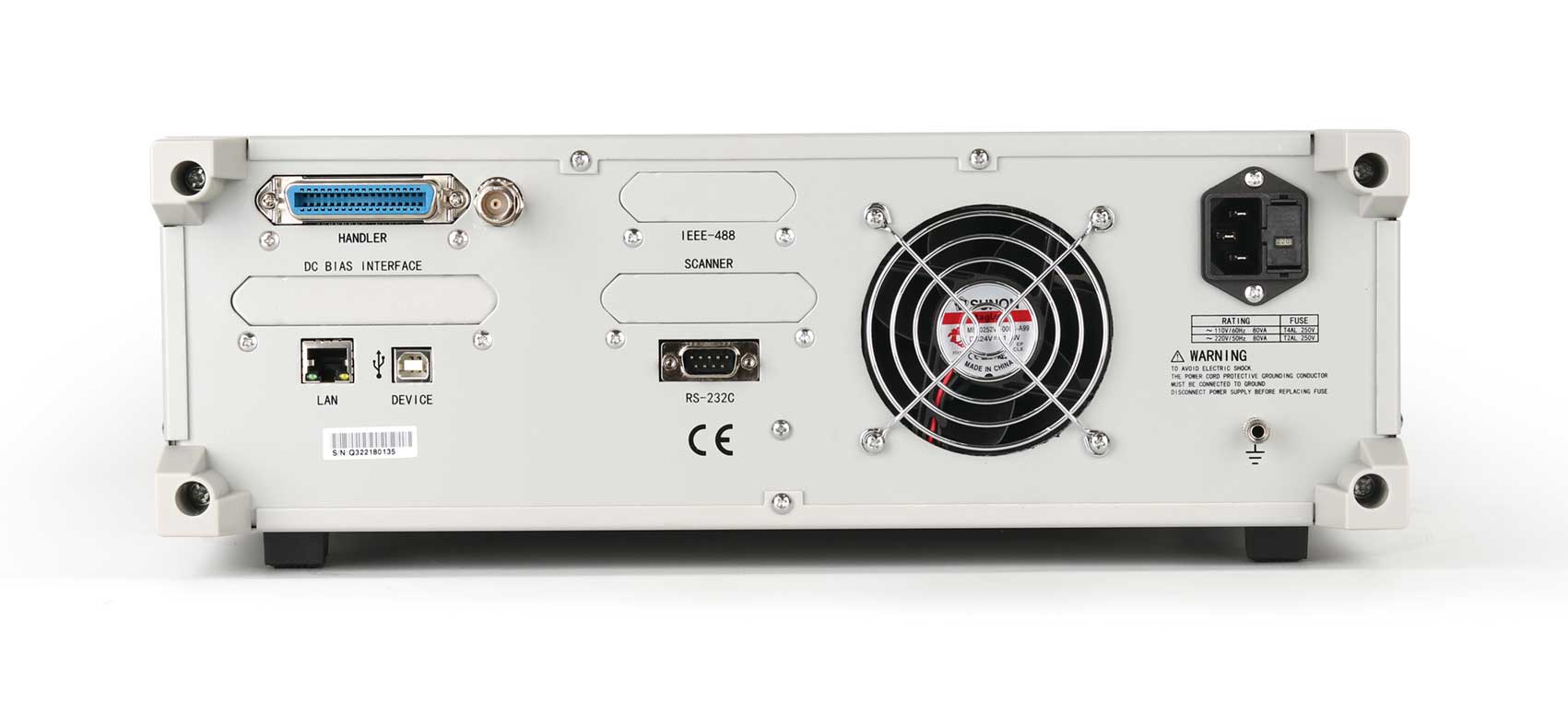

I/O Interface

HANDLER From the instrument rear panel output

串行通讯Interface

USB 、 RS232C

并行通讯Interface

GPIB Interface（选件）

网络Interface

LAN

MemoryInterface

USB HOST （The front panel）

通用Technical parameters

Operating temperature , Humidity

0 ℃－ 40 ℃ , ≤ 90%RH

电Source要求

Voltage

99V － 121V , 198V － 242V AC

Frequency

47Hz － 63Hz

Power consumption

Maximum 80VA

Volume (W × H × D)

400mm × 132mm × 385mm

The weight of

About 13 kg
