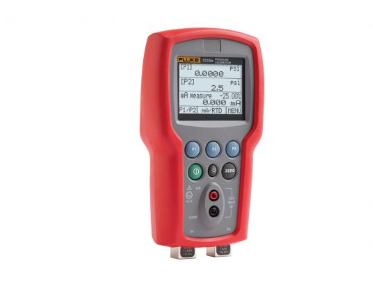

Product specification: Fluke 721Ex precision pressure calibrator
| Technical Specification (1 year) | |||
| Fluke-721Ex-1601 | Low pressure sensor | ||
| The range of | Resolution | Accuracy | |
| -14 psi- 16 psi
-0.97 bar - 1.1 bar |
0.001 psi、
0.0001 bar |
满The range of的 0.025% | |
| High pressure sensor | |||
| - 12psi - 100psi
-0.83 bar - 6.9 bar |
0.01 psi、
0.0001 bar |
满The range of的 0.025% | |
| Fluke-721Ex-1603 | Low pressure sensor | ||
| -14 psi- 16 psi
-0.97 bar - 1.1 bar |
0.001 psi、
0.0001 bar |
满The range of的 0.025% | |
| High pressure sensor | |||
| -12 psi- 300 psi
-0.83 bar - 20 bar |
0.01 psi、
0.001 bar |
满The range of的 0.025% | |
| Fluke-721Ex-1605 | Low pressure sensor | ||
| -14 psi- 16 psi
-0.97 bar - 1.1 bar |
0.001 psi、
0.0001 bar |
满The range of的 0.025% | |
| High pressure sensor | |||
| -12 psi- 500 psi
-0.83 bar - 34.5 bar |
0.01 psi、
0.001 bar |
满The range of的 0.025% | |
| Fluke-721Ex-1610 | Low pressure sensor | ||
| 0 psi--- 1000 psi
0.00 bar - 69 bar |
0.1 psi、
0.001 bar |
满The range of的 0.025% | |
| High pressure sensor | |||
| -12 psi- 500 psi
-0.83 bar - 34.5 bar |
0.01 psi、
0.001 bar |
满The range of的 0.025% | |
| Fluke-721Ex-1615 | Low pressure sensor | ||
| The range of | Resolution | Accuracy | |
| -14 psi- 16 psi
-0.97 bar - 1.1 bar |
0.001 psi、
0.0001 bar |
满The range of的 0.025% | |
| High pressure sensor | |||
| 0 psi- 1500psi
0.00 bar - 103.4 bar |
0.1 psi、
0.001 bar |
满The range of的 0.025% | |
| Fluke-721Ex-1630 | Low pressure sensor | ||
| -14 psi- 16 psi
-0.97 bar - 1.1 bar |
0.001 psi、
0.0001 bar |
满The range of的 0.025% | |
| High pressure sensor | |||
| 0psi - 3000psi
0.00 bar - 200 bar |
0.1 psi、
0.01 bar |
满The range of的 0.025% | |
| Fluke-721Ex-1650 | Low pressure sensor | ||
| -14 psi- 16 psi
-0.97 bar - 1.1 bar |
0.001 psi、
0.0001 bar |
满The range of的 0.025% | |
| High pressure sensor | |||
| 0psi - 5000psi
0.00 bar - 345 bar |
0.1 psi、
0.01 bar |
满The range of的 0.035% | |
| Fluke-721Ex-3601 | Low pressure sensor | ||
| The range of | Resolution | Accuracy | |
| -14 psi- 36 psi
-0.97 bar - 2.48 bar |
0.001 psi、
0.0001 bar |
满The range of的 0.025% | |
| High pressure sensor | |||
| -12 - 100psi，
-0.83 bar - 6.9 bar |
0.01 psi、
0.0001 bar |
满The range of的 0.025% | |
| Fluke-721Ex-3603 | Low pressure sensor | ||
| -14 psi- 36 psi
-0.97 bar - 2.48 bar |
0.001 psi、
0.0001 bar |
满The range of的 0.025% | |
| High pressure sensor | |||
| -12 psi- 300 psi
-0.83 bar - 20 bar |
0.01 psi、
0.001 bar |
满The range of的 0.025% | |
| Fluke-721Ex-3605 | Low pressure sensor | ||
| -14 psi- 36 psi
-0.97 bar - 2.48 bar |
0.001 psi、
0.0001 bar |
满The range of的 0.025% | |
| High pressure sensor | |||
| -12 psi- 500 psi
-0.83 bar - 34.5 bar |
0.01 psi、
0.001 bar |
满The range of的 0.025% | |
| Fluke-721Ex-3610 | Low pressure sensor | ||
| The range of | Resolution | Accuracy | |
| -14 psi- 36 psi
-0.97 bar - 2.48 bar |
0.001 psi、
0.0001 bar |
满The range of的 0.025% | |
| High pressure sensor | |||
| 0 psi--- 1000 psi
0.00 bar - 69 bar |
0.1 psi、
0.001 bar |
满The range of的 0.025% | |
| Fluke-721Ex-3615 | Low pressure sensor | ||
| -14 psi- 36 psi
-0.97 bar - 2.48 bar |
0.001 psi、
0.0001 bar |
满The range of的 0.025% | |
| High pressure sensor | |||
| 0 psi- 1500psi
0.00 bar - 103.4 bar |
0.1 psi、
0.01 bar |
满The range of的 0.025% | |
| Fluke-721Ex-3630 | Low pressure sensor | ||
| -14 psi- 36 psi
-0.97 bar - 2.48 bar |
0.001 psi、
0.0001 bar |
满The range of的 0.025% | |
| High pressure sensor | |||
| 0psi - 3000psi
0.00 bar - 200 bar |
0.1 psi、
0.01 bar |
满The range of的 0.025% | |
| Fluke-721Ex-3650 | Low pressure sensor | ||
| -14 psi- 36 psi
-0.97 bar - 2.48 bar |
0.001 psi、
0.0001 bar |
满The range of的 0.025% | |
| High pressure sensor | |||
| 0psi - 5000psi
0.00 bar - 345 bar |
0.1 psi、
0.01 bar |
满The range of的 0.035% | |
| General technical specification | |||
| Instrument setup call | The usage Settings of the last power - on | ||
| Use the environment | Operating temperature: -10 °C to 45 °C
Storage temperature (without battery) -20 ° C-60 °C |
||
| Altitude | 2,000 m | ||
| Protection level | IP-40 | ||
| Power requirements | 6.0 V DC | ||
| Battery life | > 35 hours (for primary use) | ||
| Number of batteries | (4) A standard No.5 battery | ||
| Dimensions (height x width x depth) | 7.9 x 4.3 x 2.3 in (20 x 11 x 5.8 cm) | ||
| The weight of | 03539 kg (1 lb 3 oz) | ||
| Connector/port pressure | Two,1/8 in NPT,700P series pressure modules: RTD probe | ||
| Electrical and Temperature Measurement (1 year) | |||
| Function | The range of | Resolution | Accuracy |
| mA measurement | 0 to 24 mA | 0.001 mA | ±0.015percent of the reading
±0.002mA |
| Temperature effect | |||
| 15 °C - 35 °C 范围内对有Function的精度无影响 | |||
| Add ±0.002percent F.S./°C-- when the temperature is outside the range of 15 °C to 35 °C | |||
| Unit of pressure | |||
| psi、bar、mbar、kPa、kgcm2、cmH2 O @ 4 °C、cmH2 O @ 20 °C、mH2 O @ 4 °C、mH2 O @ 20 °C、inH2 O @ 4 °C、inH2 O @ 20 °C、inH2 O @ 60 °F、mmHg @ 0 °C、inHg @ 0 °C、ftH2 O @ 4 °C、ftH2 O @ 20 °C、ftH2 O @ 60 °F | |||
| Unit of pressure | |||
| ATEX | Ex ia IIB T3 Gb (Ta= -10… +45 °C) | ||
| KEMA 10 ATEX 0168X | |||
| IECEx | Ex ia IIB T3 Gb (Ta= -10…+45 °C) | ||
| II 2 G IECEx CSA 10.0013X | |||
