Product overview: Fluke BT500 series battery internal resistance analyzer

Reduced testing complexity, simplified workflow, and intuitive user interfaces make battery testing easier than ever

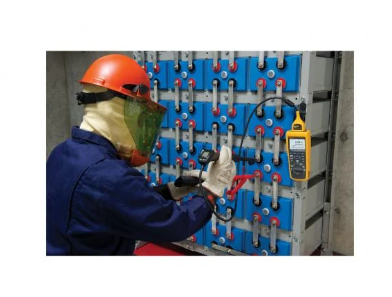

• As an ideal test tool, it enables maintenance, fault diagnosis and performance testing of individual batteries and battery packs for backup battery applications

• An intuitive user interface, compact design and robust construction are the guarantee of excellent performance, test results and reliability

• A wide range of battery testing capabilities, including synchronous DC voltage and internal resistance acquisition, chip resistance testing and synchronous temperature measurement using an interactive handle integrated with an infrared temperature measurement system

• Designed to measure all types of backup batteries

Voltage and resistance thresholds

With Fluke battery analyzer, you can quickly and easily define upper and lower thresholds or tolerance ranges for measurements. During the test, the measured value is automatically compared with the predefined threshold value, and a Pass, Fail, or Warning indicator is generated after each measurement. Up to 10 groups of thresholds can be stored, and the determination of the threshold indication depends on the following conditions:

Fluke battery management software

Fluke battery management software简单易用,让您可以快速而轻松地将数据从电池分析仪导入 PC.测量数据和电池档案信息Pass管理软件进行存储和归档,并可用于对比结果、电导Resistance读数之间切换结果,以及进行趋势分析.可使用有测量数据、电池档案和分析信息轻松地生成报告.

• Quick view of saved readings

• Archives management

• Provide a bar chart of the battery pack and define thresholds by the end user

• Historical trend data of the battery

• 多轮放电Voltage

• Fast report generation

• Upgrade the Fluke Battery Analyzer firmware

• Toggle measurements between conductance and internal resistance values

Fluke battery analysis mobile app

BT521 还可Pass的 Fluke 蓄电池分析移动应用对测量数据进行传输,它提供Wireless communication用于数据下载和远程显示,（注：Fluke BT521 目前并不与 Fluke Connect 兼容）.利用 Fluke 蓄电池分析移动应用,您可以：

• Browse the archives

• View sequence test data

• Pass电子邮件发送序列测试数据

Fluke BT510 main characteristics:

• 电池Voltage – 在内阻测试过程中,Fluke 电池分析仪还可以测量被测电池的Voltage.

• 放电Voltage – 在放电或负载测试期间,放电模式以用户定义的时间间隔多次采集各电池的Voltage.用户可以计算蓄电池Voltage跌落至终止Voltage时需要的时间,并Pass这一时间计算电池的容量损失

• 纹波Voltage测试 – 测量直流充电电路和逆变电路中不需要的整流Voltage的残余交流成分.让用户能够测试直流电路中的交流成分,并找出电池性能恶化的根本原因

• Digital multimeter mode and serial measurement mode - The digital multimeter mode is used for quick test or troubleshooting. In this mode, you can save and take readings by battery test sequence or time series. Serial measurement mode is used for maintenance of multiple power systems and battery packs. Before the task starts, users can configure a file for the task to manage data and generate reports

• 阈值和Warning – 用户可以配置多 10 组阈值,并在每次测量完成之后收到Pass/Warning/Failure提示

• 电池间的连接片Resistance测试和数据管理 – 测量一组电池之间的连接片Resistance.

• Automatic hold - When the auto save function is enabled, a measured reading is captured if it remains stable for one second. Then, reset the reading when you start a new measurement

• Automatic measurement preservation – 开启Automatic measurement preservation时,捕捉一个自动测量保持读数后将自动保存该测量读数到内部存储器中

• Fluke battery management software – 轻松将数据从本产品导入到 PC.测量数据和电池档案信息Pass管理软件进行存储和归档,并可用于比对和趋势分析.可使用有测量数据、电池档案和分析信息轻松地生成报告

• Comprehensive record - All the measured values are automatically captured during the test, and can be viewed on the instrument and then downloaded for analysis at any time

• Optimized user interface Quick guided setup ensures that you are capturing the right data each time

• Battery life -7.4V 3000 mAh lithium ion battery can run continuously for more than 8 hours

• USB port -- Enables data to be downloaded quickly to the accompanying data analysis and report management application software

• Safety level CAT III 600 V, maximum DC 1000 V, suitable for all battery power equipment safety measurement.

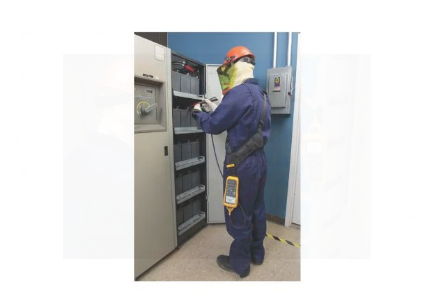

Fluke BT520 main characteristics: (Used to measure the battery ced in the battery rack or small space)

• In addition to the above, it also includes

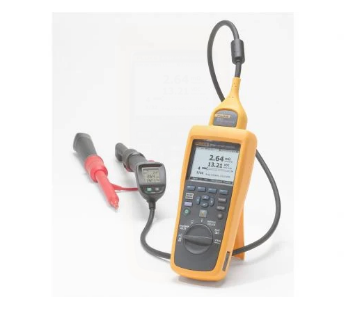

• The BTL20 Smart test probe set features a long and short probe and extended rod, and integrates a built-in LCD disy and speakers for visual and audio feedback

• BTL20ANG Smart Test probe set (no temperature sensor) with long and short corner tip probe extender

• Carry soft bag (large size)

Fluke BT521 Main features: (designed for users who need to include temperature measurement functions)

• In addition to the above *, it also includes

• The BTL21 is an intelligent interactive test handle with a long and short probe and extended rod, integrated with a built-in LCD disy and speakers that provide visual and audio feedback, as well as an integrated infrared temperature sensor that measures the temperature of the battery's negative electrode during each test

• BTL20ANG Smart Test probe set (no temperature sensor) with long and short corner tip probe extender

• Wireless function is suitable for Fluke Battery Analysis Mobile application (Fluke BA Mobile)*

• View the graph in the battery analyzer and related test results

• Pass电子邮件发送曲线图和测试结果,采用 (.csv) 数据格式

* Fluke BT-521 does not come with BTL20

Product specification: Fluke BT500 series battery internal resistance analyzer
