Test signal source

Source output impedance

100Ω , ±1% @1kHz

Test频率

The scope of

20Hz-10MHz

20Hz-5MHz

Resolution

20.0000Hz - 99.9999Hz 1mHz

100.000Hz - 999.999Hz 10mHz

1.00000kHz - 9.99999kHz 100mHz

10.0000kHz - 99.9999kHz 1Hz

100.000kHz - 999.999kHz 10Hz

1.00000MHz - 10.00000MHz 100Hz

AC Test signal pattern

Rating of (ALC OFF) : Set voltage to open test terminal Hcur Voltage, set current as the test end when short circuit from Hcur Outflow current

Constant value (ALC ON) ： Keep DUT 上电压And设定值相同,Keep DUT The upper current is the same as the set value

AC Signal

电压The scope of

F≤2MHz 5mVrms-- 2Vrms F >2MHz 5mVrms -- 1Vrms

Resolution

5mVrms -- 0.2Vrms 100µVrms

0.2Vrms -- 0.5Vrms 200µVrms

0.5Vrms -- 1Vrms 500µVrms

1Vrms -- 2Vrms 1mVrms

CurrentThe scope of

50µArms -- 20mArms

Resolution

50µArms -- 2mArms 1µArms

2mArms -- 5mArms 2µArms

5mArms -- 10mArms 5µArms

10mArms -- 20mArms 10µArms

Rdc Test

电压The scope of

100mV — 2V

Resolution

100µV

CurrentThe scope of

0mA— 20mA

Resolution

1µA

DC Offset

电压The scope of

0V — ± 40V

Resolution

0V -- 5V 100µV

5V -- 10V 1mV

10V -- 20V 2mV

20V -- 40V 5mV

CurrentThe scope of

0mA— ± 100mA

Resolution

0 A -- 50mA 1µA

50mA -- 100mA 10µA

Voltage source

电压The scope of

-10V -- 10V

Resolution

1mV

CurrentThe scope of

-45mA -- +45mA

Output impedance

100Ω

The monitor

Size / Type

7 Inch ( The diagonal )TFT LCD The monitor

The proportion of

16 ： 9

Resolution

800×RGB×480

Measuring function

Test参数

Cp-D,Cp-Q,Cp-G,Cp-Rp

Cs-D,Cs-Q,Cs-Rs

Lp-D, Lp-Q, Lp-G, Lp-Rp, Lp-Rdc

Ls-D, Ls-Q, Ls-Rs, Ls-Rdc, Rdc

R-X, Z-θd, Z-θr

G-B, Y-θd, Y-θr

Vdc-Idc

Mathematical function

A(X+B)+C , X 为Test参数, A 、 B 、 C Is the input parameter

Equivalent circuit

Series, parallel

Deviation measurement

Absolute deviation from nominal value Δ , percentage deviation from the nominal value Δ%

Calibration function

Open the road OPEN Short circuit SHORT , load LOAD

Range selection

Automatic AUTO , manual HOLD

The range of

LCR

100mΩ 、 1Ω 、 10Ω 、 20Ω 、 50Ω 、 100Ω 、 200Ω 、 500Ω 、 1kΩ 、 2kΩ 、 5kΩ 、 10kΩ 、 20kΩ 、 50kΩ 、 100kΩ A total of 15 File

Rdc

1Ω 、 10Ω 、 20Ω 、 50Ω 、 100Ω 、 200Ω 、 500Ω 、 1kΩ 、 2kΩ 、 5kΩ 、 10kΩ 、 20kΩ 、 50kΩ 、 100kΩ A total of 15 File

Trigger mode

INT 、 MAN 、 EXT 、 BUS

Trigger delay

0 s -- 999 s ,Resolution 100us

Test端配置

The four-end pairs of

Test电缆长度

0m, 1m, 2m

Measure the average

1-255 Times

Measure the time

(ms)

Velocity pattern

20Hz

100Hz

1kHz

10kHz

100kHz

1MHz

10MHz

FAST

330

100

20

7.7

5.7

5.6

5.6

MED

380

180

110

92

89

88

88

LONG

480

300

240

230

220

220

220

测量显示The scope of a 1×10-18 ; E 1×1018

Cs, Cp

±1.000000 aF -- 999.9999 EF

Ls,Lp

±1.000000 aH -- 999.9999 EH

D

±0.000001 -- 9.999999

Q

±0.01 -- 99999.99

R, Rs, Rp, X, Z, Rdc

±1.000000 aΩ -- 999.9999 EΩ

G,B,Y

±1. 000000 aS -- 999.9999 ES

Vdc

±1.000000 aV -- 999.9999 EV

Idc

±1.000000 aA -- 999.9999 EA

θ r

±1.000000 a rad -- 3.141593 rad

θ d

±0.0001 deg -- 180.0000 deg

Δ%

±0.0001% -- 999.9999%

t

-99.99 ℃ -- 1000.00 ℃

Turn Ratio ( To be expanded )

±0.000000 -- 1000.000

Basic measurement accuracy

0.05%( See the instructions for details )

List scan

Scan points

At most 201 The point

Scan parameter

TestFrequency, AC Voltage, AC Current, DC BIAS Voltage, DC BIAS Current

第二Scan parameter

无、The range of方式、TestFrequency, AC Voltage, AC Current, DC BIAS Voltage, DC BIAS Current,直流源电压.

注：已选择的Scan parameter参数不能再选为第二Scan parameter.

Trigger mode

The order of SEQ

当一Times触发后,在有扫描The point测量. /EOM/INDEX 只输出一Times.

Step by step STEP

每Times触发执行一个扫描The point测量.每The point均输出 /EOM/INDEX ,但List scanComparator结果只在的 /EOM To output.

List scanComparator

可为每个扫描The point设置一对下限And上限.

可选择：通过Scan parameter判断 / Judging by the second parameter / Not used in every limit

List scan时间标记

在The order of模式中,将触发The point设定为 0 时,通过定义时间就可在每个测量The point记录测量开始的时间.

Graphic scanning analysis

Scan points

51 、 101 、 201 、 401 、 801 The point可选

Scan the trajectory

Lord / The secondary parameter can be

显示The scope of

Automatic、锁定

Coordinate ruler

Logarithm, linear

Scan parameter

Frequency, ACV 、 ACI 、 DCV BIAS/DCI BIAS 、直流Voltage source

The scan results show that

Lord / The maximum value of the sub-parameter / 小值、设定The pointLord / Parameter value

Scan graphic storage

The scan pattern can be stored inside the instrument FLASH Outside USB 存储器或上传上位机.

Comparator

Bin 分File

Lord参数

9 BIN 、 OUT_OF_BINS 、 AUX_BIN And LOW_C_REJECT

The secondary parameter

HIGH 、 IN 、 LOW

Bin Limit setting

Absolute value, deviation, percentage deviation

Bin Count

0 -- 999999

PASS/FAIL Indicate

满足Lord参数为 9 BIN 之一、The secondary parameter为 IN , front panel PASS The lamp ON Otherwise FAIL ON

Measurement auxiliary function

Data buffer storage function

201 The measurement results can be read in batches

Save / Call function

40 Set of instruments内置非易失存储器Test设定文件

500 Set of instruments USB 存储器Test设定文件 / Screenshot graphics / Record file

Keyboard lock function

Lockable front panel key

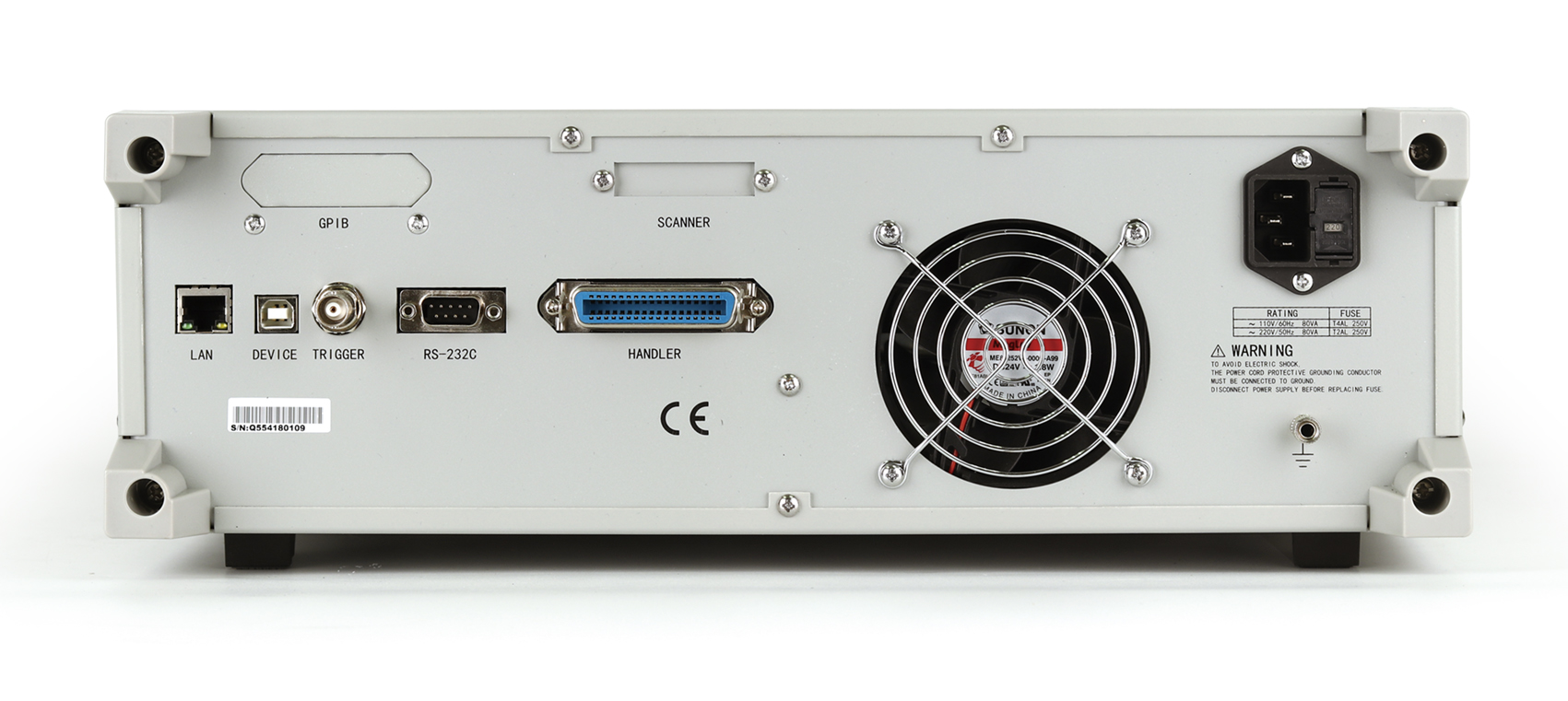

Interface

USB HOST Port

Universal serial bus socket, A Class; FAT16/FAT32 Format. U Disk storage or bar code scanning

USB DEVICE Port

Universal serial bus socket,小型 B Class ( 4 Each contact position); And USBTMC-USB488 And USB 2.0 Yes, the female connector is used to connect the external controller

LAN

10/100BaseT Ethernet, 8 Pin, two speed options

HANDLER Interface

Be used for Bin 分FileSignal输出

External DC BIAS Control

Control TH1778/TH1778S OffsetCurrent源,At most一Taiwan TH1778+5 Taiwan TH1778S (120A MAX)

RS232C

Standard 9 Needle, cross

GPIB ( Optional item )

24 Needle D-Sub Port（ D-24 Class), female joint and IEEE488.1 、 2 And SCPI Compatible with.

SCANNER( Optional item )

And TH2819X 、 TH2829X SCANNER Interface兼容
