Show

Show器

10.1 inch capacitive touch screen

The proportion of

16:9

Resolution

1280×RGB×800

Measurement parameters

The way

Any choice of four parameters

AC

Cp/Cs、Lp/Ls、Rp/Rs、|Z|、|Y|、R、X、G、B、θ、D、Q、V AC 、I AC

DC

R DC 、V DC 、I DC

Test频率

The scope of

20Hz-500kHz

20Hz-2MHz

Precision

0.01%

Resolution

0.1mHz (20.0000Hz-99.9999Hz)

1mHz (100.000Hz-999.999Hz)

10mHz (1.00000kHz-9.99999kHz)

100mHz (10.0000kHz-99.9999kHz )

1Hz (100.000kHz-999.999kHz)

10Hz (1.00000MHz-2.00000MHz)

AC test signal mode

Rating (ALC OFF)

Set the voltage as Hcur voltage -- when the test end is open

Set the current as the outgoing current from Hcur when the test terminal is short-circuited

Constant value (ALC ON)

Keep the voltage on the DUT the same as the set value

Keep the current on the DUT the same as the set value

Test level

电压The scope of

5mVrms-20Vrms

F≤1MHz 5mVrms-20Vrms

F＞1MHz 5mVrms-15Vrms

Accuracy

± (10percent x set value 2mV) (AC≤2Vrms)

± (10percent x Set value 5mV) (AC > 2Vrms)

Resolution

1mVrms（5mVrms-0.2Vrms）

1mVrms（0.2Vrms-0.5Vrms）

1mVrms(0.5Vrms-1Vrms)

10mVrms(1Vrms-2Vrms)

10mVrms(2Vrms-5Vrms)

10mVrms(5Vrms-10Vrms)

10mVrms(10Vrms-20Vrms)

电流The scope of

50μArms-100mArms

Resolution(100Ω内阻)

10μArms (50μArms-2mArms)

10μArms (2mArms-5mArms)

10μArms (5mArms-10mArms)

100μArms (10mArms-20mArms)

100μArms (20mArms-50mArms)

100μArms (50mArms-100mArms)

R DC Test

电压The scope of

100mV-20V

Resolution

1mV(0V-1V)

10mV(1V-20V)

电流The scope of

0mA-100mA

Resolution

10μA(0mA-10mA)

100μA(10mA-100mA)

DC offset

电压The scope of

0V-±40V

Accuracy

AC≤2V 1percent× set voltage 5mV

AC>2V 2percent× set voltage 8mV

Resolution

1mV(0V-1V)

10mV(±1V- ±40V)

电流The scope of

0mA-±100mA

Resolution

10μA(0mA-10mA)

100μA(10mA-100mA)

Built-in current source

电流The scope of

0mA-2A

Accuracy

I>5mA ± (2percent x set value 2mA)

Resolution

1mA

Test端配置

The four-end pairs of

Test电缆长度

0m、1m、2m、4m

Output impedance

30Ω,±4%@1kHz

100Ω,±2%@1kHz

Mathematical operation

The absolute deviation from the nominal value is δand the percentage deviation from the nominal value is Δpercent

等效The way

Series, parallel

Calibration function

开路OPEN、短路SHORT、负载LOAD

Measure the average

1-255 times

Range selection

自动AUTO、手动HOLD

Range configuration

LCR

100mΩ、1Ω、10Ω、20Ω、50Ω、100Ω、200Ω、500Ω、1kΩ、2kΩ、5kΩ、10kΩ、20kΩ、50kΩ、100kΩ

R DC

1Ω、10Ω、20Ω、50Ω、100Ω、200Ω、500Ω、1kΩ、2kΩ、5kΩ、10kΩ、20kΩ、50kΩ、100kΩ

Measurement time (ms)

Fast :0.56ms

Fast :3.3ms

Medium speed: 90ms

Slow speed: 220ms

Accuracy

0.05percent (specific reference instruction manual)

测量ShowThe scope of

Cs、Cp

0.00001pF-9.99999F

Ls、Lp

0.00001μH-99.9999kH

D

0.00001-9.99999

Q

0.00001-99999.9

R、Rs、Rp、X、Z、R DC

0.001mΩ-99.9999MΩ

G、B、Y

0.00001μs-99.9999S

V DC

±0V-±999.999V

I DC

±0A-±999.999A

θ r

-3.14159-3.14159

θ d

-179.999°-179.999°

Δ%

±（0.000%-999.9%）

Multifunctional parameter list scanning

Number of points

201 points, each point can be set average times, each point can be separate sorting

Parameter

Test频率、AC电压、AC电流、DC BIAS电压、DC BIAS电流(100mA)、DC BIAS电流(2A)

Trigger mode

Sequence SEQ: When once fired, measured at all scan points,/EOM/INDEX outputs only once

STEP: One scan point measurement is performed each time. Each point is output /EOM/INDEX, but the list scan comparator result is output only at the last /EOM

Other features

1.扫描Parameter与TestParameter都有多种复制功能

2. Delay can be set at each scanning point

Comparator

每个扫描点多可测量四个TestParameter,每个Parameter均可设置上下限,有TestParameter都合格输出PASS信号,否则输出FAIL信号,未设上下限则不判断

Graphic scanning

扫描Number of points

51,101,201,401,801 points Optional

结果Show

每个Parameter的极值以及光标在点的扫描Parameter值与对应的TestParameter值

Scan the trajectory

1-4个TestParameter任意选择,扫描曲线可以一分屏、二分屏、四分屏

ShowThe scope of

Real-time automatic, lock

Coordinate ruler

Logarithm, linear

扫描Parameter

Frequency,AC Voltage,AC current,DCV BIAS/DCI BIAS(100mA)/DCI BIAS(2A)

触发The way

A single

Manually trigger once, a scan is completed from the start to the end, and the next trigger signal starts a new scan

Continuous

An infinite cycle of scanning from start to finish

Save the result

Graphics, files

Comparator

Bin file

10Bin、PASS、FAIL

Bin deviation setting

Deviation value, percentage deviation value, off

Bin mode

容差、Continuous

Bin count

0-99999

File discrimination

每档多可设置四个Parameter极限The scope of,四个TestParameter结果设档The scope of内Show对应档号,出设定档号The scope of则ShowFAIL,未设置上下限的TestParameter自动忽略File discrimination

PASS/FAIL指示

If Bin1-10 is met, the front panel PASS light is on; otherwise, the amount of FAIL light is

Data cache

201 measurements can be read in batches

Store call

Inside

约100M非易失存储器Test设定文件

External USB

Test设定文件、截屏图形、记录文件

Keyboard lock

Can lock the front panel button, other functions to be expanded

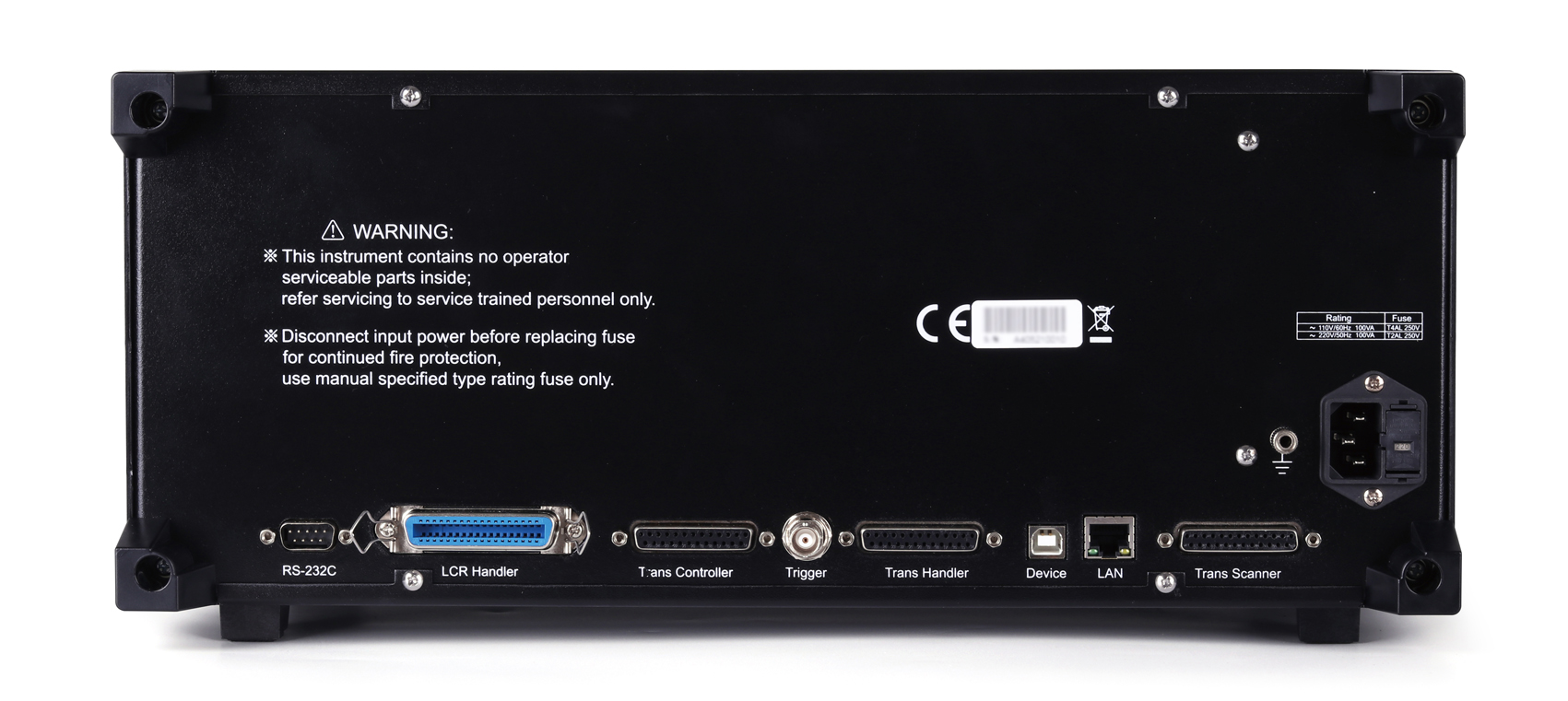

Interface

USB HOST

2个USB HOSTInterface,可同时接鼠标、键盘,U盘同时只能使用一个

USB DEVICE

Universal serial bus socket, small Class B (4 contact positions); Compatible with USB TMC-USB488 and USB2.0, the female connector is used to connect the external controller

LAN

10/100M Ethernet adaptive

HANDLER

用于Bin file信号输出

External DC BIAS control

TH1778A-- is supported

RS232C

Standard 9 pins, cross

RS485

Can accept the reform or external RS232 to RS485 module

Boot preheating time

60 minutes

Input voltage

100-120VAC/198-242VAC optional,47-63Hz

Power consumption

Not less than 130VA

尺寸（WxHxD）mm 3

430x177x265

Weight (kg)

11kg
