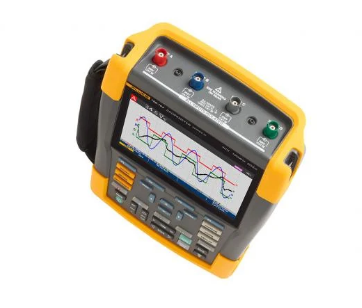

Specification: Fluke 190 Series III ScopeMeter® Test Tool
| Oscilloscope mode |
|
|
|
|
|
|
|
|
|
190-062 | 190-102 | 190-202 | 190-502 | 190-104 | 190-204 | 190-504 |
| Vertical deflection | |||||||
| Number of channels | 2 | 2 | 2 | 2 | 4 | 4 | 4 |
| Bandwidth | 60 MHz | 100 MHz | 200 MHz | 500 MHz | 100 MHz | 200 MHz | 500 MHz |
| Rise time | 5.8 ns | 3.5 ns | 1.7 ns | 0.7 ns | 3.5 ns | 1.7 ns | 0.7 ns |
| Oscilloscope input quantity | Two input channels and external triggers | Four input channels | |||||
| Channel architecture | All inputs are completely insulated from each other and from the ground. Input can be activated by any combination | ||||||
| Input coupling | Ac or DC, with ground level indication | ||||||
| Input sensitivity | With 10:1 probe,20 mV-1000 V/ grid
When using 100:1 probe,200 mV-10 kV/ grid Dc (1:1) 2 mV-100 V/ grid |
||||||
| Bandwidth限制器 | 20 MHz, 10 kHz—— | ||||||
| Polarity | Normal, reverse, variable | ||||||
| Input voltage | CAT III 1000 V/CAT IV 600 V safety level. For more information, see General Technical Specifications | ||||||
| Vertical resolution | 8-bit | ||||||
| Accuracy (4 s - 10 μs/ grid) | 5 mV/ grid -100 V/ grid,± (1.5percent of 6 counts)
2 mV/ grid,± (1.5percent 10 counts) |
||||||
| Input impedance | 1 MΩ (± 1%) // 15 pF (± 2.25 pF) | ||||||
| Horizontal disy | |||||||
| Maximum real-time sampling rate (simultaneous sampling) | 625 Ms/s
(each channel) |
1.25 GS/s(each channel) | 2.5 GS/s(each channel) | 5 GS/s (single channel) or
2.5 GS/s (Dual-channel) |
1.25 GS/s(each channel) | 2.5 GS/s (2ch)
1.25 GS/s (4ch) |
5 GS/s (single channel) or 2.5 GS/s (Dual-channel)或 1.25 GS/s（四通道） |
| Record length | Up to 10,000 samples per channel | ||||||
| Time base range | 10 ns/div
To 4 s/div |
5 ns/div
To 4 s/div |
2 ns/div
To 4 s/div |
1 ns/div
To 4 s/div |
5 ns/div
To 4 s/div |
2 ns/div
To 4 s/div |
1 ns/div
To 4 s/div |
| The time base order is 1-2-4
Use ScopeRecord™ scroll mode (see "Recorder Mode") to get a slower "Time/grid" setting |
|||||||
| Record length | 在Oscilloscope mode下,每个通道的采样数为 10,000 个;
In ScopeRecord™ scrolling mode (see "Recorder Mode"), each channel can record 30,000 points |
||||||
| Timing accuracy | ± (0.01percent 1 pixel reading) | ||||||
| Short-time pulsed wave interference capture | 8 ns (10 µs/ grid to 2 min/ grid) | ||||||
| Disy and capture | |||||||
| The disy screen | 133 mm x 90 mm (5.3 in x 3.5 in) full color high brightness LCD | ||||||
| Disy mode | Channels can be any combination, average mode on/off; Rey mode. | ||||||
| Visual screen width | Oscilloscope mode下具有 12 个水平格 | ||||||
| Persistent digital mode | Off, Short, medium, long, infinite and envelope modes | ||||||
| Mathematical applications of waveforms | Perform one (190-xx2) or two (190-x04) mathematical operations on the two input channels (A and B,C and D) : add, subtract, multiply; X-Y mode; FFT analysis spectrum | ||||||
| Collection mode | 正常、平均、自动、单次采样、ScopeRecord™ 滚动、Short-time pulsed wave interference capture、“通过/失败”自动测试Waveform comparison;Rey | ||||||
| Trigger and delay | |||||||
| Signal source | Input A,B or external input (input via meter) | Enter A,B,C, or D | |||||
| Mode | Automatic, Edge, Pulse Width,N-Cycle, external (190-xx2) | ||||||
| Connect-and-View™ | 的自动触发可识别信号Mode,自动设置和连续调整触发、时基和幅值.自动显示复杂和动态信号（例如：电机驱动和控制信号）的稳定波形.也可根据个人喜好选择关闭. | ||||||
| Pulse width trigger (on channel A) | Time limited pulse width
可以在 |
||||||
| Time delay | 1 full screen view before firing, or up to 100 delay screens after firing (=1,200 grids) | ||||||
| Double slope trigger | Rising and falling edges trigger like | ||||||
| N-cycle trigger | Trigger on the NTH occurrence of the trigger event; N ranges from 2 to 99 | ||||||
| Automatically capture 100 screens | |||||||
| 处于Oscilloscope mode时,仪器始终可存储 100 个屏幕 — 无需特定的用户设置.当发现异常时,可按下“Rey”按钮以反复查看屏幕事件的全部序列.仪器可设置为短时脉冲波干扰触发或间歇性异常触发,并且将在“照管”Mode下运行,并捕获 100 个的事件. | |||||||
| Rey | 手动或连续Rey.以“实时”动画形式或在手动控制下显示捕获的 100 个屏幕.每个屏幕都有日期和时间戳. | ||||||
| Rey存储 | Two sets of screens (100 each) can be saved internally for later invocation and analysis. Additional screen sets are stored directly on external flash drives via USB host ports | ||||||
| FFT -- Spectrum analysis | |||||||
| Use fast Fourier transform to disy the frequency composition of oscilloscope waveform | |||||||
| Window function | Automatic, Heming, Hanning or none | ||||||
| 自动Window function | The collected waveforms are digitally resampled to obtain the best frequency resolution in the FFT convergence | ||||||
| Vertical scale | Linear/logarithmic (volts or amperes) | ||||||
| Frequency axis | 频率范围自动设置为示波器Time base range的函数 | ||||||
| Waveform comparison and pass/fail tests | |||||||
| Waveform comparison | Provides storage and disy of reference waveforms for visual comparison with newly acquired waveforms. The reference waveform is derived from the collected waveform and can be modified on the oscilloscope | ||||||
| Pass/fail the test | 在Waveform comparisonMode下,可将示波器设置为仅将匹配（“通过”）或不匹配（“失败”）的采集波形存储在ReyMemory条中,以供进一步分析. | ||||||
| Oscilloscope automatic measurement | |||||||
| V dc、V ac rms、V ac+dc、V（峰值）、V（小峰值）、V（峰间值）、A ac、A dc、A ac+dc、频率（Hz）、Rise time（使用光标）、下降时间（使用光标）、功率因数 (PF)、瓦特数、VA、无功 VA、相位（2 路输入（A&B 或 C&D）之间）、脉冲宽度（正/负）、占空比（正/负）、Temperature °C、Temperature °F（不适用于日本）、dBV、dBm（对应 50 Ω 和 600 Ω）、VPWM ac 和 VPWM (ac+dc)（用于测量脉宽调制式电机驱动器和变频器）、V/Hz 比率; | |||||||
| Advanced power and motor drive features | V/Hz ratio, Power factor (PF), wattage,VA, reactive power VA,V-PWM (ac) and V-PWM (ac dc) (for measuring pulse-width-modulated motor drivers and converters) | ||||||
| Cursor measurement | |||||||
| Signal source | 在任意输入波形上或数学合成波形上（不包括 X-Y Mode） | ||||||
| Double horizontal line | The voltage at cursor 1 and cursor 2, the voltage between cursors | ||||||
| Double vertical lines | 光标间的时间、光标间的 1/T（单位为 Hz）、标记间的Voltage、带标记的Rise time、带标记的下降时间;光标间的 Vrms、光标间的瓦特数. | ||||||
| Single vertical line | The minimum - maximum voltage and average voltage at the cursor position, the frequency and root mean square value of a single frequency component in the FFT combination | ||||||
| Advanced functions | mA*s (current change with time, between cursors); V*s (voltage change over time, between the cursor); W*s (Power consumption, between the cursor) | ||||||
| Scale | Scale范围为从全记录概览放大至样本级别,适合任意Record length. | ||||||
| 仪表Mode |
|
|
|
|
|
|
|
|
|
190-062 | 190-102 | 190-202 | 190-502 | 190-104 | 190-204 | 190-504 |
| Instrument input | Input through 4 mm banana plug, complete isolation from oscilloscope input and grounding | Input -- through BNC oscilloscope | |||||
| The number of readings | Read one -- at a time through the DMM multimeter input | 多可同时进行 4 项Oscilloscope automatic measurement | |||||
| The highest resolution | 5000 counts | ± 999 counts
(Frequency: 9999 count) |
|||||
| Input impedance | 1 MΩ (± 1%) // 14 pF (± 1.5 pF) | 1 MΩ (± 1%) // 15 pF (± 2.25 pF) | |||||
| Advanced meter features | Automatic/manual range, relative measurement (zero base),TrendPlot™ recording | ||||||
|
|
This parameter is valid when the temperature ranges from 18 °C to 28 °C. When the temperature is lower than 18 °C or higher than 28 °C, the precision change is 10percent of the specified accuracy for every 1 °C change in temperature | ||||||
| Voltage | |||||||
| V dc precision | ± (0.5percent 6 counts) | ±（1.5% + 6 个计数） | |||||
| V ac true RMS accuracy | |||||||
| 15hz ~ 60hz—— | ± (1percent 10 counts) | ± (1.5percent 10 counts) | |||||
| 60赫兹--- 1千赫 | ± (2.5percent 15 counts) | — | |||||
| 60hz - 20khz | — | ± (2.5percent 15 counts) | |||||
| V ac dc true RMS accuracy | |||||||
| 15hz ~ 60hz—— | ± (1percent 10 counts) | ± (1.5percent 10 counts) | |||||
| 60赫兹--- 1千赫 | ± (2.5percent 15 counts) | — | |||||
| 60hz - 20khz | — | ± (2.5percent 15 counts) | |||||
| Voltage表The range of | 500 mV、5 V、50 V、500 V、1,100 V |
|
|||||
| Resistance | |||||||
| The range of | 500 Ω、5 kΩ、50 kΩ、500 kΩ、5 MΩ、30 MΩ | — | |||||
| Precision | ± (0.6percent 6 counts) | — | |||||
| Other meter functions | |||||||
| On-off | < At 50 Ω (± 30 Ω), the buzzer turns on | — | |||||
| Diode test | The maximum is 2.8V | — | |||||
| Current (A) | A dc,A ac,A ac dc, using optional current clamps or shunt scale factors: 0.1 mV/A,1 mV/ A-100 V/A, and 400 mV/A | ||||||
| Temperature | With optional accessories. Scale factor 1mV/°C or 1mV/°F | ||||||
| 记录仪Mode |
|
|
|
|
|
|
|
|
|
190-062 | 190-102 | 190-202 | 190-502 | 190-104 | 190-204 | 190-504 |
| ScopeRecord™ 滚动Mode | |||||||
| 双输入或多输入波形存储Mode,使用深度存储器 | |||||||
| Signal source和显示 | Enter A, enter B, double input
All channels are sampled simultaneously |
Any combination of input, as many as four college channel....
All channels are sampled simultaneously |
|||||
| Storage depth | 30,000 data points per channel, respectively can store minimum/maximum information pairs | ||||||
| Minimum/maximum | 为高Sample rate下测量的样本创建Minimum/maximum,以确保捕获并显示短时脉冲波干扰. | ||||||
| 记录Mode | Single scan, continuous rolling; Open when triggered (via external input); Stop when triggered (by external input) | Single scan, continuous rolling; Open when triggered (through any channel); Stop when triggered (through any channel) | |||||
| Stop when triggered | ScopeRecord Mode可通过任何输入通道（190-XX2 系列上是通过外部输入）
To be stopped by a single trigger event or by an interruption of repeated trigger signals |
||||||
| Horizontal scale | Start time, day time | ||||||
| Scale | Scale范围为从全记录概览放大至样本级别 | ||||||
| Memory | Two multiinput ScopeRecord waveforms can be stored internally for later invocation and analysis | ||||||
| ScopeRecord™ 滚动ModeSample rate和Record the time range | |||||||
| Time base range | 4 ms/ grid ~ 2 min/grid | ||||||
| Record the time range | 4.8 seconds to 40 hours | ||||||
| “查看全部”Mode下的时间/格 | 0.4s/grid ~ 4 h/ grid | ||||||
| Short-time pulsed wave interference capture | 8 ns | ||||||
| Sample rate | 125 MS/s | ||||||
| Resolution | 160 microseconds ~ 4.8 seconds | ||||||
| TrendPlot™ Record | |||||||
| Multichannel erless electronic recorder. Graphically drawn to disy and store the results of up to four automatic oscilloscope measurements or DMM readings over time | |||||||
| Signal source和显示 | Any oscilloscope measurement combination (on any input channel) or DMM reading (two-channel instrument) | ||||||
| Storage depth | 每次记录存储 19,200 个点（组）.记录的每个样本点包括小值、值和平均值,以及日期和时间戳. | ||||||
| The range of | 正常视图：5 秒/格 - 30 分钟/格;在“查看全部”Mode下：5 分钟/格 - 48 小时/格（全部记录概览） | ||||||
| Record the time range | 长达 22 天,Resolution为 102 秒;4 个读数长达 5.5 天. | ||||||
| 记录Mode | Continuous recording, starting from 5 s/ grid, with automatic time scale compression | ||||||
| Measure the speed of | Automatic measurement 3 or more times per second | ||||||
| Horizontal scale | Start time, day time | ||||||
| Scale | 多缩小 64 倍（用于显示全部记录概览）,多放大 10 倍（用于限度显示细节） | ||||||
| Memory | Two multiway input TrendPlot records can be held internally for later invocation and analysis | ||||||
| Cursor measurement — 有记录仪Mode | |||||||
| Signal source | 任意波形Disy mode（示波器、ScopeRecord 或 TrendPlot）下任意波形迹线 | ||||||
| Double vertical lines | The cursor can be used together with the cursor interval time, start time, or absolute time to identify the minimum, maximum, or average value of any data point in the record | ||||||
| General technical index |
|
|
|
|
|
|
|
|
|
190-062 | 190-102 | 190-202 | 190-502 | 190-104 | 190-204 | 190-504 |
| Input voltage范围 | |||||||
| 额定浮动Voltage | CAT III 1000 V/CAT IV 600 V（任意触点与接地Voltage电平之间的Voltage） | ||||||
| VPS410-II 探头Input voltage | CAT III 1000 V/CAT IV 600 V（标准 10:1 探头与参考引线之间的Voltage） | ||||||
| VPS421 探头Input voltage | CAT III 1000V/CAT IV 600V（探头或参考引线与接地之间的Voltage,探头与参考引线之间为 2000V） | ||||||
| BNC Input voltage | CAT IV 300 V（直接 BNC 输入的Voltage） | ||||||
| 仪表Input voltage | CAT III 1000 V/CAT IV 600 V
Banana type input connector with security design |
— | |||||
| Memory存储和调用 | |||||||
| Memory位置（内置） | 30 wave storage,10 record storage and 9 screen copy storage | ||||||
| 30 waveform storage | Each storage location can contain up to 2 or 4 waveforms and corresponding Settings | ||||||
| 10 个记录存储 | 每个存储位置可包含：100 屏Rey序列、ScopeRecord 滚动Mode记录（2 条或 4 条迹线）,或多达 4 项测量的 TrendPlot 记录 | ||||||
| External data storage | FlukeView™-2 software storage on a PC or directly on an external flash drive (up to 32 GB) via USB host port | ||||||
| Screen copy | 在 PC 上使用 FlukeView™-2 软件存储,或内部存储（在仪器中）,Screen copy可通过 USB 主机端口作为 .BMP 文件复制到外部闪存驱动器上 | ||||||
| Volatility | 在非Volatility闪存 ROM 中进行保存,并且有数据都是安全的,与电池或Power supply状态无关. | ||||||
| Real-time clock | 为 ScopeRecord、100 屏Rey序列和 TrendPlot 记录提供日期和时间戳信息. | ||||||
| The shell | |||||||
| Design | Rugged and shockproof with all-in-one protective holster. Wrist straps and lanyards are standard
Support for burglary-proof keyholes to lock the instrument when unattended |
||||||
| Waterproof and dustproof | The IP 51 protection level complies with the IEC60529 standard | ||||||
| Vibration and shock | Impact resistance up to 30 g, vibration resistance (sine) up to 3 g/0.03 g2/Hz (random), in line with MIL-PRF-28800F Class 2 standards | ||||||
| The disy screenSize | 133 mm x 90 mm (5.3 in x 3.5 in) LCD | ||||||
| Resolution | 1120 pixels x 765 pixels | ||||||
| Brightness | User adjustable, up to 300 cd/m2 | ||||||
| Mechanical data | |||||||
| Size | 265 mm x 192 mm x 70 mm (10.5 in x 7.6 in x 2.8 in) | ||||||
| Weight (including battery) | 2.1 kg (4.6 lb) | 2.2 kg (4.8 lb) | |||||
| Power supply | |||||||
| 线路Power supply | 随附 BC190/830 通用Power supply适配器/电池充电器,带可拆卸式 2 线Power supply线：100 Vac 至 240 Vac,±10%,50-60 Hz | ||||||
| 电池Power supply | Rechargeable lithium-ion battery (included). The battery can be reced by an easy-to-open battery cover on the back of the instrument | ||||||
| Comes with battery type and capacity [Optional battery] | BP290：10.8V, 2500 mAh
[BP291 (5000 mAh) optional] |
BP291：10.8V,5000 mAh | |||||
| Battery power indicator | The battery is equipped with a built-in status symbol for use with an external charger, located next to the battery status symbol on the instrument screen | ||||||
| Battery life (in low backlight) | Up to 3.5 hours when using BP290 (attached); Up to 7 hours when using BP291 (optional) | Up to 7 hours when using BP291 (attached) | |||||
| Battery charging time | BP290 was used for 2½ hours; 5 hours when BP291 is used | 5 hours when BP291 is used | |||||
| Battery power saving function | 自动“断电”,可调节断电时间.自动“The disy screen关闭”,可调节断电时间.
屏幕上的电池Power supply标识 |
||||||
| Security | |||||||
| Compliance | EN61010-1, pollution level 2;
IEC 61010-2-030：CAT IV 600 V / CAT III 1000 V |
||||||
| Environmental requirements | |||||||
| 工作Temperature | Battery discharge: 0 °C to 40 °C (32 °F to 104 °F)
Battery charging: 0 °C to 40 °C (32 °F to 104 °F) |
||||||
| 存放Temperature | -20°c - 60°c(-4°f - 140°f) | ||||||
| Humidity | 0 °C to 10 °C (32 °F to 50 °F) : No condensation
10°C - 30°C(50°F - 86°F): 95%(±5%) 30°C - 40°C(86°F - 104°F): 75%(±5%) 40°C - 50°C(104°F - 122°F): 45%(±5%) |
||||||
| Maximum working altitude | CAT IV 600 V,CAT III 1000 V: Up to 2000 m (6,600 ft)
IV类300v, III类600v, II类1000v:中文:4000米(13000中文) |
||||||
| Maximum storage elevation | 12 km (40,000 ft) | ||||||
| Electromagnetic compatibility (EMC) | IEC 61326-1: Industry;
CISPR 11: Group 1, Class A; Korea (KCC) : Category A equipment (industrial broadcasting and communications equipment); United States (FCC) : 47 CFR Part 15, Subsection C. |
||||||
| Interface | Comes with two USB ports. The port is completely insulated from the floating measuring circuit of the instrument
USB 主机端口直接连接到外部闪存（高达 32 GB）,用于存储波形数据、测量结果、仪表设置及Screen copy.或者,此 USB-A 端口可用于连接 WiFi 适配器以实现无线 PC 连接.提供 Mini-USB-B 端口,允许与 PC 互连,以便使用 FlukeView-2 软件在 PC 控制下进行远程控制和数据传输. |
||||||
| Probe calibration output | 带参考触点的Probe calibration output,与任意测量输入通道完全绝缘.
Generator output: 1.225Vpp /500 Hz square wave |
||||||
| Warranty period | Main instrument 3 years, battery and accessories 1 year | ||||||
| Supporting accessories | |||||||
| 电池充电器/Power supply适配器 | BC190/830 | ||||||
| Lithium ion battery pack | BP290（10.8V,2500 mAh） | BP291（10.8V,5000 mAh） | |||||
| Voltage探头组.每套包括接地引线、挂钩夹;VPS410-II-x 还带有接地弹簧和探头绝缘套. | 2 VPS421-x Reinforced industrial-grade probes,100:1,150MHz, with sheathing 4mm banana tip and tongs alligator clip (one red, one blue) | 2 个 VPS410-II-x 10:1 Voltage探头,500 MHz（一个红色、一个蓝色） | 4 VPS421-x Reinforced type probes,100:1,150 MHz, (Red, blue, gray, Green) | 4 个 VPS410-II-x 10:1 Voltage探头,500 MHz（一个红色、一个灰色、一个蓝色、一个绿色） | |||
| Test lead | TL175 (one red, one black) with test pins | — | |||||
| Other | 锂离子电池（BP290 或 BP291,参见上文）;电池充电器 (BC190),带通用Power supply线套件;挂带;手腕带（用户可选择左手或右手使用）;关于用户手册和 FlukeView®-2 演示版软件包（有限功能）的下载信息;以及用于 PC 连接的 USB Interface电缆.馈通式电缆端接器,50 Ω（每个通道一个,仅限 190-50x）. | ||||||
| Optional Configuration | Each model is available "in a box" (as described above), or in an optional SCC293 kit. SCC293 includes the CXT293 Hardened Security portable pack, the full version of FlukeView PC software (including activation codes), and a WiFi adapter for wireless PC connectivity using FlukeView-2 software | ||||||
| Optional accessories | SCC293、VPS101 - 1:1 Voltage探头;VPS510-x - 宽带紧凑型探头;i400s 电流钳;HH290 挂钩;CXT293 防护便携包;TRM50-BNC 馈通式电缆端接器,50 Ω,安全Design;EBC290 电池充电座 | ||||||
