Technical parameters
Product model
TH2851-015
TH2851-030
TH2851-050
TH2851-080
TH2851-130
Show
10.1 Inch TFT LCD Show器 1280 × RGB × 800 Capacitive touch screen
AC Measurement parameters
Cp/Cs 、 Lp/Ls 、 Rp/Rs 、复数Z 、 |Z| 、复数Y 、 |Y| 、 R 、 X 、 G 、 B 、 θ 、 D 、 Q 、 V AC 、 I AC
DC Measurement parameters
V DC 、 I DC 、 DCR
Test frequency
The scope of
10Hz - 15MHz
10Hz - 30MHz
10Hz - 50MHz
10Hz - 80MHz
10Hz - 130MHz
The highest resolution
1mHz
Frequency relative error
≤± 0.0007%
Test level
AC Voltage
5mV - 2Vrms
Resolution
1mV
AC Current
50μ A - 20mArms
Resolution
10μ A
DC Offset
Voltage
0V - ± 40V
VoltageResolution
1mV
Current
0mA - ± 100mA
CurrentResolution
40μA
Test end configuration
The four-end pairs of
Output impedance
25Ω/100Ω
Typical measurement time (speed)
Fifth gear: 1( Fast ) - 5( Be precise )
1:2.5ms 2:10ms 3:40ms 4:80ms 5:400ms
(Not including the arithmetic mean of communication time, each frequency test speed will be slightly different)
The highest accuracy
1kHz ： 0.08%
1MHz ： 0.08%
2MHz ： 0.5%
10MHz ： 1%
130MHz ： 5.0%
测量ShowThe scope of
a 1 × 10-18 ; E 1 × 1018
Cs 、 Cp
± 1.00000 aF - 999.999 EF
Ls 、 Lp
± 1.00000 aH - 999.999 EH
D
± 0.00001 - 9.99999
Q
± 0.01 - 9999.99
R 、 Rs 、 Rp 、 X 、 Z
± 1.00000 aΩ - 999.999 EΩ
G 、 B 、 Y
± 1. 00000 aS - 999.999 ES
Vdc
± 1.00000 aV - 999.999 EV
Idc
± 1.00000 aA - 999.999 EA
θ r
± 1.00000 a rad - 3.14159 rad
θ d
± 0.0001 deg - 180.000 deg
Δ%
± 0.0001% - 999.999%
Multifunctional parameter list scanning
1601 Points, each point can be set average, each point can be separately sorted
扫描Parameter：Measurement parameters、Test frequency、 AC Voltage、 AC Current、 DC BIAS Voltage、 DC BIAS Current
Graphic scanning
Parameter
Frequency, ACV 、 ACI 、 DCV 、 DCI
Type
Logarithm, linear, frequency segmentation
Number of points
2-1601
Number of channels
4
The number of curves
4 Bar / Channel
分屏Show
16 种（Channel和曲线）
Equivalent circuit analysis
3 Component model: 4 A 4 Component model: 3 A
Crystal oscillator analysis
There is
Curve and trajectory comparison
There is
Sorting
LCR Mode 10 档Sorting;扫描Mode每Bar曲线单独Sorting
Interface

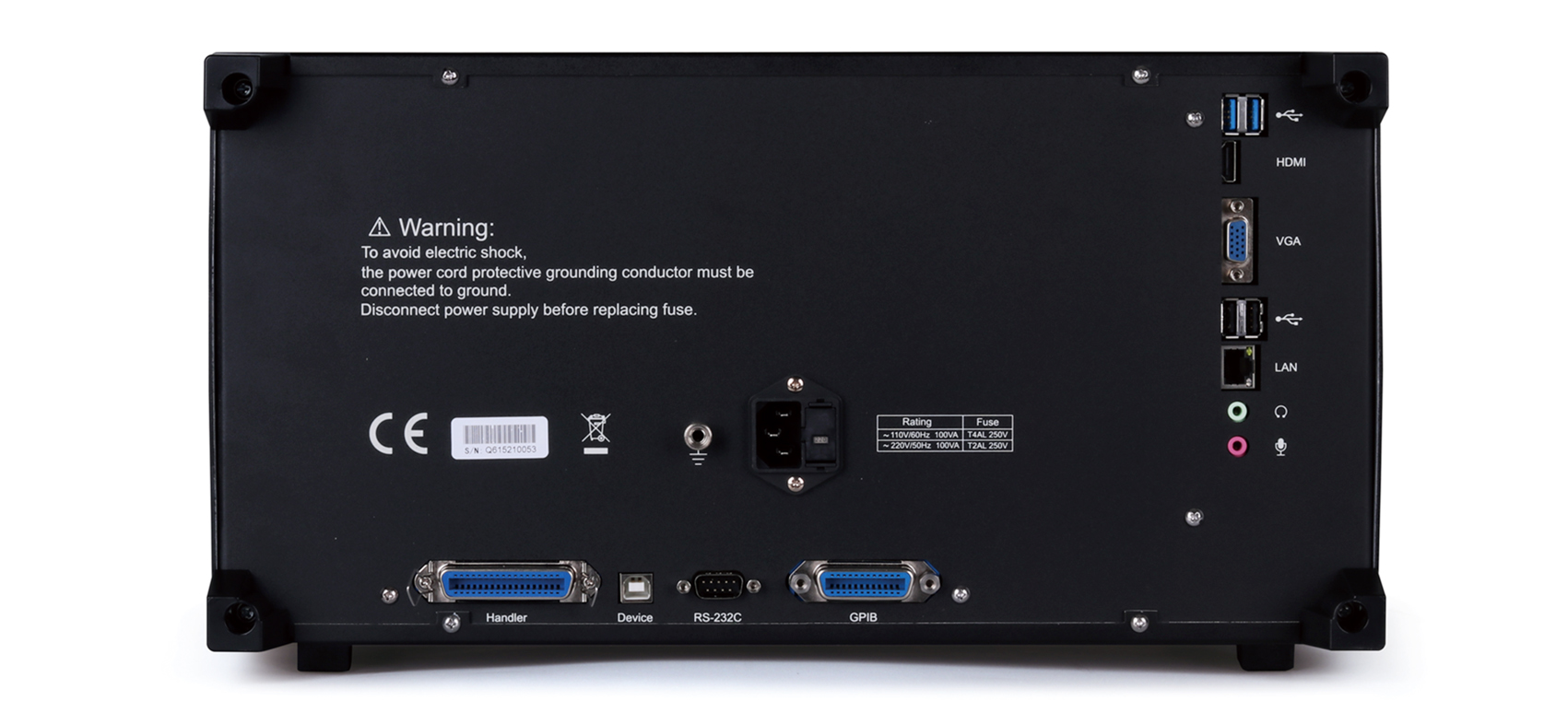

RS232C , USB HOST 、 USB DEVICE 、 LAN 、 GPIB 、 HANDLER 、 VGA 、 HDMI
Boot preheating time
60 Minutes
输入Voltage
100-120VAC/198-242VAC Optional, 47-63Hz
Power consumption
Maximum 150VA
Size (--) WxHxD ） mm 3
428x220x325
The weight of
14.5kg
Attachment
| Standard configuration | |||||
| Part name | Model number |
|
|
|
|
| Fixture | TH26047 |
|
|
|
|
| 四端带卡Fixture | TH26005D |
|
|
|
|
| 100Ω standard resistance | TH26082A |
|
|
|
|
| Short circuit te | TH26010 |
|
|
|
|
| TH2851 Calibration Kit | TH2851 Calibration Kit |
|
|
|
|
