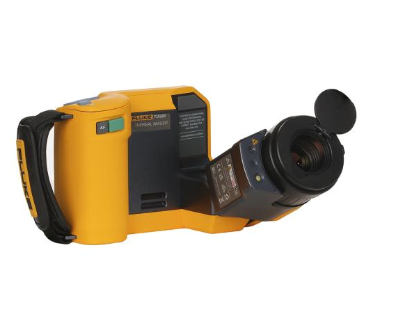

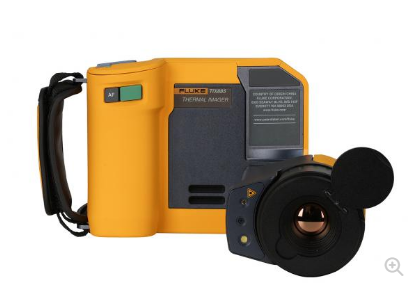

Product specifications: Fluke TiX885 infrared thermal imager
| 探测器 | |
| Infrared resolution | 640 × 480 |
| Super resolution | Enhanced to 1280 x 640 pixels |
| Thermal sensitivity * | < 25 mK @ 30 ℃ (* Best case) |
| Field Angle (FOV) | 25° × 19° |
| Spatial resolution (IFOV) | 0.68 mrad |
| Digital zoom | 1 ~ 35 times |
| Detector type | Focal ne array (FPA), uncooled infrared detector |
| Response band | 7 ~ 14 um |
| Lens aperture | F 1.0 |
| Lens recognition | Automatic |
| Minimum imaging distance | 0.2 m |
| Focusing system | Automatic/手动 |
| Detector frame frequency | 60Hz |
| Measurement and analysis | |
| Temperature measuring range | -40 ℃ - 1200 °C |
| Temperature measuring range | -40 ℃ - 150 ℃ |
| 0 ℃ - 350 ℃ | |
| 0 ℃ - 700 ℃ | |
| 300 ℃ - 1200 ℃ | |
| Temperature measurement accuracy | ±2℃ or ±2percent is the maximum value (normal temperature, typical temperature 23℃) |
| High and low temperature positioning | There is |
| 基准温度补偿 | There is,全屏与测温标识温度显示为实际温度与固定温度差值 |
| Automatic温差计算 | The difference between thermometric marks or the difference with fixed reference temperature is calculated |
| Custom temperature measuring point | Twenty temperature measuring points |
| Custom temperature measuring area | 20 areas (circle or rectangle) |
| Line temperature measurement | 20 test lines |
| Temperature measurement method | 区域内能设置温、低温、Automatic定位/低温度点 |
| Fix the Settings | Emissivity, reflection temperature, humidity, ambient temperature, test distance, transmittance |
| Full screen emissivity correction | 0.01 ~ 1.0, built-in common material emissivity table |
| Zone emissivity correction | There is |
| Native analysis | There is |
| Analysis software | Smartview IR |
| Support voice | Simplified Chinese/English |
| The image shows that | |
| Disy type | OLED touch screen with 170° viewing range |
| Disy size | 5.5 inches |
| Disy contrast | 100000：1 |
| Disy resolution | 1920 X 1080 pixels,1080P ultra HD disy |
| Digital image enhancement | There is |
| Image overlay information Settings | Support, can set the image disy on the highest temperature, the lowest temperature, average temperature, full screen emissivity, reflection temperature and other information |
| Temperature identification disy setting | Supported, each temperature identifier can be set separately, such as disying the emissivity of the temperature identifier information |
| Built-in digital camera | There is |
| LED lights | There is |
| Picture in picture | Support |
| Label the color palette | 15 kinds of |
| Manual image adjustment | There is |
| Automatic图像调节 | There is |
| Minimum temperature wide range (manual mode) | 2℃ |
| 小温宽范围（Automatic模式） | 4℃ |
| Video function | |
| Full radiation infrared video recording | Record to thermograph and PC |
| Full radiation infrared video recording | 1 to 12Hz |
| (Frame frequency adjustment) | |
| Full radiation infrared video stream | USB 2.0 |
| Non-radiative infrared video streams | Using HDMI transmission |
| Automatic捕捉 | Custom frame rate or interval |
| Professional function | |
| Color alarm (isotherm) | There is,高温报警,低温报警 |
| Two-dimensional code recognition | Support二维码 |
| Phonetic notes | There is,单张图片Support 200s Phonetic notes |
| Notes to the text | There is |
| Visible image association technology | There is |
| Storage and transmission | |
| Image browsing | Thumbnail view navigation and view selection |
| Storage medium | Built-in 16G flash memory 128G high-speed SD card |
| SD card | Include |
| Infrared image file format | Standard JPEG,Include测量数据,满足国网红外热像仪数据格式校验要求 |
| Video file format | .IS5 |
| Visible light image | Standard JPEG |
| Audio | There is |
| Transmission interface | USB Type-C、HDMI、SD card、蓝牙 |
| Bluetooth transmission | There is,把保存的文件可以通过蓝牙传递给 PC 端 |
| GPS | Yes |
| Remote disy view | There is,在 PC 或电视监视器上查看热像仪的热像视频流,通过USB连接到 PC 上的 SmartviewIR 软件;通过 HDMI 连接到显示器 |
| Remote control operation | There is,通过 Smart View IR 软件 |
| USB | USB 2.0 |
| The antenna | Built-in |
| Bluetooth transmission | |
| Frequency range | 2483.5 MHz—— |
| Output power | <100 mW |
| Laser | |
| Laser标准 | IEC 60825-1, Class 2; 650nm; <1mW |
| Power Supply and Environment | |
| Battery type | Lithium battery, standard with 3 |
| Battery operating time | When the environment is 25℃, continuous use time > 3.5 hours |
| The weight of | 1550g (including battery) |
| Equipment size | 148 mm* 204 mm* 86 mm |
| Certification standards | IEC 61326-1: Industrial Electromagnetic Environment; CISPR 11: Group 1, Class A |
| Tripod mounting base | UNC ¼" The -20 interface can be directly connected to the tripod |
| Warranty period | Two years |
| Recommended calibration period | Two years（假定正常操作和老化） |
