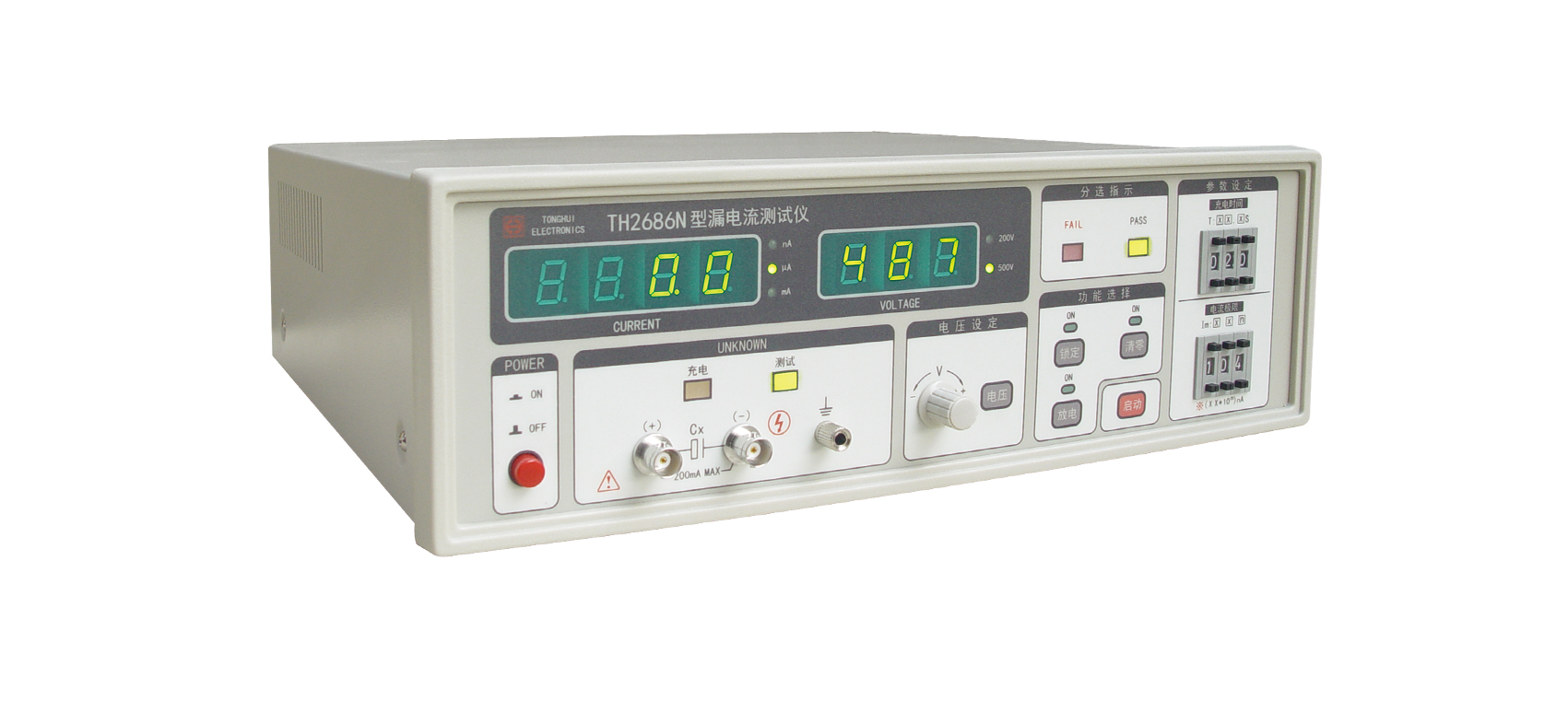

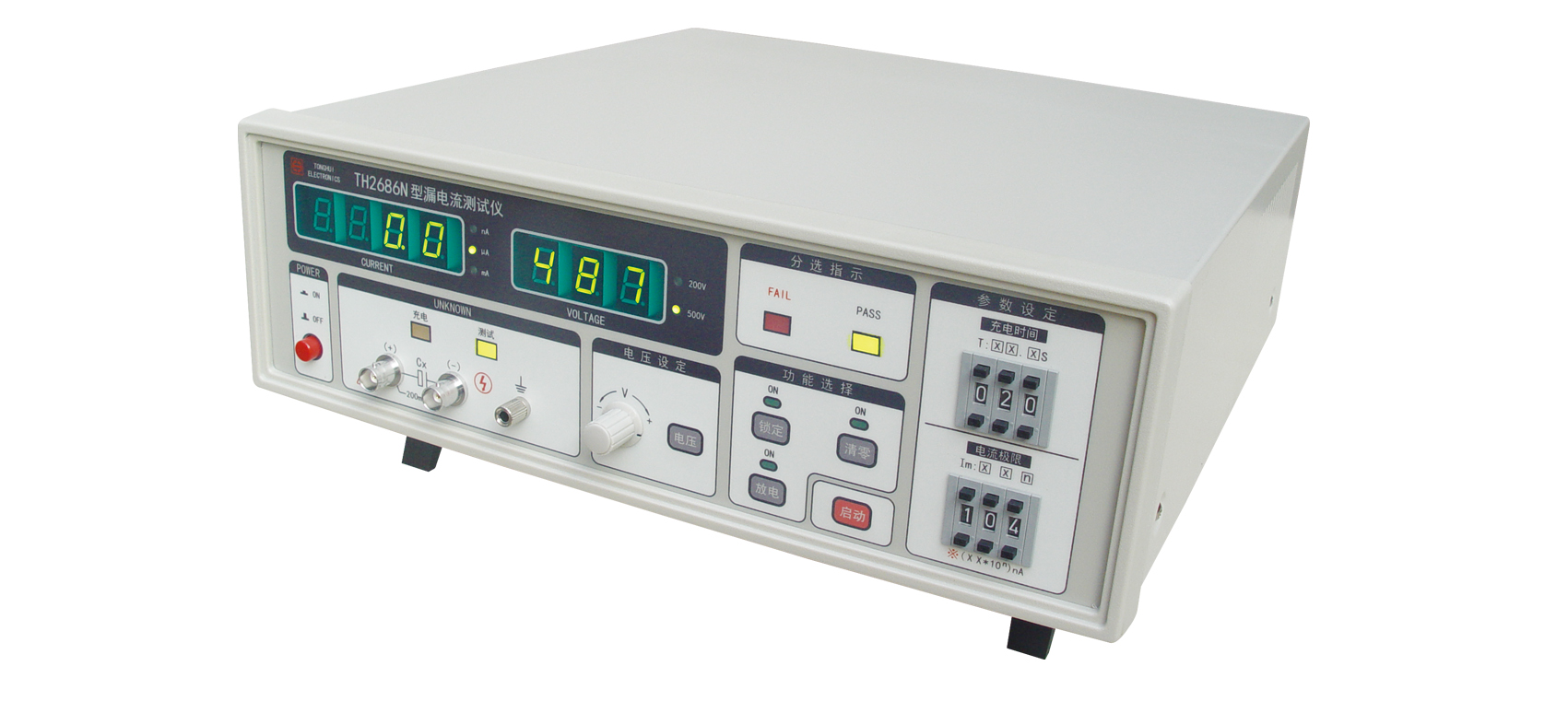

TH2686N electrolytic capacitor leakage current tester

Model:TH2686N

Brand:同惠电子1

Introduction:Model TH2686 electrolytic capacitor leakage current tester is an automatic measuring instrument for electrolytic capacitor leakage current parameters based on microprocessing technology. Test voltage is continuously adjustable, voltage three-digit digital disy, current three-and-a-half digital disy, charging to test automatic conversion, the maximum test voltage 500V, the maximum test current 20mA, the maximum charging current 200mA, the longest automatic charging time is 99.9 seconds. The instrument has the characteristics of current overlimit indication, fast test speed, easy operation, safety and reliability. Suitable for electrolytic capacitor production line quality assurance, incoming inspection and other requirements.
