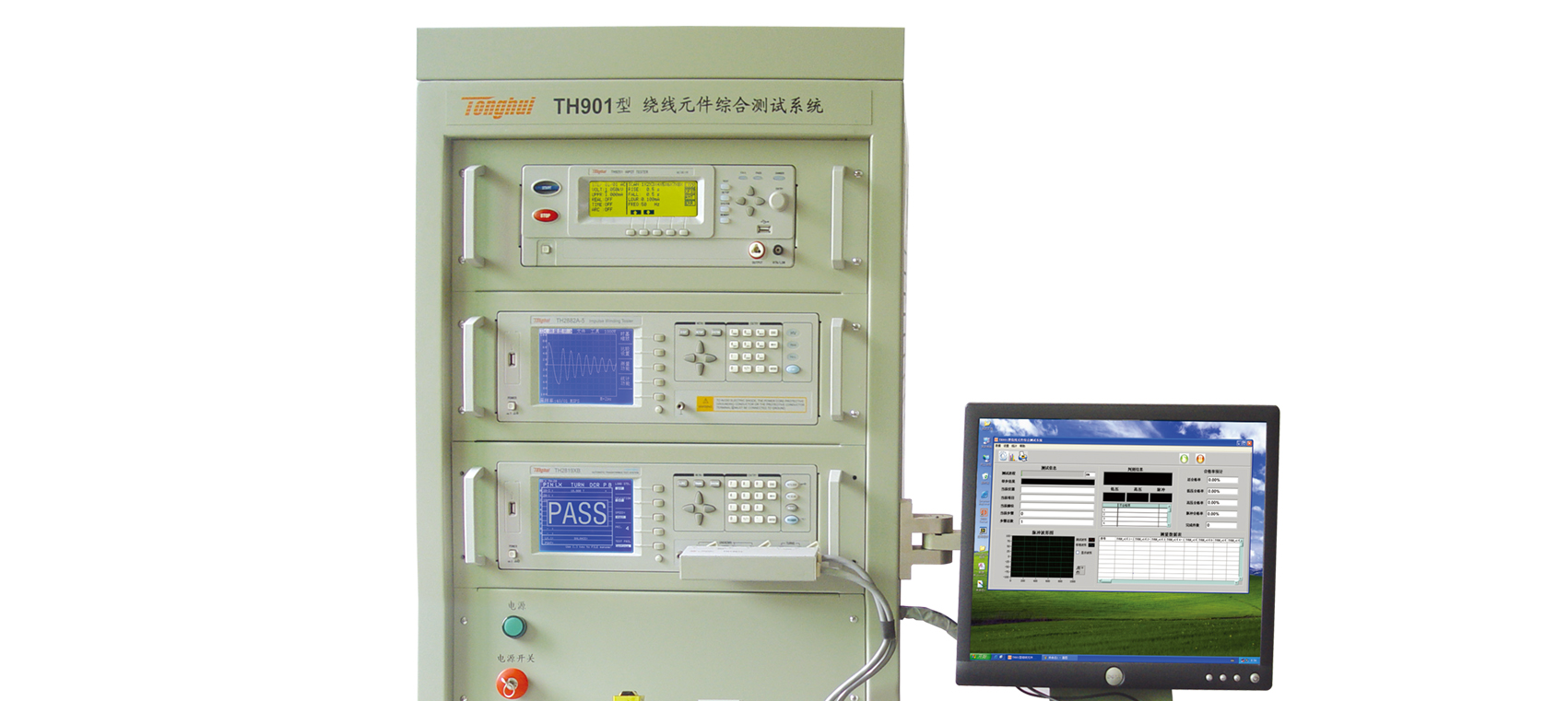

Technical parameters
Low voltage parameter test Items The scope of Test frequency 20Hz~200kHz L, Lk 0.01nH~99.9999kH C 0.00001pF~9.99999F R, X, Z, DCR, ACR 0.01mΩ~99.9999MΩ Y, B, G 0.01nS~99.9999S D 0.00001~99999.9 Q 0.01~99999.9 θ Deg – 179.999o ~179.999o Rad – 3.14159~3.14159 Turns Ratio 1:0.01 – 100:1 Voltage insulation test Function Output voltage 测试The scope of Test accuracy Ac withstand voltage 500VAC~2500VAC(adjacent Pin room)50VAC~5000VAC(separated Pin room) 1μA~30mA ± (2percent reading 5 words) Dc voltage resistance 50VDC to 3500VDC(adjacent to Pin)50VDC to 6000VDC(separated from Pin) 0.1μA~10mA ± (2percent reading 5 words) Insulation resistance 50VDC~1000VDC 0.1MΩ~50GΩ ± (15percent reading 5 words) Coil pulse test Output voltage 500V~5000V,100V step,5percent ±25V 电感量测试The scope of >20μH Waveform sampling Sampling rate: 40 installed base / 25 ns, 20 installed base / 50 ns10msps / 100 ns, 5 installed base / 200 ns, 2.5 installed base / 400 ns, 1.25 installed base / 800 ns, 625 KSPS / 1.6 mu s, 312 KSPS / 3.2 mu s resolution: 8bits sampling point: 960bytes Attachment
| Standard configuration | |||||
| Part name | 型号 |
|
|
|
|
| Optional | |||||
| Part name | 型号 |
|
|
|
|
