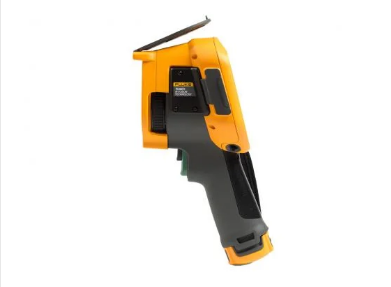

Product specifications: Fluke Ti400 thermal imager
| 主要特点 | |
|---|---|
| 配有标准镜头的 IFOV (spatial resolution) | 1.85 mRad,D:S 532:1 |
| Infrared detector resolution | 320 x 240 |
| Superpixel technology | No |
| Infrared resolution | 76,800 pixels |
| MultiSharp™ Focus | No |
| LaserSharp® Autofocus | Yes, get clear images that are always in focus |
| Laser ranging function | Yes, calculate the distance to the target to obtain a precise focus image, and disy the distance on the screen |
| Advanced manual focus | It is |
| Rugged touch screen | 3.5 inch (transverse) 640 x 480 LCD |
| Rugged and ergonomic design for one hand use | It is |
| Digital zoom | No |
| 温度测量 | |
|---|---|
| 温度测量范围（未在 -10 °C 以下进行校准） | -20°c - 650°c(-4°f - 1202°f) |
| Precision | ±2 °C or 2percent (25 °C, take the larger value of the reading) |
| Thermal sensitivity (NETD)* | ≤0.075 °C, at 30°C target temperature (75 mK) |
| Screen emissivity correction | It is（数值和表格） |
| The screen disys adjustable background temperature compensation | It is |
| Transmittance correction can be performed on the instrument | It is |
| * Best case | |
| 无线连接 | |
|---|---|
| 连接至 PC、iPhone® 和 iPad®（iOS 4s 及更新版本）,Android™ 4.3 及更新版本,WiFi 连接至 LAN（如有提供） | |
| Compatible with Fluke Connect® applications | Yes, Connect the thermal imager to your smartphone and automatically take images and upload them to the Fluke Connect app for saving and sharing |
| Fluke Connect® Asset Optional software | From the desktop, assign images to assets, easily compare measurement types for a location, and create reports |
| Fluke Connect® Instant Upload | Yes, by connecting the thermal imager to the WiFi network in the building, the image will be automatically taken and uploaded to the Fluke Connect system for you to view on your smartphone or PC |
| Compatible with the Fluke Connect® tool | With *, Connect wirelessly to the selected tool supporting Fluke Connect and disy the measurement on the thermal imager screen |
| IR-Fusion® Technology | |
|---|---|
| 为红外图像增添可视细节 | |
| AutoBlend™ Pattern | Min,Mid,Max IR increase the overall visibility of thermal imager; Continuously variable in software |
| Picture in picture (PIP) | It is |
| Built-in digital camera (visible light) | 5 MP |
| 镜头 | ||
|---|---|---|
| 标准镜头 | IFOV (spatial resolution) | 1.85 mRad,D:S 532:1 |
| Field Angle | 34 °H x 24 °V | |
| Minimum focusing distance | 15 cm (about 6 in) | |
| IR-Fusion® Technology | Picture in picture and full screen | |
| Optional 2x telephoto smart lens | IFOV (spatial resolution) | 0.65 mRad,D:S 1529:1 |
| Field Angle | 12 °H x 9 °V | |
| Minimum focusing distance | 45 cm (about 18 in) | |
| IR-Fusion® Technology | Picture in picture and full screen | |
| Optional 4x telephoto smart lens | IFOV (spatial resolution) | 0.33 mRad,D:S 2941:1 |
| Field Angle | 6 °H x 4.5 °V | |
| Minimum focusing distance | 45 cm (about 18 in) | |
| IR-Fusion® Technology | Picture in picture and full screen | |
| Optional wide Angle smart lens | IFOV | 2.62 mRad,D:S 377:1 |
| Field Angle | 46 °H x 34 °V | |
| Minimum focusing distance | 15 cm (about 6 in) | |
| IR-Fusion® Technology | Full screen | |
| 水平和跨度 | 流畅的自动和手动缩放 |
|---|---|
| 在手动与自动模式之间快速自动切换 | It is |
| Fast automatic readjustment in manual mode | It is |
| Minimum range (manual mode) | 2.0 °C (3.6 °F) |
| Minimum range (Automatic mode) | 3.0 °C (5.4 °F) |
| 数据存储和图像捕捉 | |
|---|---|
| 多种存储选择 | Removable 4 GB micro SD memory card,4 GB built-in flash memory, can be saved to USB flash drive, can be uploaded to Fluke Cloud™ permanent storage |
| Image capture, view, save mechanism | One - hand image capture, view and save functions |
| Image file format | Non-radiation (.bmp or.jpeg) or full radiation (.is2); For non-radioactive (.bmp,.jpeg, and.avi) files, no analysis software is required |
| Memory view | 缩略图和Full screen查看 |
| Software | 可访问 Fluke Connect 系统的全面分析和报告Software |
| 使用 SmartView® Software导出文件的格式 | Bitmap (.bmp),GIF,JPEG,PNG,TIFF |
| Phonetic notes | 每幅图像长 60 秒的录音;可在热像仪上回放查看;可选配蓝牙耳机但不It is必需 |
| IR-PhotoNotes™ | It is（2 个图像） |
| Notes to the text | It is |
| Video recording | No |
| Video file format | No |
| Streaming video (remote disy) | No |
| Remote control operation | Remote disy via Fluke Connect |
| Automatic capture (temperature and interval) | No |
| 电池 | |
|---|---|
| 电池（可现场更换、可充电） | Two smart lithium-ion battery packs, with five bars of LED disy to indicate the level of charge |
| Battery life | 2-3 hours/battery (* Depending on the specific setting and use, the actual working time may be different) |
| Battery charging time | Two and a half hours full of |
| Battery charging system | Dual slot battery charger or charge inside a thermal imager. Optional 12 V car charging adapter |
| Alternating current operation | 通过随附电源（100 VAC 至 240 VAC,50/60 Hz）使用Alternating current operation |
| Energy saving | Users can choose sleep and shutdown modes |
| 调色板 | |
|---|---|
| 标准调色板 | 9: Rainbow, iron red, blue red, high contrast, amber, anti-amber, hot metal, gray, anti-gray |
| The Ultra Contrast™ Palette | 9: Rainbow, iron red, blue red, high contrast, amber, anti-amber, hot metal, gray, anti-gray |
| 一般技术指标 | |
|---|---|
| 帧频 | 60 Hz or 9 Hz models |
| Laser indication | It is |
| LED lights (torches) | It is |
| Color alarm (temperature alarm) | High temperature, low temperature and isotherm (within range) |
| Center point temperature measurement | It is |
| Point temperature | Hot and cold spot markers |
| User - definable dot tag | No |
| The middle box | No |
| Infrared wavelength | 7.5μm to 14μm (long wave) |
| Operating temperature | -10°c - 50°c(14°f - 122°f |
| Storage temperature | -20 °C to 50 °C (-4 °F to 122 °F), no battery |
| Relative humidity | 10percent to 95percent no condensation |
| Security | IEC 61010-1: Overvoltage Class II, pollution Level 2. |
| Electromagnetic compatibility | IEC 61326-1: Basic Electromagnetic Environments. CISPR 11: Group 1, Category A |
| Australian RCM | IEC 61326-1 |
| US FCC | CFR 47, Part 15, Section B |
| Vibration resistance | 0.03 g2/Hz (3.8 g),2.5 g IEC 60068-2-6 |
| Impact | 25 g,IEC 68-2-29 |
| Fall off | Designed to withstand drops from a height of 2m (when using standard lenses) |
| Dimensions (height x width x length) | 27.7 x 12.2 x 16.7 cm (10.9 x 4.8 x 6.5 in) |
| Weight (including battery) | 1.04 kg (2.3 lb) |
| Shell protection class | IEC 60529: IP54 (dust protection, all-round ssh resistance) |
| Warranty period | Two years (standard), extendable warranty |
| The recommended calibration period is | Two years (normal operation and aging assumed) |
| Supported languages | Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish |
