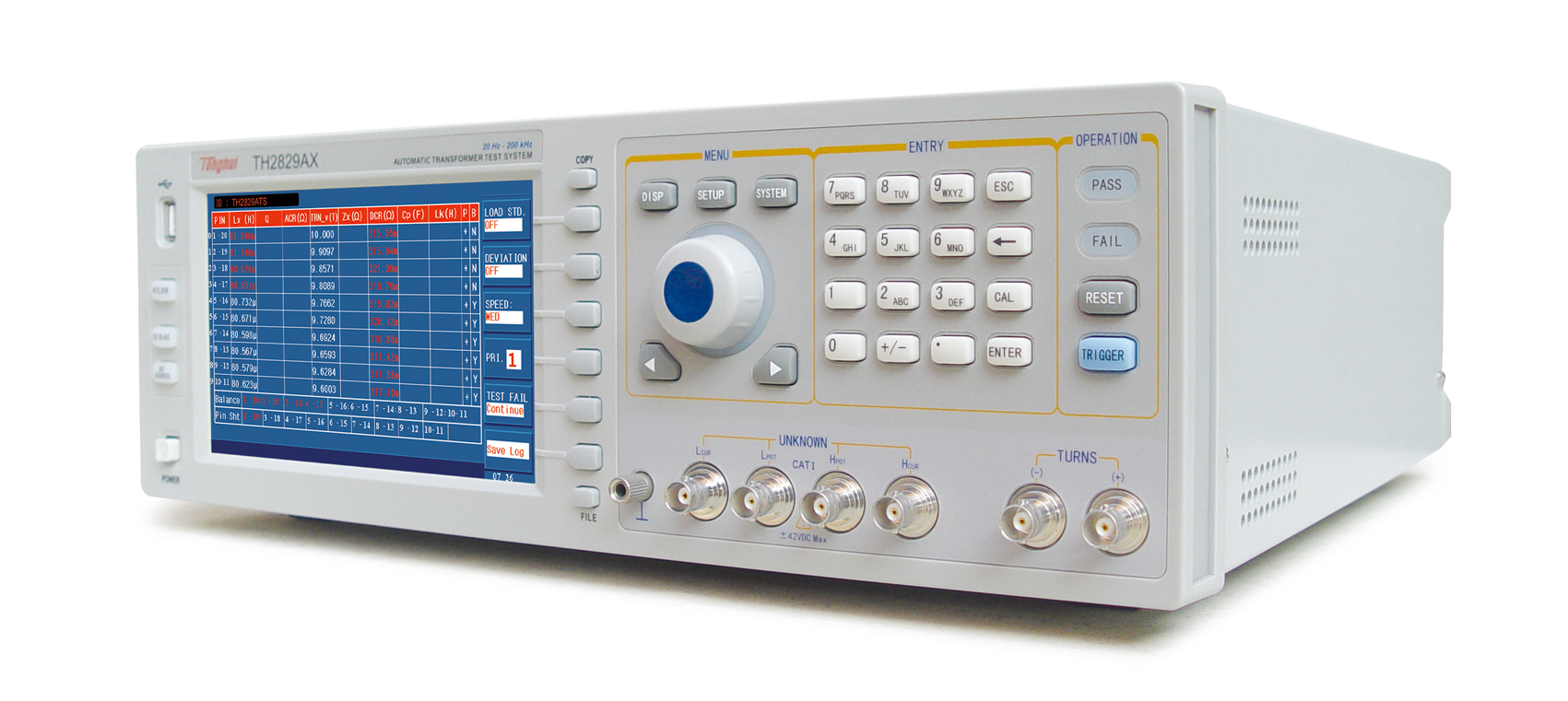

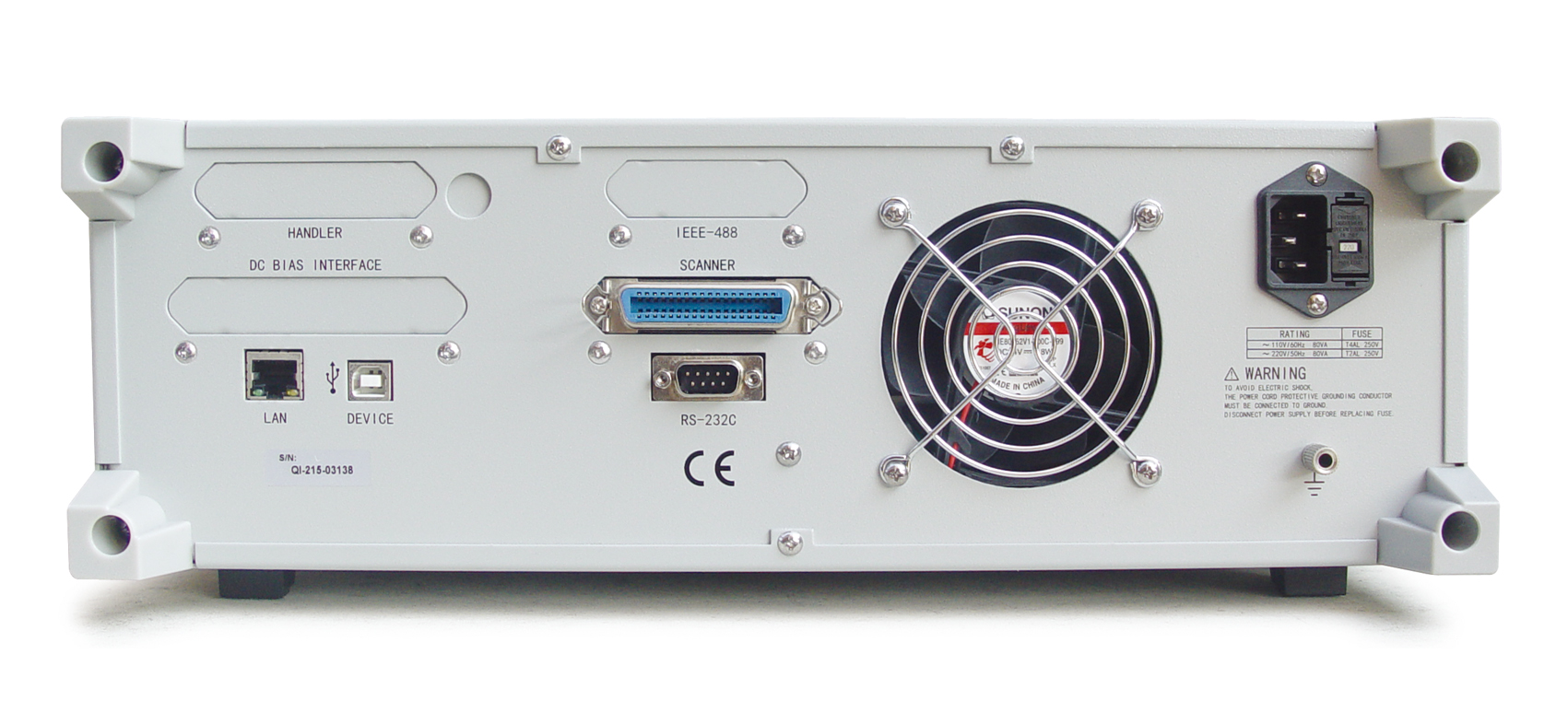

Test foot position (PIN)

20

20

24

48

72/96/120/144/168/192

20

20

Test frequency

20Hz —200kHz

20Hz —500kHz

20Hz —1MHz

Show

7 英寸TFT LCDShow器800×RGB×600

LCR Function

Can contact the salesman to buy permanent opening

Transformer test parameters

Winding ratio

Winding number

Phase

Inductance

Capacitance

Leakage sense

Quality factor

Ac resistance

直流电阻

Balance

Pin short circuit

Diode forward and backward

TurnRatio

Turns

Phase

L

C

Lk

Q

ACR

DCR

Balance

PinShort

DiodeP/N

LCR Test parameters

|Z|, |Y|,C,L,X,B,R,G,D,Q,θ,DCR,Turn-Ratio,Phase,Lk

Basic measurement accuracy

LCRZ

0.05%

DCR 、Winding ratio

0.1%

Source output impedance

10 Ω、30Ω、50Ω、100Ω

Test speed (ms/ time)

13ms,90ms ,370ms

AC Signal level

5mVrms —2Vrms(变压器测试,可定制到10Vrms),5mVrms—10Vrms（LCRFunction）;50μArms—100mArms

DC Bias voltage source

------

0V —±10V;0mA—±100mA

DC Bias current source

0- ±1A optional (optional TH2901),0 -±2A (optional TH2902)

DC Constant current source

0mA -- ±120mA for diode forward characteristic test

Diode test

Forward test voltage

0 —9.9999V

反向测试电流

0 —99.999mA

Comparator

10 档分选,PASS/FAIL指示,档计数Function

Storage

Internal: 100 groups of Settings file save; U disk: 500 sets of files,CSV format test data,GIF format image
