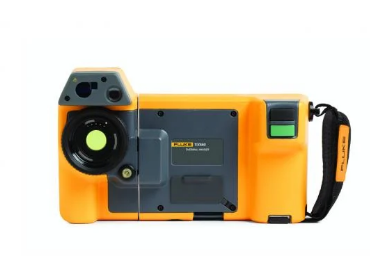

Product specification: Fluke TiX580 infrared thermal imager
| The main characteristic of | |
| With standard lens IFOV (spatial resolution) | 0.93 mRad |
| Detector resolution | 640 x 480 (307,200 pixels) |
| Precision discement imaging technology | Yes, in the software. Capture and combine 4 multiples to generate an image of 1280 x 960 |
| MultiSharp™ Multi-point focus | Yes, you can take near - and far-focal images from the entire perspective |
| LaserSharp® Laser Autofocus | Yes, to get a clear and consistent focus image. Every time. |
| Laser rangefinder | Yes, calculate the distance to the target to obtain a precise focus image, and disy the distance to the screen |
| Advanced manual focus | There is |
| Touch screen (capacitive) | 5.7 inch (14.4 cm) transverse 640 x 480 LCD |
| Rugged ergonomic design | 240 ° swivel (engage) lens |
| Digital zoom | 2x, 4x and 8x |
| A pre-calibrated lens | Wide-angle lens, 2x telephoto lens, 4x telephoto lens and 25 micron/macro lens |
| Temperature measurement | |
| Temperature measurement范围（-10°C 以下未校准） | -20°c - 1000°c |
| Precision | ±2 °C or 2percent (the greater value) |
| 热灵敏度 (NETD)* | 30 °C target temperature,≤ 0.05 °C (50 mK) |
| Screen emissivity correction | It is (numbers and tables) |
| Screen reflection background temperature compensation | There is |
| Screen transmission correction | There is |
| Real-time line marking | There is |
| * The best | |
| Wireless connection | |
| 连接至 PC、iPhone® 和 iPad®（iOS 4s 及更新版本）,Android™ 4.3 及更新版本,WiFi 连接至 LAN（如There is提供） | |
| Compatible with Fluke Connect® applications | There is,将热像仪连接到智能手机,会自动拍摄图像并将图像上传到 Fluke Connect 应用程序以供保存和共享 |
| Fluke Connect Assets Optional software | There is,将图像分配到资产并创建工作单.在一个位置轻松地比较测量类型,无论是机械、电气还是红外图像. |
| Fluke Connect Instant Upload | There is,将热像仪连接到建筑中的 WiFi 网络,会自动拍摄图像并将图像上传到 Fluke Connect 系统以供您在智能手机或 PC 上查看 |
| Compatible with Fluke Connect tool | There is,通过无线方式连接至支持 Fluke Connect 的选定工具并在热像仪屏幕上显示测量.支持五个同时连接. |
| Fluke Connect SmartView Desktop software | There is |
| IR-Fusion® Infrared visible light fusion technology | |
| Add visual detail to infrared images | |
| AutoBlend™ Continuous Blend Mode | Continuously variable |
| Picture in picture (PIP) | 、75%、50%、25% IR |
| Built-in digital camera (visible light) | 5 MP |
| The lens | ||
| 标准The lens | IFOV (spatial resolution) | 0.93 mRad |
| Field Angle | 34 °H x 24 °V | |
| Minimum focal length | Fifteen centimeters (about six inches) | |
| IR-Fusion® Infrared visible light fusion technology | Picture in picture and full screen | |
| 可选 2 倍长焦智能The lens | IFOV | 0.46 mRad。D: s . 2145.1—— |
| Field Angle | 17 °H x 12 °V | |
| Minimum focal length | 45 centimeters (about 18 inches) | |
| IR-Fusion® Infrared visible light fusion technology | Picture in picture and full screen | |
| 可选广角智能The lens | IFOV | [15] [j] .科学通报，2005,25 (1):1- 2 |
| Field Angle | 68 °H x 48 °V | |
| Minimum focal length | Fifteen centimeters (about six inches) | |
| IR-Fusion® Infrared visible light fusion technology | Full screen | |
| Level and span | |
| Touch screen level/span adjustable | There is.只需触摸屏幕即可轻松且快速地设置范围和级别 |
| Fast automatic switching between manual and automatic modes | There is |
| Fast automatic readjustment in manual mode | There is |
| Minimum range (manual mode) | 2.0 °C |
| Minimum range (Automatic mode) | 3.0 °C |
| Data storage and image capture | |
| Multiple storage options | Removable 4 GB micro SD memory card,4 GB built-in flash memory, can be saved to U disk, can be uploaded to Fluke Cloud permanent storage |
| Image file format | Non-radiation measurement (.bmp,.jpeg) or total radiation measurement (.is2); Non-radiometric (.bmp,.jpg) files do not require analysis software |
| Memory view | 缩略图和Full screen查看 |
| Software | 可访问 Fluke Connect SmartView 系统的 Fluke Connect 全面分析和报告Software |
| 使用 SmartView® Software导出文件的格式 | Bitmap (.bmp),GIF,JPEG,PNG,TIFF |
| Phonetic notes | A recording of up to 60 seconds per image; Can be viewed in the thermal image yback |
| IR-PhotoNotes™ Image Annotation | There is（5 个图像） |
| Advanced text notes | There is.包括标准快捷方式以及用户可编程选项 |
| Video recording | Standards and radiation |
| Video file format | Non-radiation (MPEG encoding.AVI) and full radiation (.IS3) |
| Remote disy view | There is,在 PC、智能手机或电视监视器上查看热像仪显示屏的实时流.通过 USB、WiFi 热点或 WiFi 网络连接到 PC 上的 Fluke Connect Software;通过 WiFi 热点连接到智能手机上的 Fluke Connect 应用程序;或通过 HDMI 连接到电视监视器 |
| Remote control operation | There is,通过 Fluke Connect SmartView Desktop software或 Fluke Connect 移动应用程序 |
| Automatic capture (temperature and interval) | There is |
| MATLAB® and LabVIEW® toolkits | 将热像仪数据、红外视频和图像集成到这些Software平台以支持研发分析 |
| Battery | |
| Battery（可现场更换、可充电） | 两块锂离子智能Battery组,通过五格 LED 显示来指示电量水平 |
| Battery使用时间 | 2-3 小时/Battery（视具体设置和使用情况,实际工作时间可能不同） |
| Battery充电时间 | Two and a half hours full of |
| Battery充电系统 | 双槽Battery充电器或者热像仪内充.可选 12 V 汽车充电适配器 |
| Alternating current operation | 通过随附电源（100 VAC 至 240 VAC,50/60 Hz）使用Alternating current operation |
| Energy saving | Users can choose sleep and shutdown modes |
| The color palette | |
| 标准The color palette | 8: Iron red, blue red, high contrast, amber, anti-amber, hot metal, gray, anti-gray |
| Ultra Contrast™ The color palette | 8: Super iron red, Super blue red, Super contrast, super amber, Super anti-amber, super Hot metal, Super gray, super anti-gray |
| General technical index | |
| Frame rate | 60 Hz or 9 Hz models |
| Laser pointer | There is |
| LED light (flashlight) | There is |
| Color alarm (temperature alarm) | High temperature, low temperature and isotherm (within range) |
| 中心点Temperature measurement | There is |
| Point temperature | Hot and cold spot markers |
| User - definable dot tag | 3 个User - definable dot tag |
| Removable frame | 可扩展/收缩的测量箱,具There is MIN-AVG-MAX（低-中-高）三档温度显示 |
| Infrared spectral band | 7.5μm to 14μm (long wave) |
| Operating temperature | -10°c - 50°c |
| Storage temperature | -20°C 至 +50°C,无Battery |
| Relative humidity | 10percent to 95percent no condensation |
| Security | IEC 61010-1: Overvoltage Class II, Pollution Level 2 |
| Electromagnetic compatibility | IEC 61326-1: Basic Electromagnetic Environments. CISPR 11: Group 1, Category A |
| Australian RCM | IEC 61326-1 |
| US FCC | CFR 47, Part 15, Section B |
| Vibration | 0.03 g2/Hz (3.8 g),2.5 g IEC 68-2-6 |
| Impact | 25 g,IEC 68-2-29 |
| Drop | 25 g,IEC 68-2-29/设计承受 1 米（3.3 英尺）的Drop高度（使用标准The lens时） |
| Dimensions (height x width x length) | 27.3 x 15.9 x 9.7 cm (10.8 x 6.3 x 3.8 in)/1.54 kg (3.4 lb) |
| 重量（含Battery） | 1.04 kg (2.3 lb) |
| Shell protection class | IEC 60529: IP54 (dustproof seal protection, all-round waterproof) |
| Warranty period | Two years (standard), also can be extended warranty |
| The recommended calibration period is | Two years (normal operation and aging assumed) |
| Supported languages | Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish |
