Technical parameters
Product model

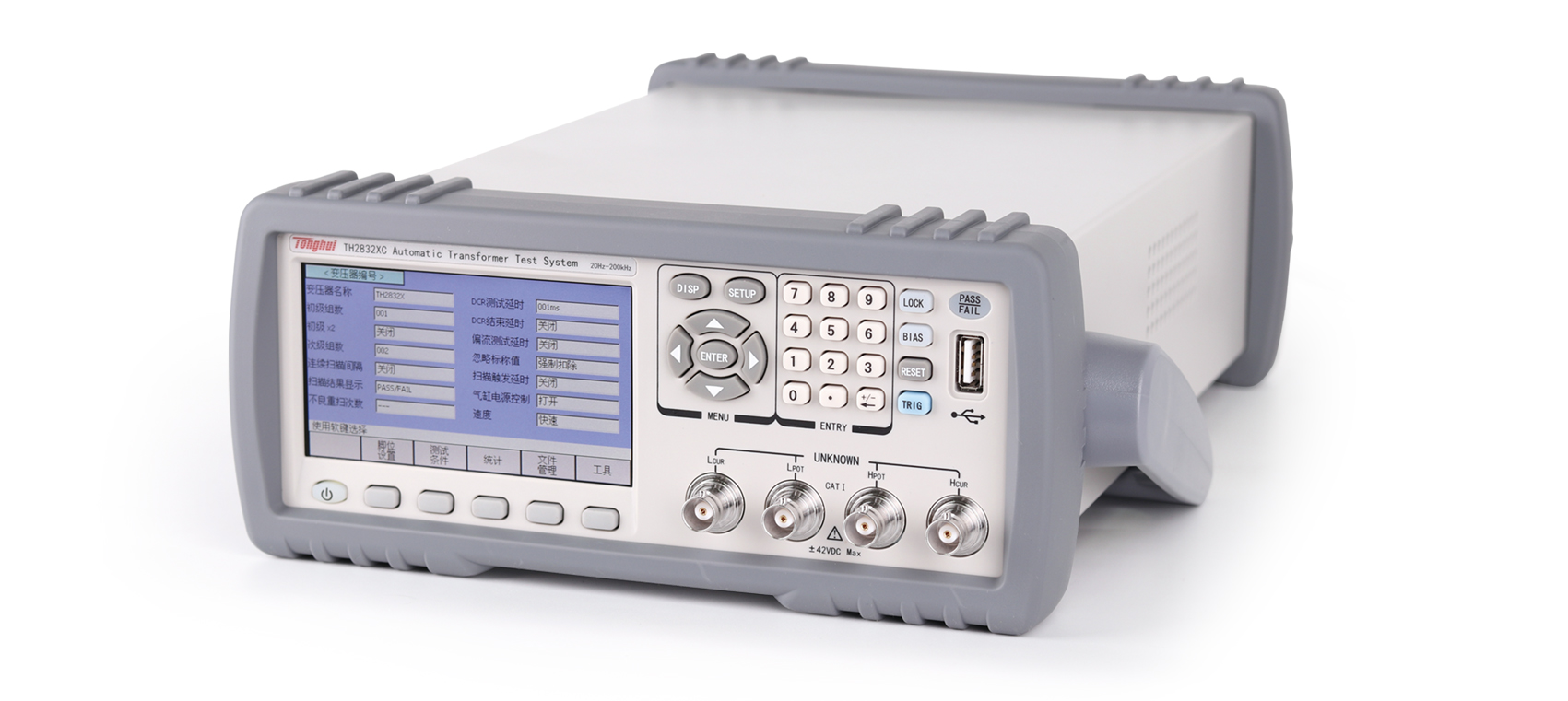

TH2832XB变压器测试系统
Transformer test parameters
Winding ratio, winding number, phase, inductance, capacitance, leakage, quality factor, AC resistance, DC resistance, balance, pin short circuit. Basic accuracy
LCRZ
0.1%
DCR, Winding ratio
0.5%
Test signal frequency The point
20Hz-200kHz A total of 15025 Source output impedance
30 Ω,100Ω is optional AC Test signal level
Normal
10mV —2Vrms
Minimum resolution: 10mV, accuracy: 10percentx Set voltage 2mV
100 μA—20mArms
Minimum resolution: 0.1mA
Constant level
20mV —1Vrms
Minimum resolution: 10mV, accuracy: 10percentx Set voltage 2mV
200 μA—10mArms
Minimum resolution: 0.1mA
DC Bias voltage source
0V —± 5V
Minimum resolution: 0.5mV, accuracy: 1percentx Set voltage 5mV
0mA —±50mA
Minimum resolution: 0.5μA
DCR Disy range
0.00001 Ω－999.999MΩ
Winding ratioDisy range
1:0.01 －100:1
Measuring time (≥10 kHz)
Fast :25 times/second (40ms), medium speed :8 times/second (125ms) Slow speed: 2.7 times/second (370ms)
Equivalent circuit
Series, parallel
Range mode
Automatic, keep
Trigger mode
Internal, manual, external, Bus
The average number of times
1 －255
Zero clearing function
Open circuit, short circuit, load
Mathematical operation
直读,ΔABS,Δ%
Trigger delay time setting
0 -60.000s,1ms step
Step delay time setting
0 -60.000s,1ms step
Comparator function
10 档分选,BIN1～BIN9、NG、AUX
File counting function
PASS FAIL front panel or scanning jig LED disy
Memory
100 Group LCRZ instrument setting file memory 100 group transformer scanning setting file memory

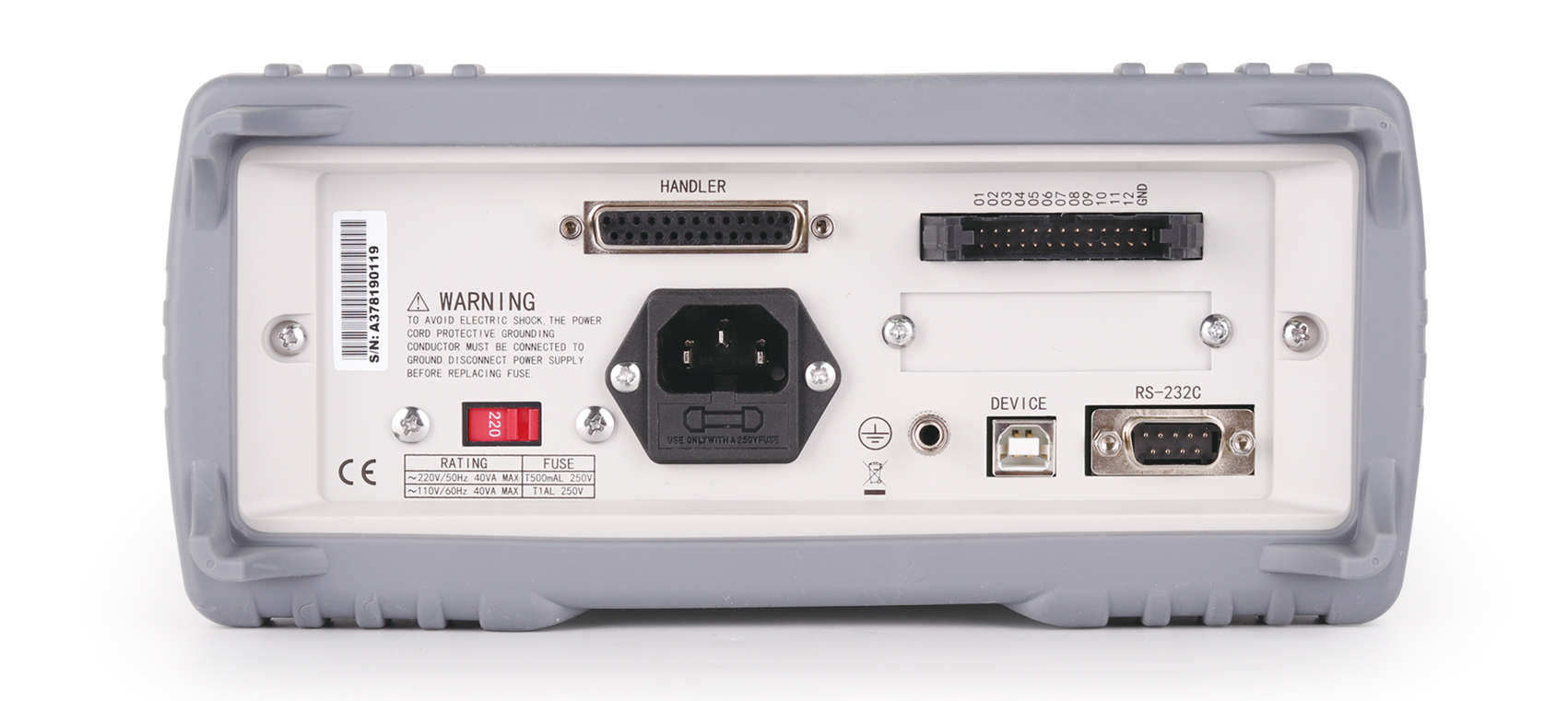

Interface
控制Interface
HANDLER 或SCANNER
通讯Interface
USB HOST ,RS232C,RS485(optional),GPIB(optional)
MemoryInterface
USBDEVICE
TH1831 扫描测试治具Technical parameters
Scan test output pin
24Pin
24 Pin Scan output distribution capacitance
20pF
Transformer locking mode (optional)
Pneumatic (TH1831-02) maximum support 0.7MPa
Manual (TH1831-01)
Panel test control
START ,RESET button,PASS/FAIL LED indicator
Handler Interface（从扫描夹具输出）输入/输出信号
Power: 5V,GND Input: START,RESET Output: PASS,FAIL On, off signal TTL Level
External boot input
Foot start switch
Operating temperature, humidity
0 °C-40°C,≤90%RH
Solenoid valve working power output
+24V
Volume
228mm ×203mm×53mm
The weight of
2.9kg
Attachment
| Standard configuration | |||||
| Part name | 型号 |
|
|
|
|
| Optional | |||||
| Part name | 型号 |
|
|
|
|
