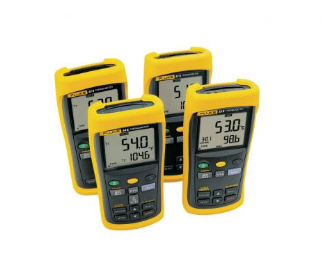

Product specification: Fluke 52-II double channel contact thermometer
| Technical specification |
|
||
| Temperature accuracy | Above -100 °C | J,K,T,E:±[0.05% 0.3°C]¹— |
|
| ±[0.05% 0.4°C]¹— |
|
||
| Below -100 °C | J,K,E:±[0.20% 0.3°C]¹— |
|
|
| ±[0.50% 0.3°C] |
|
||
| Temperature | J-shaped | -210°c - 1200°c |
|
| Type K | -200°c - 1372°c |
|
|
| T-shaped | -250°c - 400°c |
|
|
| Type E | -150°c - 1000°c |
|
|
| R and S | 0°c ~ 1767°c¹— |
|
|
| Temperature scale | ITS-90 | ||
| Applicable standards | NIST-175 |
|
|
| Disy resolution | 0.1 °C,0.1 K <1000 |
|
|
| 1 °C,1 K ≥ 1000 |
|
||
| 1. 只有 Fluke 53 II B 和 54 II B 型测温仪可以测量 N、R and S热电偶. |
|
||
| Environmental indicators |
|
||
| 工作Temperature | -10°c - 50°c |
|
|
| 存放Temperature | -40°c - 60°c |
|
|
| Humidity (no condensation) | 0% - 90%;0℃- 35℃ |
|
|
| 0% - 70%;0°C- 50°C |
|
||
| Safety specifications |
|
||
| Class of overvoltage | CSA C22.2 010.1 1992;EN 61010 1,2— |
|
|
| Institutional certification | CE,CSA, TUV (to be approved) |
|
|
| Mechanical and general specifications |
|
||
| Dimensions (length x width x height) | 173 x 86 x 38 mm |
|
|
| The weight of | 400 g |
|
|
| Battery | 3 节 AA 型号Battery,典型的Battery寿命为 1000 小时 |
|
|
