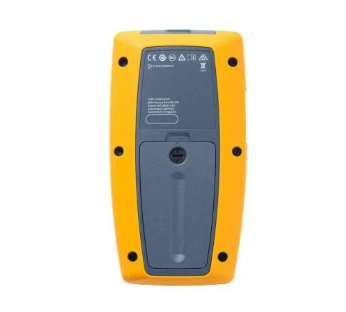

Fluke Networks LinkIQ™ Cable/Network Tester
| Function | Exin |
| Languages supported by the user interface (UI) | English (SW v1.0) |
| The weight of | 1 lbs 6 oz (624g) |
| Battery | 类型：锂Battery,3.6 V,6400 mAh
Battery life: 8 hours (standard) Charge time: 4.5 hours Charging temperature range: 0 °C to 40 °C |
| Power adapter | Input: 100-240 VAC ±10percent,50/60Hz
Output: 15 VDC, Max. 2 A Class II |
| Host interface | Usb c; |
| The disy screen | 800 x 480 capacitive multi-touch color screen |
| Size | 8.5 in x 4.5 in |
| Operating temperature | 0°c - 45°c |
| Storage temperature | -10°c - 60°c |
| Operating relative humidity | 0 % - 90 % (0°C - 35°C)
0 % - 70 % (35°C - 45°C) |
| Working altitude | 4000 m（
使用交流Power adapter时为 3200 m） |
| Vibration | Random,2 g,5 Hz-500 Hz |
| Fall off | 1 米Fall off,6 面 |
有源网络诊断
| Function | Exin |
| Diagnostic protocol | Link Layer Discovery Protocol (LLDP)
Cisco Discovery Protocol (CDP) Fast Link pulse (FLP) |
| Recent device diagnostic information
（通过Diagnostic protocol而可供使用的情况下） |
Switch name
Port number VLAN name Nominal data rate Nominal duplex |
| Ethernet power supply compatibility | IEEE 802.3af/at/bt (SW v1.0)
Hardware negotiation with characteristic resistors Software negotiation with LLDP/CDP |
| Ethernet power supply Diagnosis information | Nominal power rating (0 to 8)
Nominal available power Receiver wire pair Single - and two-feature diagnostic information |
| Ethernet power supply measurement | Load voltage (V)
Load power (W) |
| The port indicator is blinking | The port indicator blinks |
线缆测试规格
| Function | Exin |
| Test port | Shielded 8-pin modular jack for an 8-pin modular (RJ45) plug. |
| Automatic test debugging | 10GBASE-T,5GBASE-T,2.5GBASE-T,1000BASE-T,100BASE-TX,10BASE-T, wiring diagram only.
Test speed: 6 seconds, suitable for length < 70 md> |
| Cable type | Balanced twisted pair wiring
Unshielded twisted pair cable Shielded twisted pair cable Two and/or four -- pairs |
| Wiring diagram test only | Record the wiring diagram
The length of each pair of lines Diagnostic split stitches pair You can select T568A or T568B The user can choose the cross setting (direct connection, half cross, full cross) Test speed: 1 second, suitable for length < 120 md> |
| Length (maximum) | 305 m (1000 ft) |
| Nominal propagation velocity (NVP) | The user can set |
| Audio frequency generator | Generate digital audio compatible with Fluke Networks IntelliTone probes
Generate analog audio compatible with universal analog probes. |
| Remote ID locator | Use Remote ID terminals to identify up to 7 unique ports or office sockets |
