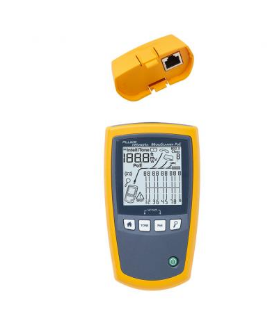

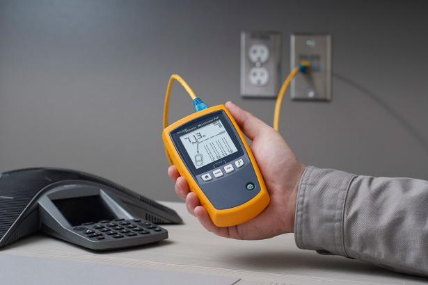

Product specifications: Fluke Networks MicroScanner™ PoE Cable tester
The following technical specifications apply at 23 °C (73 °F), unless otherwise stated
| Environment parameters | |
| Operating temperature | 32 °F - 113 °F (0 °C - 45 °C) |
| Storage temperature | -4 °F - +140 °F (-20 °C - +60 °C) |
| Operating relative humidity (percent RH, no condensation) | 90 % (50 °F - 95 °F 10 °C - 35 °C)
75 % (95 °F - 113 °F 35 °C - 45 °C) |
| Shock and vibration | Random,2 g,5 HZ-500 Hz (2 levels)
1 m drop test with or without wiring diagram adapter |
| Security | IEC 61010-1, 3rd Edition |
| Altitude | 4000 m; Storage: 12,000 m |
| EMC | IEC 61326-1 |
| General technical index | |
| Test connection | Shielded 8-pin modular jack for connecting 8-pin modular (RJ45) and 4-pin modular (RJ11) plugs. |
| Power supply | Battery type: 2 AA (NEDA 15A,IEC LR6) alkaline batteries
Battery life: 20 hours (normal use) Other compatible battery types: 2 AA camera lithium batteries, NIMH batteries, nickel barrier batteries |
| Size and weight (battery fitted and wiring diagram adapter connected) | 3 in x 6.4in x 1.4 in (7.6 cm x 16.3 cm x 3.6 cm)
MicroScanner™ PoE：10.6 oz (300 g) |
| The disy screen | Monochrome backlit LCD screen |
| Test mode | |
| Cable test | Measure length, verify wiring diagram, identify Remote ID locator, and detect Ethernet ports. MicroScanner™ PoE also disys HIGH Ω when the cable resistance exceeds 12.5 Ω. Disy the results on a single screen |
| Audio | 生成 IntelliTone™ 和常规模拟Audio信号 |
| PoE | MicroScanner™ PoE: Requests and detects the presence of PoE devices compatible with 802.3af,at,bt and UPOE (Cisco Power over Ethernet Universal) |
| Performance indicators | |
| Cable type tested | 双绞线：UTP、FTP、SSTP |
| Length test | Measuring range: 460 m (1500 ft)
Resolution: 0.3 m (1 ft) Typical accuracy: ± 4percent or 0.6 m (2 ft), whichever is larger. NVP uncertainty is an extra error Calibration: Users can set the twisted pair NVP value. The actual NVP value can be determined using a cable of known length |
| Wiring diagram test | Detect single wire failure, short circuit, misconnection, split pair, and up to seven remote adapter ids. Draw a wiring diagram at proportional length to visually show the approximate location of the fault |
| Ethernet port detection | MicroScanner™ PoE: Detects nominal rates of 802.3 Ethernet ports for 10 Mbps,100 Mbps,1 Gbps,2.5 Gbps,5 Gbps, and 10 Gbps rates. |
| Audio发生器 | 支持用 Fluke Networks 数字式 IntelliTone™ 探头产生Audio和绘制线缆接线图.可产生四种与标准模拟探头兼容的Audio.SmartTone™ 功能可在使用 IntelliTone 或模拟探头时可靠地识别线束中的线缆. |
