Test foot position ( Pin ）

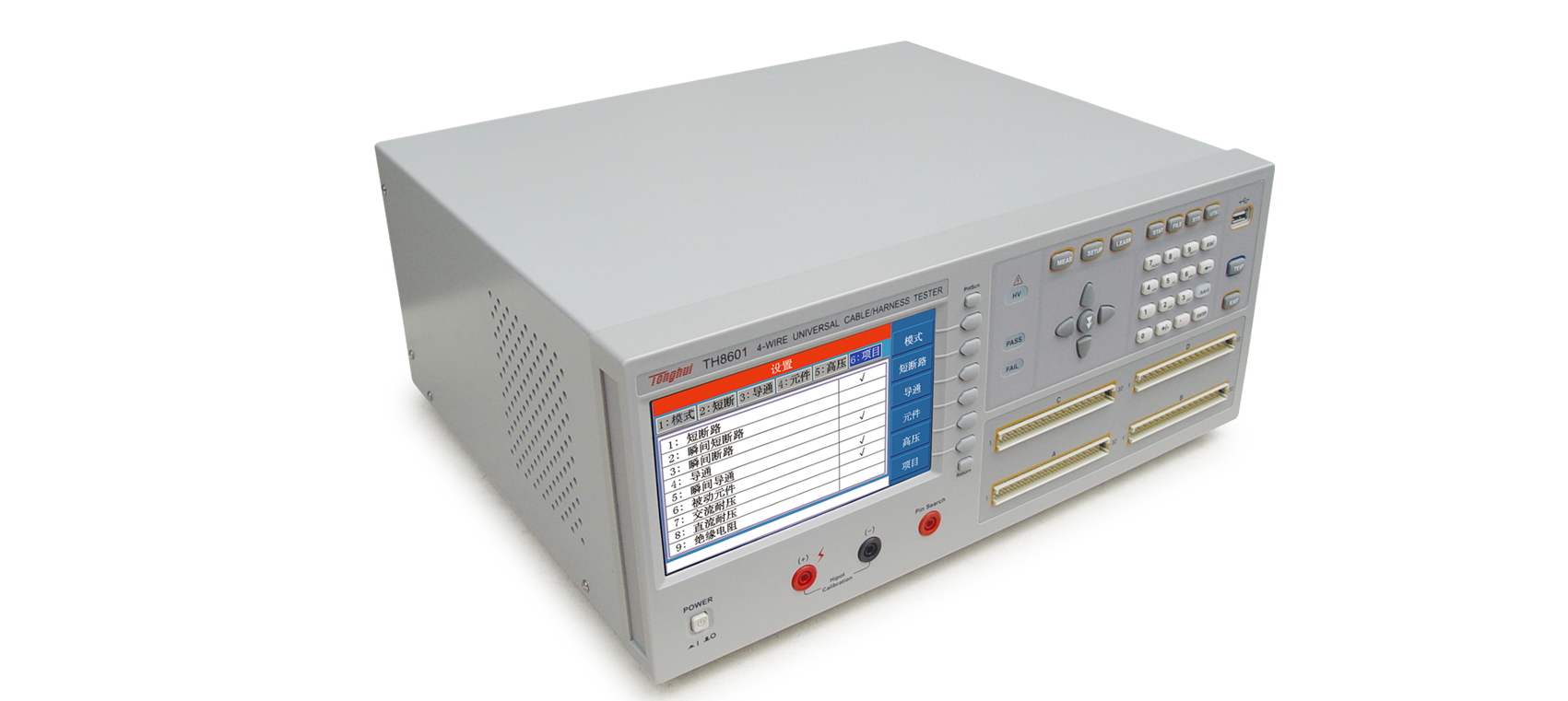

TH8601

128

TH8601A

64

Test signal source

Sine signal source

50Hz-100kHz

幅度、 Frequency programmable

0.02%

Capacitive element test

1Vrms

10%

Programmable DC signal source

5V dc MAX

10% ± 1 A word

Programmable DC current source

1-20mA

10% ± 1 A word

Programmable DC high voltage source

5V-100V

10% ± 1 A word

100V-1500V

5% ± 1 A word

Programmable AC high voltage source

50V-100V

10% ± 1 A word

100V-1000V

5% ± 1 A word

Channel te on/off scan signal source

5V

Test the speed

Instant short circuit (--) 128 Point)

10ms （ Scan all at once 64NET O/S The time of (--)

Single side sensitivity scan test (64 The road )

Network table scan test ( 64 The road）

Test the speed基本值

100ms （ The measurement time of a single passive element, or the total measurement time of a cable)

Capacitance measurement

10pF-1000 μ F

10% ± 1 A word

Resistance test

0.01Ω-1MΩ

2% ± 1 A word

Conduction / Instant

0.01Ω-950Ω

2% ± 1 A word

断短The road

1kΩ-50kΩ

10% ± 1 A word

Diode test

0-10V

10% ± 1 A word

Insulation resistance

1MΩ-100MΩ

5% ± 5 A word

100MΩ-1000MΩ

10% ± 5 A word

Dc leakage current

1 μ A-5mA

5% ± 2 A word

Ac leakage current

0.01mA-5mA

10% ± 5 A word
