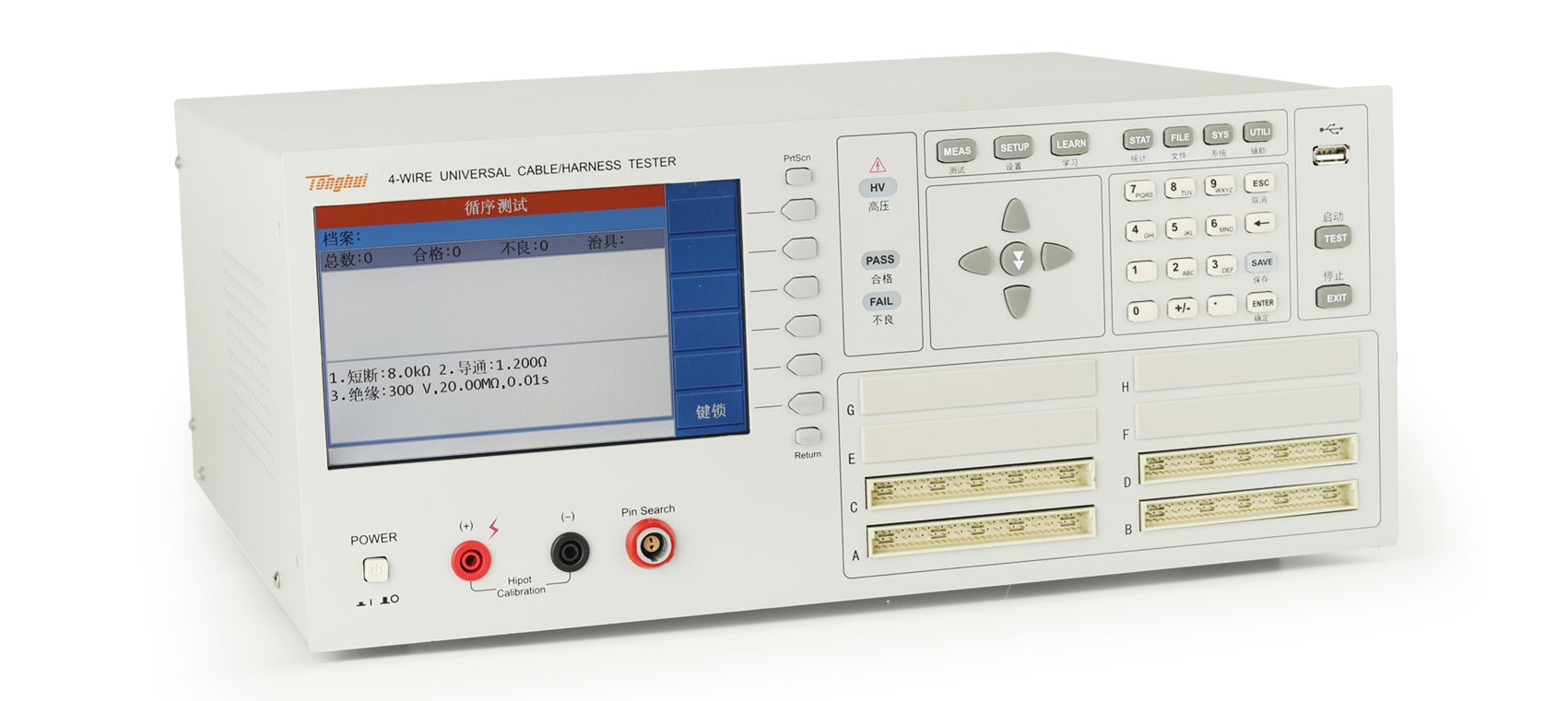

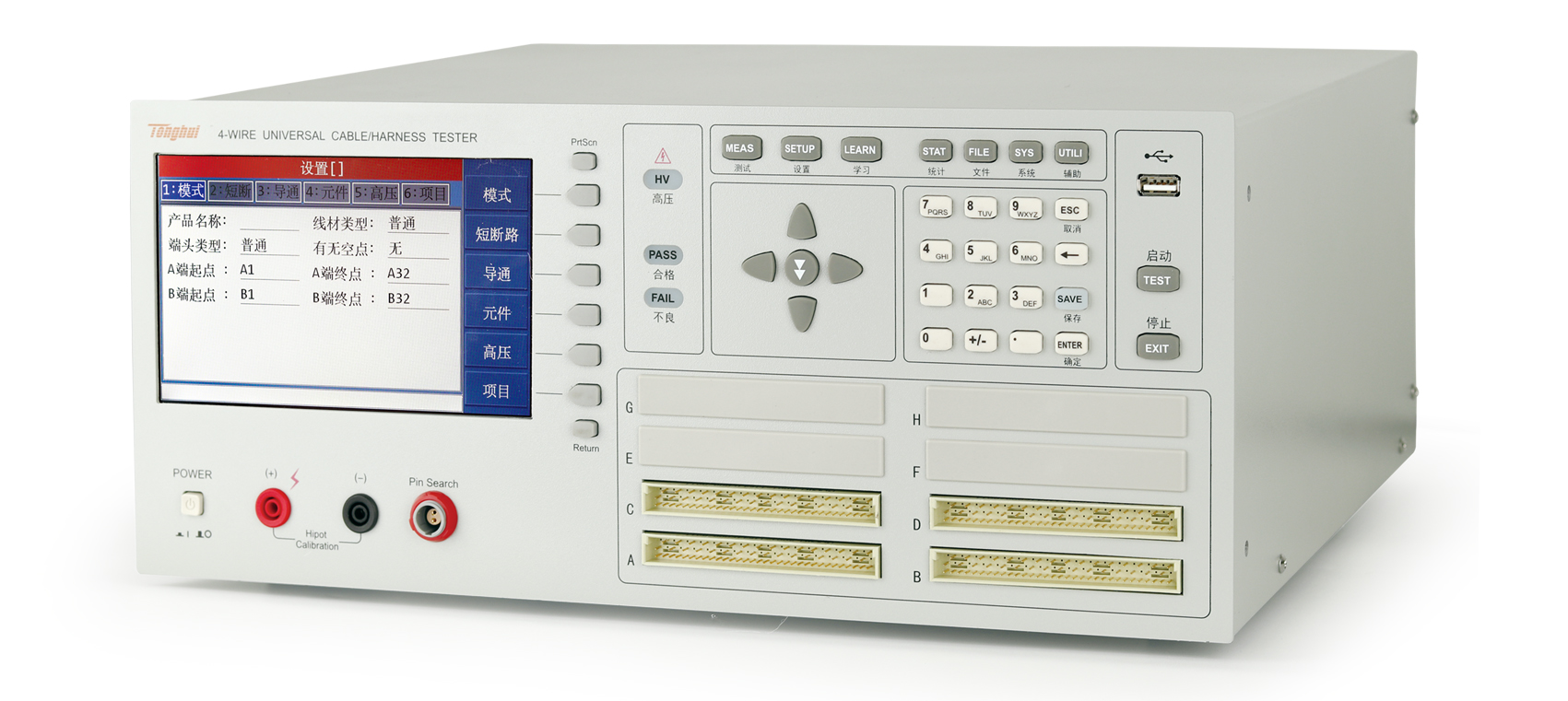

Technical parameters
Parameter
TH8602-1
TH8602B
TH8602C
TH8602-2
TH8602-3
TH8602-4
Test foot position Pin
64
128
192
256
Test signal source
Ac signal source
Frequency
The range of
50Hz-100kHz , precision 0.02%
0-1Vrms, Precision 10%
Dc signal source
Voltage
Current
0-5V , precision 10% ± 1 A word
1-20mA , precision 10% ± 1 A word
Channel te on/off scan signal source
5Vdc
Capacitance measurement
1uF-1000 μ F , precision： 10% ± 1 A word
直流Resistance DCR
10m Ω -1M Ω , precision： 2% ± 1 A word
Conduction / Instant
10m Ω -50 Ω
Break short circuit
1k Ω -50k Ω , precision： 10% ± 1 A word
Diode test
0-10V , precision： 10% ± 1 A word
Dc voltage resistance
Voltage
Current
5V-1500V , precision： 10% ± 1 A word
1uA-5mA , precision： 10% ± 5 A word
5V-1000V , precision： 10% ± 1 A word
1uA-5mA , precision： 10% ± 5 A word
Ac withstand voltage
Voltage
Current
50V-1000V , precision： 10% ± 1 A word
0.01mA-5mA , precision： 10% ± 5 A word
50V-750V , precision： 10% ± 1 The word
0.01mA-5mA , precision： 10% ± 5 A word
Insulation resistance
Voltage
Resistance
5V-1500V , precision： 10% ± 1 A word
1M Ω -1G Ω , precision： 10% ± 5 A word
5V-1000V , precision： 10% ± 1 A word
1M Ω -1G Ω , precision： 10% ± 5 A word
TYPE-C Cable detection
EMARK chip read/write check
5A Independent constant current source
5A20V Pressure drop test
------
------
------
√
------
------
√
√
√
------
------
------
------
------
------
------
------
------
Test the speed
瞬间Break short circuit： 4ms
Instant circuit breaker: 5 μ s-2ms
Attachment
| Standard configuration | |||||
| Part name | 型号 |
|
|
|
|
| TH8602 adapter te (four wires inside) | TH26060B |
|
|
|
|
| TH8602 Test line | TH26060D |
|
|
|
|
| Optional | |||||
| Part name | 型号 |
|
|
|
|
