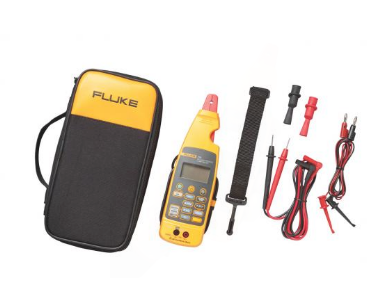

Product specification: Fluke 772 MA process clamp table
| Technical index | ||
| The diameter of the conductor can be measured | 0.177 & quot; Or 4.5mm (Max.) | |
| Operating temperature | -10 - 50ºC | |
| Storage temperature | -25 - 60ºC | |
| Operating humidity | 30℃< 90%，30 - 55℃< 75%—— | |
| Working altitude | 0 to 2000 m | |
| IP protection level | IP 40 | |
| Size | 44 x 70 x 246 mm (2 7/8 x 5 ¾ x 11 5/8 in) | |
| The weight of | 410 g (14.4 oz) | |
| Vibration | Random 2g,5 to 500Hz | |
| Impact | 1 m drop test (except jaws) | |
| EMI/RFI | In accordance with EN61326-1 | |
| For current measurements with clamps, add 1mA.-- to the specification for 1V/m to 3V/m EMC magnetic field strength | ||
| Temperature coefficient | 0.01%ºC(<18ºC或>28ºC) | |
| Power supply and battery life | (4) AA 1.5V alkaline battery,IEC LR6,12 hours,mA output drive 500 ohm | |
| Warranty period | Three years of electronic products | |
| 电缆和钳表配件Warranty period一年 | ||
| Functional technical specifications | ||
| mA measurement (measured by a clamp watch) | Resolution/range | 0 - 20.99 mA |
| Precision | 0.2percent two words | |
| Resolution/range | 21.0mA - 100.0 mA | |
| Precision | 1percent 5 words | |
| mA measurement (measurement in series with test socket) | Resolution/range | 0 - 24.00 mA—— |
| Precision | 0.2percent two words | |
| mA output (Max mA driver: 24 mA driver 1000 ohm) | Resolution/range | 0 - 24.00 mA—— |
| Precision | 0.2percent two words | |
| mA simulation (Max voltage 50 V dc) | Resolution/range | 0 - 24.00 mA—— |
| Precision | 0.2percent two words | |
