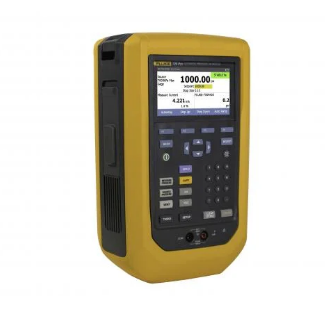

Product specifications: Fluke 729Pro automatic pressure calibrator
|
|
729Pro 7M | 729Pro 4M |
| Pressure control range | (-13~1000) psi | (-13~600) psi |
| (-90~7000) kPa | (-90~4000) kPa | |
| (-0.90~70) bar | (-0.90~40) bar | |
| Type of pressure | Gauge pressure/absolute pressure (according to the type of pressure control module) | |
| Control stability | The minimum is 0.005percent of full scale | |
| Built-in receable voltage control module | Yes, six | Yes, four |
| External pressure measuring module | Yes,48 | |
| mA output/measurement | There is | |
| Voltage measurement | There is | |
| Loop power supply | 24 V dc | |
| One-key check | You can edit task temtes to achieve replicable intelligent verification of the same type of objects | |
| Pressure switch test | There is | |
| Pressure leak test | There is | |
| HART | There is | |
| Automatic stepping/climbing | There is（可自定义速度、模式及样式等） | |
| Recording function | ||
| Adaptation software | 730PCSW erless verification and asset management software | |
| One key pressure relief | There is（消音器 | |
| Battery | 带电量显示的可充电锂Battery（随主机或单独充电） | |
| Language | Simplified Chinese/English | |
| Pressure specification * | |
| One year specification | 0.02percent of full scale |
| Control specification | The minimum is 0.005percent of full scale |
| *There is关详细规格,请参阅手册 | |
| Electrical technical specifications * | |
| mA Measurement, Output and Simulation | 0 mA to 24 mA (resolution 1 µA) |
| 直流Voltage measurement | 0 V dc to 30 V dc (resolution 1 mV) |
| Accuracy | 0.01 percent ±2 LSD (23 °C ±5 °C) at full scale |
| Degree of stability | 20 ppm/°C at full scale (-10 °C to 18 °C and 28 °C to 50 °C) |
| Loop constant current output voltage | 24 V dc @ 20 mA |
| mA analog external voltage requirements | 12v dc- 30v dc |
| Temperature measurement | -50°c - 150°c |
| 100 ΩPt (385) RTD | |
| Temperature resolution | 0.01 °C |
| 温度Accuracy | Combined uncertainty of ±0.1 °C ±0.25 °C (using optional 720 RTD probe) |
| Driving ability | 1200 Ω (without HART resistor),950 Ω (with internal HART resistor) |
| *There is技术指标在 110 % 的The range of范围内There is效, 24 mA 输出和模拟电流除外,它们在 100 % 的The range of范围内There is效 | |
| Mechanical technical index | |
| Dimensions (height x width x length) | 290 x 215 x 100 mm |
| The weight of | 4.9kg |
| Environmental technical indicators | |
| Measure the operating temperature | -10°c - 50°c |
| Pressure control | 0°c - 50°c |
| Battery充电 | 0°c - 40°c |
| Storage temperature | -20°c - 60°c |
| Working altitude | <3000 m |
| Storage elevation | <13 000 m |
| Operating humidity | No condensation (< 10 °C) |
| ≤90 percent relative humidity (10 °C to 30 °C) | |
| ≤75 % 相对湿度 （30°c - 40°c） | |
| ≤45 % 相对湿度 （40°c - 50°c） | |
| Security | |
| 一般Security | IEC 61010-1, Pollution Level 2 |
| 锂离子Battery | IEC 62133、 UN 38.3 ; |
| 14.4 V, 6.7Ah, 97Wh,4ICR19/66-2 (4s2p) | |
| The charging input is 19.5V, 1.6A | |
| Pressure module selection table | ||||||
| Pressure module | Type of pressure | The range of | Resolution | Total uncertainty [3] | 729Pro 4M | 729Pro 7M |
| FLK-PMM-200K[1] | Gauge pressure | (-15~30) psi | 0.0001 psi | Max. 0.02 percentFS/ year | ||
| (-100~200) kPa | 0.001 kPa | |||||
| (-1~2) bar | 0.00001 bar | |||||
| FLK-PMM-200KA[2] | Absolute pressure | (0~30) psi | 0.0001 psi | At most 0.05 percentFS/ year | ||
| (0~200) kPa | 0.001 kPa | |||||
| (0~2) bar | 0.00001 bar | |||||
| FLK-PMM-2000K[1] | Gauge pressure | (-13~300) psi | 0.001 psi | Max. 0.02 percentFS/ year | ||
| (-90~2000) kPa | 0.01 kPa | |||||
| (-0.90~20) bar | 0.0001 bar | |||||
| FLK-PMM-4000K[1] | Gauge pressure | (-13~600) psi | 0.01 psi | Max. 0.02 percentFS/ year | ||
| (-90~4000) kPa | 0.01 kPa | |||||
| (-0.90~40) bar | 0.0001 bar | |||||
| FLK-PMM-7000K[1] | Gauge pressure | (-13~1000) psi | 0.01 psi | Max. 0.02 percentFS/ year |
|
|
| (-90~7000) kPa | 0.01 kPa | |||||
| (-0.90~70) bar | 0.0001 bar | |||||
| FLK-PMM-7000KA[2] | Absolute pressure | (0~1000) psi | 0.01 psi | Max. 0.02 percentFS/ year |
|
|
| (0~7000) kPa | 0.01 kPa | |||||
| (0~70) bar | 0.0001 bar | |||||
| [1] Measurement reference | ||||||
| [2] Absolute reference | ||||||
| [3] Only dry air or non-corrosive gases /15 °C to 35 °C | ||||||
