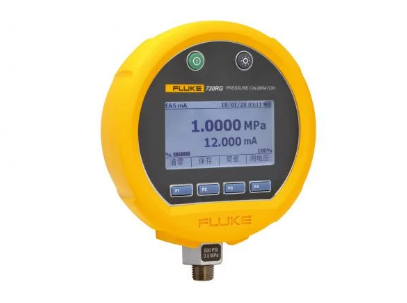

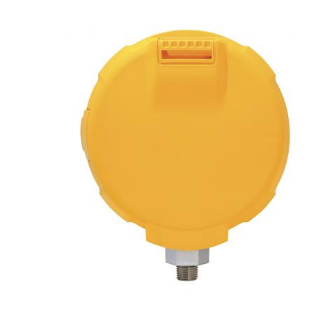

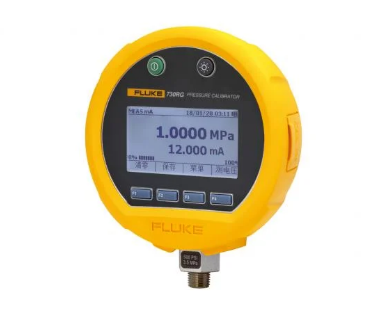

Product specifications: Fluke launched the new Fluke-730g intelligent digital pressure calibrator
| Technical specifications | ||||
| Pressure specification 0.02percent full scale (730RG); 0.05percent full scale (730G) | ||||
| Current specification 0.01percent reading | ||||
| 型号 | The range of | Resolution | Precision | Burst pressure |
| 730G01 | -10 -10 inH2O
-20 - 20mbar -2.49 -2.49 kPa—— |
0.001 inH2O,
0.001 mbar |
正压 ±0.2%The range of 真空 ±0.2%The range of | 3 psi,
210 mbar |
| 730G02 | -1 -1 psi，
-70 -70毫巴 -6.89 至 6.89 kPa |
0.0001 psi,
0.001 mbar |
5 psi,
350 mbar |
|
| 730G04 | -14 - 15 psi，
-0.97 - 1 bar -97 - 103 kPa—— |
0.001 psi, 0.0001 bar | 正压 ±0.05%The range of 真空 ±0.1%The range of | 60 psi, |
| 730G05 | -14 - 30psi，
-0.97 - 2 bar -97 - 206kpa |
0.001 psi, 0.0001 bar | 120 psi,
8 bar |
|
| 730G06 | -12 - 100psi，
-0.83 - 6.9 bar -83 - 690 kPa—— |
0.01 psi, 0.0001 bar | 400 psi,
26 bar |
|
| 730G27 | -12 - 300 psi，
-0.83 - 20bar -83 - 2000 kPa—— |
0.01 psi,
0.001 bar |
1200 psi,
80 bar |
|
| 730G07 | -12 - 500 psi，
-0.83 - 34 bar -83 - 3400 kPa—— |
0.01 psi,
0.001 bar |
2000 psi,
138 bar |
|
| 730G08 | -14 - 1000psi，
-0.97 -97 - 6900千帕 |
0.1 psi,
0.001 bar |
4000 psi,
266 bar |
|
| 730G10 | -14 - 200psi，
-0.97 - 140 bar -97 - 14 MPa |
0.1 psi,
0.01 bar |
正压 ±0.05%The range of 真空 ±0.1%The range of | 8000 psi,
550 bar |
| 730G29 | -14 - 3000psi，
-0.97 - 200bar -97 - 20mpa—— |
0.1 psi,
0.01 bar |
10000 psi,
690 bar |
|
| 730G30 | -14 5000psi，
-0.97 - 340bar -97 - 34 MPa—— |
0.1 psi,
0.01 bar |
10000 psi,
690 bar |
|
| 730G31 | -14 - 10000psi，
-0.97 - 690 bar -97 - 69兆帕—— |
1 psi,
0.01 bar |
15000 psi,
1035 bar |
|
| 730GA4 | 0 to 15 psia,
0 to 1 bar 0 to 100 kPa absolute pressure |
0.001 psi, 0.0001 bar | ±0.05% The range of | 60 psi,
4 bar |
| 730GA5 | 0 to 30 psia
0 to 2 bar 0 至 200 kPa 绝压 |
0.001 psi, 0.0001 bar | 120 psi,
8 bar |
|
| 730GA6 | 0 to 100 psia,
0 ~ 6.9 bar—— 0 to 690 kPa absolute pressure |
0.01 psi, 0.0001 bar | 400 psi,
27 bar |
|
| 730GA27 | 0 to 300 psia,
0 to 20 bar 0 to 2000 kPa absolute pressure |
0.01 psi,
0.001 bar |
1200 psi,
80 bar |
|
| 730RG04 | -14 - 15 psi，
-0.97 - 1 bar -97 - 100kpa—— |
0.001 psi 0.0001 bar | 正压 ±0.02%The range of 真空 ±0.05%The range of | 45 psi
3 bar |
| 730RG05 | -14 - 30psi，
-0.97 - 2 bar -97 - 200kpa—— |
0.001 psi 0.0001 bar | 90 psi
6 bar |
|
| 730RG06 | -12 - 100psi，
-0.83 - 6.9 bar -83 - 690 kPa—— |
0.01 psi 0.0001 bar | 1000 psi
69 bar |
|
| 730RG27 | -12 psi- 300 psi
- 80kpa - 2mpa |
0.01 psi
0.001 bar |
2000 psi
14 MPa |
|
| 730RG07 | -12 psi- 500 psi
- 80kpa - 3.5 MPa |
0.01 psi
0.001 bar |
2000 psi,
138 bar |
|
| 730RG08 | -14 - 1000psi，
-0.97 -97 - 6900千帕 |
0.1 psi
0.001 bar |
10000 psi,
690 bar |
|
| 730RG29 | -14 - 3000psi，
-0.97 - 200bar -97 - 20mpa—— |
0.1 psi
0.01 bar |
10000 psi,
690 bar |
|
| 730RG30 | -14 5000psi，
-0.97 - 340bar -97 - 34 MPa—— |
0.1 psi
0.01 bar |
10000 psi,
690 bar |
|
| 730RG31 | -14 - 10000psi，
-0.97 - 690 bar -97 - 69兆帕—— |
0.1 psi
0.01 bar |
15000 psi,
1035 bar |
|
| * 表中Precision已考虑：线性度、重复性、Resolution、参考Precision、1 年期稳定性和温度效应的影响.
* 730G01/730G02：温度从 0 ℃至 15 ℃和 35 ℃ 至 50 ℃, Precision为满The range of的 ±0.3%. * 对有 730RG 型号,温度从 0 ℃ 至 18 ℃ 和 28 ℃至 50 ℃, 增加 0.003% 满The range of / ℃. * 对 730GA4, 温度从 -10 ℃ 至 15 ℃ 和 35 ℃ 至 55 ℃, 增加 0.006% 满The range of / ℃;有其他 730GA 型号 , 温度从 -10 ℃ 至 15 ℃ 和 35 ℃ 至 55 ℃, 增加 0.003% 满The range of / ℃. |
||||
| Medium compatibility
730G01, 730G02, 730G04, 730G05, 730RG04,730RG05: Any clean, dry, non-corrosive gas Above 100 psi: Any liquid or gas compatible with 316 stainless steel |
||||
| Electrical specifications (valid range of all specifications is 110percent) | |
| The range of | |
| Current | 0毫安，24毫安—— |
| Voltage | 0 V DC to 30 V DC |
| Resolution | |
| Current范围 | 1 μA |
| Voltage范围 | 1 mV |
| Precision | 0.01 % ±2 LSD 满The range of ( 在 23 ℃ ±5 ℃ ) |
| Temperature compensation | 从 20% 满The range of / ℃ -10 ℃ 至 +18 ℃ 和
28 ℃ to 50 ℃ |
| 回路Voltage合格 | 24 V DC @ 20 mA |
| 内置温度测量Precision | ±0.5 ℃ |
| Driving load | 1200Ω no HART resistance, 950Ω internal HART resistance |
