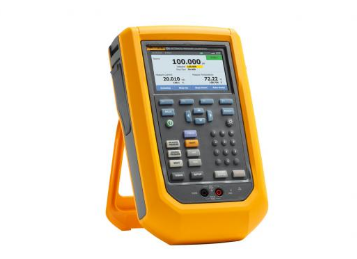

Product specifications: Fluke 729 automatic pressure calibrator
Pressure specification *
One year specification, 0.02percent of full scale
Control specifications, 0.005percent of minimum full scale
* Please refer to the manual -- for detailed specifications
型号
729 30G
Psi range, resolution -12.0000 to 30.0000 psiBar range, resolution -0.82737 to 2.06842 barkPa range, resolution -82.737 to 206.843 kPa note No wireless communication provided
729 150G
Psi range, resolution -12.000 to 150.000 psiBar range, resolution - 0.8273-10.3421 barkPa range, resolution -82.73 to 1034.21 kPa notes do not provide wireless communication
729 300G
Psi range, resolution -12.000 to 300.000 psiBar range, resolution - 0.8273-20.6843 barkPa range, resolution -82.73 to 2068.43 kPa notes do not provide wireless communication
729 30G FC
Psi range, resolution -12.0000 to 30.0000 psiBar range, resolution -0.82737 to 2.06842 barkPa range, resolution -82.737 to 206.843 kPa annotated wireless communication for Fluke Connect
729 150G FC
Psi range, resolution -12.000 to 150.000 psiBar range, resolution -0.8273-10.3421 barkPa range, resolution -82.73 to 1034.21 kPa annotated wireless communication for Fluke Connect
729 300G FC
Psi range, resolution -12.000 to 300.000 psiBar range, resolution - 0.8273-20.6843 barkPa range, resolution -82.73 to 2068.43 kPa annotated wireless communication for Fluke Connect
729CN 200K
Psi range, resolution -12.0000 to 30.0000 psiBar range, resolution -0.82737 to 2.06842 barkPa range, resolution -82.737 to 206.843 kPa note to China, no wireless communication provided
729CN 1M
Psi range, resolution -12.000 to 150.000 psiBar range, resolution -0.8273-10.3421 barkPa range, resolution -82.73 to 1034.21 kPa note to China, no wireless communication provided
729CN 2M
Psi range, resolution -12.000 to 300.000 psiBar range, resolution - 0.8273-20.6843 barkPa range, resolution -82.73 to 2068.43 kPa notes to China, no wireless communication provided
729CN 200K FC
Psi range, resolution -12.0000 to 30.0000 psiBar range, resolution -0.82737 to 2.06842 barkPa range, resolution -82.737 to 206.843 kPa note for China, wireless communication, suitable for Fluke Connect
729CN 1M FC
Psi range, resolution -12.000 to 150.000 psiBar range, resolution -0.8273-10.3421 barkPa range, resolution -82.73 to 1034.21 kPa note for China, wireless communication, suitable for Fluke Connect
729CN 2M FC
Psi range, resolution -12.000 to 300.000 psiBar range, resolution -0.8273-20.6843 barkPa range, resolution -82.73 to 2068.43 kPa note for China, wireless communication, suitable for Fluke Connect
729PLUS 2M
729 Automatic pressure calibrator,2Mpa, Chinese version, with FC function, with Chinese report software
729PLUS 1M
729 Automatic pressure calibrator,1Mpa, Chinese version, with FC function, with Chinese report software
729PLUS 200K
729 Automatic pressure calibrator,200kPa, Chinese version, with FC function, with Chinese report software
729JP 200K
kPa range, resolution -82.737 to 206.843 kPa notes against Japan, no wireless communication provided
729JP 1M
kPa range, resolution -82.73 to 1034.21 kPa notes against Japan,1 Mpa range, no wireless communication provided
729JP 2M
kPa range, resolution -82.73 to 2068.43 kPa notes against Japan,2 Mpa range, wireless communication not provided
729JP 200K FC
kPa range, resolution -82.737 to 206.843 kPa notes for Japan, wireless communication, suitable for Fluke Connect
729JP 1M FC
kPa range, resolution -82.73 to 1034.21 kPa notes for Japan, wireless communication, suitable for Fluke Connect
729JP 2M FC
kPa range, resolution -82.73 to 2068.43 kPa notes for Japan, wireless communication, suitable for Fluke Connect
Electrical technical specification
All specifications are suitable for 110percent range (except 24 mA output and simulation, which are suitable for 100percent range).
The range of
mA Measurement, Output and Simulation
0毫安，24毫安——
Dc voltage measurement
0v dc- 30v dc
Resolution
mA DC output, Simulation and Measurement
1 μA
Dc voltage measurement
1 mV
Precision
有The range of均为 0.01% ± 2 LSD（23 °C ± 5 °C 时）
Degree of stability
满The range of 20 ppm/°C（-10 °C 至 +18 °C 以及 28 °C 至 +50 °C）
mA analog external voltage requirements
12v dc- 30v dc
Loop compliance voltage
24v dc(20ma)——
mA analog external voltage requirements
12v dc- 30v dc
Temperature measurement only /100 Ω Pt(385) RTD
-50°c - 150°c(-58°f - 302°f
温度Resolution
0.01 °C (0.01 °F)
温度Precision
± 0.1 °C (0.2 °F) ± 0.25 °C (± 0.45 °F) synthesis uncertainty (when using 720 RTD probe (optional attachment))
Driving ability
1200 Ω (not equipped with HART resistor),950 Ω (equipped with HART resistor)
Mechanical technical index
Volume (height x width x length)
7 x 27.94 x 17.27 cm (2.75 x 11 x 6.8 in)
The weight of
6.5 lbs.（2.95 kg）
Protection level
IP54
Environmental specifications
Operating temperature
-10 °C to 50 °C (for measurement),0 °C to 50 °C (for pressure control)
电池Operating temperature
-10°c - 40°c
The battery only reaches 40 °C-- when charged
Storage temperature
-40°c - 60°c
Working altitude
3000 m
Storage elevation
13000 m
Wireless (729 FC only)
Radio frequency certification
FCC ID：T68-FBLE IC:6627A-FBLE
Radio frequency range
2412 MHz--- 2462 MHz
