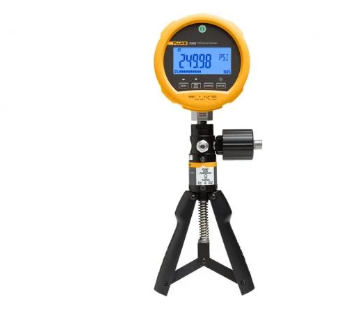

Fluke 700G series portable pressure calibration/calibration instrument--Shenzhen Selen Technology Co., Ltd

Product specifications: Fluke 700G series portable pressure calibration/calibrator

700R range: Temperature compensation from 0 e°C to 50 °C (from 32 °F to 122 °F) to rated accuracy
对于 -10 °C 至 0 °C 和 50 °C 至 55 °C 之间的温度,增加 0.005 % FS / °C.
型号	量程	分辨率	度	爆破压力
Fluke-700G01	-10 至 +10 inH2 O -20毫巴-- -20毫巴	0.001 inH2 O, 0.001 mbar	±0.1percent of positive pressure range 0.1percent of vacuum range 0.1percent	3 psi、 210 mbar
Fluke-700G02	- 1psi， - 70mbar - 70mbar	0.0001 psi、 0.001 mbar	±0.1percent of positive pressure range 0.1percent of vacuum range 0.1percent	5 psi、 350 mbar
Fluke-700G04	-14 - 15 psi， -0.97 -1 bar	0.001 psi、 0.0001 bar	Positive pressure ±0.05percent FS vacuum ±0.1percent FS	60 psi、 4 bar
Fluke-700G05	-14 - 30psi， -0.97 - 2 bar	0.001 psi、 0.0001 bar	Positive pressure ±0.05percent FS vacuum ±0.1percent FS	120 psi、 8 bar
Fluke-700G06	-12 - 100psi， -0.83 - 6.9 bar	0.01 psi, 0.0001 bar	Positive pressure ±0.05percent FS vacuum ±0.1percent FS	400 psi、 26 bar
Fluke-700G27	-12 - 300 psi， -0.83 - 20 bar	0.01 psi、 0.001 bar	Positive pressure ±0.05percent FS vacuum ±0.1percent FS	1200 psi、 80 bar
Fluke-700G07	-12 - 500 psi， -0.83 - 34 bar	0.01 psi、 0.001 bar	Positive pressure ±0.05percent FS vacuum ±0.1percent FS	2000 psi、 138 bar
Fluke-700G08	-14 - 1000psi， -0.97 - 69 bar	0.1 psi, 0.001 bar	Positive pressure ±0.05percent FS vacuum ±0.1percent FS	4000 psi、 266 bar
Fluke-700G10	-14 - 2000 psi;97巴- 140巴——	0.1 psi, 0.01 bar	Positive pressure ±0.05percent FS vacuum ±0.1percent FS	8000 psi、 550 bar
Fluke-700G29	-14 - 3000psi， -0.97 - 200bar	0.1 psi, 0.01 bar	Positive pressure ±0.05percent FS vacuum ±0.1percent FS	10000 psi、 690 bar
Fluke-700G30	- 14000psi， -0.97 - 340 bar	0.1 psi, 0.01 bar	Positive pressure ±0.05percent FS vacuum ±0.1percent FS	10000 psi、 690 bar
Fluke-700G31	- 14000psi， -0.97 - 690 bar	1 psi, 0.01 bar	Positive pressure ±0.05percent FS vacuum ±0.1percent FS	20000 psi、 1035 bar
Fluke-700GA4	0 to 15 psia, 0-1 bar absolute pressure	0.001 psi, 0.0001 bar	± 0.05percent of the range	60 psi、 4 bar
Fluke-700GA5	0-30 psia 0-2 bar Absolute pressure	0.001 psi, 0.0001 bar	± 0.05percent of the range	120 psi、 8 bar
Fluke-700GA6	0 to 100 psia, 0-6.9 bar absolute pressure	0.01 psi, 0.0001 bar	± 0.05percent of the range	400 psi、 27 bar
Fluke-700GA27	0 to 300 psia, 0-20 bar absolute pressure	0.01 psi, 0.001 bar	± 0.05percent of the range	1200 psi、 80 bar
Fluke-700RG05	-14 - 30psi， -0.97 - 2 bar	0.001 psi, 0.0001 bar	Positive pressure, 0.04percent of ± reading range 0.01percent of vacuum range 0.05percent	90 psi、 6 bar
Fluke-700RG06	-12 - 100 psi, -0.83 - 6.9 bar	0.01 psi, 0.0001 bar	Positive pressure, 0.04percent of ± reading range 0.01percent of vacuum range 0.1percent	400 psi、 27 bar
Fluke-700RG07	-12 - 500 psi， -0.83 - 34	0.01 psi, 0.001 bar	Positive pressure, 0.04percent of ± reading range 0.01percent of vacuum range 0.1percent	2000 psi、 138 bar
Fluke-700RG08	-14 - 1000 psi, -0.97 - 69 bar	0.1 psi, 0.001 bar	Positive pressure, 0.04percent of ± reading range 0.01percent of vacuum range 0.1percent	4000 psi、 275 bar
Fluke-700RG29	-14 - 3000 psi, -0.97 - 200 bar	0.1 psi, 0.01 bar	Positive pressure, 0.04percent of ± reading range 0.01percent of vacuum range 0.1percent	10000 psi、 690 bar
Fluke-700RG30	-14 - 5000 psi, -0.97 - 340 bar	0.1 psi, 0.01 bar	Positive pressure, 0.04percent of ± reading range 0.01percent of vacuum range 0.1percent	15000 psi、 1035 bar
Fluke-700RG31	-14 - 10000 psi, -0.97 - 690 bar	1 psi, 0.01 bar	Positive pressure, 0.04percent of ± reading range 0.01percent of vacuum range 0.1percent	20000 psi、 1380 bar

介质相容性
10 inH2 O,1,15,30 psi: Any clean, dry, non-corrosive gas 100 psi,300 psi,500 psi and 1000 psi: any liquid or gas compatible with 316 stainless steel; From 1000 psi above: Any non-combustible, non-toxic, non-explosive, non-oxidizing liquid or gas compatible with 316 stainless steel.

机械规格
尺寸（高x宽x深）	12.7 x 11.4 x 3.7 cm (5 x 4.5 x 1.5 in)
Pressure connection	¼ in NPT 阳接头
Case/weight	Cast ZNAL,0.56 kg (1.22 lb), with coat
The disy screen	5-1/2 digit,16.53 mm (0.65 in) H 20 section bar chart,0 to 100percent
Power	Three AA alkaline batteries
Battery life	1500 hours without backlight (continuous use), 2000 hours with low sampling rate
