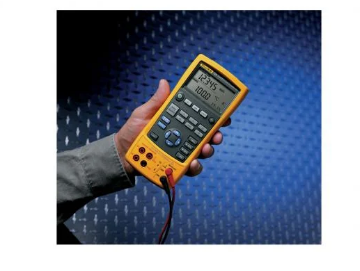

Product specifications: Fluke 724 temperature calibrator
| Accuracy of measurement | ||
| Dc voltage | 30.000 V | 0.02percent 2 counts (upper disy) |
| 20.000 V | 0.02percent 2 counts (lower disy) | |
| 100.00 mV | 0.02percent 2 counts | |
| -10.00 mV- 75.00 mV | 0.025percent 1 count (through the TC connector) | |
| Direct current | 24.000 mA | 0.02percent 2 counts |
| Resistance | 0.0 | 0.1Ω (4 wire), 0.15Ω (2 and 3 wire) |
| 401 to 1500 Ω | 0.5 Ω (4-wire),1 Ω (2-wire and 3-wire) | |
| 1500 to 3200 Ω | 1 Ω (4 wires),1.5 Ω (2 and 3 wires) | |
| Output accuracy | ||
| Dc voltage | 100.00 mV | 0.02percent 2 counts |
| 10.000 V | 0.02percent 2 counts | |
| -10.00 mV- 75.00 mV | 0.025 percent 1 count (through the TC connector) | |
| Resistance | 15.0 |
0.15 Ω (excitation current 0.15 to 0.5 mA),0.1 Ω (excitation current 0.5 to 2 mA) |
| 401 to 1500 Ω | 0.5Ω (excitation current 0.05 to 0.8 mA) | |
| 1500 to 3200 Ω | 1 Ω (excitation current 0.05 to 0.4 mA) | |
| RTD and thermoelectric coupling | ||
| Measurement accuracy | NI-120 | 0.2 °C |
| PT-100 (385) | 0.33 °C | |
| PT-100 (393) | 0.3 °C | |
| PT-100 (JIS) | 0.3 °C | |
| PT-200 (385) | 0.2 °C | |
| PT-500 (385) | 0.3 °C | |
| PT-1000 (385) | 0.2 °C | |
| Resolution | 0.1 °C | |
| J | 0.7 °C | |
| K | 0.8 °C | |
| T | 0.8 °C | |
| E | 0.7 °C | |
| R | 1.8 °C | |
| S | 1.5 °C | |
| B | 1.4 °C | |
| L | 0.7 °C | |
| U | 0.75 °C | |
| N | 0.9 °C | |
| Resolution | J、K、T、E、L、N、U：0.1 °C,0.1 °F B、R、S：1 °C,1 °F | |
| XK | 0.6 °C | |
| BP | 1.2 °C | |
| Output accuracy | NI-120 | 0.2 °C |
| PT-100 (385) | 0.33 °C | |
| PT-100 (393) | 0.3 °C | |
| PT-100 (JIS) | 0.3 °C | |
| PT-200 (385) | 0.2 °C | |
| PT-500 (385) | 0.3 °C | |
| PT-1000 (385) | 0.2 °C | |
| Resolution | 0.1 °C | |
| Accuracy is suitable for 4-line measurement | ||
| J | 0.7 °C | |
| K | 0.8 °C | |
| T | 0.8 °C | |
| E | 0.7 °C | |
| R | 1.4 °C | |
| S | 1.5 °C | |
| B | 1.4 °C | |
| L | 0.7 °C | |
| U | 0.75 °C | |
| N | 0.9 °C | |
| Resolution | J、K、T、E、L、N、U：0.1 °C、B、R、S：1 °C | |
| XK | 0.6 °C | |
| BP | 1.2 °C | |
| Technical specifications | ||
| Slope function | Output function | Voltage、电流、Resistance、频率、温度 |
| The slope | 慢速线性The slope,快速线性The slope,25% Step by stepThe slope | |
| Loop power function | Voltage | 24 V |
| Precision | 10% | |
| Maximum current | 22 mA, short circuit protection | |
| Step function | Output function | Voltage、电流、Resistance、频率、温度 |
| Step by step | 25percent of the range, 100percent of the range | |
| Environmental indicators | ||
| Operating temperature | -10°c - 55°c | |
| Storage temperature | -20°c - 71°c | |
| Humidity (no condensation) | 90% | 10°c - 30°c |
| 75% | 30°c - 40°c | |
| 45% | 40°c - 50°c | |
| 35% | 50°c - 55°c | |
| Safety specifications | ||
| Safety level | CSA C22.2 010.1:1992 | |
| Electromagnetic compatibility (EMC) | en50082 - 1:20 92和en55022:1994 | |
| Mechanical and general specifications | ||
| Size | 96 x 200 x 47 mm | |
| The weight of | 650 g | |
| Battery | 四节 AA 硷性Battery | |
| Warranty period | Three years | |
| Battery寿命 | Usually 25 hours | |
| Shock and vibration | Randomness,2 G,5-500 Hz | |
