Resistance Measuring range

100k Ω～5TΩ

Resistance Test accuracy

Voltage < 10V and I > 10nA ±2percent Voltage < 10V and I ≤ 10nA ±5percent

Current Test range

Range: 1:100uA ~ 1mA, input 10kΩ range: 2:10 uA ~ 100 UA, input 10kΩ range: 3:1 ua ~ 10 ua, input 10kΩ range: 4:100 NA ~ 1 ua, input 10kΩ range: For 10nA to 100 NA, the input internal resistance is 1 Mω. The range is 6:1 nA to 10 NA, the input internal resistance is 1 Mω

Voltage Test The scope of

1V ～500V

Voltage Test Precision

Voltage≥10V时,±1%+1VVoltage＜10V时,±10%+0.1V

Current限制

10mA

Switch

Open or close manually on the front panel, or through the built-in timer control or remote control

Charge time

0 ~ 999s, programmable

Measurement delay

0 ~ 999s, programmable

Test速度

Fast: single measurement time ≤30ms Slow: single measurement time ≤60ms

Comparator function

四档：三档合格,一档不合格

Range mode

Automatic, keep

Memory

Inside the instrument, outside the U disk

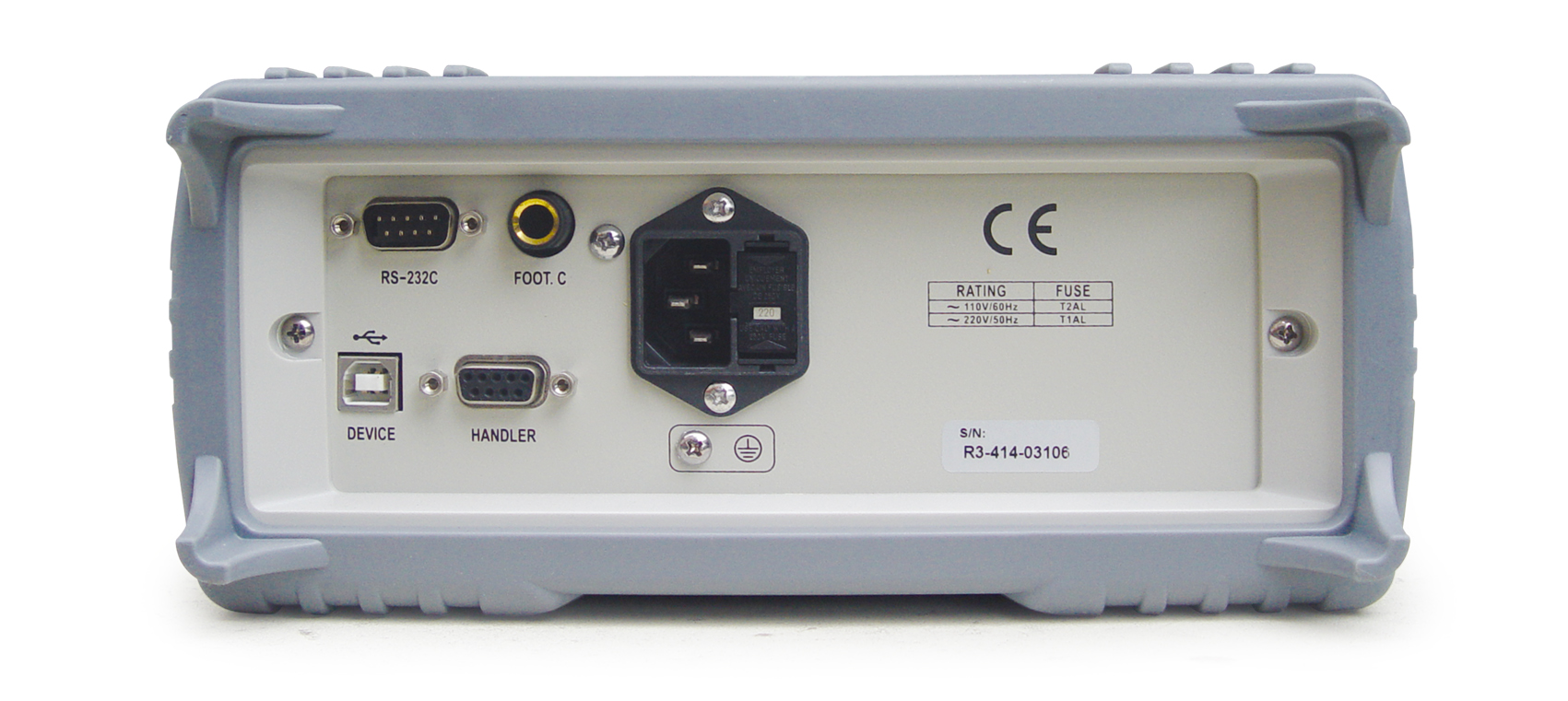

Standard interface

RS232C ,USB HOST,USB DEVICE,HANDLER

一般Technical parameters

Working temperature and humidity

10 ℃～40℃,≤90%RH

Power requirements

90 ~121V AC(60Hz)或198~242V AC(50Hz)——

Power consumption

＜50VA

Volume (mm)

235mmX104mmX360mm( Including coat size)

The weight of

About 3.6kg
