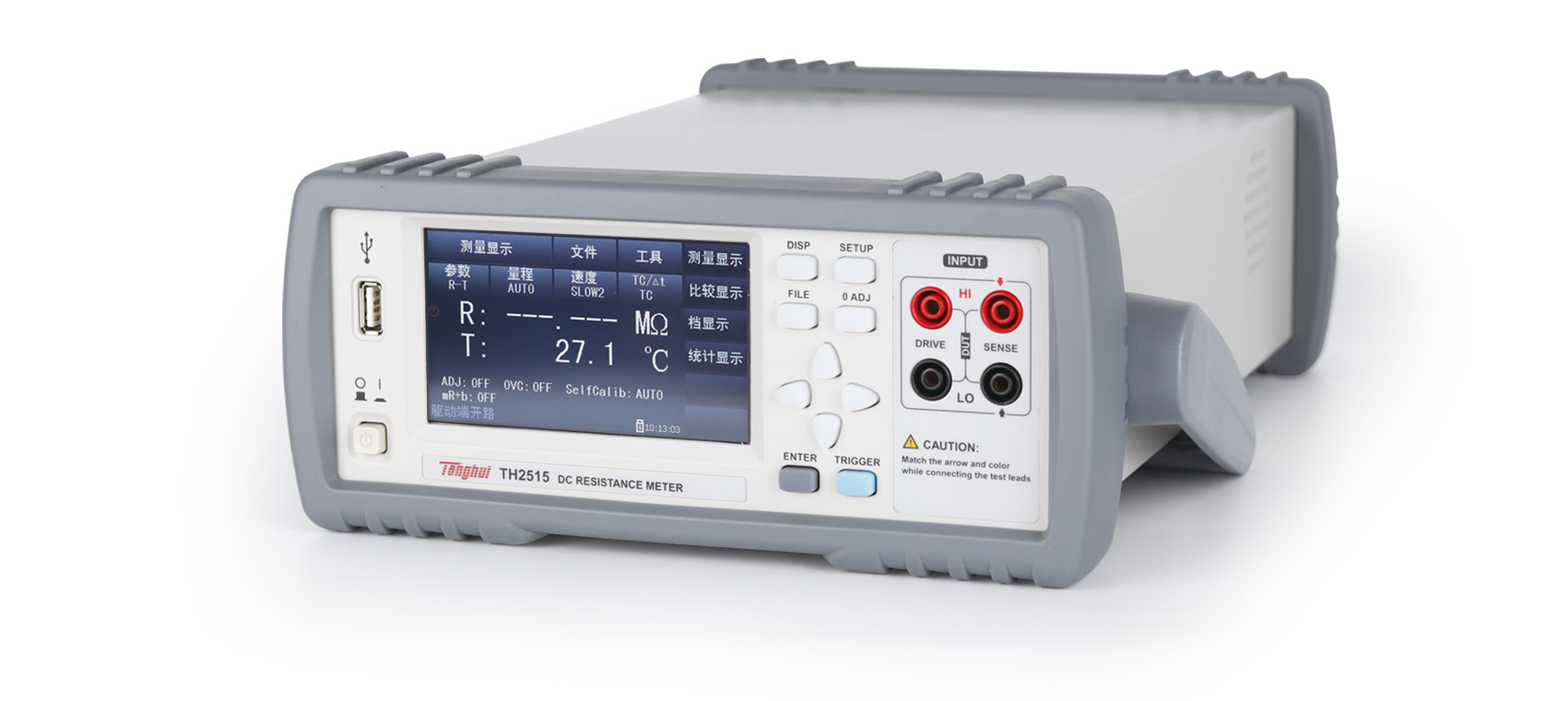

The monitor

24 Bit色;Resolution为400 X 272的RGB真彩色TFT LCDThe monitor带触屏功能

Number of reading digits

5½ Bit

Measuring range

0.1μΩ --110MΩ

Resistance range

Current

Resolution

Accuracy Rdpercent FSpercent

20 mΩ

1A

0.1μΩ

0.10+0.025

200mΩ

1μΩ

0.35+0.030

2Ω

100mA

10μΩ

0.035+0.010

20Ω

10mA

100μΩ

0.025+0.008

200Ω

1mΩ

0.01+0.002

2kΩ

1mA

10mΩ

0.01+0.002

20kΩ

100μA

100mΩ

0.01+0.002

100kΩ

1Ω

0.01+0.005

1MΩ

10μA

10Ω

0.02+0.005

10MΩ

1μA

100Ω

0.1+0.010

100MΩ

100nA

1kΩ

1+0.1

Measuring function

Resistance measurement time

FAST : 7ms; MED: 22ms; SLOW1:102ms; SLOW2:402ms is DISY OFF, and an additional 20ms.-- is added when DISY ON

Temperature measurement time

100 ± 10ms

Test end configuration

Four ends

Measuring average Settings

1-255

Clear "0"

√

Range switching

Automatic, manual

Trigger mode

Internal, manual, external, Bus

Power frequency selection

√ (Avoid power supply noise interference)

The measurement setting parameters are saved

30 Group

Low voltage measurement

Open circuit voltage: ≤ 60mV Effective range: 2Ω, 20Ω, 200Ω, 2kΩ

Thermoelectric potential elimination

√

Statistical function

Mean value, maximum value, minimum value, total standard deviation, sampling standard deviation, engineering capability index (dispersity Cp, bias CpK)

Measurement anomaly detection

√ Check whether the measuring line is connected properly

Multipole connector

√ (Optional high resistance test noise suppression function)

Beep Working status

Comparator, file comparison, button

Key lock

√

Temperature measurement

Temperature measurement1

-10.0 ℃ --99.9 ℃ Sensor: PT500

Temperature measurement2

Analog input: 0V--2V disy: -99.9 ℃ - 250 ℃

Temperature compensation function

(Resistance value when the measured value is converted to the set temperature)

Temperature conversion function

(The temperature rise is obtained from the resistance measured before and after heating)

Compare and distinguish

Comparator

Signal output

HI/IN/LO

Ring

Chirping mode: OFF,IN,HI/LO

Limit setting mode

Upper/lower limits of absolute value, nominal values of upper and lower limits of percentage

Sorting

10 D, absolute value/percent

External trigger delay time

Automatic: By range, low voltage mode ON/OFF,OVC(offset voltage compensation)ON/OFF decision manual: 0.000--9.999s

External input trigger

Rising edge/falling edge Optional

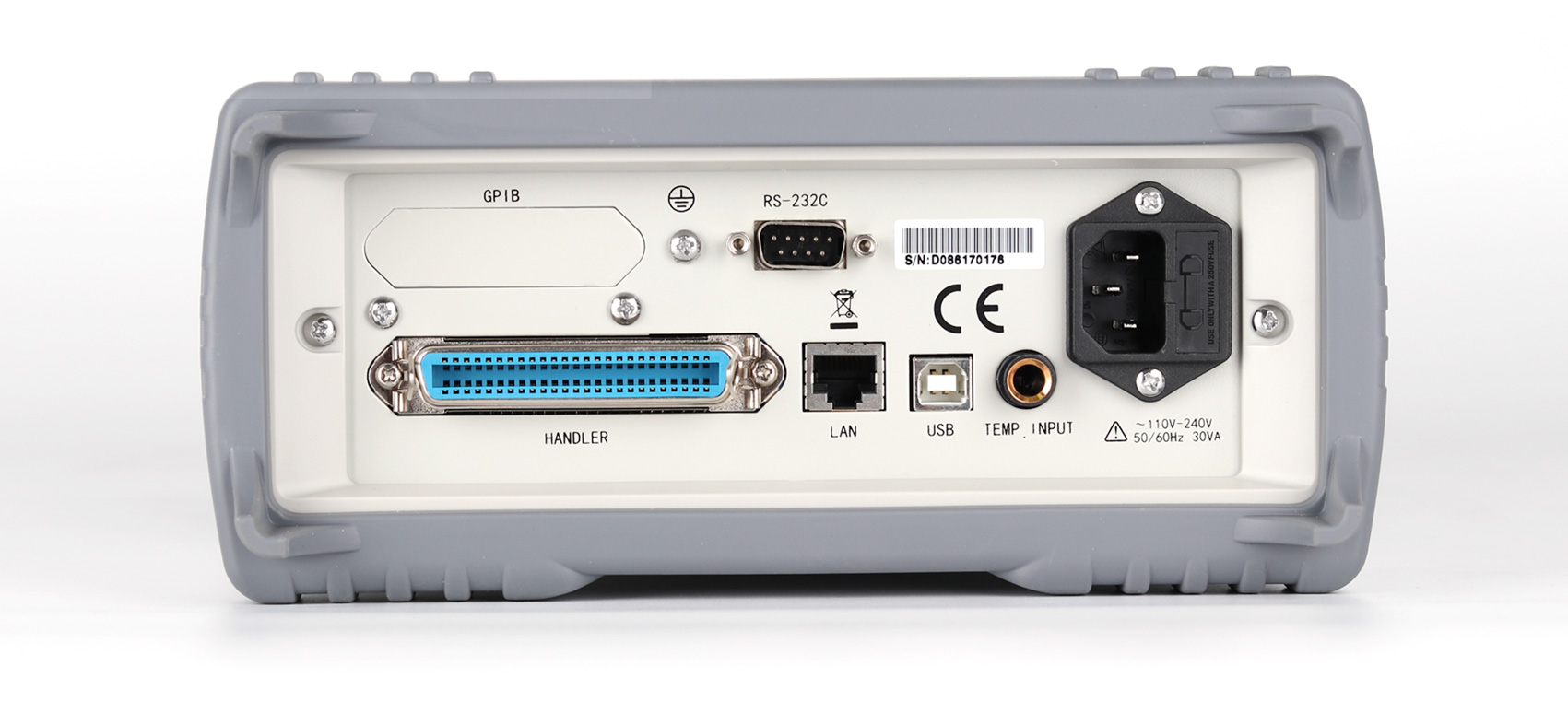

Interface configuration

USB DEVICE 、USB HOST 、RS232、LAN、HANDLE R、GPIB（OPTION）

General technical index

Temperature, humidity

0 ℃ -- 40 ℃ ,≤ 90%RH

Ensure the accuracy of temperature and humidity

23±5 ℃ ≤80%RH

Power supply Power

Voltage

110V~220V

Frequency

50Hz/60Hz

Power consumption

30 VA

Size

215mm×87mm×335mm （净Size） 235mm×105mm×360mm（加护套后）

The weight of

About 3.6kg
