Technical parameters

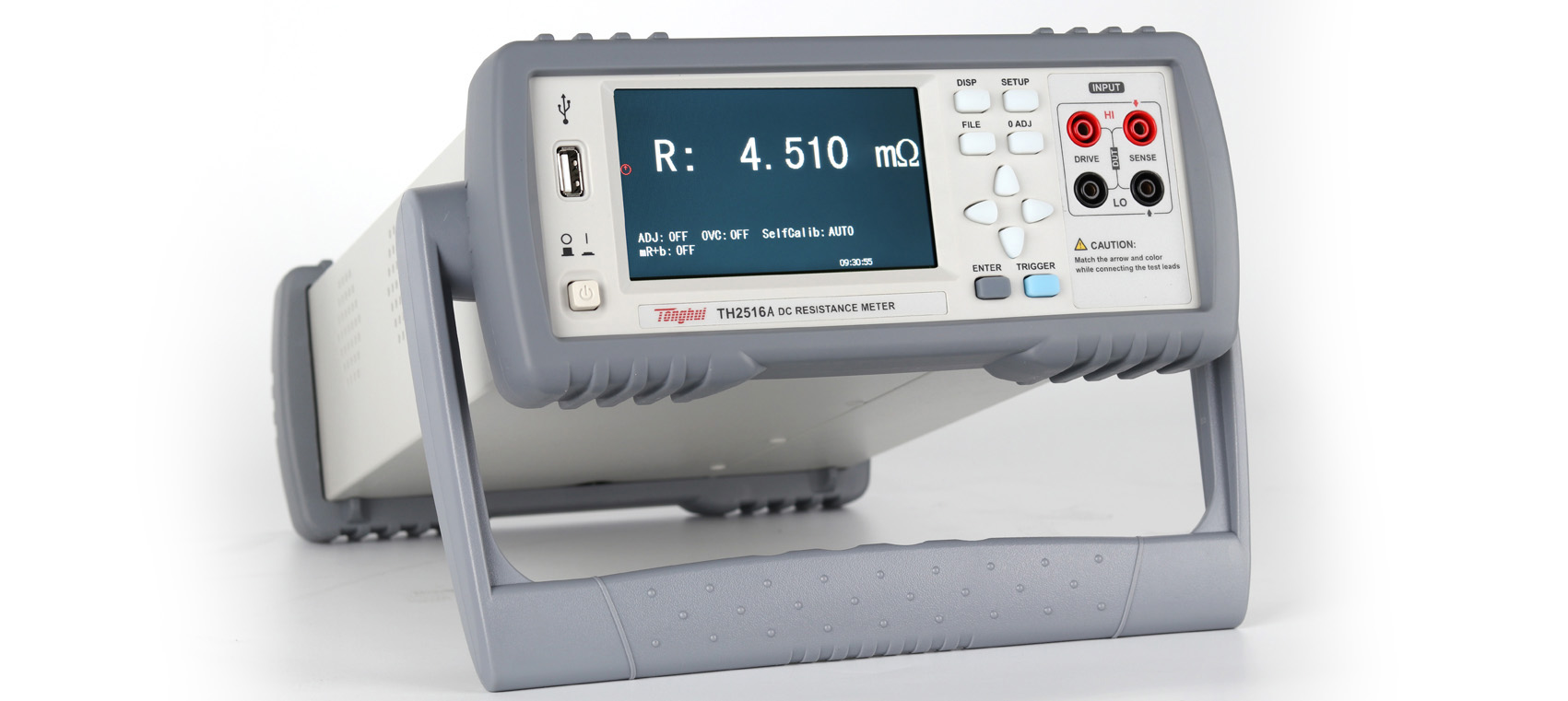

Product model TH2516 TH2516A TH2516B The monitor 24-bit color; The resolution is 480 X 272 RGB true color TFT LCDThe monitor带触屏功能 Number of reading digits 4 ½ Bit Measuring range
1 μΩ - 2M Ω
10 μΩ - 200kΩ
1 μΩ
- 20kΩ
Resistance range
20m Ω
(TH2516A None)
200m Ω
2 Ω
20 Ω
200 Ω
2kΩ
20kΩ
200kΩ
(TH2516B None)
2M Ω
(TH2516A/B None)
Current
1A
(TH2516A None)
1A
100mA
10mA
1mA
100 μA
10 μA (TH2516B None)
1 μA
(TH2516A/B None)
Basic measurement accuracy
0.1%
0.05%
0.2%
Resistance measurement time
FAST：10ms;MED：25ms;SLOW1：115ms;SLOW2：455ms
Temperature measurement time
100 ± 10ms
------
Test end configuration
Four ends
Low voltage measurement
Open circuit voltage: ≤ 40mV Effective range: 2 Ω , 20 Ω , 200 Ω , 2kΩ
------
Thermoelectric potential elimination
√
------
Statistical function
Mean value, maximum value, minimum value, total standard deviation, sampling standard deviation, engineering capability index (dispersity Cp, bias CpK)
The measurement setting parameters are saved
Thirty groups of
Temperature measurement
Sensor: PT500 -10.0℃ - 99.9℃;
Analog input: 0V - 2V
Disy: -99℃-250℃
------
Other functions
Temperature compensation function, temperature conversion function
------
------
Comparator
Signal output
HI/IN/LO
Ring
Song mode: OFF ,IN ,HI/LO
Limit setting mode
Grade 3, absolute value upper/lower limit, percentage upper/lower limit nominal value

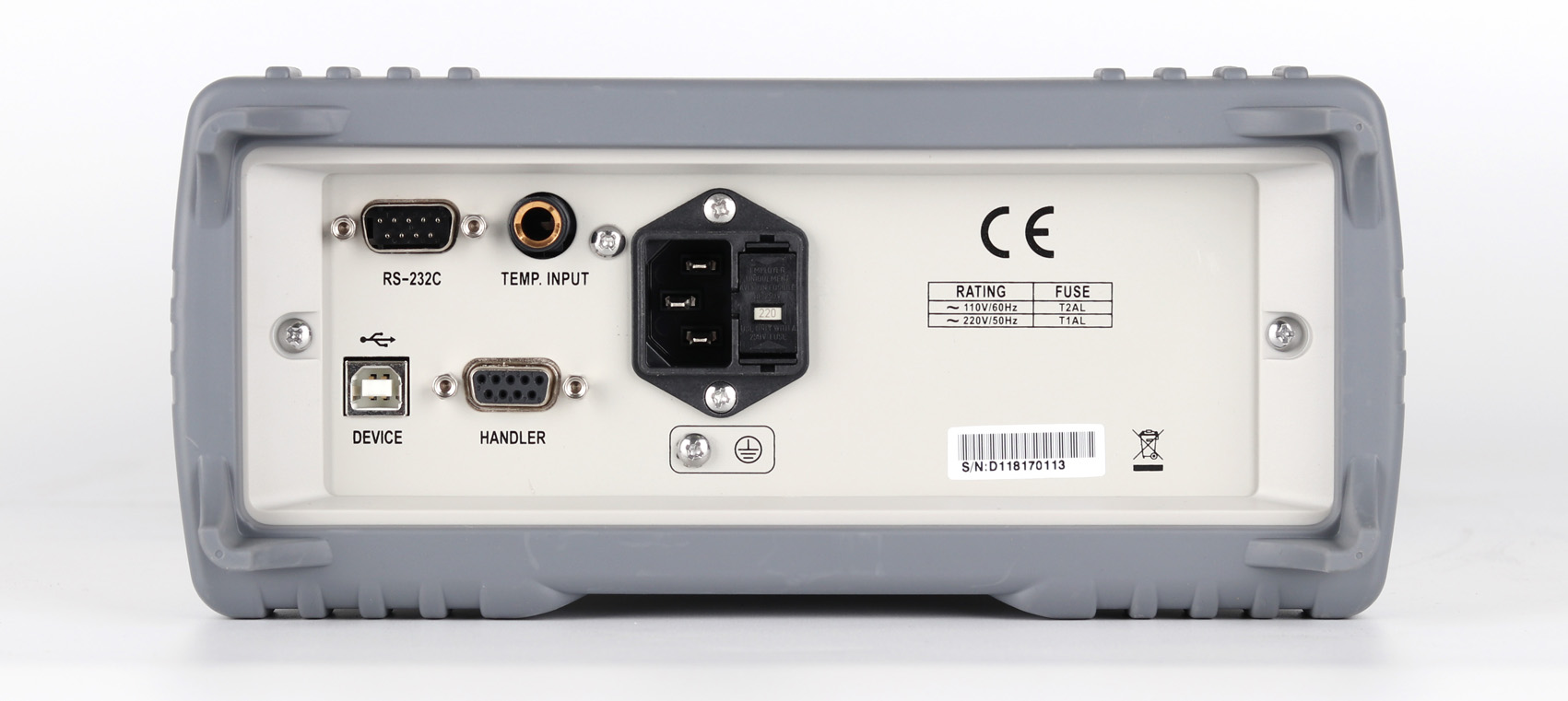

Interface configuration
USB DEVICE、USB HOST、RS232、HANDLER
Attachment
| Standard configuration | |||||
| Part name | Model number |
|
|
|
|
| Four ends测试电缆 | TH26050S |
|
|
|
|
| Optional | |||||
| Part name | Model number |
|
|
|
|
