Application field

It is used to quickly and accurately locate the ground fault point after the power failure of the faulty line. In this way, the device can quickly locate the ground fault in case of a fault. Reduce the labor intensity of line maintenance personnel, save time and effort, improve work efficiency, power supply reliability and economic benefits of electric power enterprises

Product features

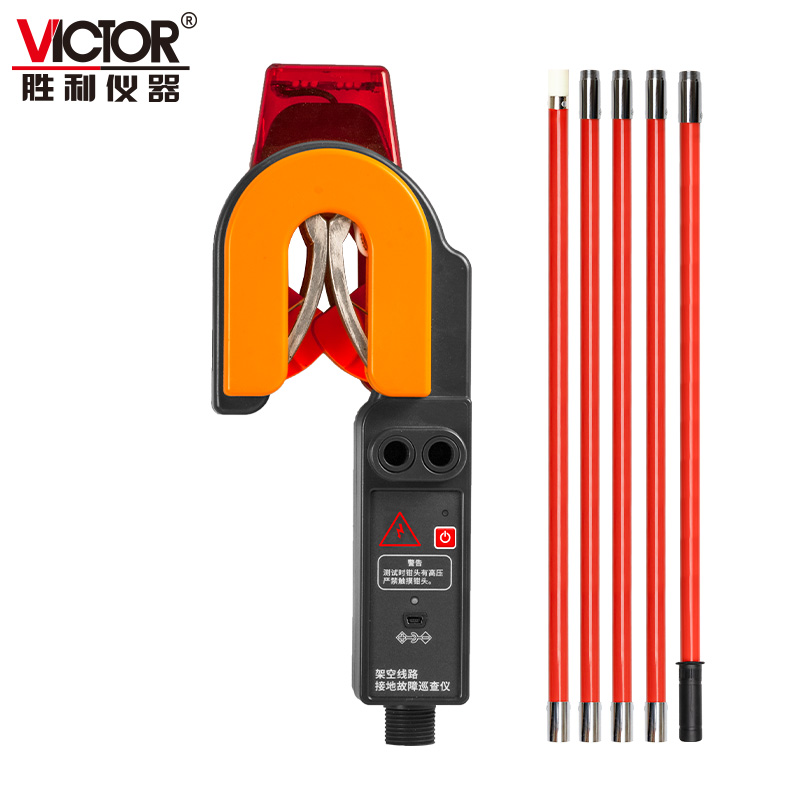

1.创新的集成式检测钳集信号发射、采集于一体,Pincer shape结构,挂接方便,一次挂装即可完成线路故障测试,无需分两处进行输出信号和采集信号操作,也无需断开 PT, easy to test Fast, reduce the operation personnel, improve the work efficiency

2. The detection clamp is equipped with non-contact electroscope. If the line under test is live, the light alarm will be issued, and the master will broadcast the voice prompt to ensure the safety of the operator and the equipment

3.特别适合有电缆分支的故障线路.短路检测能力强,可检测接地电阻为 Direct short circuit fault of 0Ω.

4.Output voltage高达 8000V, there are 8000V and 3000V two options to meet the different needs of users

5. Large capacity rechargeable battery, full charge can complete the whole line inspection work

6 detection speed is fast, after a few seconds to get the test results

The fault of the 7.7 inch color screen is clear

8. Voice broadcast function, prompt fault direction.

9.具有Bluetooth通讯Function,通讯距离可达 40m, after downloading the APP, you can test and check the test results on your mobile phone , do handheld receiver use.

Test principle

After the overhead line is out of service, the host outputs low-frequency and high-voltage signals. Ac voltage signals are respectively applied to the line through the transmitting pliers on the left and right sides of the detection clamp, and the high-sensitive current transformer in the middle of the detection clamp detects the current amplitude and phase on both sides. The current passes through the host, the detection clamp, flows through the fault line, enters the ground at the ground fault point and returns to the host through the ground pin

The output of the instrument is a high-voltage AC signal, and the distributed capacitance and fault ground resistance constitute RC parallel circuit, by detecting the voltage and current signals on both sides of the line and the phase between voltage and current, judge whether the current load is capacitive or inductive, and then by comparing the size of the pure resistive impedance on the left and the right side, so as to determine whether the ground fault point is located on the left or the right side. Along the line, the detection pliers are connected to the line in turn, and the hand-held receiver indicates the direction of the fault point, so as to gradually approach the fault point

Host test interface

7 inch color screen, clear disy: fault indication direction, field test parameters, historical test records, battery power, communication, operation methods

Bluetooth APP test interface

Technical index
