技术参数
型号
TH6402A
TH6402B
TH6402

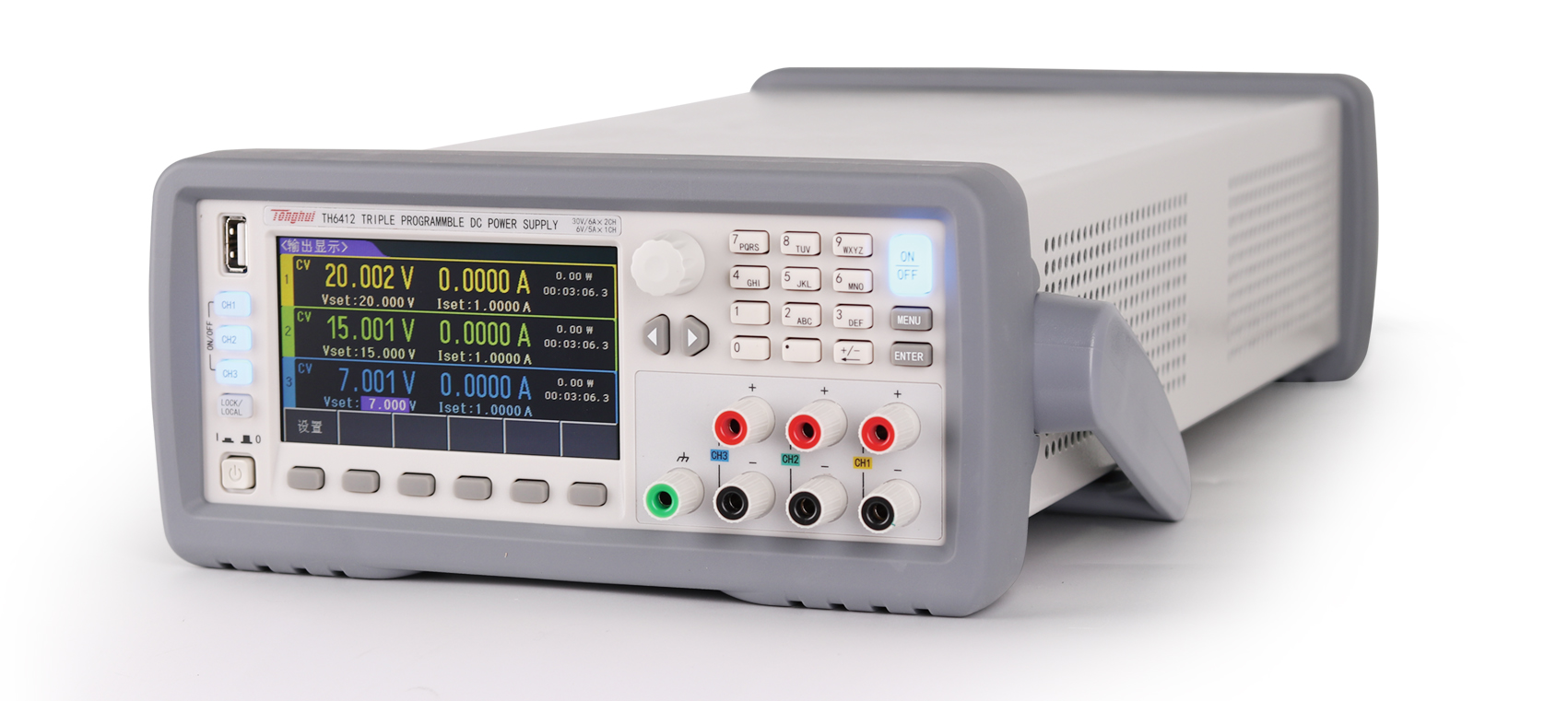

TH6412
TH6413
额定输出(0℃-40℃)
通道/范围
CH1
CH2
CH3
CH1
CH2
CH3
CH4
CH1
CH2
CH3
CH1
CH2
CH3
CH1
CH2
CH3
电压
0-30V
0-5V
0-30V
0-10V
0-5V
0-30V
0-6V
0-30V
0-6V
0-60V
0-6V
电流
0-3A
0-3A
0-1A
0-3A
0-5A
0-6A
0-5A
0-3A
0-5A
功率
90W
15W
90W
30W
5W
90W
30W
180W
30W
180W
30W
负载调整率
电压
≤0.01%+3mV
电流
≤0.1%+3mA
≤0.01%+3mA
电源调整率
电压
≤0.01%+3mV
电流
≤0.1%+3mA
≤0.01%+3mA
设定值分辨率
电压
10mV
1mV
电流
1mA
0.1mA
回读分辨率
电压
10mV
1mV
电流
1mA
0.1mA
设定值精度
(25℃±5℃)
电压
≤0.05%+20mV
≤0.1%+20mV
≤0.03%+10mV
电流
≤0.2%+5mA
≤0.2%+5mA
≤0.1%+5mA
≤0.1%+8mA
≤0.1%+5mA
≤0.1%+5mA
回读值精度
(25℃±5℃)
电压
≤0.05%+20mV
≤0.1%+20mV
≤0.03%+10mV
电流
≤0.2%+5mA
≤0.2%+5mA
≤0.1%+5mA
≤0.1%+8mA
≤0.1%+5mA
≤0.1%+5mA
纹波和噪声(20Hz-20MHz)
电压(Vp-p)
≤3mVp-p
≤3mVp-p
≤3mVp-p
≤4mVp-p
≤4mVp-p
≤4mVp-p
电压（rms）
≤1mVrms
≤1mVrms
≤1mVrms
≤1mVrms
≤1mVrms
电流
≤3mArms
≤3mArms
≤3mArms
≤5mArms
≤5mArms
≤4mArms
≤5mArms
串联同步误差
≤0.02%+5mA
≤0.2%+10mA
≤0.05%+10mA
并联设定值精度
电压
≤0.02%+5mV
≤0.02%+10mV
≤0.02%+5mV
≤0.02%+5mV
≤0.02% + 10mV
电流
≤0.1%+20mA
≤0.2%+20mA
≤0.1%+20mA
≤0.1%+30mA
≤0.1%+30mA
记忆
回调储存
40组设定文件/通道定时器
功能
定时关闭输出
时间设置
0.1秒～99999.9秒
解析度
0.1秒
工作温度
0℃～40℃
附件
| 标配 | |||||
| 配件名称 | 型号 | ||||
| 两端测试线 | TH26004C | ||||
| 选配 | |||||
| 配件名称 | 型号 | ||||
| 大电流测试线缆 | TH26035D | ||||
| 大电流测试线缆 | TH26035E | ||||
